Why Can One Mainboard Drive Different Sizes of TFT Displays?

Many people assume that once the display size changes, the mainboard must also change.

At first glance, that sounds reasonable.

A 4.3" TFT, a 7" display, and a 10.1" panel look like completely different products. Their resolutions are different. Power consumption changes. FPC layouts vary. Even the mechanical structures are often unrelated.

But in industrial display projects, it is actually quite common for one hardware platform to support multiple display sizes.

Because for the mainboard, physical size is usually not the most important factor.

The Mainboard Does Not Actually Care Whether the Display Is 5" or 10.1"

This is one of the most misunderstood parts of TFT integration.

A mainboard is not really “driving a 7-inch screen.”

What it actually does is continuously output image signals:

• RGB data

• HSYNC

• VSYNC

• DE

• Clock

The display then receives and reconstructs those signals according to its timing requirements.

From the mainboard’s perspective, the display is simply a device receiving image data.

As long as:

• the interface is compatible,

• timing can be supported,

• and voltage logic matches,

different display sizes may still work on the same hardware platform.

That is the real reason why one mainboard can sometimes support multiple TFT LCD sizes.

What Actually Determines TFT Display Compatibility?

In practice, compatibility is usually determined by:

• interface type

• resolution

• timing parameters

• voltage

• pin definition

• backlight architecture

• driver initialization

This is why two displays with the same physical size may still require different hardware support, while displays with different sizes can sometimes share the same platform.

Size alone does not define compatibility.

Why RGB Interfaces Are Commonly Used in Multi-Size Display Platforms

RGB remains a common solution in industrial display systems because many MCU and embedded ARM platforms already support RGB output natively.

If manufacturers standardize:

• RGB 50PIN layout

• voltage logic

• backlight interface

• FPC mapping

then multiple TFT sizes can potentially share the same motherboard architecture.

For example:

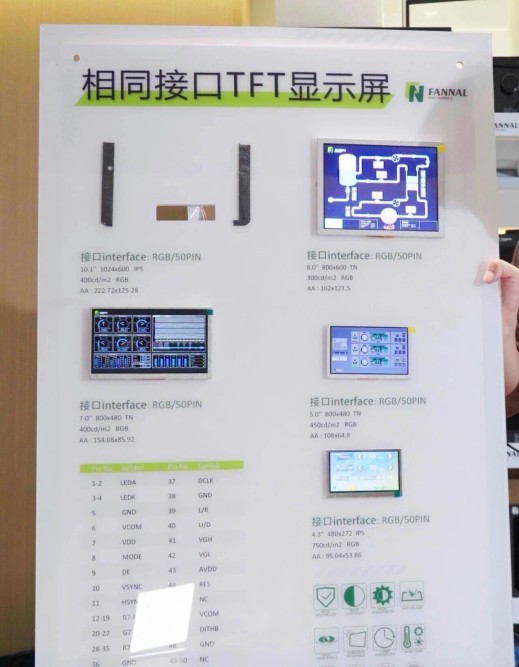

• 4.3" 480×272 IPS

• 5" 800×480

• 7" 800×480

• 8" 800×600

• 10.1" 1024×600 IPS

may all be adapted into the same RGB 50PIN interface ecosystem.

That does not eliminate all engineering work, but it can significantly reduce redevelopment effort.

Why Industrial Customers Care About Interface Standardization

In industrial environments, the display itself is often not the expensive part.

The real cost usually comes later:

• software adaptation

• EMC validation

• power verification

• structural redesign

• certification testing

• long-term maintenance

Once the mainboard changes, many connected systems may also need revalidation.

This is why many industrial OEMs now prioritize reusable display platforms rather than isolated single-size designs.

A Unified Connector Does Not Mean Everything Becomes Plug-and-Play

This is where real projects become more complicated.

Even when displays share the same RGB connector, they may still differ in:

• timing requirements

• pixel clock

• backlight current

• EMI behavior

• initialization sequence

Higher resolutions also increase bandwidth requirements.

A controller that runs a 480×272 display smoothly may struggle with a 1024×600 UI, especially in systems already handling communication protocols, data acquisition, or camera input simultaneously.

In real industrial systems:

“Can display an image.”
and
“Can remain stable long-term.”

They are often very different engineering targets.

Larger Displays Usually Create More Than Just Mechanical Changes

A larger TFT is not simply a scaled-up version of a smaller one.

In many cases, larger displays also introduce:

• higher backlight power consumption

• more heat generation

• increased EMI risk

• additional power supply stress

• longer signal routing challenges

These problems often appear later during reliability testing rather than during initial bring-up.

Especially in outdoor applications or high-brightness systems, thermal and electrical margins become much more important than connector compatibility itself.

Why This Matters More in Industrial Equipment Than Consumer Electronics

Consumer devices are replaced quickly.

Industrial equipment is not.

Many industrial systems remain in service for years, sometimes over a decade. During that time:

• displays may become obsolete,

• products may receive upgraded versions,

• or customers may request multiple screen size variants.

A standardized display interface makes those transitions significantly easier.

That is why interface standardization has become increasingly important in industrial HMI systems, medical devices, and embedded equipment platforms.

FAQ

Why do some displays flicker even when the connector is compatible?

In many cases, the issue is related to timing mismatch or unstable clock signals rather than the connector itself.

Signal integrity problems become more visible as cable length or resolution increases.

Can the same RGB interface support both TN and IPS panels?

Yes, but display quality and viewing behavior will still differ significantly.

The interface only handles signal transmission. Panel technology still affects viewing angle, contrast, and color consistency.

Why do larger TFT displays often require stronger power design?

Because larger panels usually use more backlight LEDs, which increases current demand and thermal load, especially in high-brightness industrial applications.

Is display compatibility mainly a hardware problem?

Not entirely.

In many embedded systems, software timing configuration and driver initialization are just as important as the electrical connection itself.

Why do industrial customers prefer platform-based display designs?

Because redesigning a certified industrial platform is usually far more expensive than replacing the display itself.

Reducing redevelopment work is often more valuable than reducing panel cost.
