If you have been following display technology trends, you have probably heard Mini LED mentioned more often in recent years.

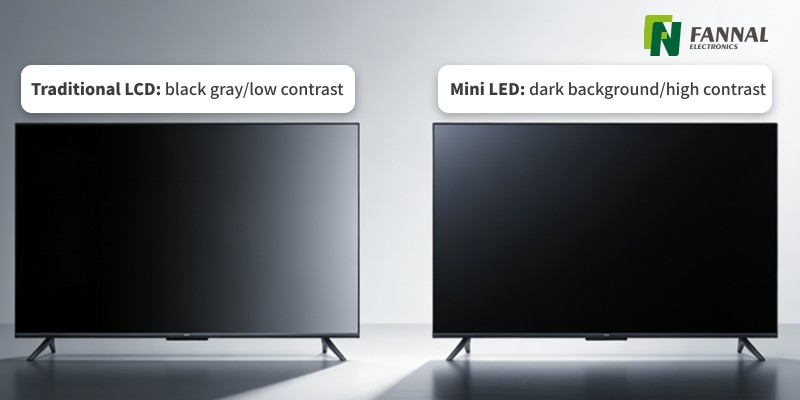

One of the most noticeable differences is contrast. Dark areas on a Mini LED display can appear much deeper than on a conventional LCD, while bright areas can remain extremely bright.
But Mini LED does not change the basic principle of an LCD. The key difference is how the backlight is controlled.
This article explains how Mini LED backlighting works, why it improves black levels and contrast, and where it can make a practical difference in industrial display applications.
Why Does Mini LED Produce Deeper Blacks?
The answer is local dimming.
A conventional LCD uses a backlight behind the liquid crystal panel. Depending on the backlight architecture, large portions of the display may remain illuminated even when the image contains dark content.
The LCD layer can block most of that light, but it cannot eliminate all of it. Some light leakage remains, which can make black areas appear slightly gray.
Mini LED uses a large number of much smaller LEDs arranged into independently controlled dimming zones.
When an image contains both bright and dark areas, the backlight can respond differently across those zones:
Bright zones remain highly illuminated.
Dark zones are dimmed significantly.
The LCD layer continues to control light transmission at the pixel level.
This combination produces higher perceived contrast and darker black areas than many conventional LCD backlight designs.
Mini LED does not create true pixel-level black like OLED. Its advantage comes from more precise backlight control.
Does an LCD Screen Create Light by Itself?
No.
An LCD panel does not generate its own light. The liquid crystal layer controls how much light passes through each pixel, while the backlight module provides the illumination.
A simplified LCD structure can be thought of as:
LED Backlight → Optical Films → Liquid Crystal Panel → Color Filter → Cover / Touch Layer
This is why backlight design has such a significant effect on LCD image quality.
Even with the same LCD panel, changing the backlight architecture can affect:
Black level
Contrast
Brightness
Uniformity
Power consumption
Thermal performance
For industrial displays, this becomes particularly important when the screen must remain readable under strong ambient light.
How Does Traditional LCD Backlighting Work?
Many conventional TFT LCDs use an LED backlight combined with optical components such as:
The optical system distributes light across the display so that the panel can maintain relatively uniform brightness.
This architecture is mature, widely available, and cost-effective.
The limitation is that the backlight may not be controlled precisely enough at the local image level.
When a black object is displayed against a dark background, the LCD attempts to block the backlight. However, some light can still pass through the panel.
As a result, the black area may appear more like dark gray than deep black.
What Is Local Dimming in Mini LED Displays?
Local dimming divides the backlight into multiple independently controlled zones.
This allows the display system to reduce backlight output where the image is dark while maintaining high output in bright areas.
For example, imagine a bright object against a mostly black background.
With a conventional backlight:
The backlight → illuminates a large area → LCD blocks light from dark pixels → some light leakage remains
With a Mini LED local-dimming system:
Bright zone → remains bright
Dark zones → dim significantly
The result is greater separation between highlights and shadows.
This is why Mini LED can improve:
Black level
Contrast
HDR performance
Perceived image depth
However, the actual result depends heavily on the number of dimming zones and the quality of the local-dimming algorithm.
A Mini LED display with relatively few zones may still show some blooming around bright objects on dark backgrounds.
Mini LED Is Still an LCD Technology
This distinction is important.
Mini LED is not a replacement for LCD as a panel technology.
It is primarily a backlight technology used with LCD panels.
A simplified comparison is:
Technology | How Light Is Produced |
Traditional LCD | LED backlight |
Mini LED LCD | Smaller LED backlight with local dimming |
OLED | Each pixel emits its own light |
This difference explains why Mini LED can achieve very high brightness while still retaining the characteristics of an LCD-based system.
OLED can turn individual pixels completely off, giving it an inherent advantage in black-level performance.
Mini LED instead improves LCD performance by making the backlight much more controllable.
Can Mini LED Displays Reach Higher Brightness?
Yes. High brightness is one of Mini LED's strongest advantages.
Because the backlight contains many LEDs, Mini LED systems can be designed for substantially higher luminance than many OLED displays.
Depending on the panel, optical design, thermal management, and target application, Mini LED displays can be designed for high-brightness applications, including outdoor and industrial systems.
Typical applications may include:
Outdoor kiosks
Industrial HMIs
EV charging terminals
Marine displays
Transportation equipment
Outdoor digital signage
However, brightness alone does not guarantee readability in sunlight.
Outdoor performance also depends on:
Ambient light
Surface reflectance
Anti-glare treatment
Optical bonding
Cover glass
Thermal management
Display contrast
For an industrial display, these factors should be evaluated as a complete optical system rather than by comparing the nits number alone.
Mini LED vs Traditional LCD vs OLED
Mini LED, traditional LCD, and OLED each have different strengths. The right choice depends on whether the priority is brightness, contrast, power consumption, lifetime, or cost.
Feature | Traditional LCD | Mini LED LCD | OLED |
Backlight | Conventional LED | Mini LED with local dimming | None |
Black Level | Moderate | Very deep | Pixel-level black |
Contrast | Standard | High | Very high |
Brightness Potential | Medium–High | Very high | Generally lower |
Local Dimming | Limited or none | Yes | Pixel-level |
Burn-in Consideration | None | None | Relevant for long-term static content |
Long-Term Industrial Use | Well established | Strong potential | Application dependent |
Cost | Lower | Medium–High | High |
Typical Applications | General industrial displays | High-brightness and premium industrial displays | Premium visual applications |
The table should be treated as a technology-level comparison, not a guarantee for every panel. Actual performance depends on the specific LCD, backlight, driver, thermal design, and optical stack.
Is Mini LED More Energy-Efficient Than Traditional LCD?
Not necessarily.
Mini LED can reduce unnecessary backlight output because dark areas can be dimmed. This can improve power efficiency in certain image conditions.
However, Mini LED systems also contain many LEDs and may operate at very high brightness. Their total power consumption depends on factors such as:
Therefore, it is better to describe Mini LED as offering more efficient control of backlight output, rather than automatically consuming less power than a conventional LCD.
For industrial applications, the actual power budget should be evaluated using the complete display module under representative operating conditions.
What Is the Difference Between Mini LED and OLED?
Both technologies can deliver excellent contrast, but they achieve it differently.
OLED
OLED is a self-emissive technology. Each pixel generates its own light, so individual pixels can be turned off completely.
This provides:
Excellent black levels
Very high contrast
Fast response
Thin display structures
However, long-term static content requires additional consideration because OLED pixels can experience differential aging and image retention.
Mini LED
Mini LED remains an LCD technology. Its improvement comes from using a much finer backlight structure with local dimming.
Its main advantages include:
Very high brightness potential
Strong contrast
No pixel-level OLED burn-in mechanism
Good suitability for high-brightness applications
Compatibility with established LCD manufacturing and integration
For industrial equipment operating for long periods, Mini LED can be attractive when high brightness and long-term static operation are more important than achieving absolute black.
Why Is Mini LED Becoming More Relevant to Industrial Displays?
Industrial displays often have requirements that differ from consumer products.
A machine interface, outdoor terminal, or vehicle display may need to operate for many hours while maintaining readable information under changing ambient conditions.
Important requirements can include:
High luminance
Strong contrast
Long operating life
Stable thermal performance
Reliable continuous operation
Sunlight readability
Controlled power consumption
Mini LED can address several of these requirements through more precise backlight control.
For example, a high-brightness industrial display can use local dimming to maintain strong highlights while reducing unnecessary backlight output in darker areas.
This can be particularly useful for applications such as:
Industrial HMIs
Outdoor kiosks
EV charging stations
Marine equipment
Transportation displays
High-end control systems
However, Mini LED should not be selected simply because it is a newer technology. If the application does not benefit from local dimming, high brightness, or improved contrast, a conventional industrial TFT LCD may provide a better cost-performance balance.
Is Mini LED Better Than Traditional LCD for Industrial Use?
It can be, but the answer depends on the application.
Mini LED is particularly attractive when the display needs a combination of high brightness and high contrast.
It can provide:
More precise backlight control
Deeper perceived blacks
Higher contrast
High brightness potential
Better HDR performance
Strong visual performance in demanding environments
Traditional LCD remains a practical choice when:
Display brightness requirements are moderate
Local dimming is unnecessary
Cost is a major constraint
The application uses relatively simple graphics
A mature, standard display architecture is preferred
In other words, Mini LED is not automatically a better LCD. It is a more advanced backlight architecture, and its value depends on whether the application can actually use its advantages.
What Should Engineers Evaluate When Selecting a Mini LED Display?
For an industrial project, looking only at the backlight technology is not enough.
A more useful evaluation should include the complete display system:
1. Brightness
Check the required luminance under the actual ambient-light conditions.
A display for an indoor control cabinet may not need the same brightness as an outdoor terminal.
2. Dimming Zones
The number and arrangement of local-dimming zones affect contrast and blooming performance.
More zones generally allow finer control, but they can also increase system complexity and cost.
3. Thermal Management
High brightness means higher heat generation.
The enclosure, backlight, driver electronics, and heat dissipation path should therefore be considered together.
4. Optical Stack
Cover glass, anti-glare treatment, optical bonding, and surface reflectance can have a major effect on outdoor readability.
A high-nit backlight cannot compensate for excessive surface reflection.
5. Operating Environment
For industrial applications, verify:
Operating temperature
Storage temperature
Vibration and shock requirements
Humidity
Dust and water protection
Continuous operating requirements
6. System Cost
Mini LED usually adds cost compared with a conventional LCD backlight.
The additional cost makes the most sense when high brightness, contrast, or local dimming provides a measurable benefit to the final product.
Conclusion
Mini LED improves conventional LCD performance mainly by changing how the backlight is controlled.
Instead of illuminating large areas uniformly, Mini LED uses many smaller LEDs and local-dimming zones to control different parts of the screen independently.
This can deliver:
But Mini LED is not automatically the best choice for every industrial display.
For a cost-sensitive embedded system, conventional TFT LCD may still be the more practical option. For outdoor, high-brightness, or visually demanding equipment, Mini LED can provide a meaningful advantage.
The right decision should ultimately be based on brightness, contrast, environment, thermal requirements, lifetime, integration complexity, and total system cost—not simply the display technology name.
FAQ
Is Mini LED the same as OLED?
No. Mini LED is an advanced LCD backlight technology, while OLED is a self-emissive display technology. Mini LED uses local dimming to improve LCD contrast, whereas OLED controls light at the individual pixel level.
Why does Mini LED have better black levels than traditional LCD?
Mini LED uses many independently controlled backlight zones. Dark areas can therefore be dimmed while bright areas remain illuminated. This reduces backlight leakage into dark portions of the image.
Can Mini LED achieve true black?
Not in the same way as OLED. Mini LED can produce very deep blacks through local dimming, but each dimming zone still controls multiple LCD pixels. Some residual light and blooming can therefore remain.
Is Mini LED suitable for outdoor industrial displays?
Yes, particularly when high brightness and strong contrast are required. However, outdoor readability also depends on optical bonding, anti-glare treatment, cover glass, surface reflectance, and thermal management.
Does Mini LED consume less power than a traditional LCD?
Not automatically. Local dimming can reduce backlight power in some content conditions, but total consumption depends on brightness, screen size, LED configuration, optical efficiency, and thermal design.
It depends on the application. Mini LED is easier to justify when the system requires high brightness, strong contrast, HDR, or precise backlight control. If these features are not important, a conventional industrial LCD may provide better overall cost efficiency.
