LCDs are now used in products ranging from industrial equipment and medical devices to vehicles, monitors, televisions, and embedded systems. But LCD technology did not appear as a finished product at a single point in history.
The development of the liquid crystal display took decades of research. It began with the discovery of liquid crystals in the 19th century, followed by research into their electro-optical properties, the development of early LCD prototypes, and eventually the engineering breakthroughs that made TFT LCDs practical for large-scale production.
So, who invented the LCD?
There is no single inventor of the modern LCD. Several researchers contributed important discoveries, while companies such as RCA and Sharp played major roles in turning liquid crystal research into practical display technology. Today, LCD technology continues to evolve rather than simply disappearing in favor of newer display technologies.
Who Invented the LCD?
The history of LCD technology starts with Friedrich Reinitzer, an Austrian botanist and chemist who studied cholesterol-related compounds.
In 1888, Reinitzer observed unusual behavior in a cholesterol derivative: the material had two distinct melting points and passed through a cloudy, intermediate state before becoming a clear liquid. This work helped establish the phenomenon that would later be known as liquid crystals.
However, Reinitzer did not invent the LCD itself. His discovery provided the material science foundation for later research.
More than 70 years later, researchers began investigating whether the optical properties of liquid crystals could be controlled electrically.
In the 1960s, researchers at RCA studied the electro-optical behavior of liquid crystals. In 1963, James Fergason and RCA researchers demonstrated important electrically controlled optical effects, and in 1968, George Heilmeier and his colleagues at RCA developed early liquid crystal display devices based on these properties.
This is why it is more accurate to describe LCD as the result of several technological developments rather than the invention of a single person.
Sharp then played an important role in commercializing the technology. In 1973, Sharp introduced the EL-805, a pocket calculator incorporating a practical LCD. Sharp describes it as the world's first product on the market to use LCD technology.
The path from liquid crystal discovery to practical LCDs therefore looked roughly like this:
1888 — Liquid crystals discovered
→ 1960s — Electro-optical behavior studied
→ 1968 — Early LCD prototypes developed
→ 1973 — LCD enters a commercial product
→ 1970s onward — TN, TFT and other technologies develop
→ Today — LCD is used across a wide range of industrial, automotive, medical and consumer applications
LCD Display History
1888: The Discovery of Liquid Crystals
The story begins in 1888 when Friedrich Reinitzer observed unusual phase transitions in cholesterol derivatives.
The material behaved differently from ordinary solids and liquids. This led to further research into a state of matter that combines characteristics of both.
At this stage, however, there was no display technology. Liquid crystals were a scientific subject rather than an electronic component.
1960s: Liquid Crystals Become an Electronic Display Technology
The key transition happened when researchers discovered that the optical behavior of liquid crystals could be influenced by electrical signals.
RCA researchers investigated these electro-optical effects, and by 1968 George Heilmeier's group had produced early LCD devices. These early displays were very different from the TFT LCD panels used today, but they demonstrated that liquid crystals could be used to control visible light.
This was a critical step because an LCD does not generate light itself. Instead, it controls how light passes through the display.
1970s: LCD Enters Commercial Products
During the 1970s, LCD technology began moving from laboratories into commercial products.
Sharp started researching LCD technology in 1970 and introduced the EL-805 LCD calculator in 1973. The calculator demonstrated one of the major advantages of LCD technology at the time: very low power consumption combined with a thin form factor.
Other researchers also contributed important developments during this period, including work on twisted-nematic liquid crystal structures and methods for controlling individual display elements.
1980s and 1990s: TFT and Color LCDs
The next major stage was the development of thin-film transistor (TFT) LCDs.
Instead of treating the display as a collection of relatively simple segments, TFT technology enabled individual pixels to be actively controlled through an array of thin-film transistors.
This made higher-resolution graphical displays practical.
During the 1980s and 1990s, improvements in TFT manufacturing, color filters, liquid crystal materials, backlights, and panel production enabled LCDs to move into computer monitors, televisions, portable electronics, and many other products.
The development of active-matrix TFT LCDs was particularly important because it provided a scalable architecture for larger and higher-resolution displays.
2000s: LCD Becomes Mainstream
By the 2000s, LCD had become a mainstream display technology.
LCD panels increasingly replaced CRT displays in computer monitors and televisions because they offered significant advantages in size, weight, power consumption, and scalability.
The technology also became increasingly diversified. Different liquid crystal modes, backlight configurations, TFT materials, and optical structures were developed for different performance requirements.
2010s–2020s: LCD Becomes More Specialized
LCD did not stop developing when OLED became commercially important.
Instead, LCD technology continued to improve in areas such as:
Modern LCD development is therefore less about replacing the basic concept and more about adapting the technology to increasingly demanding applications.
How Does an LCD Display Work?
An LCD does not produce light by itself.
A typical TFT LCD can be understood as a light-control system. A backlight provides illumination, while the liquid crystal layer controls how much of that light passes through each pixel.
A simplified LCD structure includes:
LED Backlight → Rear Polarizer → TFT Substrate → Liquid Crystal Layer → Color Filter → Front Polarizer
The exact construction varies between panel technologies, but the basic principle remains similar.
The liquid crystal layer changes its optical behavior when an electric field is applied. Combined with polarizers, this allows the display to control the amount of backlight reaching the viewer.
For a color LCD, each pixel is divided into subpixels, typically red, green, and blue. By controlling these subpixels at different levels, the display can reproduce different colors.
This also explains an important difference between LCD and OLED.
An LCD is not self-emissive. It needs a backlight.
An OLED, by contrast, generates light directly from its emissive pixels.
This difference affects the way the two technologies are designed and also contributes to differences in contrast, thickness, brightness, power consumption, lifetime, and manufacturing considerations.
How Has LCD Technology Evolved?
LCD is not one single technology. Several generations and architectures have been developed for different requirements.
TN LCD
Twisted Nematic (TN) was one of the important early liquid crystal display technologies.
TN displays became widely used because they offered relatively simple structures and economical manufacturing. They were particularly important in calculators, watches, instruments, and early electronic displays.
However, conventional TN displays generally have more limited viewing angles and color performance than many modern LCD technologies.
TFT LCD
TFT technology transformed LCD from a simple segmented display into a practical high-resolution graphical display.
In a TFT LCD, thin-film transistors control individual pixels or subpixels. This allows the display to support much higher resolutions and more complex images.
Modern industrial displays, monitors, automotive displays, and many other products are based on TFT LCD technology.
IPS and Other Advanced LCD Modes
IPS (In-Plane Switching) was developed to improve viewing-angle performance and image quality compared with earlier LCD structures.
Other technologies, including VA-based architectures, provide different combinations of contrast, viewing angle, response characteristics, and manufacturing considerations.
There is therefore no single LCD architecture that is best for every application.
LTPS TFT
Low-Temperature Polycrystalline Silicon (LTPS) provides higher electron mobility than conventional amorphous silicon TFTs.
This can support higher-resolution and higher-performance displays, as well as thinner panel designs and lower power consumption in some applications.
The trade-off is that LTPS manufacturing is more complex and generally more expensive than conventional a-Si TFT production.
In the automotive display market, LTPS LCD is currently gaining share as manufacturers seek higher performance while maintaining the advantages of LCD. A 2026 review notes that LTPS can provide higher resolution, luminance, and lower power consumption, although at a higher cost.
Oxide TFT
Oxide semiconductor TFTs are another development path.
Compared with conventional a-Si TFTs, oxide TFTs can offer higher electron mobility and support applications requiring higher resolution, variable refresh rates, or lower power consumption.
However, adoption depends not only on technical performance but also on manufacturing capacity, material availability, process maturity, and cost.
This is an important point when discussing the future of display technology: a technically attractive technology does not automatically become the dominant commercial technology.
What Is the Future of LCD Displays in 2026?
The future of LCD looks different from what many articles predicted a decade ago.
Rather than simply being replaced by OLED or another technology, LCD is continuing to develop in areas where its established manufacturing ecosystem, cost structure, reliability, and application flexibility remain valuable.
Several developments are particularly important.
One direction for LCD development is improving the TFT backplane.
Conventional a-Si TFT LCD remains important because of its mature manufacturing ecosystem and cost advantages. At the same time, LTPS and oxide TFT technologies are being used where higher performance is required.
In automotive displays, for example, a-Si remains widely used while LTPS is gaining share. The combination reflects an important industry trend: different TFT technologies can coexist because they address different performance and cost requirements.
This means the future of LCD is not necessarily about replacing one TFT architecture with another. Instead, panel manufacturers can select the backplane technology according to the required resolution, brightness, power consumption, form factor, and cost.
2. Mini-LED Backlighting
Another important development is Mini-LED backlighting.
Mini-LED does not replace the LCD panel itself. Instead, it changes the backlight architecture.
Traditional LCDs typically use LEDs arranged around or behind the panel. A Mini-LED system uses a much larger number of smaller LEDs and can support more precise local dimming.
This can improve:
Contrast
Black-level performance
HDR performance
Brightness control
Local dimming
Mini-LED also introduces trade-offs.
More LEDs mean more complex backlight driving, thermal management, optical design, and manufacturing. Therefore, Mini-LED is not simply a universal upgrade for every LCD application.
In automotive displays, Mini-LED LCD is already appearing in premium applications where improved contrast and display performance justify additional system complexity and cost.
3. LCD Is Becoming More Important in Automotive Applications
Automotive displays are one of the clearest examples of why LCD is not simply disappearing.
Vehicle displays need to operate under conditions that can be considerably more demanding than typical indoor consumer electronics.
Requirements can include:
These requirements make technology selection more complicated than simply choosing the display with the highest contrast.
A 2026 review of automotive display technology reports that LCD remains dominant in the automotive market, with a-Si TFT LCD still widely used and LTPS LCD gaining share.
More recent 2026 market data also shows how strong this position remains: LCD accounted for approximately 98.7% of automotive CID/DIC display demand in Q1 2026, while Mini-LED LCD and OLED remained much smaller segments.
That does not mean OLED or Mini-LED are unimportant. It shows that commercial adoption depends on application requirements, cost, manufacturing maturity, and product lifecycle—not only on display performance.
4. LCD Is Becoming More Integrated
Another important change is that a modern display is increasingly treated as a complete system rather than simply a panel.
A display assembly may combine:
TFT LCD
Capacitive touchscreen
Touch controller
Cover glass
FPC
Display interface
Optical bonding
Mechanical housing
Backlight system
Software and firmware

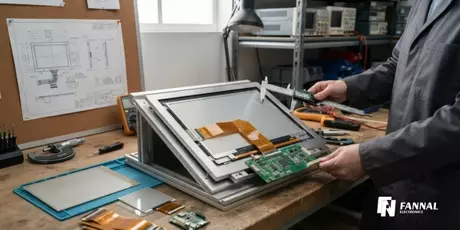

For an industrial machine, vehicle, medical device, or outdoor product, the display must fit the physical product and operate reliably in its actual environment.
This makes engineering integration increasingly important.
For example, increasing cover glass thickness may affect touch performance. Increasing brightness can increase power consumption and thermal load. Optical bonding can improve optical performance but adds process requirements and cost.
The future of LCD is therefore not only about the panel itself. It is also about how the display is engineered into the final product.
5. LCD, OLED and MicroLED Will Continue to Coexist
It is tempting to describe display technology as a simple sequence:
LCD → OLED → MicroLED
But real markets rarely develop in such a straightforward way.
OLED has clear advantages in areas such as black levels, contrast, thinness, and flexible display possibilities. Its adoption is growing in premium automotive and other applications.
MicroLED offers another attractive combination of high brightness, high contrast, long lifetime, and new form-factor possibilities. However, its manufacturing and commercialization challenges mean it remains an emerging technology rather than a universal LCD replacement.
LCD, meanwhile, continues to benefit from its mature manufacturing ecosystem, established supply chain, scalability, and broad range of available configurations.
The result is more likely to be coexistence than complete replacement.
Will LCD Be Replaced by OLED and MicroLED?
Not completely.
OLED and MicroLED will continue to expand into applications where their characteristics provide a meaningful advantage. But that does not mean every application will benefit from switching away from LCD.
For a product designer, the more useful question is not:
Which display technology is newest?
It is:
Which display technology best meets the requirements of the product?
In such cases, an LCD solution may still be the better engineering choice.
This is particularly relevant for industrial and automotive products, where a display may need to remain in production for years and operate under environmental conditions that differ significantly from those of consumer electronics.
Where Are LCD Displays Still Used Today?
LCD technology remains relevant across a wide range of applications.
Industrial Equipment
Industrial HMIs and control panels often require high brightness, wide temperature operation, reliable touch performance, and long product lifetimes.
Automotive
LCDs are widely used for instrument clusters, center information displays, infotainment systems, and other vehicle interfaces. Higher-performance configurations may combine LTPS TFT, local dimming, Mini-LED backlights, touchscreens, and optical bonding.
Medical Equipment
Medical displays can require stable image performance, reliable operation, high brightness, and carefully controlled optical characteristics.
Outdoor Equipment
Outdoor displays may need to address sunlight readability, water exposure, temperature extremes, gloves, and mechanical protection.
Embedded Systems
LCD modules are also widely integrated into machines, kiosks, test equipment, vending systems, transportation equipment, and other products where the display must fit a specific mechanical and electrical design.
These applications demonstrate why LCD development is increasingly application-specific.
A display designed for a consumer monitor does not automatically make a good display for an excavator, medical device, industrial controller, or outdoor machine.
The Future of LCD Depends on the Application
LCD has been developing for more than half a century as a practical display technology, and its foundations go back even further to the discovery of liquid crystals in 1888.
Its future is unlikely to be defined by one technology simply replacing another.
Instead, LCD, OLED, Mini-LED and MicroLED will continue to develop for different combinations of performance, cost, reliability, power consumption, form factor, environmental requirements, and manufacturing maturity.
For LCD specifically, important development areas include higher-performance TFT backplanes, Mini-LED backlighting, larger and more integrated automotive displays, and application-specific solutions for industrial and other demanding environments.
The most important change may therefore be how LCD is selected and engineered.
A modern display project is not simply about choosing a panel with a particular size and resolution. The final solution may involve the TFT panel, touch technology, cover glass, FPC, controller, backlight, optical bonding, mechanical structure, environmental requirements, and system interface.
The future of LCD is therefore not simply about making the display newer. It is about making the display better suited to the application.
