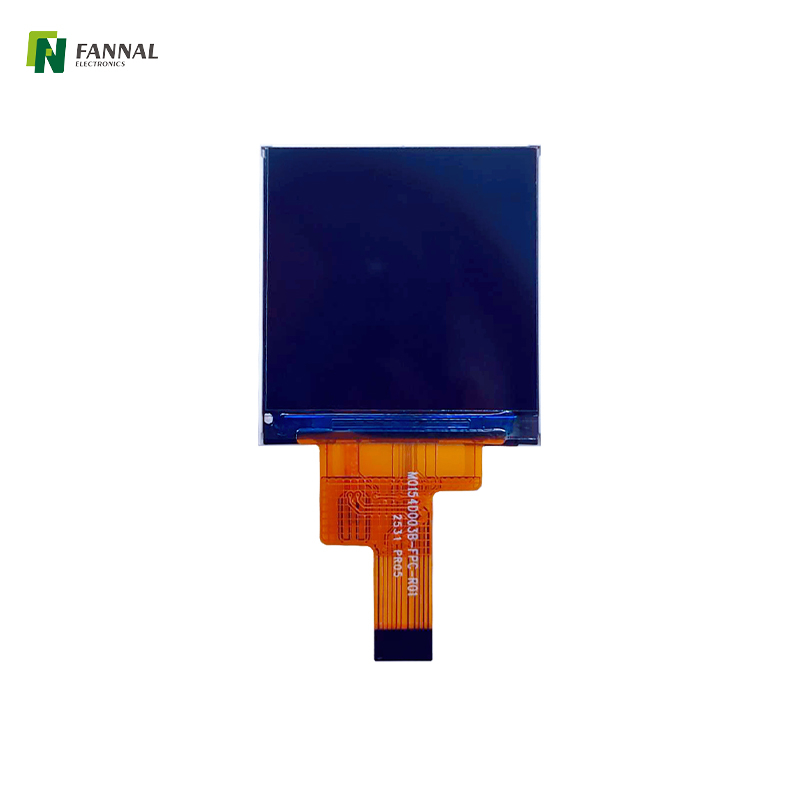

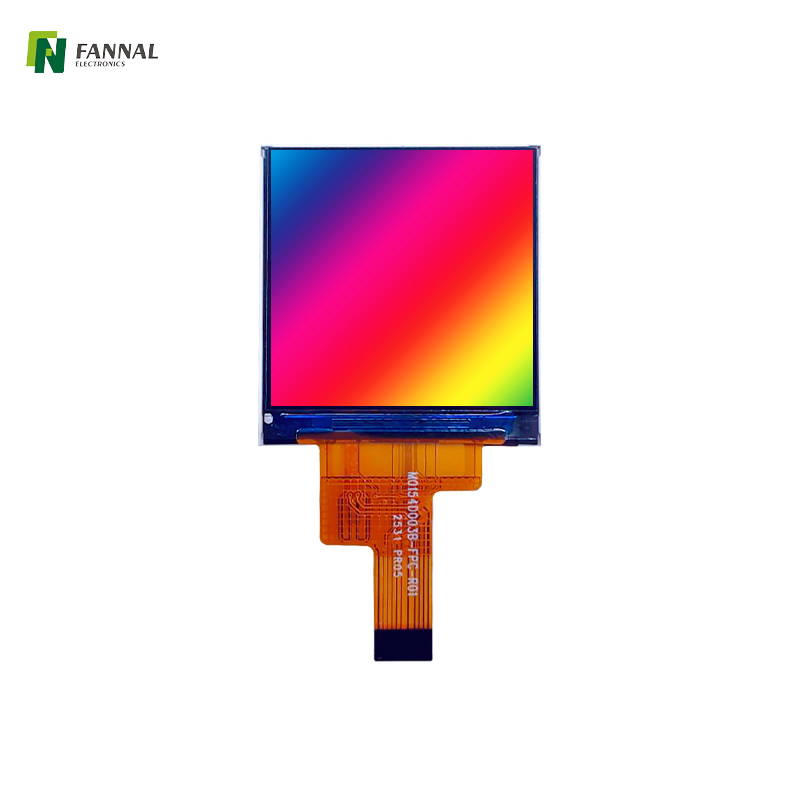

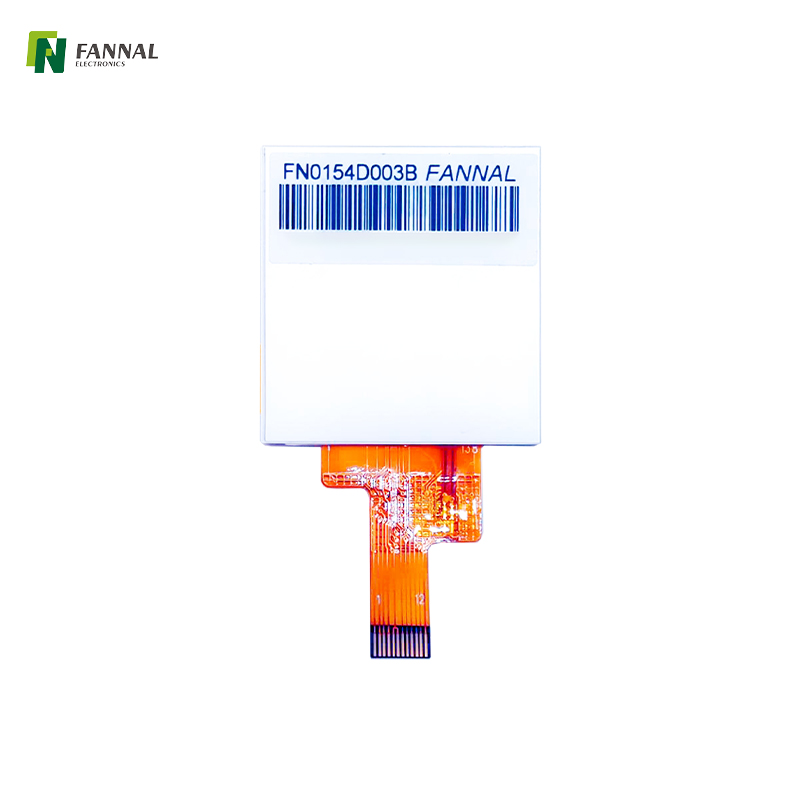

1.54-inch LCD Display Module High-performance Display Solution

1.54-inch LCD Display Module High-performance Display Solution | Small Size

Model:
FN0154D003B
Size(inch):
1.54
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
240×240
Direction:
ALL
Interface:
SPI
Brightness(cd/m²):
450
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

1.54 inch TFT display Industrial TFT Displays buy display screen

Product Features

Drawing & Specifications

Product Application

Customizations

FAQ

详情页IPS工控

Transform Your Product with Our Advanced 1.54-inch LCD Display Module

Looking for a compact, high-performance small-size display solution? Our 1.54-inch LCD Display Module is the perfect fit for your next innovation. Designed for precision and clarity, it’s the ultimate choice for professionals who demand excellence. Whether you're building cutting-edge devices or upgrading existing systems, this display delivers on every front.

Why Choose This?

Proven Performance: Trusted by top-tier manufacturers across industries.
Easy Integration: SPI interface ensures seamless compatibility with your system.
Customer Success Stories: "We integrated this module into our device, and the results were spectacular! The brightness and clarity exceeded our expectations." – Satisfied Client
Guaranteed Satisfaction: Backed by rigorous quality testing and a dedicated support team.

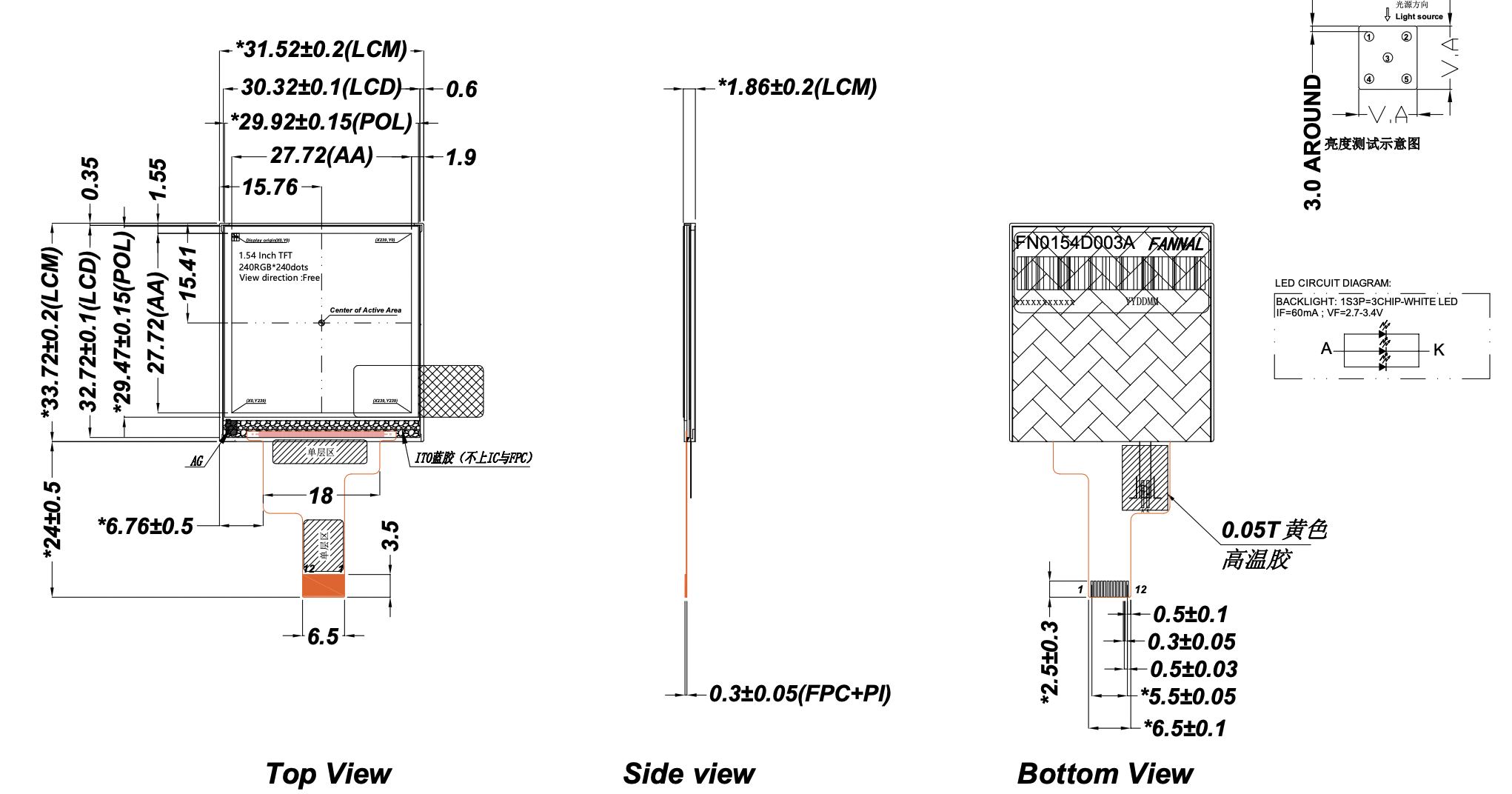

Drawing

FN0154D003BD

Specifications

LCD size(inch):	1.54 (Diagonal)
Resolution:	240(H)×240(V)
Pixel Pitch:	0.1155x0.1155(V)
Active Area(mm):	27.72(H)×27.72(V)
Module Size(mm):	31.52(W)×33.72(H)×1.86(D)
Display Mode(mm):	Normally Black
Interface:	SPI
View Direction:	ALL
Luminance(cd/m2):	450(Typ.)
Operating Temperature(°C):	-20~+70
Storage Temperature(°C):	-30~+80

Interface:

Pin No.	Symbol	I/O	Description

1	GND	P	Ground.

2	LEDK	P	Power supply for LED cathode input.

3	LEDA	P	Power supply for LED anode input.

4	VDD	P	Supply analog voltage.

5	GND	P	Ground.

6	GND	P	Ground.

7	D/C	I	Data or command select signal.

8	CS	I	Chip selection signal.

9	SCL	I	Pixel clock input signal.

10	SDA	I	Serial data input signal.

11	RESET	I	Reset signal input.

12	GND	P	Ground.

Electrical Characteristics:

Parameter	Symbol	Min.	Typ.	Max.	Unit

Power Supply Voltage	VDD	2.4	2.75	3.3	V

Power Supply current	IDD	--	4	--	mA

Input logic high voltage	VIH	0.7VDD	-	VDD	V

Input logic low voltage	VIL	GND	-	0.3VDD	V

Applications

Industrial Status & Control

Auxiliary display for industrial control modules
Parameter visualization on embedded controllers
Status indicators for PLC/MCU systems
Sensor gateway interface panels

These use cases leverage the compact 1.54" form factor and SPI interface for embedded status and parameter display.

Handheld Testing & Measurement Devices

Portable multimeter screens
Environmental monitoring readouts
Data logger display modules
Portable diagnostic instrument interfaces

Small, square resolution and steady brightness make this suitable for simple numeric and icon-based UIs.

Embedded Control & IoT Terminals

Embedded machine controller panels
IoT gateway local displays
Smart control nodes with basic UI
Compact configuration screens for automation nodes

SPI connectivity and low power make it easy to integrate with microcontroller platforms.

Smart Access & Building Interfaces

Access control system displays
Elevator status indicators
HVAC controller interfaces
Small building automation nodes

The small size is ideal for compact wall-mounted or panel-mount status screens.

Portable Monitoring & Professional Devices

Portable medical monitoring readouts
On-device configuration screens for field instruments
Handheld analyzer displays
Compact signal or sensor testing screens

While not high-brightness outdoor screens, this small size works well for indoor portable equipment.

Customization

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

Custom Touchscreen

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications
