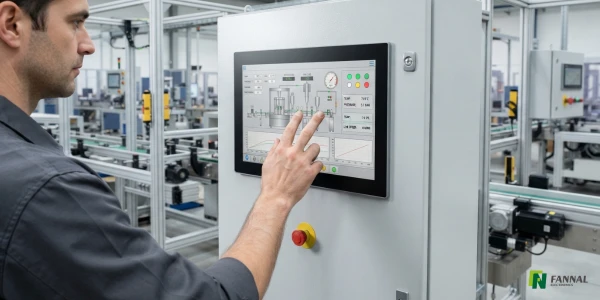

Multi-touch is a common feature in modern touch displays, but the number of touch points specified for a display can be easy to misunderstand.

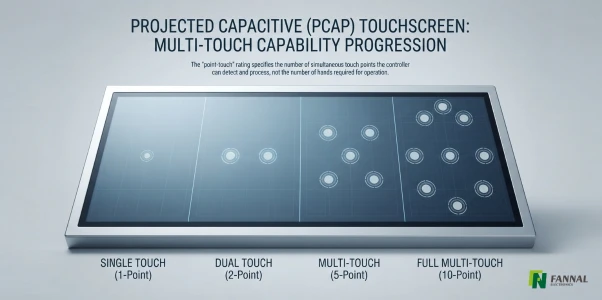

A touchscreen may be described as supporting 2-point, 5-point, or 10-point touch. But what does that number actually mean? Is it determined by the Touch IC, the touch sensor, or the display size?
The answer is not as simple as choosing a controller that supports a certain number of touches.
Multi-touch is a functional capability that can be implemented using different touchscreen technologies. This article focuses specifically on projected capacitive touchscreens (PCAP), which are widely used in industrial, medical, automotive, handheld, and other embedded display applications.
For a PCAP display, the reliable number of simultaneous touch points depends on the interaction between the touch sensor, Touch IC, firmware, and overall touchscreen design.
When a PCAP touchscreen is specified as supporting 10-point touch, it generally means that the touch system can detect and track up to ten simultaneous touch points under defined operating conditions.
For example, a user may place several fingers on the screen at the same time and use them for:
Pinch-to-zoom
Two-finger scrolling
Multi-finger gestures
Simultaneous controls
Other multi-touch interactions
However, “10-point touch” should not be interpreted as a guarantee that ten fingers will always be detected under every possible condition.
The specification normally describes the designed or tested capability of the touch system. The actual performance can depend on how the sensor is designed, how the Touch IC processes the signals, how the firmware handles multiple touches, and how the touchscreen is integrated into the final product.
This distinction becomes important when comparing different multi-touch displays.
A display rated for 10-point touch is not necessarily a better choice than one rated for 5-point touch. If the application only requires two simultaneous touches, the additional capability may provide little practical value.
The more useful engineering question is:
How many touch points does the application actually need, and how reliably must those touch points be detected?
Projected capacitive touchscreens detect touch by sensing changes in the electrical characteristics of a patterned electrode structure beneath the touch surface.
The sensor contains multiple electrodes arranged in a defined pattern. When a finger approaches or touches the surface, it changes the capacitive coupling in the area around the touch location.
The touch controller scans the sensor and analyzes these changes to determine where the touch occurred.
With multiple fingers, several areas of the sensor can change at the same time. The system can therefore identify multiple touch locations and track them as the fingers move.
A simplified signal path looks like this:
Finger → PCAP sensor → Touch IC → Touch processing/firmware → Host system
Each stage has a different role.
The PCAP sensor provides the physical sensing structure.
The Touch IC collects and processes the electrical signals from the sensor.
The firmware and touch algorithms help interpret those signals, track touch points, and reject unwanted signals.
The host system receives the resulting touch data and uses it to control the application's user interface.
This is why multi-touch should be viewed as a capability of the complete touch system rather than a feature belonging to one individual component.
Several factors work together to determine how many simultaneous touch points a PCAP touchscreen can support.
The touch sensor is the physical foundation of a multi-touch system.
Its electrode pattern, sensing channels, dimensions, and layout determine how electrical changes are detected across the touch surface.
A multi-touch system needs enough sensing information to distinguish different touch locations. If two touch points are too close together or the sensing conditions are not suitable, separating them can become more difficult.
Sensor design therefore needs to be matched to the display's active area and the intended touch requirements.
This is one reason why simply selecting a Touch IC with a higher stated touch-point capability does not automatically increase the practical capability of an existing sensor.
The Touch IC, or touch controller, is responsible for scanning and processing the signals from the PCAP sensor.
Its capabilities can include:
Number and configuration of sensing channels
Multi-touch processing
Touch-point tracking
Noise filtering
Signal processing
Touch reporting
The controller therefore plays a major role in determining the multi-touch capability of a touchscreen.
However, it is important to distinguish between controller capability and complete touchscreen capability.
For example, a Touch IC may be capable of processing ten simultaneous touches, but that does not mean that any sensor connected to it will automatically provide reliable 10-point touch.
The sensor architecture and system configuration still need to support the required operation.
The Touch IC does not simply pass raw sensor signals directly to the display interface.
The touch system needs to interpret the collected data and determine which changes represent actual touch events.
Firmware and algorithms can influence:
How individual touch points are identified
How touch points are tracked during movement
How noise is filtered
How false touches are rejected
How closely spaced touches are handled
How touch data is reported to the host system
This means two touchscreen designs using similar controller hardware can still behave differently if their sensor configuration, firmware, or tuning is different.
For custom touchscreen projects, firmware tuning can therefore be an important part of achieving stable multi-touch performance.
The physical size of the touchscreen also matters, but not in the simple sense that “larger screen = more touch points.”
A larger display provides more physical space for multiple fingers, but the actual touch-point capability still depends on the sensor architecture and electrode layout.
For example, a large industrial touchscreen does not automatically need or benefit from ten simultaneous touch points. The user interface may only require one or two fingers at a time.
Conversely, a smaller touchscreen may require reliable multi-touch detection for a particular gesture or control method.
The sensor should therefore be designed around the required touch interaction rather than simply the diagonal size of the display.
The physical stack-up also affects the electrical conditions of a PCAP touchscreen.
The distance between the user's finger and the sensing layer, the position of the sensor within the stack, and the materials used above and around the sensor can all influence signal strength and sensing behavior.
This becomes particularly relevant when the application requires protective glass, a specific cover lens structure, or other mechanical constraints.
A touchscreen intended for a particular stack-up should be designed and evaluated with that stack-up in mind.
The Touch IC is an important limiting factor, but it is not the only factor that determines the final touch-point capability.
A useful way to think about the system is:
Touch-point capability = sensor capability + controller capability + firmware processing + physical integration
The Touch IC needs to be capable of handling the required number of simultaneous touches. At the same time, the sensor must provide sufficient information for those touches to be detected and separated.
Firmware then needs to process and track the resulting signals correctly.
Finally, the complete touchscreen must operate within the electrical and mechanical conditions of the intended product.
Therefore, choosing a Touch IC based only on its maximum stated number of touch points is not enough for a custom PCAP touchscreen.
A touch-point number is useful, but it is only one part of a touchscreen specification.
Consider two PCAP displays that are both advertised as supporting 10-point touch.
They may still differ in:
Touch sensor structure
Touch IC
Firmware
Sensor size and layout
Touchscreen stack-up
Touch sensitivity
Touch accuracy
Noise handling
Mechanical integration
As a result, the same “10-point” specification does not necessarily mean that the two displays will behave identically in a real product.
This is especially important for embedded applications where the touchscreen needs to operate together with other electronics and mechanical components.
A more complete evaluation should therefore consider both maximum touch-point capability and reliable touch performance under the intended operating conditions.
More touch points are not automatically better.
The appropriate specification depends on how the user will interact with the product.
For example, a simple industrial control interface may only require one or two simultaneous touch points. An advanced interface with gesture controls may require more. A consumer device may make greater use of multi-finger interaction.
The engineering objective is not necessarily to maximize the number of touch points.
Instead, it is to provide the required number of simultaneous touches with appropriate reliability, response, and accuracy for the application.
This is particularly important for custom display projects. Specifying “10-point touch” without defining how and where those touch points will be used can leave an important part of the requirement unclear.
Before selecting or designing a multi-touch display, it is useful to define the actual touch requirements.
At a minimum, consider:
Required number of simultaneous touch points
Typical touch gestures
Touch-point spacing
Display size and active area
Cover glass and touchscreen stack-up
Required touch accuracy
Touch response requirements
Glove operation, if applicable
Wet-touch requirements, if applicable
EMI and electrical environment
Operating temperature
Mechanical installation conditions
Once these requirements are defined, the PCAP sensor, Touch IC, firmware, and physical construction can be evaluated as a complete system.
For a projected capacitive touchscreen, the number of touch points is not simply a number provided by the Touch IC.
A 10-point PCAP display requires a suitable sensor structure, a controller capable of processing multiple touch signals, appropriate firmware and algorithms, and a touchscreen design that supports the required operating conditions.
But even when these components are designed to support ten touch points, does that mean the display will reliably detect ten touches in the final product?
A touchscreen that performs well during standalone testing may behave differently after being installed into the final device.
The reason is that the touchscreen becomes part of a larger system.
The final product may introduce:
Different grounding paths
Power supply noise
DC/DC converters
Motors or relays
High-speed digital circuits
Different FPC or cable routing
Metal housings or mechanical structures
Additional layers above the touch sensor
These factors can change the electrical environment around the touchscreen.
For multi-touch operation, the system needs to distinguish several touch signals at the same time. If the signal quality changes after integration, touch-point detection and tracking may become less stable.
This is why multi-touch capability should be evaluated in the context of the final product rather than only on a standalone display sample.
Cover glass does not determine the maximum number of touch points by itself, but it can affect the sensing conditions of a PCAP touchscreen.
When the distance between the user's finger and the touch sensor increases, the capacitive signal available to the sensor can become weaker. A thicker cover glass, for example, may therefore require a touchscreen design that is optimized for the increased sensing distance.
This does not mean that thick cover glass is incompatible with multi-touch.
Instead, the sensor structure, Touch IC configuration, and overall touchscreen stack-up need to be designed for the required cover glass from the beginning.
This is particularly relevant to industrial equipment, outdoor terminals, and other applications where the cover lens may need to provide additional mechanical protection.
Yes.
Bare fingers generally provide stronger capacitive coupling with a PCAP sensor than many types of gloves. The effect varies depending on glove material, thickness, construction, and how closely the glove fits the finger.
A touchscreen that performs well with bare fingers may therefore behave differently when several gloved fingers are used simultaneously.
This is especially relevant when multi-touch is required in applications where gloves cannot simply be removed, such as:
Industrial equipment
Medical devices
Automotive controls
Machinery interfaces
If glove operation is part of the actual user requirement, it should be considered during touchscreen design rather than added as a final-stage feature.
The required number of touch points should also be tested with the actual glove type. A specification such as “10-point touch” does not by itself guarantee reliable ten-point operation through every type of glove.
Water can also change the electrical conditions of a PCAP touchscreen.
A small water droplet may create a localized signal, while a larger amount of water or a continuous water film can affect a wider area of the sensing surface.
Depending on the touchscreen design and operating conditions, this may result in:
False touches
Missed touches
Unstable touch points
Difficulty distinguishing multiple touches
Water resistance and wet-touch performance are also different requirements.
A touchscreen can be designed to resist water ingress while still having difficulty detecting touch accurately when its surface is wet.
For applications exposed to water, both requirements should therefore be evaluated separately.
If multi-touch is required during wet operation, testing should include the actual surface conditions expected in the application rather than testing only with a dry finger.

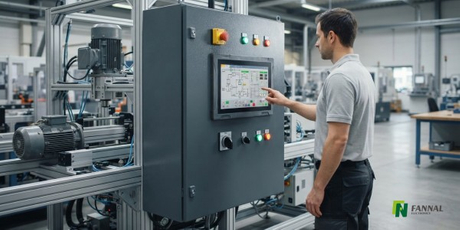

EMI can affect PCAP touch performance because the touchscreen works with relatively small changes in capacitance.
Electrical noise from switching power supplies, DC/DC converters, motors, servo drives, high-speed interfaces, or other electronics can interfere with the sensing system.
For a multi-touch application, the challenge can be greater because the system needs to identify and track several touch signals simultaneously.
EMI problems may appear as:
False touches
Missed touches
Unstable touch points
Touches that disappear during machine operation
Problems that occur only when a motor or other electrical load starts
The solution is not necessarily to increase touch sensitivity.
Higher sensitivity can help detect weaker touch signals, but it can also make the system more susceptible to unwanted signals if the overall noise environment is not controlled.
Depending on the application, EMI performance may require attention to the touch sensor, Touch IC configuration, firmware filtering, FPC routing, grounding, shielding, power architecture, and surrounding electronics.
Multi-touch performance is not always identical across the entire active area.
The edge of a touchscreen can have different electrical and mechanical conditions from the center. Sensor geometry, surrounding structures, mechanical installation, and nearby conductive materials can influence the behavior of touch signals near the edge.
This becomes more noticeable when multiple fingers are placed close together near the boundary of the active area.
For applications that use controls near the edge of the display, edge performance should therefore be included in validation rather than assuming that center-area performance represents the entire touchscreen.
The most useful multi-touch test is not simply placing ten fingers on a sample once.
Testing should reproduce the conditions under which the touchscreen will actually be used.
A practical evaluation can include:
Test the required number of simultaneous touches as well as lower touch counts.
For example:
1 → 2 → 5 → 10 touch points
The objective is to confirm not only whether the maximum number can be detected, but whether touch tracking remains stable as the number of simultaneous touches increases.
Test:
Center area
Near the edges
Corners
Closely spaced touch points
Different combinations of touch locations
This helps identify whether the sensor behaves consistently across the active area.
Where applicable, test with:
Bare fingers
Actual gloves
Wet fingers
Different touch speeds
Multi-finger gestures
The test conditions should reflect the actual application rather than a generic laboratory setup.
For embedded equipment, testing should also be performed with the final:
Main board
Power supply
DC/DC converters
FPC and connectors
Backlight configuration
Enclosure
Grounding arrangement
Motors, relays, or other major electrical loads
This is particularly important for industrial equipment, where the electrical environment can be very different from a standalone development setup.
Instead of specifying only:
10-point touch
it is better to define the actual touch requirements of the product.
Useful information includes:
Requirement | Why It Matters |
|---|---|
Required touch points | Defines the actual simultaneous touch requirement |
Display size and active area | Affects sensor architecture and electrode layout |
Cover glass thickness | Influences the sensing distance |
Glove type | Determines the expected touch signal condition |
Wet-touch requirement | Defines whether touch must remain functional when wet |
Touch accuracy | Determines how precisely touch locations must be detected |
Operating temperature | May affect the behavior of the complete touch system |
EMI environment | Helps determine signal and noise requirements |
FPC and connector | Can affect signal integrity and integration |
Mechanical installation | Influences the final touchscreen stack-up and surrounding structure |
Application | Provides the context for selecting the appropriate touch architecture |
This information allows the PCAP touchscreen to be evaluated as a complete system rather than selecting the Touch IC, sensor, and cover glass independently.
Not always.
The appropriate number of touch points depends on the interface and how operators actually use the equipment.
A simple industrial HMI may only require single-touch or two-point interaction. A more advanced interface may use multi-finger gestures, simultaneous controls, or zoom functions and therefore benefit from higher multi-touch capability.
The same principle applies to medical, automotive, and other embedded applications.
For example, a medical device may benefit more from reliable operation with gloves, accurate touch positioning, and resistance to accidental touches than from maximizing the number of simultaneous fingers.
The goal should therefore be to define the required touch performance, rather than simply choosing the largest touch-point number available.
A useful touchscreen specification should distinguish between maximum capability and required reliable performance.
For example, instead of specifying only:
10-point touch
a more complete requirement might be:
Support up to 10 simultaneous touch points with reliable detection and tracking under the specified operating conditions.
The operating conditions should then be defined according to the application.
This distinction is particularly important for custom PCAP touchscreen development.
The question is not simply whether the controller can process ten touch points. The complete touchscreen needs to provide the required performance with the selected sensor, cover glass, firmware, mechanical structure, and final system environment.
A 10-point PCAP touchscreen is designed to detect and track up to ten simultaneous touch points under its specified operating conditions. However, reliable ten-point operation can vary with factors such as sensor design, cover glass, gloves, water, EMI, and system integration.
Not automatically. Screen size affects the physical sensor area and electrode layout, but it does not by itself determine the maximum number of touch points. Sensor architecture, Touch IC capability, firmware, and application requirements also matter.
The Touch IC is an important part of the multi-touch system, but it is not the only determining factor. The PCAP sensor, firmware, physical stack-up, and operating environment also affect the final touch-point capability.
It can affect the sensing conditions of a PCAP touchscreen because thicker glass increases the distance between the finger and the sensor. A suitable sensor and touch configuration can be designed for thicker cover glass, but the complete stack-up should be evaluated during development.
Yes. Gloves can weaken capacitive coupling, while water can introduce additional electrical signals on the touch surface. Both can make multiple touch points more difficult to distinguish, depending on the touchscreen design and operating conditions.
Not necessarily. The required touch-point count should be based on the user interface and application. In many industrial systems, reliable one- or two-point operation may be more important than maximizing the number of simultaneous touches.
For a projected capacitive touchscreen, the number of touch points is only one part of the specification.
A display may be designed for 10-point touch, but reliable multi-touch performance depends on the complete system, including the PCAP sensor, Touch IC, firmware, touchscreen stack-up, mechanical integration, and operating environment.
Cover glass, gloves, water, EMI, edge conditions, and the final system configuration can all influence how reliably multiple touch points are detected and tracked.
For this reason, the best approach is to define the actual touch requirements first and evaluate the complete touchscreen under realistic operating conditions.
For custom PCAP display projects, FANNAL can evaluate the touch sensor, Touch IC, cover glass, FPC, and related integration requirements together to develop a touchscreen configuration suited to the intended application.
