21.5 Inch PCAP Touchscreen | Industrial USB Multi-Touch Panel

Name: 21.5 Inch PCAP Touchscreen | Industrial USB Multi-Touch Panel
Brand: FANNAL
Rating: 5.0 (28 reviews)

21.5 Inch PCAP Touchscreen

Model:
FN2150P023A
Brand:
FANNAL
Size(inch):
21.5
Cover OD (mm):
515.62*316.66*3.0
Sensor OD:
479.34*270.81*0.7
CTP IC:
Microchip
Display:
Customizable
TP VA (mm):
477.54*269.01
Structure:
G+G
Interface:
USB
TP Interface:
IIC

Quantity:
Availability:





Inquiry Add to Basket Download

21.5" PCAP multi-touch screen 21.5 Inch PCAP 21.5 Inch Touchscreen 21.5 Inch PCAP Touchscreen

Features

Drawing

Specification

Application

Customization

21.5 inch Touchscreen USB Projected Capacitive (PCAP) Touch Screen Panel with USB Interface Multi-touch for Industrial Applications.

Monitors and controls machinery or processes in manufacturing environments. Durable design with custom interfaces for specific operations.Components designed for longevity, reducing the need for frequent replacements.Often designed with features to facilitate quick shutdowns in case of emergencies.

Features

✔ 21.5 inch Projected Capacitive (PCAP) Touchscreen

Large 21.5" interactive surface with smooth touch control
Supports true multi-touch gestures (e.g., zoom, rotate, swipe)

✔ USB Interface for Plug-and-Play Integration

Standard USB interface simplified system connection
Works with most industrial PCs, embedded systems, and controllers without driver complexity

✔ Rapid & Precise Touch Response

PCAP technology delivers quick, accurate touch recognition
Suitable for frequent operation and multi-user interaction

✔ Industrial-Ready Build Quality

Designed for continuous usage in industrial and commercial systems
Stable performance under frequent touch cycles

✔ Flexible Customization

Cover glass, touch impedance tuning, protective layers and mounting solutions available
Tailor touch experience to your product needs

Drawing

屏幕截图 2024-10-09 144421

Specification

Size (inch):	21.5
P/N:	FN2150P023A
Structure:	G+G
TP VA (mm):	477.54*269.01
Cover OD (mm):	515.62316.663.0
Sensor OD:	479.34270.810.7
Operation Temp(℃):	-20-70
Interface:	IIC
Number of Touch:	10
CTP IC:	Microchip Technology
TFT to Match:	Customizable

Applications

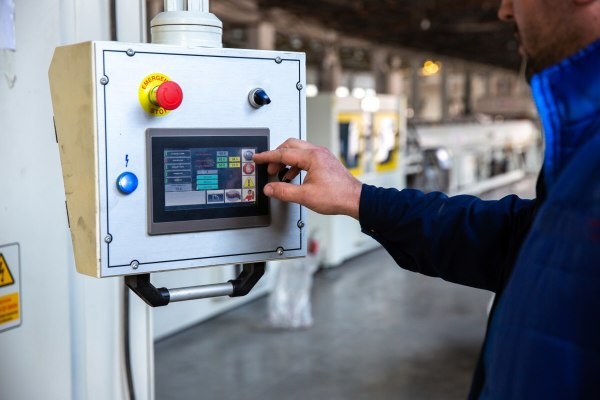

1) Industrial Human-Machine Interface (HMI)

Why: Large 21.5" screen + precise PCAP touch enables operators to control complex systems intuitively
Where: Factory control panels, production dashboards, automated equipment terminals

2) Embedded Control Systems

Why: USB PCAP touch simplifies integration with embedded controllers in industrial/IoT devices
Where: Embedded kiosks, machine interface boards, robotic control consoles

3) Interactive Information Kiosks

Why: Multi-touch responsiveness makes interactive menus and information easy to navigate
Where: Visitors info screens, warehouse terminals, field service dashboards

4) Retail & Commercial Touch Panels

Why: Large surface and fast touch help retail employees and customers interact with POS/UIs
Where: Retail checkout kiosks, service terminals, customer check-in stations

5) Transportation & Ticketing Systems

Why: PCAP touch is durable compared to resistive touch when used often in public environments
Where: Ticketing machines, transit info boards, bus/train embedded touch systems

industrial-panels

Industrial PCAP

Embedded touchscreen

Embedded PCAP

kiosk display

Kiosks PCAP

POS PCAP

transportation display

Transportation PCAP

Customization

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

Custom Touchscreen

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

1. Is a 21.5 inch PCAP touchscreen too large for embedded systems?

Not necessarily. Many embedded HMI and control panels require a large interaction area to display complex data, charts and controls clearly. The 21.5 inch size is commonly used in industrial HMIs, kiosks and operator panels where readability and ease of operation are priorities.

2. Will USB PCAP touch cause compatibility issues with industrial PCs?

In most cases, no. USB PCAP touch panels follow standard HID protocols and are widely compatible with industrial PCs and embedded controllers running Windows, Linux or Android. For special systems, touch parameters can be tuned during integration.

3. Is projected capacitive touch reliable for frequent industrial use?

Yes. Compared to resistive touch, PCAP technology is more suitable for high-frequency operation, multi-user interaction and long service life. This makes it a common choice for industrial HMIs and public-facing embedded systems.

4. Can this touchscreen be used with gloves or in harsh environments?

Touch performance depends on sensor design and tuning. For industrial projects, sensitivity parameters and cover glass thickness can be adjusted to meet specific operating conditions such as glove use or environmental interference.

5. Is this touchscreen suitable for long-term supply projects?

For industrial and embedded projects, long-term availability is critical. This model is positioned for stable supply and lifecycle support, reducing redesign risks caused by frequent component changes.
