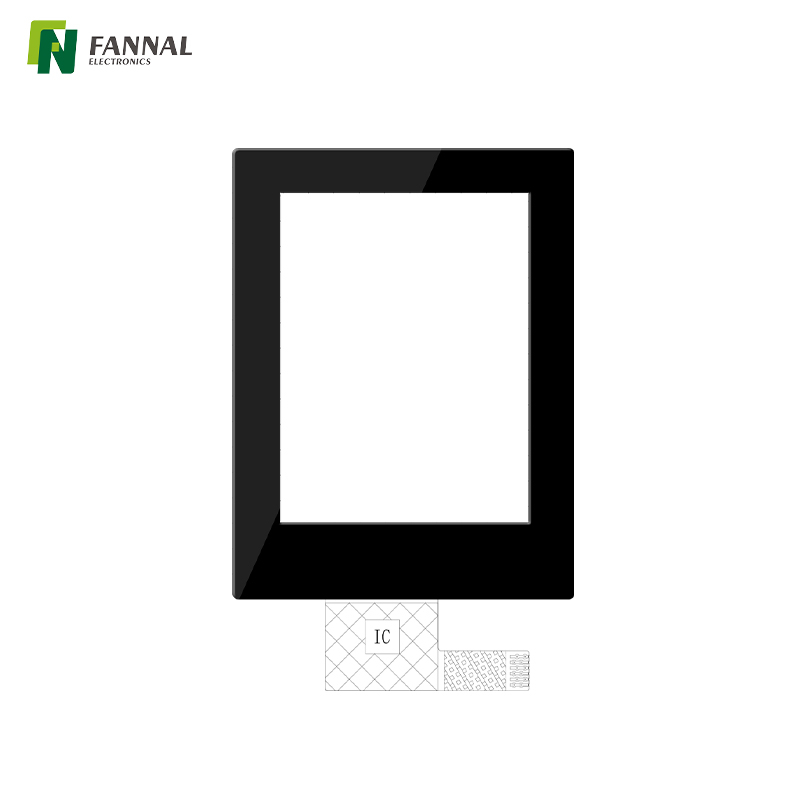

2.8 inch Capacitive Touch Screen Sensor Touch with Gloved Fingers

The 2.8" Capacitive Touch Screen Sensor is a compact and highly functional touch interface designed to operate seamlessly with gloved fingers. This touch screen is engineered for durability and versatility, making it suitable for a wide range of applications across various industries.

Key Specifications

• Touch Screen Size: 2.8 inches (diagonal)

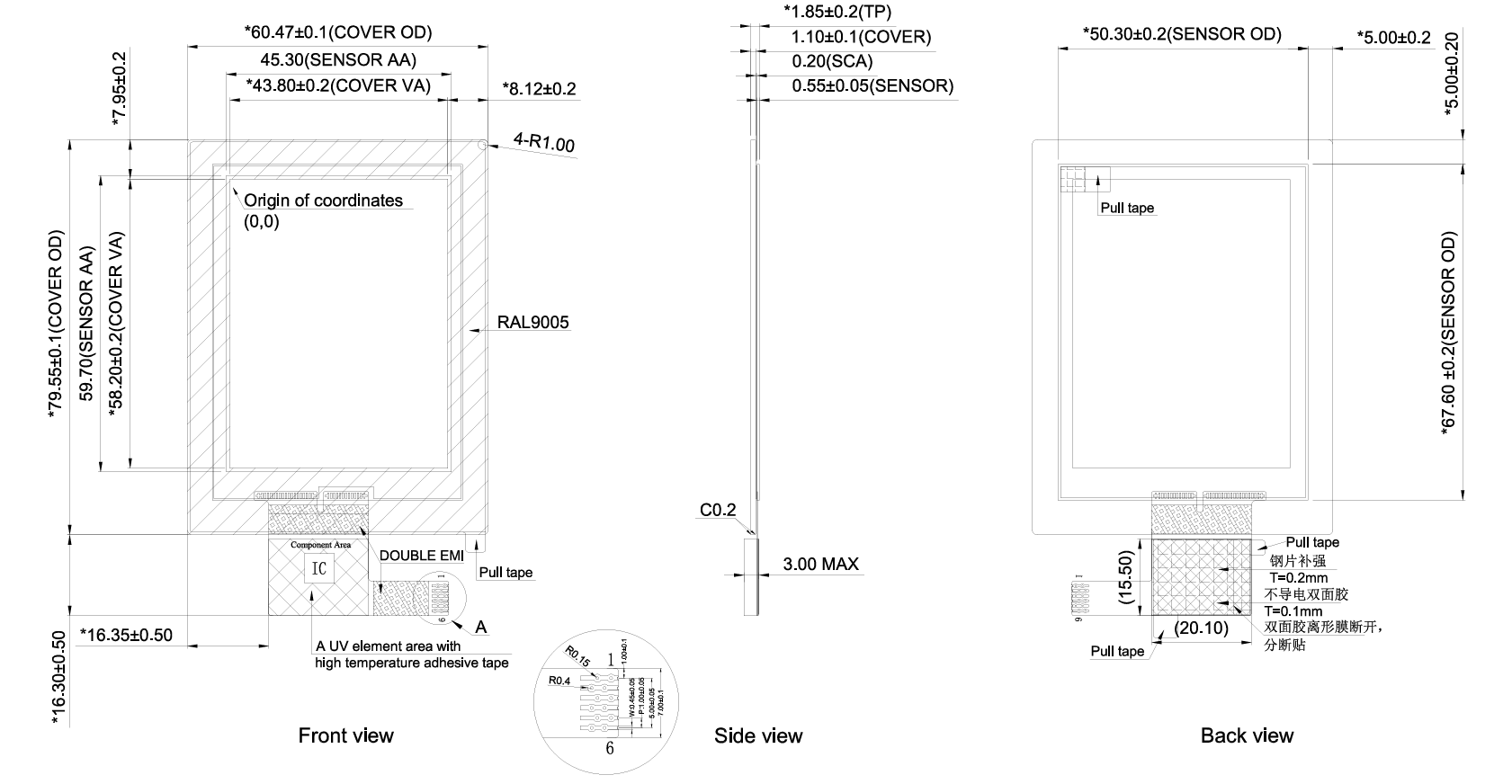

• Touch Panel Active Area (TP VA): 45.80 mm x 58.20 mm

• Cover Outer Dimensions (OD): 60.47 mm x 79.55 mm x 1.10 mm

• Sensor Outer Dimensions: 45.30 mm x 59.70 mm x 0.55 mm

• Operating Temperature Range: -20°C to 70°C

• Capacitive Touch Panel Integrated Circuit (CTP IC): Microchip

• Display Compatibility: Flexible options available for various display types

• Structure: Glass-to-Glass (G+G) design for increased robustness

• Interface Type: I2C (Inter-Integrated Circuit)

Key Features

• Gloved Finger Compatibility: This touch screen is specifically designed to detect touch inputs even when users are wearing gloves, making it ideal for environments where hand protection is necessary.

• High Durability: The G+G structure not only enhances the screen's strength but also improves its optical performance, providing clear visibility and resistance to scratches and impacts.

• Wide Operating Temperature: The operational temperature range of -20°C to 70°C allows the sensor to function effectively in extreme environmental conditions, making it suitable for outdoor and industrial use.

• Versatile Display Options: Users can choose from a variety of display technologies to pair with the touch screen, providing flexibility for different applications and design requirements.

• Simple Integration: The I2C interface allows for easy integration into existing systems, enabling quick deployment in various projects.

Applications

The 2.8" capacitive touch screen sensor is versatile and well-suited for numerous applications, including:

• Industrial Automation: Ideal for control panels and machinery where operators may need to interact while wearing protective gloves.

• Healthcare Devices: Suitable for medical equipment where hygiene and usability with gloves are critical.

• Outdoor Equipment: Perfect for kiosks, ticket machines, and information terminals exposed to weather elements.

• Automotive Systems: Great for in-vehicle touch interfaces, providing user-friendly interaction even in demanding conditions.

Overall, this 2.8" Capacitive Touch Screen Sensor is an excellent choice for applications that require reliable touch functionality, especially in environments where gloves are worn, ensuring both performance and user satisfaction.
