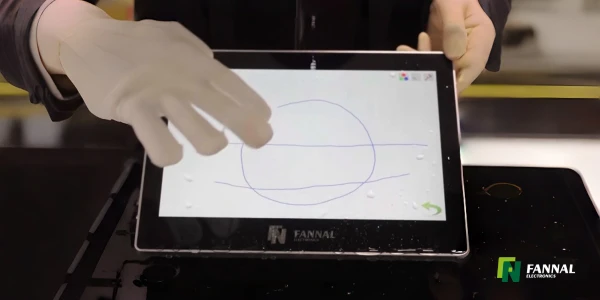

How Does Water Affect Capacitive Touchscreens?

A capacitive touchscreen may work normally when dry but become less stable when water is present on the surface. Users may notice false touches, jumping touch points, unintended inputs, or reduced responsiveness.

This does not simply mean that a capacitive touchscreen is “not waterproof.” The underlying issue is that water can change the electrical conditions around the touch sensor, making it harder for the controller to distinguish an intentional finger touch from other changes in the sensing field.

For industrial equipment, outdoor displays, marine controls, and other applications exposed to water or moisture, wet-touch performance needs to be considered separately from the display's water-ingress protection.

Why Can Water Interfere With a Capacitive Touchscreen?

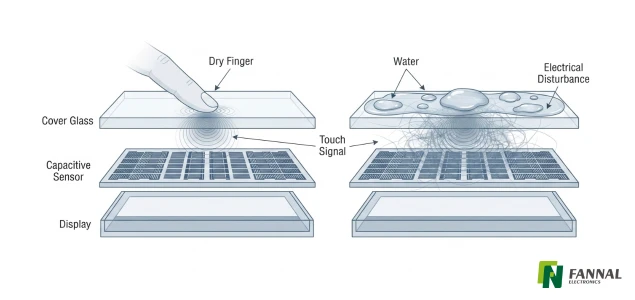

Projected capacitive (PCAP) touchscreens detect changes in an electrical field around their sensing electrodes. A finger changes the local capacitance, and the touch controller analyzes that change to determine whether and where a touch has occurred.

Water can also affect this electrical environment.

A water droplet on the cover glass may introduce a localized change near the sensing electrodes. A larger amount of water, especially when it forms a continuous film, can affect a wider area of the sensor. Depending on the sensor structure, controller, grounding, and water conditions, these changes may be interpreted as touch signals or may interfere with the signal generated by the user's finger.

The important distinction is that water is not simply an obstacle between the finger and the touchscreen. It can become part of the electrical environment that the touch system is measuring.

Wet-touch problems are fundamentally a signal-detection problem, not simply a waterproofing problem.

What Happens When Water Is on the Touchscreen?

The effect depends heavily on how much water is present and how it is distributed.

A few isolated droplets may produce small, localized disturbances. A continuous water film can affect a larger sensing area, while moving or running water creates continuously changing electrical conditions.

This can result in several different behaviors:

These are not universal outcomes. A touchscreen designed and tuned for wet operation may behave differently from a standard PCAP module.

This is why simply asking whether a touchscreen “works with water” is usually not enough. The type, amount, movement, and location of the water all matter.

Why Can Water Cause False Touches?

A capacitive controller is looking for changes in electrical signals that correspond to a valid touch. When water creates another significant change in the sensing field, the controller has to determine whether that change represents an actual user input.

If the disturbance falls within the range that the system interprets as a touch, a false or unintended touch may be registered.

This can become particularly noticeable when water spreads across several sensing electrodes. Instead of one clear, localized signal from a fingertip, the controller may see a broader or changing signal pattern.

The result can include:

• unintended touch points

• unstable coordinates

• touch-point movement

• intermittent response

• missed touches when a real finger is present

The exact behavior depends on the sensor pattern, touch controller, firmware, grounding, and physical stack-up.

So there is no universal rule such as “more water always means worse touch.” The relationship depends on how the complete touch system responds to the disturbance.

Why Doesn't Every Capacitive Touchscreen Fail With Water?

This is where the difference between a standard touchscreen and a touchscreen designed for demanding environments becomes important.

A PCAP system consists of more than the cover glass and sensor. Its performance is influenced by the interaction between the touch sensor, Touch IC, firmware, physical stack, electrical environment, and application conditions.

For example, a touchscreen may be designed and tuned to tolerate certain wet conditions without generating excessive false touches. Another touchscreen using a different sensor structure or controller may respond differently under the same conditions.

This means that wet-touch performance cannot be determined from a single specification such as:

• cover glass thickness

• Touch IC model

• IP rating

• sensor type

• surface treatment

Each can matter, but none should be treated as a universal indicator of wet-touch performance.

What Factors Determine Touch Performance in Wet Conditions?

Several parts of the touch system can influence how it behaves when water is present.

The important engineering point is that these factors interact.

For example, changing the cover glass may alter the sensing conditions, but simply selecting a different Touch IC does not automatically solve every wet-touch problem. Likewise, firmware tuning can improve signal interpretation, but it cannot compensate indefinitely for an unsuitable sensor structure or poorly designed electrical environment.

Wet-touch performance is therefore a system-level design problem.

Water Resistance Is Not the Same as Water-Tolerant Touch

This distinction is particularly important for industrial displays.

A display's water resistance generally concerns whether water can enter the enclosure and damage internal electronics. This is related to mechanical design, sealing, enclosure construction, and ingress protection.

Water-tolerant touch, on the other hand, asks a different question:

Can the touchscreen continue to recognize intentional user input when water is present on the touch surface?

A display can therefore have good protection against water ingress while still experiencing touch instability when the front surface is wet.

An IP rating should not automatically be interpreted as a guarantee of reliable touch operation under wet conditions.

For an outdoor HMI, marine control panel, industrial handheld, or other equipment exposed to rain or water spray, both requirements need to be evaluated.

How Can a Capacitive Touchscreen Be Designed for Wet Environments?

There is no single component that automatically makes a PCAP touchscreen suitable for wet operation.

A more reliable approach is to consider the touch system as a whole.

Sensor and Touch IC Selection

The sensor structure and controller need to work together under the expected signal conditions. A controller with appropriate sensing and processing capability may provide more room for tuning, but the sensor design still matters.

Firmware and Touch Tuning

Firmware can help distinguish intentional finger input from unwanted electrical disturbances. This can be particularly important when the system needs to balance wet-touch rejection with normal touch sensitivity.

Making the system too aggressive at rejecting disturbances can introduce another problem: legitimate touches may become harder to detect.

That is a real engineering trade-off.

Physical Stack-Up

Cover glass, sensor, bonding method, and other layers form the physical touch stack. Their relationships affect the electrical conditions seen by the sensor.

This is one reason why touch performance should be evaluated using the actual display configuration, rather than assuming that results from one touchscreen design will transfer directly to another.

Grounding and EMI Control

Electrical noise can make an already challenging wet-touch signal more difficult to interpret. Proper grounding and system-level EMI control are therefore part of the design process, particularly when the touchscreen is integrated into equipment containing motors, power electronics, or other noise sources.

How Should Wet-Touch Performance Be Tested?

A touchscreen intended for a wet environment should not be evaluated only with a dry finger on a clean screen.

Testing should reflect how the actual equipment will be used.

Depending on the application, this may include:

• dry-finger operation

• wet-finger operation

• isolated water droplets

• a continuous water film

• water spray or running water

• repeated touches while water is present

• single-touch and multi-touch operation

• different touch speeds and locations

The goal is not simply to confirm that the display responds to touch.

It is also important to check whether the system produces:

• false touches

• missed touches

• unstable coordinates

• delayed response

• unexpected multi-touch behavior

For a marine control panel, for example, the relevant test conditions may differ significantly from those of an indoor industrial HMI. The actual application environment should determine the validation method.

What Should Engineers Consider When Specifying a Wet-Environment Touchscreen?

A useful specification should describe the actual operating condition rather than simply stating “waterproof touchscreen.”

Consider questions such as:

• Will the screen be exposed to occasional droplets or continuous water?

• Will users touch it with wet fingers?

• Is the water likely to form a continuous film?

• Is the display installed outdoors, under a roof, or inside an enclosed machine?

• Does the application require reliable multi-touch operation?

• What other electrical noise sources exist in the equipment?

• What level of false-touch or missed-touch behavior is acceptable?

These questions can lead to very different touch requirements.

For some applications, basic water resistance may be sufficient. For others, especially outdoor, marine, or industrial HMI systems, wet-touch behavior should be included in the display specification and validation process from the beginning.

FAQ

Can water cause false touches on a capacitive touchscreen?

Yes. Water can alter the electrical conditions around the sensing electrodes and may be interpreted as an unintended touch, depending on the sensor, controller, firmware, and water conditions.

Why does a touchscreen sometimes stop responding properly when wet?

A wet surface can change the signal pattern detected by the touch sensor. If the controller cannot reliably distinguish the intended finger signal from the water-related disturbance, touch response may become unstable or less responsive.

Can a capacitive touchscreen work with water on the surface?

Yes, but the level of wet-touch performance depends on the complete touch system and the intended water conditions. A standard PCAP touchscreen should not automatically be assumed to provide reliable operation with a wet surface.

Does an IP65 or IP67 rating guarantee reliable touch when the screen is wet?

No. IP ratings primarily describe protection against water and other external ingress under specified test conditions. They do not by themselves define how reliably the touchscreen recognizes input when water is present on the surface.

Can firmware completely solve wet-touch problems?

Not necessarily. Firmware tuning can help distinguish valid touches from unwanted signals, but it cannot compensate for every limitation in the sensor, Touch IC, physical stack, grounding, or mechanical design.

Conclusion

Water can affect a capacitive touchscreen because it changes the electrical environment that the touch sensor is designed to measure. The resulting behavior can range from minor instability to false touches or missed inputs, depending on the amount and distribution of water and the design of the complete touch system.

For applications exposed to rain, water spray, wet fingers, or condensation, water resistance and wet-touch performance should be treated as separate engineering requirements.

The most reliable approach is to evaluate the actual sensor, Touch IC, stack-up, firmware, grounding, and application conditions together, then validate the touchscreen under realistic wet-use scenarios.

For industrial and outdoor applications, the right touch solution is not simply the one with the highest water-resistance rating. It is the one whose electrical and mechanical design matches how the display will actually be used.
