32" G+G Structure Large Size Multi-touch USB Interface Industrial Touch Panel

32" G+G Structure Large Size Multi-touch USB Interface Industrial Touch Panel

32" G+G Structure Large Size Touch Panel

Model:
FN3200P009A
Size(inch):
32
Cover OD (mm):
739.70*443.35*3.0
Sensor OD:
702.40*396.85*1.1
Operation Temp(℃):
-20-70
Storage Temp(℃):
-30-80
CTP IC:
Microchip
Display:
Can be chosen
TP VA (mm):
699.40*393.85
Structure:
G+G
Interface:
USB
TP Interface:
IIC

Quantity:
Availability:





Inquiry Add to Basket Download

32.0 inch Industrial Touch Panel industrial touch screen panel multi-touch screen

Drawing & Specification

Product Application

Customizations

About FANNAL

FAQ

Drawing

屏幕截图 2024-10-09 151336

Specifications

Size (inch)	32.0
P/N	FN3200P009A
Structure	G+G
TP VA (mm)	699.40*393.85
Cover OD (mm)	739.70443.353.0
Sensor OD	702.40396.851.1
Operation Temp(℃)	-20-70
Storage Temp(℃)	-30-80
Interface	IIC
Number of Touch	10
CTP IC	Microchip Technology
TFT to Match	Can be chosen

Applications

Industrial Control Panels:

Large multi-touch screens for industrial HMI and factory control systems, allowing operators to monitor and manage processes on a single large interface.

Commercial & Public Displays:

Interactive digital signage, wayfinding kiosks, and info terminals in airports, malls, or exhibition halls, providing durable and responsive touch experiences for multiple users.

Healthcare & Medical Interfaces:

Large diagnostic displays and patient information panels, supporting multi-touch input for collaboration and clear data visualization.

Command & Control Centers:

Used in traffic control, security monitoring, and industrial operations rooms, offering high-reliability multi-touch panels for mission-critical decision-making.

Collaborative Workspaces:

Large conference and meeting room displays for collaborative planning, design, and data visualization, supporting multi-user touch interaction.

Customization

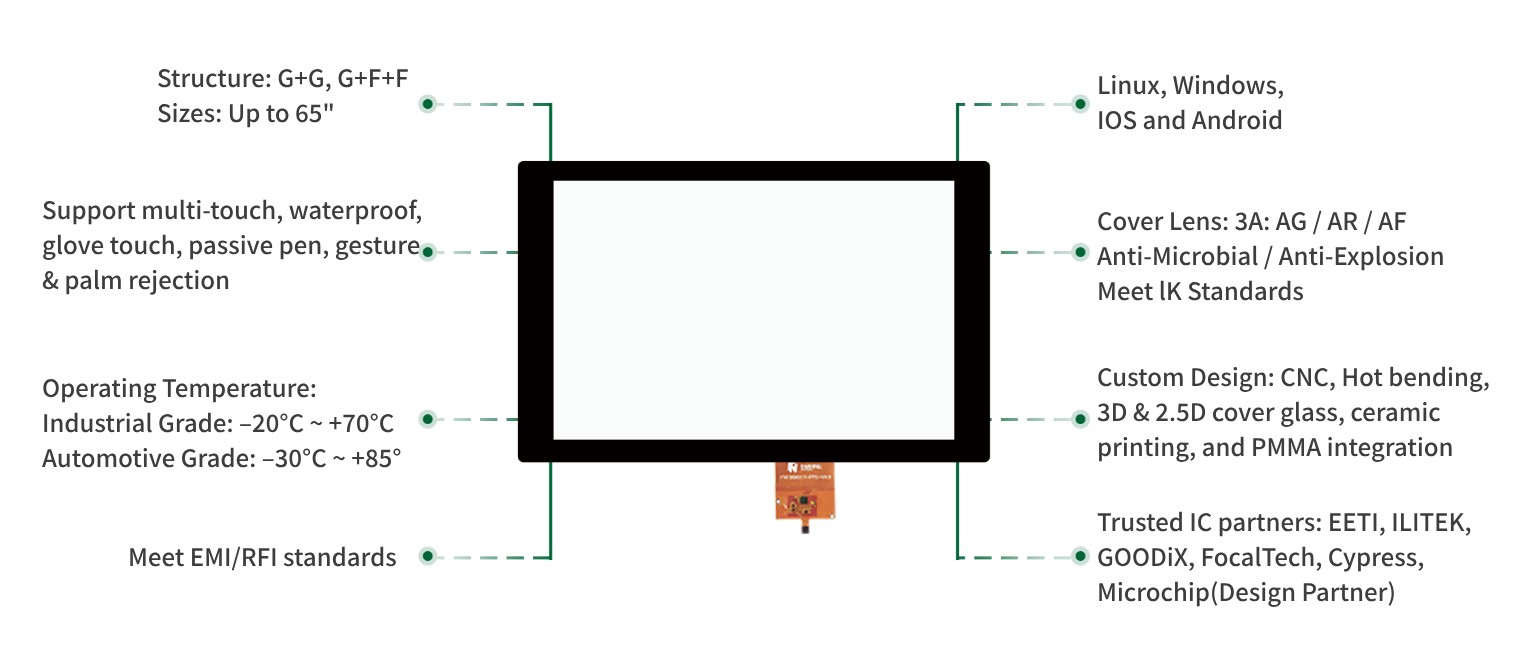

Custom Touchscreen

Custom Touchscreen Options

Touch Sensor

Available sizes: up to 65 inches
Sensor structures: G+G / G+F+F
Designed for industrial and automotive environments

Supported touch features:

Multi-touch
Waterproof touch
Glove touch
Passive stylus
Gesture control
Palm rejection

Operating temperature options:

Industrial: –20°C ~ 70°C
Automotive: –30°C ~ 85°C

Touch Controller (IC)

Supported IC partners: EETI, ILITEK, Goodix, FocalTech, Cypress, Microchip
FANNAL in-house firmware tuning and touch optimisation
Excellent anti-interference capability
Designed for long-term industrial stability
EMC engineering support for EMI/RFI compliance

Cover Lens

Material options:

Glass: 0.55 – 10.0 mm
PMMA: 0.5 – 3.0 mm
PC: 0.1 – 1.0 mm

Custom cover design:

CNC processing
Hot bending
2.5D / 3D cover glass
Ceramic printing
PMMA integrated structures

Surface treatments available:

AG / AR / AF (3A optical treatments)
Anti-microbial coating
Anti-explosion reinforcement

Optical Bonding Options

FANNAL provides multiple optical bonding technologies to improve display readability, durability, and environmental reliability.

Bonding Method	Supported Size	Features
OCA	Up to 15.6"	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32"	Excellent optical clarity and improved contrast
Silicone Bonding	Up to 32"	Ideal for rugged and large industrial displays

Optical bonding helps:

Improve sunlight readability
Reduce internal reflection
Increase impact resistance
Enhance long-term reliability

About FANNAL

FANNAL, founded in 2011, is a specialist in touch display solutions, delivering high-quality products and technical services worldwide. We design and manufacture in-house custom Displays, PCAP touch screens, and optical bonding. Our solutions serve industrial, outdoor, medical, automotive and other applications.
We are a fast-growing high-tech company financially backed by SECO, a European leader in electronic devices and embedded computing. We hold ISO 9001, ISO 14001, ISO 45001, ISO 13485, and IATF 16949 certifications. Our products are REACH and RoHS compliant, with test reports or declarations available upon request.

With stable quality and engineering support, FANNAL helps customers stay competitive and differentiate their products globally.

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Album

FANNAL Ablum

FAQ

Q1: Why is a G+G structure recommended for large-sized touch panels?

A:
For large touch sizes, mechanical stability becomes critical. A G+G structure provides higher rigidity and surface durability, reducing deformation and ensuring consistent touch performance across the entire panel.

Q2: Is this product a complete touch display?

A:
No. This product is a touch panel only and must be integrated with a compatible LCD or display module according to system requirements.

Q3: Is USB suitable for industrial touch applications?

A:
Yes. USB is widely used in industrial systems due to its stability, ease of integration, and compatibility with industrial PCs and embedded controllers.

Q4: Can this touch panel be adapted for different projects?

A:
For OEM and volume orders, customization options such as cover glass thickness, sensor design, and controller tuning may be available to meet specific project needs.
