5 inch Small Capacitive Touch Screen I²C Interface Multi-touch Industrial Touchscreen

Name: 5 inch Small Capacitive Touch Screen I²C Interface Multi-touch Industrial Touchscreen
Brand: FANNAL
Rating: 5.0 (65 reviews)

5 Inch Industrial PCAP Touch Panel

Model:
FN0500P074A
Brand:
FANNAL
Size(inch):
5
Cover OD (mm):
130.70*85.80*1.1
Sensor OD:
110.40*67.20*0.55
Operation Temp(℃):
-20-70
Storage Temp(℃):
-30-80
CTP IC:
Microchip
Display:
Customizable
TP VA (mm):
108.80*65.60
Structure:
G+G
TP Interface:
IIC

Quantity:
Availability:





Inquiry Add to Basket Download

Small Capacitive Touch Screen Industrial TFT Displays

Product Features

Product Drawing

Specification

Add Ons

Product Application

The 5-inch Small Size Capacitive Touch Screen is designed for industrial applications, offering a reliable and user-friendly interface with multi-touch capabilities. Featuring an I²C interface, this touchscreen is ideal for various devices and systems requiring precision input in challenging environments.

Features

Multi-Touch Capability: Supports multiple touch points for enhanced user interaction, allowing for gestures like pinch-to-zoom and swipe.
Durable Design: The G+G structure provides robustness and resistance to wear and tear, making it suitable for industrial use.
Wide Operating Temperature Range: With an operational range of -20°C to 70°C, this touchscreen can function effectively in extreme environments.
Microchip Integration: The integration of a Microchip CTP IC ensures high sensitivity and responsiveness, leading to a smooth user experience.
I²C Interface: The I²C interface facilitates easy integration with various microcontrollers and devices, simplifying development and connectivity.

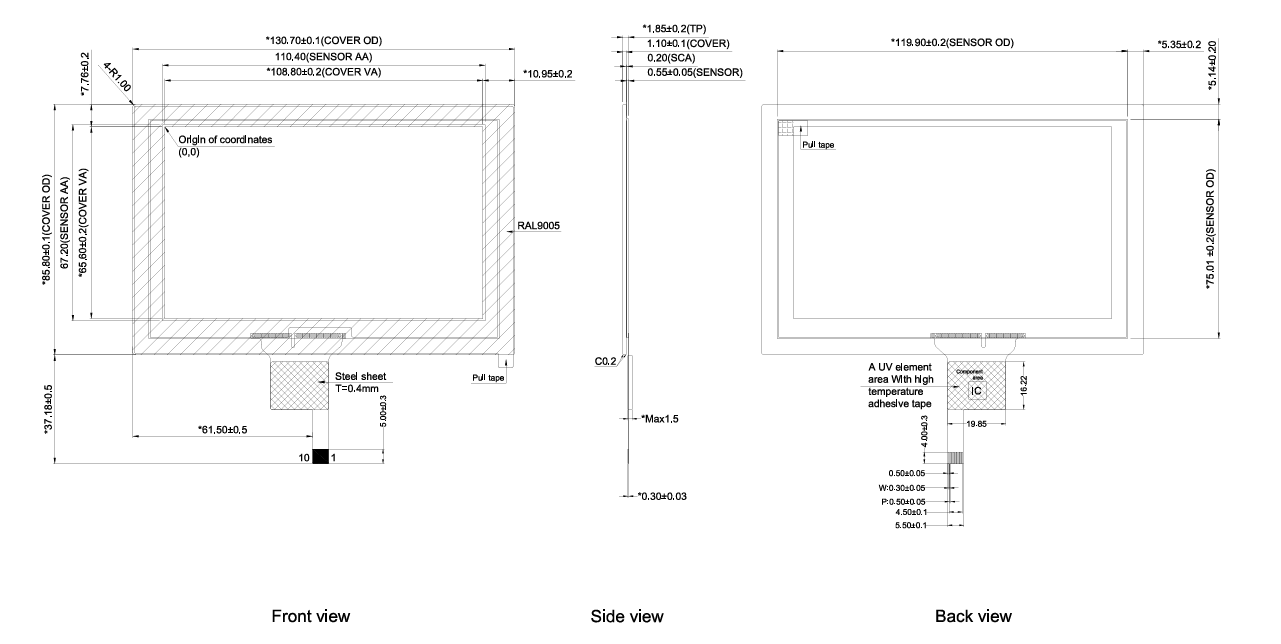

Drawing

屏幕截图 2024-10-07 144728

Specifications

Size (inch):	5.0
P/N:	FN0500P074A
Structure:	G+G
TP VA (mm):	108.80*65.60
Cover OD (mm):	130.7085.801.1
Sensor OD:	110.4067.200.55
Operation Temp(℃):	-20-70
Storage Temp(℃):	-30-80
Interface:	IIC
Number of Touch:	5
CTP IC:	MXT336U
TFT to Match:	Customizable

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

Custom Touchscreen

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

Typical Applications

Industrial Control Panels

Suitable for compact industrial HMIs, machine controllers, and automation equipment requiring stable multi-touch operation and reliable long-term performance.

Smart Home Control Systems

The 5-inch capacitive touch panel is ideal for smart home interfaces, wall-mounted controllers, and intelligent appliance control systems.

Medical & Healthcare Devices

The G+G structure and stable touch performance support medical monitoring equipment, portable healthcare devices, and embedded medical control interfaces.

Commercial POS & Self-Service Terminals

Supports responsive touch interaction for POS systems, kiosks, ticketing machines, and self-service terminals used in commercial environments.

Portable Embedded Devices

The compact 5-inch design is suitable for handheld terminals, portable testing equipment, and battery-powered embedded systems requiring low-power touch interaction.

Transportation & Vehicle Systems

Can be integrated into transportation control systems, smart vehicle terminals, and compact dashboard interfaces operating in demanding environments.

Outdoor & Rugged Equipment

The industrial-grade operating temperature range and durable G+G structure make the touch panel suitable for rugged embedded equipment and outdoor control applications.
