How Do Gloves Affect Capacitive Touchscreens?

A capacitive touchscreen may work normally with a bare finger but become less responsive when the user wears gloves. The problem can appear as missed touches, delayed response, or inconsistent operation.

This is common in applications where gloves are part of the normal workflow, particularly medical equipment, industrial machinery, and equipment used in cold or controlled environments.

The reason is not simply that a glove is “between the finger and the screen.” A projected capacitive touchscreen relies on changes in an electrical field, and the glove changes the electrical and physical conditions between the user's finger and the sensing electrodes.

That does not mean every touchscreen needs special glove-touch optimization. In some applications, using a touchscreen-compatible glove is the simpler solution. In others, especially where users cannot remove or change their gloves, the display itself may need to be designed around the actual glove.

The real engineering question is not whether a capacitive touchscreen can work with gloves, but whether the application justifies optimizing the touch system for the glove being used.

Why Do Gloves Affect Capacitive Touchscreens?

A projected capacitive touchscreen detects changes in capacitance caused by a conductive object interacting with its sensing electrodes.

With a bare finger, the electrical coupling between the finger and sensor is relatively direct. A glove introduces another layer between them and can reduce or alter the signal reaching the touch sensor.

The effect becomes more significant when the glove is thick, highly insulating, loosely fitted, or otherwise difficult for the sensor to detect.

This is why a touchscreen that responds easily to a bare finger may require a more deliberate touch through a glove.

However, glove thickness is only one part of the problem. The actual touch response depends on the complete combination of the glove and the touchscreen system.

What Factors Affect Glove Touch Performance?

Several factors can change how reliably a capacitive touchscreen detects a gloved finger.

This is why “glove-compatible” is not a complete technical specification.

A thin medical glove, a thick protective glove, and a waterproof winter glove may all produce very different sensing conditions even when they are used with the same display.

Why Can't You Simply Increase Touch Sensitivity?

If a glove weakens the touch signal, increasing sensitivity may seem like the obvious solution.

Sometimes it helps. But there is a limit.

A touchscreen has to distinguish the intended finger signal from other electrical disturbances. Increasing sensitivity too aggressively can also make the system more responsive to unwanted signals.

Depending on the application, that can affect:

• false-touch rejection

• water tolerance

• EMI immunity

• touch stability

The objective is therefore not to make the touchscreen as sensitive as possible.

It is to provide enough signal margin to detect the intended glove while maintaining reliable rejection of unwanted inputs.

This trade-off becomes particularly important when the same display must support both bare-finger and gloved operation.

Is the Touch IC the Main Factor?

The Touch IC is important, but it should not be treated as the single solution.

A suitable controller can provide the sensing capability and processing needed to handle weaker signals, while firmware can help tune the system for the intended operating conditions.

But the controller is working with a signal generated by the physical touch structure.

A simplified way to look at it is:

Glove → touch signal → sensor → Touch IC → firmware → touch output

If the signal reaching the sensor is fundamentally too weak or unstable, changing only the Touch IC may not solve the problem.

For a custom touchscreen, the sensor structure, controller, firmware, cover glass, stack-up, and electrical environment should therefore be considered together.

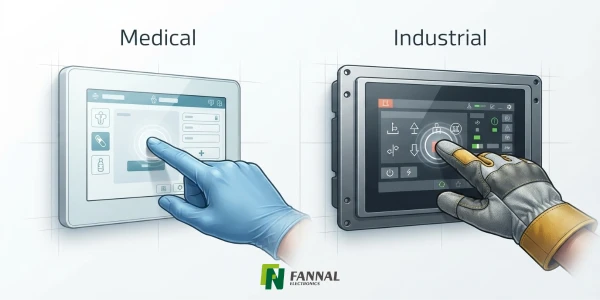

Do Medical and Industrial Gloves Have the Same Requirements?

No. The application often matters more than the generic label “glove touch.”

Medical applications are a particularly clear case because removing gloves simply to operate an HMI is generally not a practical workflow.

Industrial applications are less straightforward. Some operators can use touchscreen-compatible gloves, while others may need protective gloves that cannot easily be replaced.

Cold environments create a similar situation: if the user needs gloves throughout the operation, glove compatibility becomes part of the actual interface requirement rather than an optional feature.

When Is Glove-Touch Optimization Worthwhile?

This is where the engineering and commercial decision come together.

If the operator can simply change to a touchscreen-compatible glove, redesigning the display may not be justified.

For example, an application with occasional glove use and a flexible PPE requirement may achieve the desired result more economically by specifying a suitable glove.

Display-side optimization becomes more worthwhile when:

• the glove is mandatory

• the glove type is fixed by the workflow or safety requirements

• the equipment is operated continuously while gloved

• missed touches can interrupt a critical operation

• the required glove is difficult to replace with a touchscreen-compatible alternative

This leads to a useful rule for custom display projects:

If the glove can be changed, changing the glove may be the simpler solution. If the glove cannot be changed, the touchscreen should be designed around it.

This is also why a customer requirement such as “must work with gloves” is usually not specific enough for engineering.

The actual glove should be identified as early as possible.

How Should Glove-Touch Performance Be Tested?

Glove compatibility should be validated using the conditions that the final equipment will actually encounter.

At minimum, testing should include the intended production glove rather than relying on a generic “glove test.”

Depending on the application, the validation may compare:

• bare finger vs. intended glove

• dry vs. wet glove

• center vs. edge touches

• light vs. normal contact

• repeated touches

• required multi-touch functions

For a fully integrated industrial display, the final assembly should also be considered. The touch system can behave differently after integration because grounding, EMI, cover glass, bonding, and the surrounding electronics all become part of the operating environment.

The goal is not simply to confirm that one touch can be detected.

A suitable design should also be checked for missed touches, false touches, inconsistent coordinates, and response stability under realistic operating conditions.

FAQ

Why doesn't my capacitive touchscreen work with gloves?

A glove changes the electrical and physical relationship between the finger and the touch sensor. Depending on its thickness, material, fit, and electrical properties, the resulting signal may be too weak or different from what the touchscreen is tuned to detect.

Do thicker gloves always perform worse?

Not necessarily, although greater thickness generally increases the separation between the finger and sensor. Material, conductive properties, fit, sensor design, and controller tuning also affect the result.

Can regular rubber gloves work on a capacitive touchscreen?

Some may work under certain conditions, but conventional insulating gloves are generally more difficult for capacitive sensing. Compatibility should be tested with the actual glove rather than assumed from the material name alone.

Does a higher-sensitivity Touch IC guarantee glove operation?

No. The Touch IC is only one part of the touch system. Sensor design, firmware, physical stack-up, grounding, EMI, and glove characteristics also affect performance.

Is glove-touch optimization necessary for every industrial touchscreen?

No. If operators can use touchscreen-compatible gloves or remove their gloves when appropriate, changing the glove may be more economical than modifying the display. Optimization becomes more relevant when gloves are mandatory or difficult to replace.

Can a capacitive touchscreen be customized for medical gloves?

Yes. Medical equipment can be a good candidate for glove-touch optimization because users commonly operate equipment while wearing gloves. The touchscreen should be designed and validated against the actual glove and final display configuration.

Conclusion

Gloves affect capacitive touchscreens because they change the signal relationship between the user's finger and the touch sensor. Thickness, material, fit, moisture, and conductive properties can all influence the result.

But glove compatibility is not simply a matter of increasing sensitivity or selecting a particular Touch IC. The touch sensor, controller, firmware, physical stack, and electrical environment need to work together.

For medical equipment and other applications where gloves are a fixed part of the workflow, display-side optimization can be worthwhile. In applications where the glove can be changed, a touchscreen-compatible glove may be the more economical engineering choice.

For custom display projects, the most useful starting point is therefore not “Do you need glove touch?”

It is:

What glove will the user actually wear, and under what conditions will the touchscreen be operated?

That requirement determines whether the display needs customization—and how much.
