15.6 inch capacitive touch panel G+G structure USB interface Multi-touch

Name: 15.6 inch capacitive touch panel G+G structure USB interface Multi-touch
Brand: FANNAL
Rating: 5.0 (15 reviews)

15.6 inch capacitive touch panel

Model:
FN1560P029A
Brand:
FANNAL
Size(inch):
15.6
Cover OD (mm):
377.80*230.10*1.8
Sensor OD:
347.16*196.59*0.7
Operation Temp(℃):
-20-70
Storage Temp(℃):
-30-80
CTP IC:
Microchip
Display:
Customizable
TP VA (mm):
345.16*194.59
Structure:
G+G
Interface:
USB
TP Interface:
IIC

Quantity:
Availability:





Inquiry Add to Basket Download

Multi-touch touch panel touch screen display manufacturers custom touch panel 15.6 inch capacitive touch panel

Overview

Drawing & Specification

Customization

Application

Why FANNAL?

Overview

15.6 Inch Capacitive Touch Panel — G+G Structure, USB Multi-Touch Interface

This 15.6-inch capacitive touch panel is designed for commercial and industrial devices that require high durability, smooth multi-touch interaction, and stable long-term supply.
With its robust G+G (Glass-on-Glass) construction, highly responsive multi-touch controller, and flexible USB interface, it fits seamlessly into kiosks, HMIs, medical terminals, POS systems, and other interactive equipment.

More than just a touch component, this panel is built as a reliable, integration-ready solution for OEM/ODM projects that demand consistency, clarity, and long lifecycle performance.

Key Specifications

Touch Panel Dimensions (TP VA): 345.16 mm x 194.59 mm
Cover Glass Dimensions (OD): 377.80 mm x 230.10 mm x 1.8 mm
Sensor Dimensions (OD): 347.16 mm x 196.59 mm x 0.7 mm
CTP IC (Capacitive Touch Panel Integrated Circuit): Microchip
Display Options: Customizable display selections based on specific user needs
Touch Screen Structure: G+G (Glass on Glass)
Interface: USB

Feature-Driven Advantages

1. G+G Structure for Long-Term Stability

Advantage: Superior durability & consistent touch performance even in harsh industrial settings.
Why it matters: G+G panels resist bending, scratches, and chemical wear—ideal for equipment used daily in factories, medical devices, kiosks, and outdoor terminals.

2. USB Plug-and-Play Interface

Advantage: Easiest integration with PCs, industrial hosts, and embedded systems.
Why it matters: Reduces engineering workload and eliminates the need for complex drivers—accelerating your customer’s time-to-market.

3. 10-Point True Multi-Touch

Advantage: Supports gestures like zoom, rotate, multi-finger command input.
Why it matters: Enables modern HMI design and makes UIs more intuitive—especially for operator training and high-precision control.

4. High Transmittance Glass for Brighter Displays

Advantage: Minimal optical loss, maximizing LCD brightness.
Why it matters: Ensures clarity in bright rooms, commercial signage, vending machines, and medical monitors.

5. Scratch-Resistant 6H Surface Hardness

Advantage: Withstands long-term public use.
Why it matters: Ideal for kiosks, ATM machines, ticketing systems, access control screens, and gym equipment.

6. Wide Operating Temperature Range

Advantage: Stable touch performance from harsh cold to constant heat.
Why it matters: Works reliably in outdoor terminals, vehicle displays, and factory environments.

7. Customizable Dimensions, Cover Glass & Logo

Advantage: One touch panel, multiple product lines.
Why it matters: Fits unique mechanical structures without re-engineering, lowering your customer’s project cost.

Applications

The 15.6-inch Capacitive Touch Panel is well-suited for a variety of applications, including:

Industrial HMIs – Reliable gesture input for machine control interfaces
Self-Service Kiosks – Scratch-resistant surface handles heavy public usage
Medical Terminals – Stable multi-touch, easy cleaning, high visibility
Vending & Ticketing Machines – Strong cover glass and responsive touch
Fitness Equipment Consoles – Smooth gesture operations during movement
Access Control & Building Management Panels – Stable under 24/7 operation
Commercial POS Terminals – Accurate touch, even with fast operations

The 15.6-inch Capacitive Touch Panel combines advanced technology with a robust design, making it an excellent choice for diverse industrial and commercial applications.

Drawing

屏幕截图 2024-10-09 141130

Specifications

Size (inch):	15.6
P/N:	FN1560P029A
Structure:	G+G
TP VA (mm):	345.16*194.59
Cover OD (mm):	377.80230.101.8
Sensor OD:	347.16196.590.7
Operation Temp(℃):	-20-70
Storage Temp(℃):	-30-80
Interface:	IIC
Number of Touch:	10
CTP IC:	Microchip Technology
TFT to Match:	Customizable

Customization

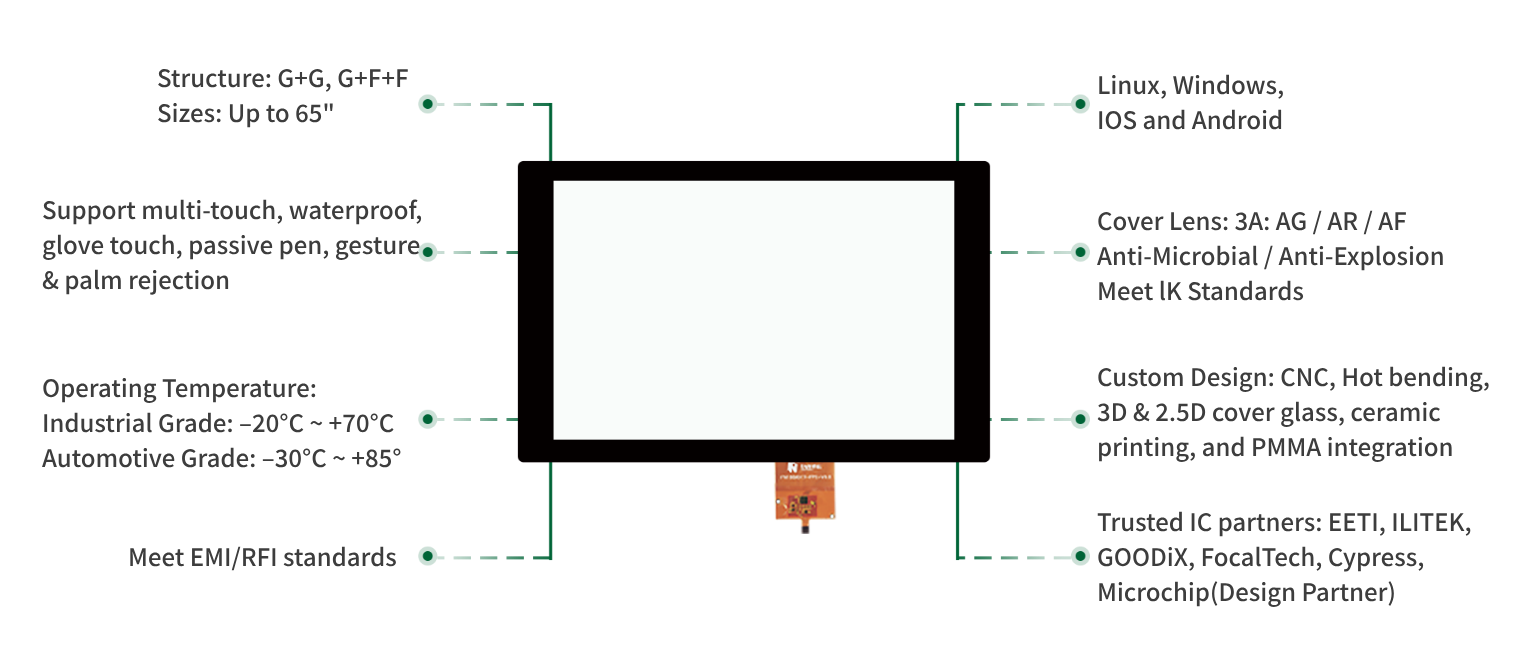

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

Application Scenarios — Based on Real Technical Requirements

1. High-Durability G+G Cover Glass → Public Interaction Terminals

Because G+G resists scratches and repeated tapping, it fits:

Self-check-in terminals
Ticketing machines
Retail kiosks
Access control panels

2. USB Plug-and-Play Interface → Fast Integration Equipment

Where engineers want minimal driver work:

Industrial PCs & workstation terminals
Embedded control systems
HMI retrofit projects

3. 10-Point Multi-Touch → Gesture-Based Interfaces

When zooming, rotating, or multi-finger UI is required:

Fitness equipment consoles
Digital signage control UIs
POS terminals with gesture shortcuts

4. High Optical Transmittance → Displays That Must Stay Bright

For environments where screen brightness is critical:

Medical monitors
Commercial signage
Smart vending machines

5. Wide Operating Temperature → Continuous Operation Devices

Stable in long-term, 24/7 operations:

Building management panels
Factory automation terminals
Vehicle-mounted control screens

Case Study

payment-systems

Kiosk

Challenge: A kiosk manufacturer faced frequent scratches and surface wear due to heavy public usage.

Solution: We redesigned the cover lens with higher hardness, thicker structure, and optional AG/AF coating to enhance durability.

Result: Scratch issues dropped by ~80%, and the maintenance cycle extended from 6 months → 18+ months.

Why It Worked: Durability is primarily driven by cover lens strength, not just the touch stack.

Fintness-Equipment

Fitness Equipment

Challenge: A fitness equipment brand needed smooth pinch-to-zoom and gesture control for a modern UI.

Solution: We tuned the touch sensor and controller firmware for better gesture accuracy and provided a USB plug-and-play interface.

Result: The UI became more responsive and tablet-like, and the customer shortened development time significantly.

Why It Worked: True multi-touch quality comes from sensor design + controller tuning, not only the nominal “10-point” spec.

medical display

Medical Device

Challenge: A medical device company needed a touch panel that preserved brightness and color accuracy under strong lighting.

Solution: We supplied a high-transmittance capacitive touch panel and fine-tuned optical bonding parameters.

Result: Brightness improved by 8–10%, reflections decreased, and doctors reported clearer visibility during the operation.

Why It Worked: Higher light transmittance ensures clarity without sacrificing touchscreen performance.

Why FANNAL?

FANNAL, founded in 2011, is a specialist in touch display solutions, delivering high-quality products and technical services worldwide. We design and manufacture in-house custom Displays, PCAP touch screens, and optical bonding. Our solutions serve industrial, outdoor, medical, automotive and other applications.

We are a fast-growing high-tech company financially backed by SECO, a European leader in electronic devices and embedded computing. We hold ISO 9001, ISO 14001, ISO 45001, ISO 13485, and IATF 16949 certifications. Our products are REACH and RoHS compliant, with test reports or declarations available upon request.

With stable quality and engineering support, FANNAL helps customers stay competitive and differentiate their products globally.

Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Touchscreens, and Touch Monitors manufacturing.

One-Stop Solution: Full in-house process for touch screen, display, and optical bonding

Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support.

Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions.

Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons.

Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.

Album

FANNAL Ablum

FAQ

Q: Are you a manufacturer?

A: Yes, Fannal is a leading custom display & touchscreen manufacturer with 15 years of experience, offering full customization for LCD, TFT, AMOLED display panels, capacitive touchscreens, touch monitors, and optical bonding service.

Q: Do you offer OEM and ODM touch display solutions?

A: Yes, we specialise in providing OEM and ODM touch display and touchscreen solutions for global B2B clients. Whether you need custom sizes, optical bonding, or specialized applications such as POS, kiosk, industrial, or medical displays, we can design and manufacture according to your requirements. Our team ensures high-quality production, reliable delivery, and full support throughout your OEM or ODM project.

Q: Can FANNAL customize displays?

A: Yes, FANNAL offers display solutions. You can find more details on our [Custom Displays] page.

Q: Do you ensure long-term supply for your products?

A: FANNAL understands the importance of product continuity after a long development cycle.

We ensure long-term and stable supply for all products — with industrial and automotive displays available for 3–5 years of continuous production.

Q: Do you have your own R&D and engineering team?

A: Yes, FANNAL has a professional in-house engineering team specializing in display, touchscreen, and optical bonding technologies. Our engineers support customers from design to mass production.

Q: Can I buy displays or touchscreens without bearing development costs?

A: Yes, our standard products can be purchased without development costs.
