6.8" Capacitive Touch Screen | G+G | I²C Interface

Name: 6.8" Capacitive Touch Screen | G+G | I²C Interface
Brand: FANNAL
Rating: 5.0 (66 reviews)

6.8‑inch projected capacitive touch screen

Model:
FN068MGRGXX
Brand:
FANNAL
Size(inch):
6.8
Cover OD (mm):
190.66*75.01*1.7
Sensor OD:
169.55*74.41*0.4
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
CTP IC:
Microchip
TP VA (mm):
161.59*61.22
Structure:
G+G
TP Interface:
I²C

Quantity:
Availability:





Inquiry Add to Basket

6.8 Inch Touch Screen

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

Designed for rigorous industrial, medical, and automotive environments, this 6.8-inch capacitive touch panel features a robust Glass-on-Glass (G+G) structure. Powered by the high-performance Microchip mXT640U controller, it delivers exceptional precision, multi-touch capabilities, and superior EMI immunity, making it the ideal choice for outdoor terminals, handheld devices, and industrial control systems.

Key Features:

Superior Durability (G+G Structure): The Glass+Glass construction ensures high transparency, chemical resistance, and long-term stability. The chemical-strengthened cover glass offers surface hardness ≥7H, protecting against scratches and impact in harsh work settings.
Industrial-Leading Touch IC (mXT640U): Equipped with the Microchip maXTouch® 640U controller, supporting up to 5-10 point precision touch with an ultra-fast response time and high signal-to-noise ratio (SNR).
Adaptable Touch Modes:
- Glove Touch: Supports operation with various industrial gloves (up to 5mm thickness).
- Waterproof/Wet Touch: Advanced algorithms prevent false touches from water droplets or mist, ensuring reliability in outdoor or humid environments.
- Stylus Support: Compatible with passive pens for high-precision input.
Sunlight Readable & Optical Bonding Ready: Optimized for high-brightness displays (up to 1000 nits compatibility). We offer professional optical bonding services to minimize reflections and enhance contrast for outdoor use.
EMI/EMC Excellence: Built to pass rigorous industrial EMI standards, ensuring the touch performance remains unaffected by high-frequency noise from motors or wireless modules.
Long Lifecycle Support: Specifically designed for industrial B2B projects with a guaranteed 5-7 year supply lifecycle to ensure your product's stability.

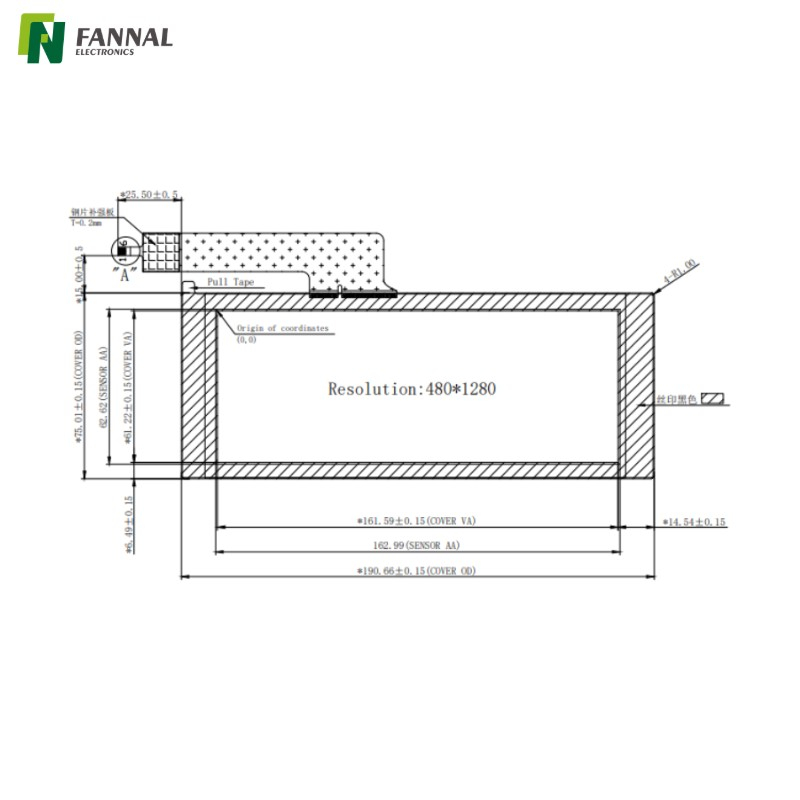

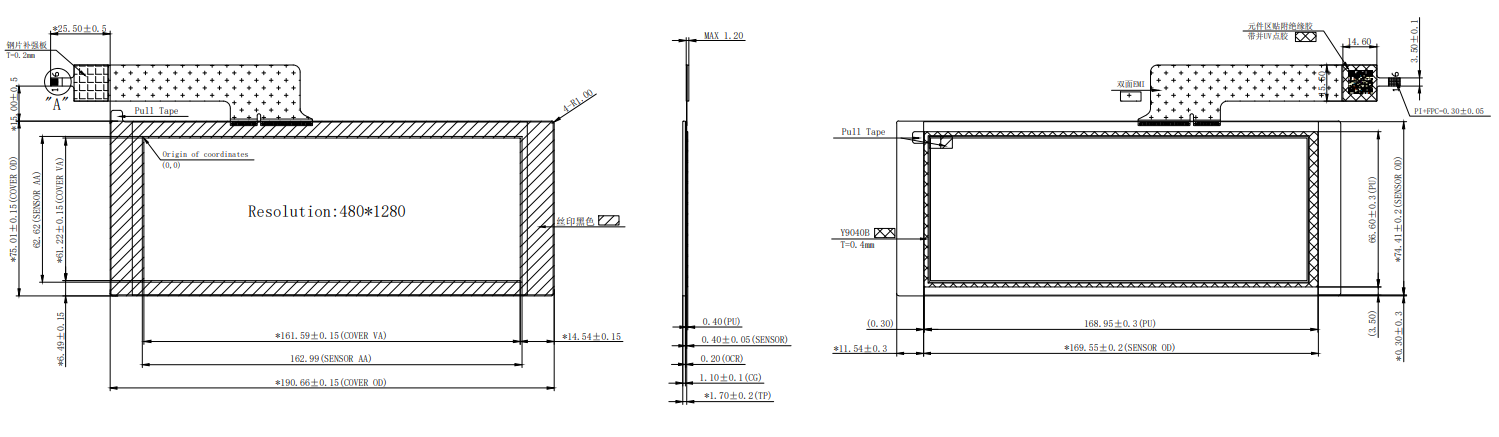

Drawing

Specifications

Construction

Construction	Materials	Remark
Cover Glass	Chemical-strengthened glass	Thickness: 1.1mm ± 0.05mm
Optical Clear Adhesive	OCR	Thickness: 0.175mm ± 0.05mm
ITO Glass	ITO Glass	Double side ITO glass; Thickness: 0.4mm ± 0.05mm

Mechanical Characteristics

Item	Description	Unit
Touch Module Size	6.8	inch
Outer Dimension	190.66 * 75.01	mm
View Area	161.59 * 61.22	mm
Sensor Area	169.55 * 74.41	mm
Cover Thickness	1.1	mm
Number of Touch	5	-
Interface	I2C	-
Controller	Microchip	-

Applications

Industrial control panels and human-machine interfaces (HMI)
Embedded devices requiring reliable touch input
Medical and diagnostic equipment touch interfaces
Kiosks, POS, and industrial automation displays
Custom projects needing PCAP touch input integration

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Q1: What is the benefit of the G+G structure for my industrial application?

A: G+G (Cover Glass + Sensor Glass) offers the best optical clarity and environmental resistance. Unlike G+F (Film) structures, it won't warp or yellow over time when exposed to heat or UV, making it perfect for long-term industrial deployments.

Q2: Does this 6.8-inch touch screen support operation with medical or industrial gloves?

A: Yes. Our firmware is tuned to support a wide range of materials, including latex, nitrile, and thick industrial work gloves. We can further customize the sensitivity based on your specific glove requirements.

Q3: Can I use this touch screen in an outdoor environment with rain?

A: Absolutely. The mXT640U controller includes "Water Suppression" features. It can distinguish between a finger touch and a water spill, preventing "ghost touches" and maintaining functional control even when the surface is wet.

Q4: Is it possible to customize the Cover Lens (shape, color, logo)?

A: Yes, Fannal specializes in full customization. We can adjust the cover glass thickness (up to 6mm or more), add IK-rated impact resistance, print custom logos, or apply surface treatments like Anti-Glare (AG), Anti-Reflection (AR), or Anti-Fingerprint (AF).

Q5: What interface does it use, and is it "Plug-and-Play"?

A: It uses a standard I2C (IIC) interface. While I2C requires driver integration on your host CPU (Linux/Android/Windows), we provide complete technical support and driver code to ensure a smooth integration process.

Q6: What is the MOQ (Minimum Order Quantity) for this product?

A: For our standard 6.8" module, we offer flexible MOQ to support your prototyping and small-batch production phases. Please contact our sales team for a specific quote based on your project volume.
