21.5 Inch FHD Touch Display | IK06, 2.8mm Cover Glass

Name: 21.5 Inch FHD Touch Display | IK06, 2.8mm Cover Glass
Brand: FANNAL
Rating: 5.0 (53 reviews)

21.5-inch FHD capacitive touch display with 1920×1080 resolution, 2.8mm chemically strengthened cover glass, IK06, ≥7H hardness, LVDS display and USB touch interfaces.

Model:
FN2150T027A
Brand:
FANNAL
Size(inch):
21.5
Cover OD (mm):
529.64(H) × 321.1(V) × 13.14(T)
Display AA(mm):
476.06*267.79
Operation Temp(℃):
0~50
Storage Temp(℃):
-20~60
TP VA (mm):
477.06(H) × 268.79(V)
Structure:
G+G
Resolution:
1920×1080
Display Interface:
LVDS
TP Interface:
USB
Brightness(cd/m²):
210

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

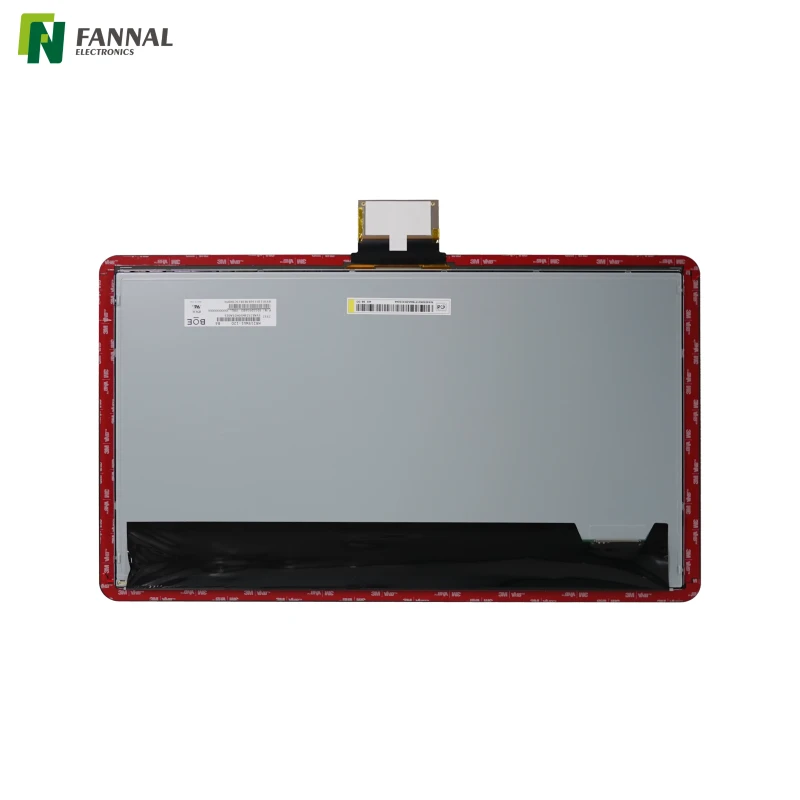

The 21.5-inch FHD capacitive touch display combines a 1920 × 1080 TFT panel with a G+G touch structure and a 2.8 mm chemically strengthened cover lens. The cover glass is specified with IK06 impact protection and ≥7H surface hardness, providing a more mechanically robust front surface for equipment interfaces. With LVDS display and USB touch interfaces, this air-bonded module is suitable for control terminals, HMI systems, machinery interfaces, and other indoor equipment requiring a large-format touch display.

Features

IK06 Impact Protection – The cover lens is rated IK06, providing a defined level of resistance to external mechanical impact.
2.8 mm Chemically Strengthened Cover Glass – The thicker front glass provides a more substantial protective layer than standard thin cover glass constructions.
≥7H Surface Hardness – The touch surface is specified at ≥7H under the stated test condition, helping resist surface scratching during normal equipment operation.
21.5-inch FHD Display – The 1920 × 1080 resolution provides a large 16:9 working area for information-rich HMI and control interfaces.
G+G Capacitive Touch – A glass-on-glass touch structure supports finger operation with a minimum light transmittance of 85%.

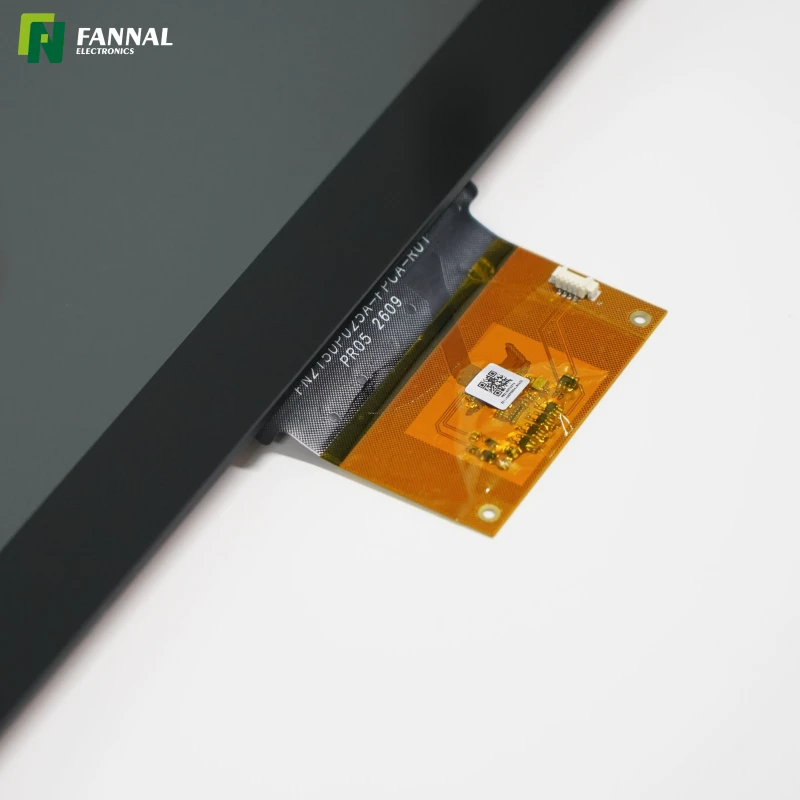

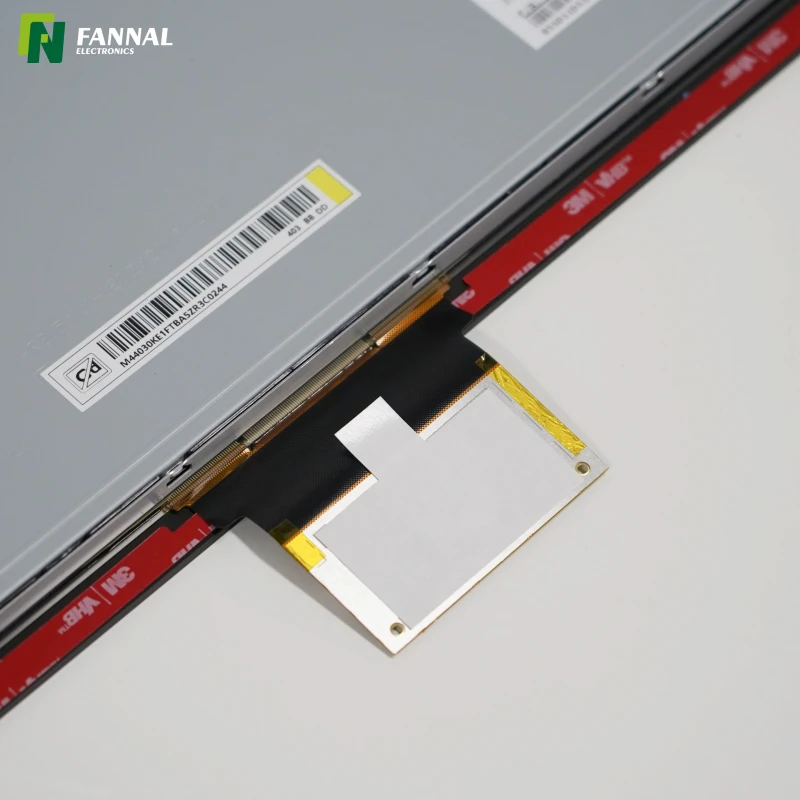

LVDS + USB Interfaces – LVDS connects the TFT display, while USB provides the touch interface for the host system.
Air-Bonded Construction – The display and touch components are integrated through air bonding with double-sided tape, providing a practical solution for equipment integration.
ESD Protection – The touch module is tested to ±8 kV contact and ±15 kV air discharge under the specified test conditions.

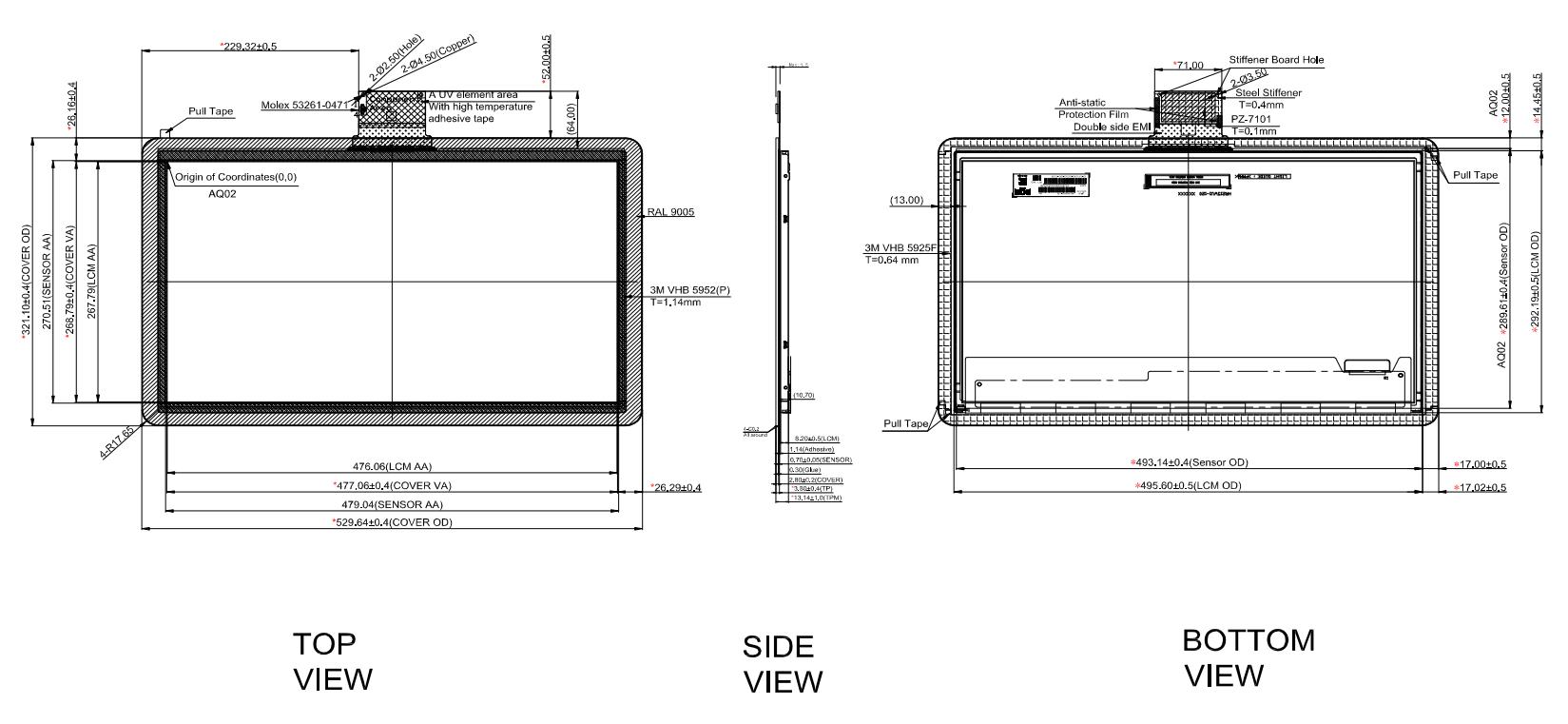

Drawing

Specifications

Parameter / Item	Specification / Value	Unit / Remark
Size	21.5	Inch
Active Size	21.5 (Diagonal)	Inch
Outline Size	529.64(H) × 321.1(V) × 13.14(T)	mm
View Area	477.06(H) × 268.79(V)	mm
Resolution Ratio	1920×1080	-
Luminance (TPM)	210 (Typ.); 170 (MIN)	cd/m²
Structure	G+G	-
Cover Lens Thickness	2.8 (CS, IK06)	mm
Sensor Thickness	0.7	mm
Surface Hardness	≥7H Min. (500g)	-
Surface Treatment	Standard	-
TFT Interface	LVDS	-
TFT Driver IC	BOE	-
Touch Interface	USB	-
Touch IC	Microchip	-
No. of Touch / Points	2 (Desiccation / Finger)	-
Touch Mode	Finger	-
Power Supply of TFT	5.0	V
Power Supply of Touch	5.0	V
Light Transmittance	85% Min	-
Operation Temperature	0 ~ +50	°C
Storage Temperature	-20 ~ +60	°C
Storage Humidity	10% ~ 90%	RH
Bonding Type	Air bonding	-
Bonding Material	Double-sided tape	-
ESD Test	±8KV (contact), ±15KV (air)	-
Environmental Requirements	RoHS	Compliant

Applications

Industrial HMI and Control Terminals – For equipment interfaces that require a large touch area and a mechanically protected front surface.
Machinery Control Panels – Suitable for operator interfaces used on manufacturing and processing equipment.
Automation and Monitoring Systems – The 21.5-inch FHD format provides ample space for dashboards, control menus, alarms, and monitoring data.
Commercial Equipment – Suitable for indoor equipment where the front panel may be exposed to routine contact or mechanical impact.
Embedded Touch Terminals – The LVDS display and USB touch interfaces allow integration with host systems designed for separate display and touch connections.
Test and Measurement Equipment – Useful for larger operator interfaces where clear visualization and touch operation are required.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

What does IK06 mean for this 21.5-inch touch display?
IK06 is a mechanical impact protection rating defined within the IK code system. For this module, the 2.8 mm cover lens is specified with IK06 protection, providing a defined level of resistance to external mechanical impacts. It should not be interpreted as making the entire display assembly impact-proof or suitable for every harsh-environment application.

Why use a 2.8 mm cover lens on a 21.5-inch touch display?
A larger touch display has a relatively large front surface, so the mechanical design of the cover glass becomes an important part of the module. The 2.8 mm chemically strengthened cover lens, together with the specified IK06 protection and ≥7H surface hardness, provides a more mechanically robust front surface for equipment interfaces.

Is the 210 cd/m² brightness suitable for outdoor applications?
This module is better suited to indoor or controlled-light environments. With 210 cd/m² typical and 170 cd/m² minimum TPM luminance, it is not positioned as a sunlight-readable display. For direct-sunlight applications, a higher-brightness display and appropriate optical treatment would normally be required.

What should be considered when integrating this 21.5-inch touch display?
The host system needs to support an LVDS display connection and USB touch interface. Mechanical integration should also account for the 529.64 × 321.1 × 13.14 mm module outline, mounting structure, cable routing, and clearance around the touch display. The 0°C to +50°C operating range should also be checked against the actual equipment environment.
