19 Inch SXGA Touch Display with Custom PCAP and Cover Glass

Name: 19 Inch SXGA Touch Display with Custom PCAP and Cover Glass
Brand: FANNAL
Rating: 5.0 (89 reviews)

19 Inch SXGA Touch Display with Custom Cover Glass Design

Model:
FN1900P014AQ01
Brand:
FANNAL
Size(inch):
19
Display AA(mm):
376.32(H) * 301.06(V)
Operation Temp(℃):
0~50
Storage Temp(℃):
-20~60
Contrast Ratio:
1000 : 1
Structure:
G+G
TP Interface:
USB
Brightness(cd/m²):
350

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Specifications

Applications

Customizations

FAQ

This 19 inch touch display combines the AUO G190EG01 SXGA TFT panel with a custom projected capacitive touchscreen and specially designed cover glass. Featuring functional cutouts, decorative printing, logo integration, and 10-point touch support, it is designed for OEM equipment requiring customized front-panel integration rather than a standard off-the-shelf display solution.

Features

Based on the AUO G190EG01 TFT Panel

The display is built around the AUO G190EG01 TFT panel, offering 1280×1024 SXGA resolution, 1000:1 contrast ratio, and stable long-term supply support for industrial and professional equipment.

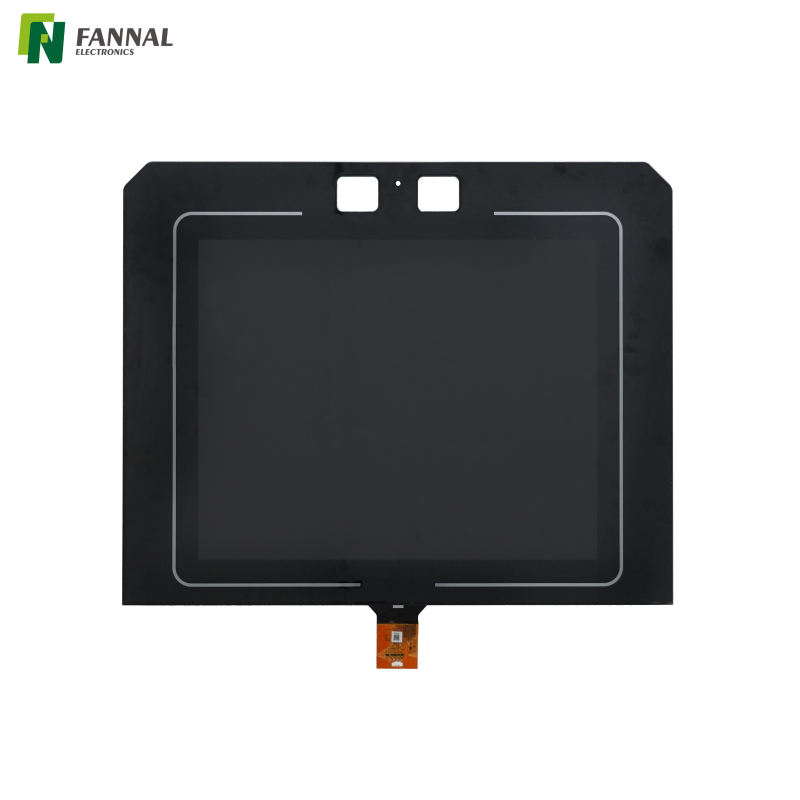

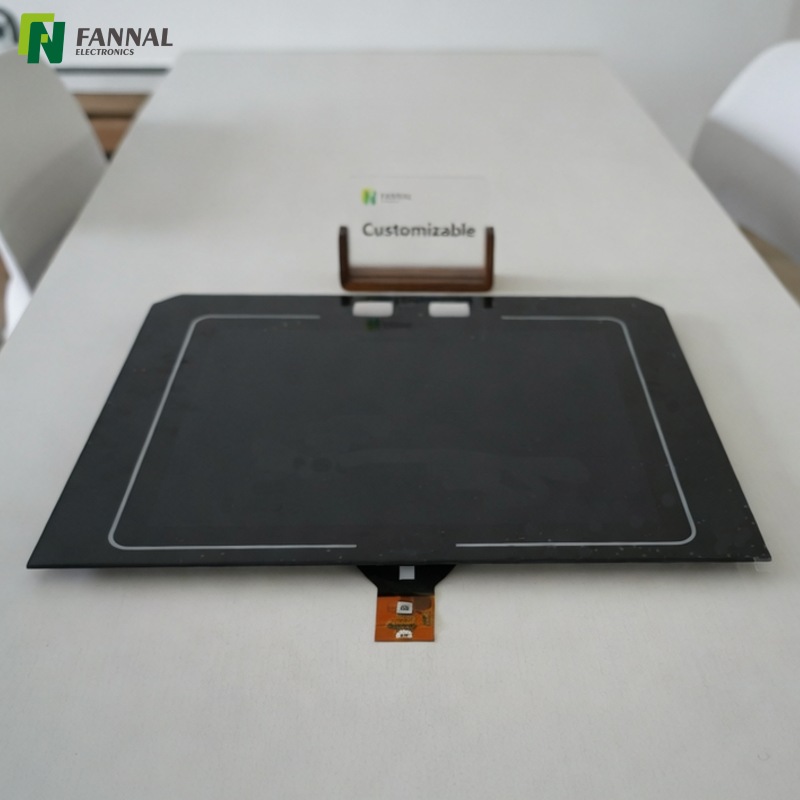

Custom Cover Glass with Special-Shaped Geometry

Unlike standard rectangular touch displays, the cover glass features a custom six-sided design created through corner modifications. This allows the display to better match product enclosures and industrial design requirements.

Integrated Functional Cutouts

The cover glass includes multiple functional openings, including rectangular and circular cutouts, enabling integration with physical buttons, indicators, cameras, sensors, key switches, or other front-panel components.

Custom Silk Printing and Logo Integration

Decorative border graphics and logo printing can be incorporated directly into the cover glass design, helping create a consistent product appearance without requiring additional front-panel overlays.

10-Point Projected Capacitive Touch

The touchscreen uses the Microchip maXTouch mXT2952TD controller and supports up to 10 simultaneous touch points for modern graphical user interfaces.

Chemically Strengthened Cover Glass

The 2.8 mm chemically strengthened cover lens provides improved durability and scratch resistance for equipment intended for long service life.

USB Touch Interface

USB communication simplifies integration with industrial PCs, embedded computers, and operating systems that support standard HID touch protocols.

Specifications

TFT Panel

Item	Specifications	Unit / Remark
Screen Diagonal	482.6 (19.0")	mm
Active Area	376.32 (H) × 301.06 (V)	mm
Pixels H × V	1280(×3)× 1024	-
Pixel Pitch	0.294 (per one triad) × 0.294	mm
Pixel Arrangement	R.G.B. Vertical Stripe	-
Display Mode	Normally White	-
White Luminance	350 (center, Typ) @ 50mA	cd/m^2
Contrast Ratio	1000 : 1 (Typ)	-
Optical Response Time	5 ms (Typ, on/off)	msec
Nominal Input Voltage VDD	+5.0 V	Volt
Power Consumption	15.1W (PDD = 5.5W @LED = 50mA)	Watt
Weight	1670 (TYP)	Grams
Physical Size (H × V × D)	396 (H) × 324 (V) × 17.8 (D) (Typ)	mm
Electrical Interface	Dual channel LVDS	-
Surface Treatment	Anti-Glare treatment (3H)	-
Support Color	16.7M colors (RGB 6-bit data + HiFRC data)	-
Operating Temperature	0 to +50	°C
Storage Temperature (Non-Operating)	-20 to +60	°C
RoHS Compliance	RoHS Compliance	-

Touch Panel

Item	Specification
STRUCTURE	G+G
COVER THICKNESS	2.8
SENSOR THICKNESS	0.7
TOUCH INTERFACE	USB
TOUCH CONTROLLER	mXT2952TD
TOUCH POWER SUPPLY	5.0V
NO. OF TOUCH	10
LIGHT TRANSMITTANCE	82% MIN
COVER ENHANCEMENT METHOD	CHEMICAL STRENGTHENING
SURFACE HARDNESS	7H Min
CHANNELS OF SENSOR	TX40*RX50
ENVIRONMENTAL REQUIREMENTS	RoHS-2.0, REACH
OPERATION TEMPERATURE	-20~+70
STORAGE TEMPERATURE	-30~+80
UNMARKED TOLERANCE	±0.3/±1°

Applications

Medical Equipment

Suitable for diagnostic systems, laboratory instruments, and healthcare devices requiring customized front-panel layouts and professional appearance.

Industrial HMI Systems

Can be integrated into machine interfaces and control systems where custom enclosure design is prioritized over standard display formats.

Self-Service Equipment

Useful for kiosks, ticketing systems, registration terminals, and service equipment requiring touch operation combined with dedicated hardware controls.

Commercial Control Panels

Applicable to building automation systems, energy management devices, and professional control consoles requiring custom front-panel architecture.

OEM and Custom Equipment

Particularly suitable for projects where display, touch, branding, cutouts, and mechanical integration must be combined into a single assembly.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Why use a custom cover glass instead of a standard touch panel?

Custom cover glass allows the touch assembly to match specific enclosure designs, button layouts, sensors, indicators, and branding requirements. In many OEM projects, mechanical integration is as important as display performance.

What are the advantages of the AUO G190EG01 panel?

The AUO G190EG01 provides SXGA resolution, high contrast ratio, stable image quality, and long-term availability, making it suitable for professional equipment that requires extended product lifecycles.

Can the cover glass design be further customized?

Yes. Cover glass shape, corner geometry, cutouts, printing, thickness, surface treatments, and optical bonding options can typically be customized based on project requirements.

Is this display suitable for harsh industrial environments?

The touchscreen assembly supports wider environmental specifications, but the overall TPM operating temperature is determined by the TFT panel, which is rated for 0°C to +50°C operation. Applications requiring wider temperature ranges may require alternative TFT options.

Why are cutouts integrated into the cover glass?

Cutouts allow physical controls, status indicators, cameras, sensors, or security components to be integrated directly into the front panel without requiring additional mechanical modifications.
