21.5-inch Projected Capacitive Touch Panel

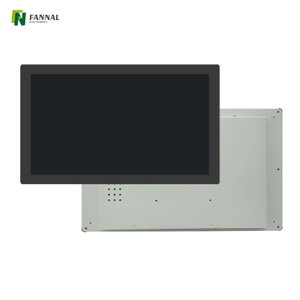

21.5-inch Projected Capacitive Touch Monitor

Name: 21.5-inch Projected Capacitive Touch Monitor
Brand: FANNAL
Rating: 5.0 (15 reviews)

21.5-inch Touch Monitor

Model:
FN2150M001A
Brand:
FANNAL
Operation Temp(℃):
0℃~+50℃
Storage Temp(℃):
-20℃~+60℃
Monitor Size:
533.4*320.5*44.9
Resolution:
1920*1080
Interface:
USB/HDMI/VGAV3.5mmTRS
Brightness(cd/m²):
212

Quantity:
Availability:





Inquiry Add to Basket

touch monitor

Product Features

Product Drawing

Specification

Add Ons

Product Application

Introducing the 21.5-inch Projected Capacitive Touch Monitor, designed for versatility and clarity.

Surface Treatment: Anti-glare (AG) finish for reduced reflections.
Resolution: Crisp 1920x1080 Full HD for stunning visuals.
Brightness: 212 cd/m², ensuring good visibility in various lighting conditions.
Language Support: Compatible with Chinese, English, and six other languages, making it user-friendly for a global audience.

This monitor is perfect for interactive applications, kiosks, and any setting where touch functionality is essential.

屏幕截图 2024-10-28 140631

General Specifications：

Diagonal Size:	21.5" TFT-LCD
Monitor Thickness(mm):	44.9mm
Active Area (mm):	476.06x267.79
Resolution:	1920*1080
Viewing Angle:	Min: Horizontal: 89° total; Vertical: 178°
Viewing Angle:	Typ: Horizontal: 89° total; Vertical: 178°
Accuracy:	±2mm（edge） ±1.5mm（middle）
Brightness:	170 cd/m2 (Min.) 212 cd/m2 (Typ.)
Surface Treatment	AG
monitor Size(mm):	392.3241.542.5
Operating Temperature:	-20℃~+70℃
Storage Temperature:	-20℃~+70℃
Buttons:	ON/OFF, UP,Down, Menu, Exit
Menu type:	Graphical menu
Power Stand-by:	<0.5W 12Vstb/200mA
Input:	12V/dc Note1
Interface:	USB/HDMI/VGAV3.5mmTRS

Customization

COVER LENS:

Shape: cut in special shape, Printing: Silk printing/Ceramic printing, Material: PMMA/Glass, Thickness: 0.55mm~10.0mm, Surface treatment: AG, AR, AF, AB.

Sensor:

Sensor made by FANNAL,Narrow bezel design,Thickness selectable.

FPC:

Required shape available, Touch IC selectable, Interface selectable.

Bonding:

Air bonding/optical bonding, low reflection, All one black effect.

TFT Display:

In house manufacture/sunlight readable display/wide temperature display, IPS TFT display, Automotive grade display.

Add-on:

backlight board, AD board, wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
