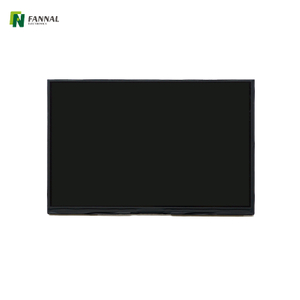

10.1" G+G I²C interface high reliability Capacitance touch Panel

Application Examples

• Industrial HMI Panels: 10.1" capacitive touch screens are ideal for industrial control panels and embedded HMI systems, providing durable and precise multi-touch input for machinery monitoring and operation.

• Self-Service Kiosks: Perfect for interactive kiosks in retail, transportation, or hospitality, delivering responsive and intuitive touch interaction for multiple users.

• Medical Devices & Healthcare Panels: Used in medical touch interfaces and patient information systems, offering reliable, cleanable, and accurate multi-touch performance for clinical environments.

• Automotive & Vehicle Interfaces: Can be integrated into vehicle dashboards or embedded in-vehicle control systems, ensuring impact-resistant and precise touch input for driver and passenger operations.

• Collaborative Workspaces & Conference Displays: Supports multi-user interaction on large displays in meeting rooms, training centers, or design studios, enabling efficient collaboration and data visualization.

Case Study: Industrial HMI – 10.1" Touch Panel

Customer Challenge:
A factory automation company was struggling with their existing control interface: operators found touch responses laggy, and the panels couldn’t withstand continuous industrial use. They needed a reliable 10.1" touch panel that could integrate seamlessly with their embedded system while performing consistently under harsh conditions.

FANNAL Solution:
Our engineering team collaborated closely with the customer to provide a 10.1" G+G capacitive touch screen with Microchip IIC controller, perfectly matched to their TFT display. We fine-tuned the touch firmware, optimized the interface, and ensured the mechanical alignment met factory standards.

Result:
Operators immediately noticed smoother, precise touch input. The panel now runs reliably across all shifts, improving workflow efficiency and reducing errors. The solution demonstrates how customized engineering and robust design can transform industrial operations.

Customization Options

1. TFT Module Matching

• Seamless integration with a custom 10.1" TFT display, ensuring precise alignment, stable display performance, and reliable multi-environment operation.

2. Cover Glass Design

• Custom thickness, CNC shaping, 2.5D/3D edges

• Surface treatments: anti-glare, anti-microbial, anti-explosion, tailored for industrial, medical, or commercial use.

3. Touch Controller & Firmware

• Microchip IIC controller with FANNAL-optimized firmware

• Supports precise single-touch input, glove touch adaptation, and gesture recognition if needed

• Firmware tuning ensures stability under continuous operation and industrial temperatures.

4. Mechanical & Interface Integration

• Custom mounting brackets, FPC routing, and interface adaptation

• Ensures fast and secure integration into your system or HMI enclosure.

5. Industrial Reliability Enhancements (Optional)

• Optical bonding for durability, sunlight readability, and improved contrast

• EMI/EMC optimization for industrial compliance

About FANNAL

FANNAL is a professional manufacturer and solution provider of industrial and embedded display technologies, specializing in capacitive touch screens, G+G and G+F+F panels, and custom display modules.

With in-house engineering capabilities, FANNAL delivers custom TFT integration, cover glass design, firmware tuning, and optical bonding tailored to industrial, medical, automotive, and commercial applications.

Our touch panels are designed for high reliability, durability, and precise touch performance, helping clients accelerate product development and ensure seamless system integration.

 One-Stop Solution: Full in-house process for touch display solutions

 Financially supported by SECO for long-term stability & growth
 ISO 9001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant.
 In Italy, Germany, France, Spain, India, Japan, Singapore, and more — ensuring timely local support.

FAQ

Q1: Can this touch panel be integrated into existing embedded systems?

Yes. FANNAL engineers provide interface adaptation and firmware guidance to ensure smooth integration with your embedded controller or HMI system.

Q2: How does the touch panel handle continuous industrial operation?

The panel is designed for long-term stability, with optimized firmware and robust IC design to maintain consistent single-touch performance under extended operation.

Q3: Is the touch input accurate in challenging environments?

Yes. The touch controller and firmware are engineered to handle industrial conditions, maintaining precise input even with vibration, temperature variation, or high-use scenarios.

Q4: Can FANNAL assist with custom installation requirements?

Absolutely. Our engineering team supports mechanical integration, FPC routing, and EMI/EMC optimization, ensuring the touch panel fits seamlessly into your system.
