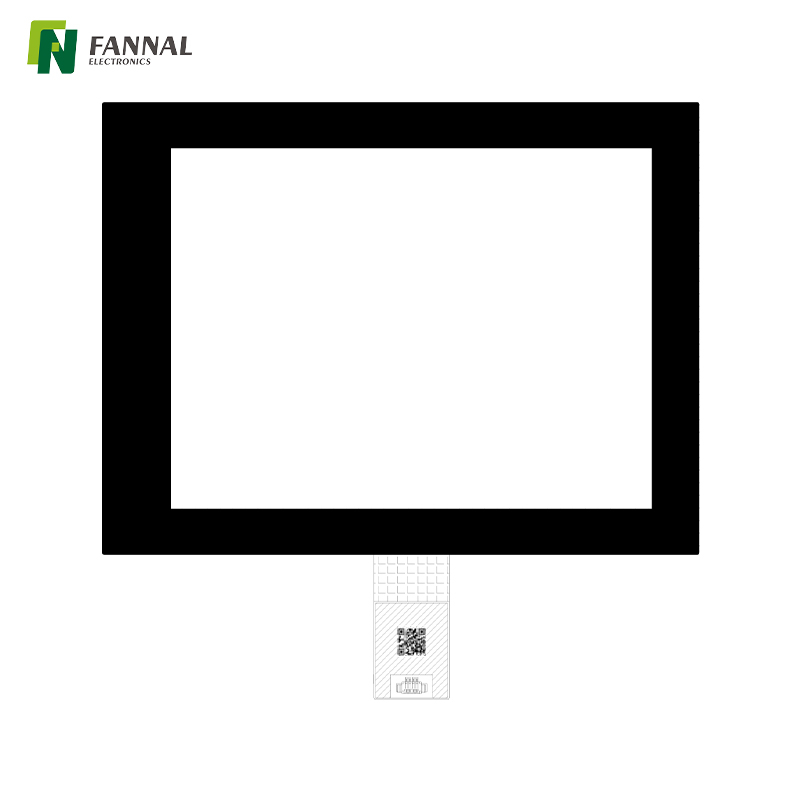

8.4" multi touch screen Matchable with 4:3 Display

Name: 8.4" multi touch screen Matchable with 4:3 Display
Brand: FANNAL
Rating: 5.0 (31 reviews)

8.4-inch PCAP

Model:
FN0840P008A
Brand:
FANNAL
Size(inch):
8.4
Cover OD (mm):
213.00*160.90*1.1
Sensor OD:
173.40*130.80*0.7
Operation Temp(℃):
-20-70
Storage Temp(℃):
-30-80
CTP IC:
Microchip
Display:
Can be chosen
TP VA (mm):
171.40*128.70
Structure:
G+G
TP Interface:
USB

Quantity:
Availability:





Inquiry Add to Basket Download

multi touch screen touch screen manufacturers custom touch screens

Product Features

Drawing & Specifications

Customization

Product Application

FAQ

This 8.4-inch capacitive touch panel is engineered to meet the rigorous demands of industrial and professional environments. Featuring a robust G+G (Glass-on-Glass) construction and a high-performance Microchip Technology controller, it delivers exceptional durability and precise touch accuracy.

The integrated USB interface provides a true plug-and-play experience, allowing for seamless integration with Windows, Android, and Linux systems without complex driver development. Its classic 4:3 form factor makes it a versatile solution for both modern HMI designs and the retrofitting of existing industrial equipment.

Key Features

Plug-and-Play USB Interface: Simplifies installation and reduces development time by offering native compatibility with most industrial PCs and embedded systems.
Microchip Controller Excellence: Provides industry-leading noise immunity (EMI/EMC) and reliable tracking, ensuring the screen performs flawlessly near high-power machinery.
Rugged G+G Structure: The chemically strengthened cover glass and glass sensor provide superior scratch resistance and long-term optical clarity compared to plastic alternatives.
10-Point Multi-Touch: Supports smooth fluid gestures, such as zooming and swiping, enhancing the user experience for complex industrial software.
Optimized for Industrial Reliability: Operates within a -20°C to +70°C range, designed to survive the thermal fluctuations typical of factory floors and outdoor kiosks.
Chemical Resistance: The glass surface is easy to clean and resists common industrial solvents, alcohol, and disinfectants.

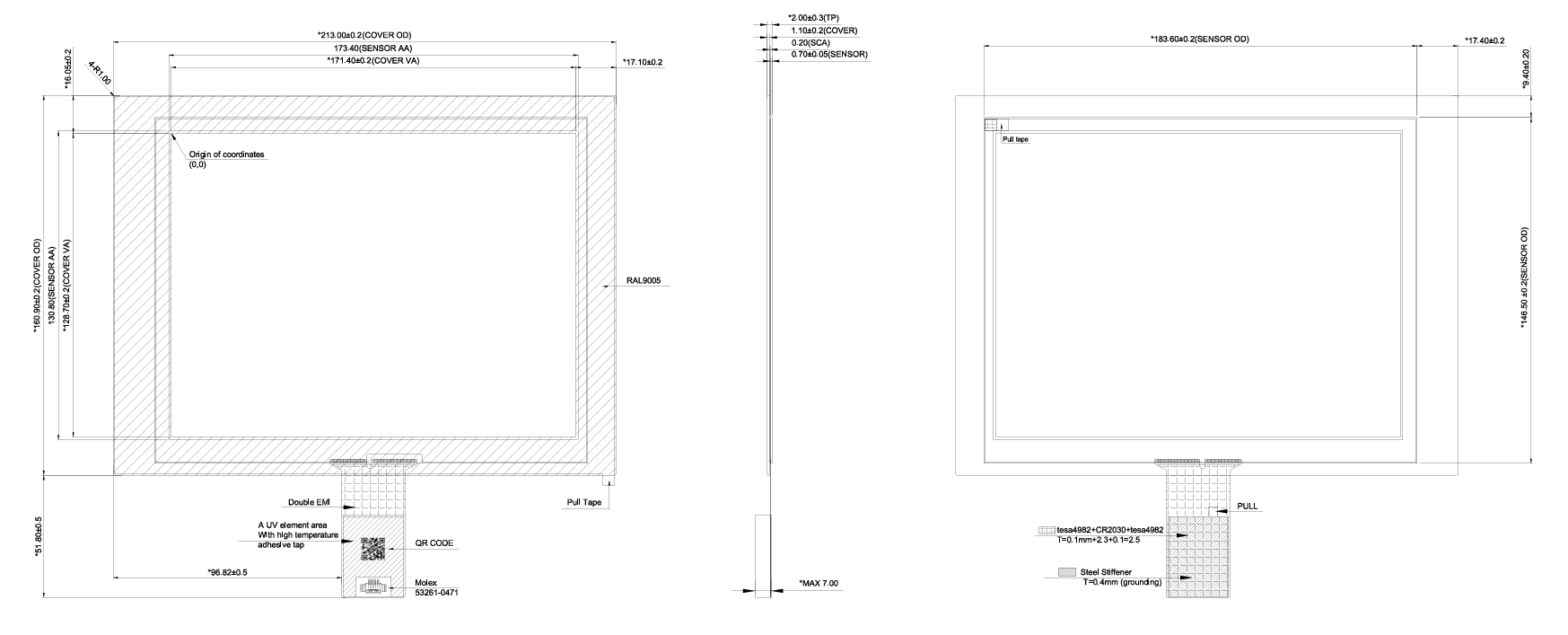

Drawing

屏幕截图 2024-10-08 140409

Specification

General Specifications：

Size (inch)	8.4
P/N	FN0840P008A
Structure	G+G
TP VA (mm)	171.40*128.70
Cover OD (mm)	213.00160.901.1
Sensor OD	173.40130.800.7
Operation Temp(℃)	-20-70
Storage Temp(℃)	-30-80
Interface	USB
Number of Touch	10
CTP IC	Microchip
TFT to Match	Can be chosen

Customization

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

Custom Touchscreen

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

Application

Industrial Control Panels: Machine-human interfaces (HMI) for CNC machines and automated production lines.
Medical Equipment: Portable diagnostic monitors and bedside patient care terminals.
Legacy System Upgrades: Replacing old resistive screens or non-touch displays in existing 8.4" 4:3 aspect ratio equipment.
Rugged Handhelds: Outdoor data collection terminals and military-grade portable tablets.
Smart Marine/Agricultural Displays: Integrated consoles for boats or smart farming machinery.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

FAQ

Q1: Is this 8.4-inch touch panel compatible with Raspberry Pi or Linux systems?

Answer: Yes. The USB interface is HID-compliant, meaning it is recognized as a standard input device. It offers plug-and-play support for Raspberry Pi (Raspbian), Linux, Windows, and Android.

Q2: What are the advantages of the Microchip IC in this specific touch screen?

Answer: Microchip controllers are highly valued in B2B sectors for their stable firmware and excellent resistance to electromagnetic noise, which is common in industrial environments with motors and relays.

Q3: Can the 1.1mm cover glass be customized for better impact resistance?

Answer: Absolutely. While the standard 1.1mm glass is durable, we can provide customized cover glass up to 3mm or thicker to meet specific IK impact ratings for high-risk environments.

Q4: Does this touch screen support operation with gloves or in wet conditions?

Answer: Yes, the Microchip firmware can be tuned to support touch detection through industrial gloves and can be optimized to ignore false touches caused by water droplets on the surface.
