Does this 10.1-inch touch panel support multi-touch with thick gloves?

Yes, the FN1010P069A supports 10-point multi-touch even with industrial or medical gloves. The Microchip IC can be fine-tuned to maintain high sensitivity across various glove materials.

How does the G+G structure benefit long-term industrial reliability?

The Glass-on-Glass (G+G) design offers superior scratch resistance and UV stability compared to film-based solutions. It prevents delamination and yellowing, ensuring consistent optical performance in harsh environments.

How does the Microchip controller handle EMI in medical environments?

The integrated Microchip Technology IC features exceptional EMI immunity, filtering out electrical noise from surrounding medical or industrial equipment to prevent ghost touches and signal drift.

Is the IIC interface compatible with Linux or Android embedded systems?

Yes, the IIC (I2C) interface is standard for industrial SOCs. We provide driver support and technical documentation to ensure seamless plug-and-play integration with Linux, Android, and Windows platforms.

Can the touch panel function correctly when the surface is wet?

The panel uses advanced firmware algorithms to differentiate between water droplets and actual touch input, allowing for stable operation in high-humidity or damp conditions.

Home » Products » Capacitive Touchscreens » 10.1" Touch Panel Touch with Gloves Capable

10.1" Touch Panel Touch with Gloves Capable

Name: 10.1" Touch Panel Touch with Gloves Capable
Brand: FANNAL
Rating: 5.0 (69 reviews)

10.1-inch PCAP

Model:
FN1010P069A
Brand:
FANNAL
Size(inch):
10.1
Cover OD (mm):
246.81*163.83*1.1
Sensor OD:
219.96*136.60*0.7
Operation Temp(℃):
-20-70
Storage Temp(℃):
-30-80
CTP IC:
Microchip
Display:
Can be chosen
TP VA (mm):
217.96*136.60
Structure:
G+G
TP Interface:
IIC

Quantity:
Availability:





Inquiry Add to Basket Download

touch with gloves touch panel display custom touch panel

Product Features

Drawing & Specifications

Customizations

Product Application

FAQ

Key Features

Glove-Ready Precision
Engineered with advanced firmware, this panel maintains high sensitivity and accuracy even when operated with thick industrial or medical gloves, ensuring uninterrupted workflow in professional settings.
Superior EMI Immunity
Equipped with a Microchip Technology IC, the module provides exceptional resistance to electromagnetic interference, preventing "ghost touches" in environments with heavy machinery or high-frequency equipment.
Rugged G+G Construction
The Glass-on-Glass (G+G) architecture offers superior optical clarity and structural rigidity. The 1.1mm cover glass provides a scratch-resistant surface that withstands long-term, high-intensity tactile use.
Adaptive Environment Tolerance
Designed for reliability across a -20°C to 70°C operating range, the panel resists thermal expansion and contraction, making it suitable for both cold storage facilities and high-heat industrial plants.
Seamless TFT Integration
While a standalone touch solution, its dimensions and IIC interface are optimized for flexible pairing with various 10.1" TFT-LCDs, allowing for a fully customized, optically bonded display assembly.

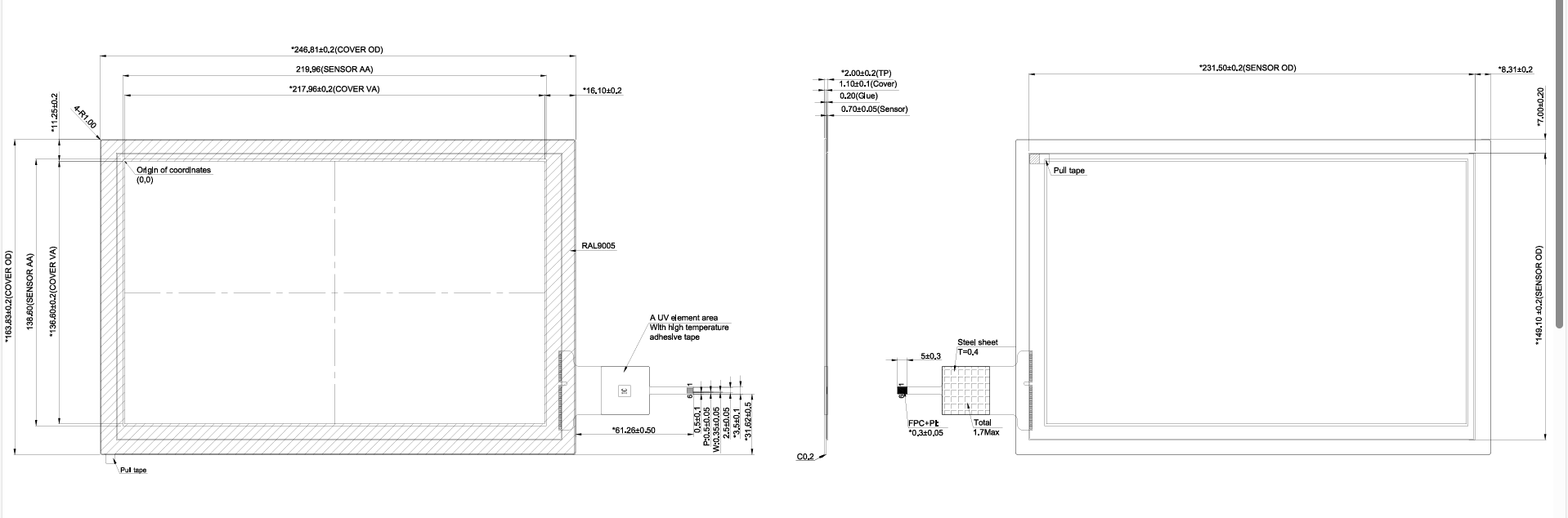

Drawing

屏幕截图 2024-10-09 091028

Specifications

Size (inch)	10.1
P/N	FN1010P069A
Structure	G+G
TP VA (mm)	217.96*136.60
Cover OD (mm)	246.81163.831.1
Sensor OD	219.96136.600.7
Operation Temp(℃)	-20-70
Storage Temp(℃)	-30-80
Interface	IIC
Number of Touch	10
CTP IC	Microchip Technology
TFT to Match	Can be chosen

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

Custom Touchscreen

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

Applications

Medical Diagnostic Consoles: Perfect for sterilized environments where practitioners must use latex or surgical gloves.
Industrial HMI Panels: Reliable operation near high-voltage equipment thanks to its robust controller and EMI shielding.
Outdoor Kiosks & Marine: The wide storage temperature and moisture-tolerant touch algorithms handle condensation and extreme weather.
Rugged Field Tablets: Provides the durability needed for portable devices used in construction or logistics.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

FAQ

Q1: How does this panel distinguish between a deliberate touch and environmental moisture?

Answer: Dynamic Signal Filtering. The Microchip-powered controller uses advanced algorithms to discriminate between the capacitive signature of a finger and conductive interference from water droplets or sweat. This ensures reliable performance in humid conditions or environments prone to condensation.

Q2: Is this touch panel compatible with specialized thick cover lens customization?

Answer: Firmware Adaptability. While the standard G+G structure uses a 1.1mm cover, the Microchip IC is highly tunable. We can adjust the drive voltage and sensitivity to support thicker, vandal-proof cover glass (up to 3mm or more) for kiosks or public terminals without losing touch precision.

Q3: How does the G+G structure handle long-term UV exposure in outdoor settings?

Answer: Material Stability. Unlike G+F (Glass-on-Film) structures that may yellow or delaminate under UV stress, our Glass-on-Glass (G+G) construction is inorganic. It maintains optical clarity and structural integrity over years of exposure, making it ideal for outdoor-facing industrial HMIs.

Q4: What technical support is provided for IIC interface integration?

Answer: Protocol Deployment. We provide the necessary initialization code and driver support for the Microchip IC. Our engineering team can assist in debugging the IIC (I2C) communication on your specific hardware platform, whether you are using Linux, Android, or an RTOS-based embedded system.

Q5: Can the touch sensitivity be adjusted for specific medical glove types?

Answer: Application-Specific Tuning. Yes. We understand that surgical latex behaves differently than heavy nitrile gloves. We offer firmware customization services to optimize the signal-to-noise ratio for the specific glove materials used in your operational environment, ensuring 10-point multi-touch accuracy.
