FN1010D069A
10.1
-20~70
-30~80
1280x800
ALL
LVDS
450
Customizable
| Quantity: | |
|---|---|

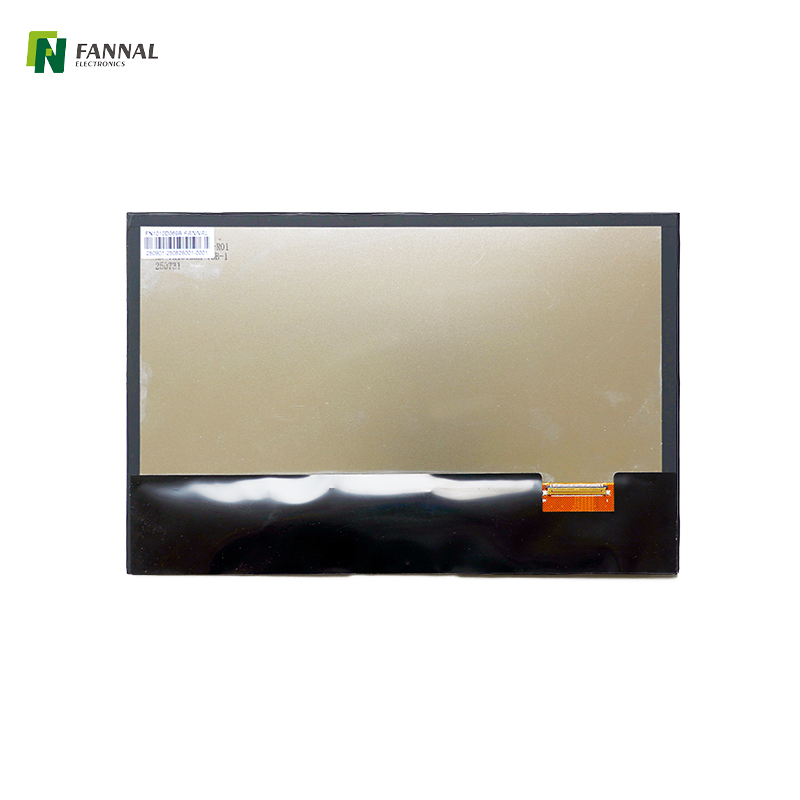

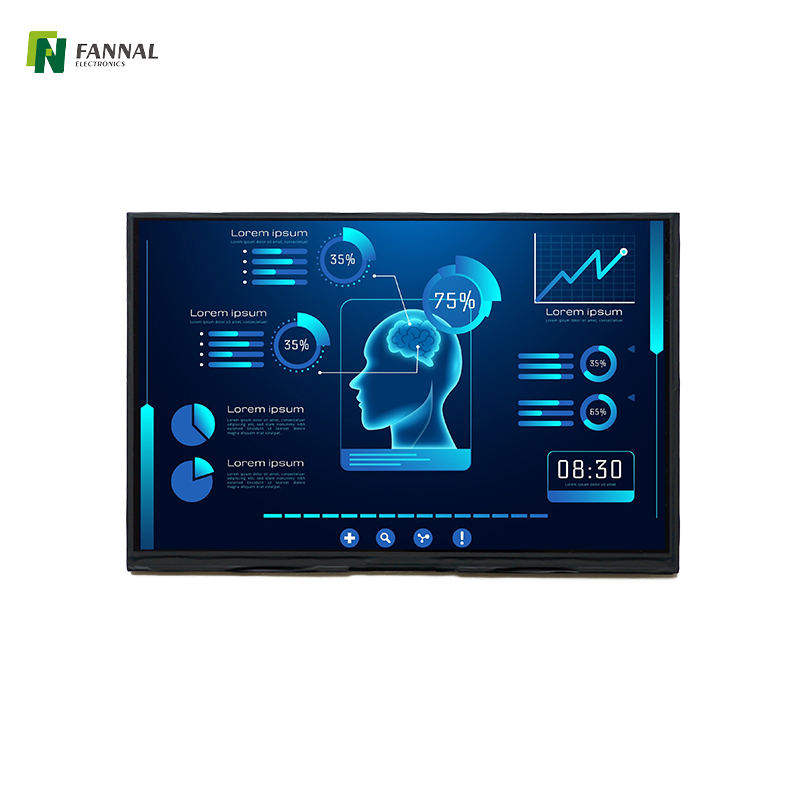

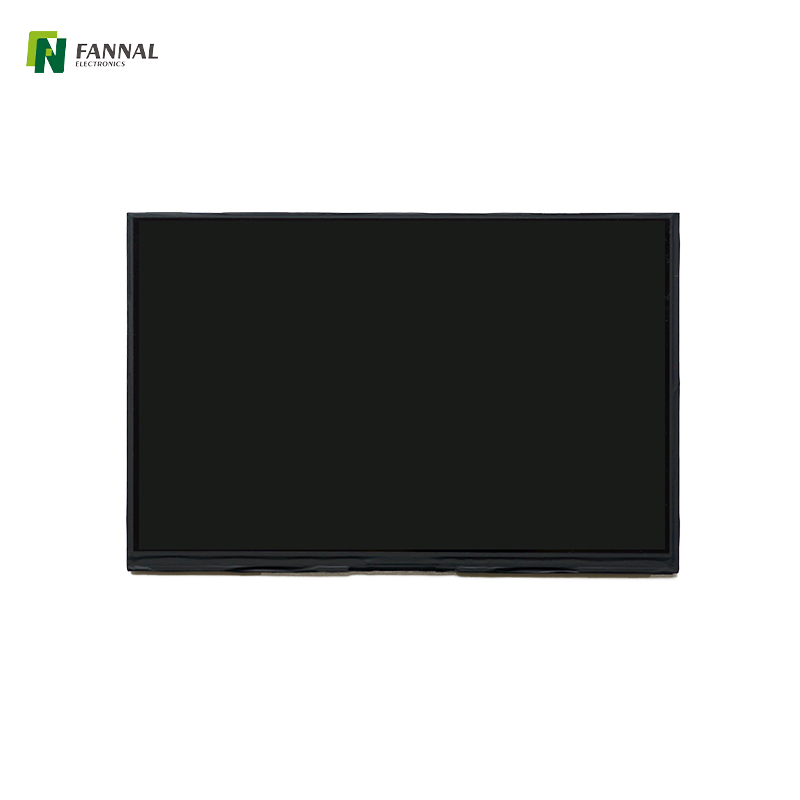

10.1" TFT LCD Display Module IPS 1280x800
Why Choose the 10.1-Inch TFT Display?
10.1-Inch IPS TFT LCD Panel
10.1-inch diagonal display with 1280×800 (WXGA) resolution, delivering sharp image quality and a 16:10 aspect ratio suitable for modern UI layouts.
Wide Viewing Angle (IPS Technology)
IPS panel ensures 178° wide viewing angles with consistent color reproduction and minimal color shift from any direction.
High Brightness Performance
Typical brightness of 450 cd/m², providing good readability in indoor and semi-bright environments.
Industrial Temperature Range
Designed for stable operation in harsh conditions with a -20°C to +70°C operating temperature and extended storage temperature support.
LVDS Interface for Reliable Signal Transmission
Standard LVDS interface offers stable, low-noise data transmission, ideal for industrial and embedded systems.
Low Power Consumption
Powered by 3.3V logic voltage, optimized for embedded platforms and long-term continuous operation.
Touchscreen Optional
Can be integrated with capacitive or resistive touch panels upon request, supporting customized HMI solutions.
Get the 10.1-Inch TFT Display trusted by professionals worldwide. Whether for industrial equipment, commercial displays, or cutting-edge projects, this display delivers the performance you need.
LCD size(inch): | 10.1 (Diagonal) |
Resolution: | 1280(H)×800(V) |

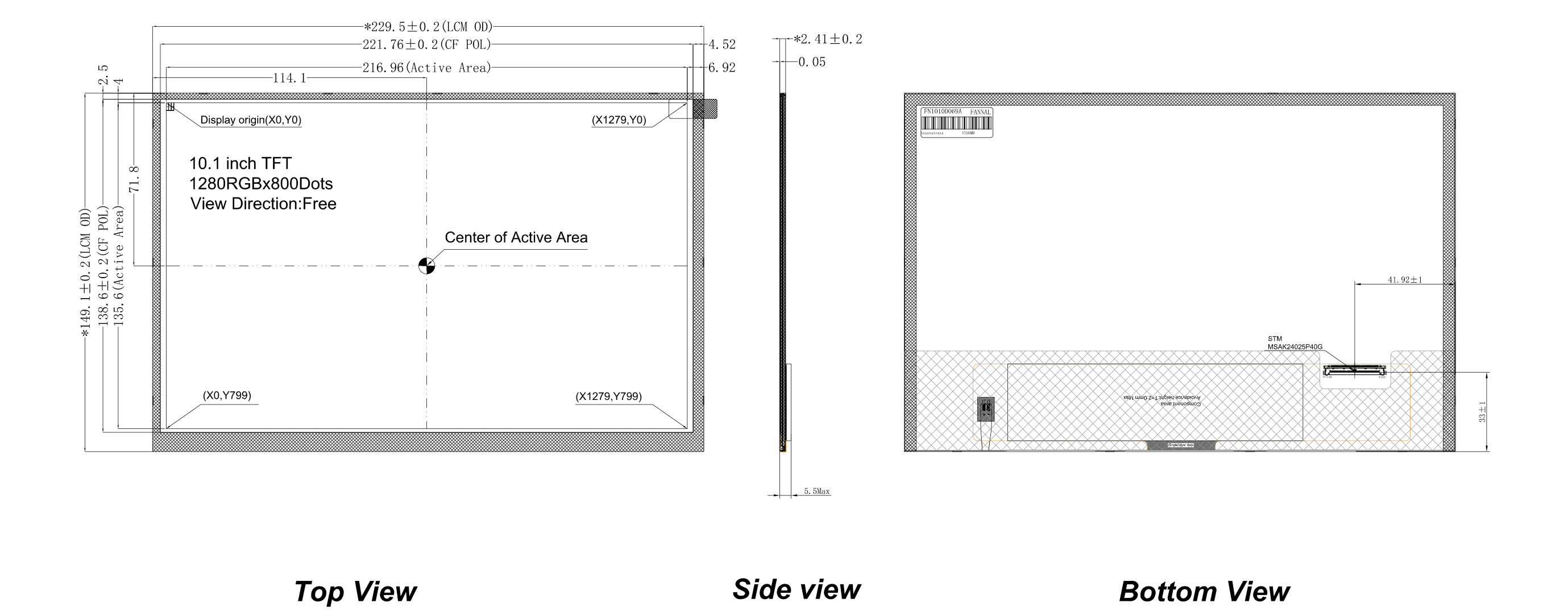

Active Area(mm): | 216.96(H)×135.6(V) |
Module Size(mm): | 229.5(W)x149.1(H)×2.41(D) |
Display Mode(mm): | Normally Black, Transmissive |
Interface: | LVDS |
View Direction: | ALL |
Power Supply(V): | 3.3 |
Luminance(cd/m2): | 450(Typ.) |
Operating Temperature(°C): | -20~+70 |
Storage Temperature(°C): | -30~+80 |
| PIN | Symbol |
| 1 | NC |
| 2 | VDD |
| 3 | VDD |
| 4 | VDD |
| 5 | NC |
| 6 | GND |
| 7 | GND |
| 8 | RXINON |
| 9 | RXINOP |
| 10 | GND |
| 11 | RXIN1N |
| 12 | RXIN1P |
| 13 | GND |
| 14 | RXIN2N |
| 15 | RXIN2P |
| 16 | GND |
| 17 | RXCLKN |
| 18 | RXCLKP |
| 19 | GND |
| 20 | RXIN3N |
| 21 | RXIN3P |
| 22 | GND |
| 23 | NC |
| 24 | NC |
| 25 | GND |
| 26 | NC |
| 27 | NC |
| 28 | GND |
| 29 | NC |
| 30 | NC |
| 31 | GND |
| 32 | GND |
| 33 | GND |
| 34 | NC |
| 35 | LED PWM |
| 36 | NC |
| 37 | NC |
| 38 | VLED 12V |
| 39 | VLED 12V |
| 40 | VLED 12V |
This 10.1-inch IPS TFT LCD module is suitable for a wide range of professional and industrial display applications, including:
Industrial HMI Panels
Control systems, PLC interfaces, and industrial automation equipment.
Embedded Systems & SBC Projects
Ideal for embedded controllers, development boards, and custom electronics requiring LVDS displays.
Commercial Display Equipment
POS terminals, information kiosks, and self-service machines.
Medical & Laboratory Devices
Diagnostic equipment, monitoring systems, and control interfaces.
Transportation & Instrumentation
Vehicle displays, measurement instruments, and system status panels.
To meet diverse integration needs, we offer extensive customisation for you, including:
• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)
• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP
• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.
• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.
• Optimised design for stable image transmission and performance.
• Available Sizes: Up to 65"
• Structure Options: G+G, G+F+F, designed for industrial and automotive applications
• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection
• Operating Temperature:
Industrial Grade: –20°C ~ +70°C
Automotive Grade: –30°C ~ +85°
• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards
• Material Options:
Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion
Optical Bonding | Size Range | Notes |
OCA | Up to 15.6” | Two fully automated production lines for high-volume manufacturing |
LOCA / OCR | Up to 32” | Excellent for high contrast and durability |
Silicone | Up to 32” | Ideal for rugged, large-size industrial applications |
FANNAL, founded in 2011, is a specialist in touch display solutions, delivering high-quality products and technical services worldwide. We design and manufacture in-house custom Displays, PCAP touch screens, and optical bonding. Our solutions serve industrial, outdoor, medical, automotive and other applications.
We are a fast-growing high-tech company financially backed by SECO, a European leader in electronic devices and embedded computing. We hold ISO 9001, ISO 14001, ISO 45001, ISO 13485, and IATF 16949 certifications. Our products are REACH and RoHS compliant, with test reports or declarations available upon request.
With stable quality and engineering support, FANNAL helps customers stay competitive and differentiate their products globally.
 | Well-Experienced: 15 years of experience in TFT Displays, AMOLED Displays, Touch Displays, Capacitive Tuchscreens, and Touch Monitors manufacturing. |
| One-Stop Solution: Full in-house process for touch screen, display, and optical bonding |
| Global Service: Italy, Germany, France, Spain, India, Japan, Singapore, and more — timely local support. |
| Strong Background: Financially backed by SECO, a top European leader in embedded and display solutions. |
| Reliable Supply: Our long-term supplier network ensures you receive consistent quality and reliable delivery, even in high-demand seasons. |
| Quality Assurance: ISO 9001, ISO 14001, ISO 45001, ISO 13485 & IATF 16949 certified; REACH & RoHS compliant. |
A:
This display is a bare TFT LCD module with LVDS interface, which means it cannot be driven directly by HDMI, VGA, or USB signals.
You will need:
An LVDS-compatible main board, or
A separate LCD controller board to convert HDMI/DVI to LVDS.
This is a common integration point where projects fail, so confirming signal compatibility early is critical.
A:
Not directly. Raspberry Pi outputs HDMI, while this module uses LVDS.
To use it with SBCs, an HDMI-to-LVDS controller board is required.
If you are developing a prototype or evaluation system, we can recommend or supply a matching controller solution.
A:
Yes. The panel is designed for industrial-grade reliability, supporting:
Continuous operation
Wide temperature range (-20°C to +70°C)
Stable brightness over extended usage cycles
This makes it suitable for HMI panels, kiosks, and control systems running 24/7.
A:
Yes. We can deliver this display as a fully integrated touch display module, including:
Projected capacitive (PCAP) or resistive touch
Optical bonding
Customized FPC, cover lens, and firmware tuning
This reduces supplier complexity and speeds up your product development cycle.
