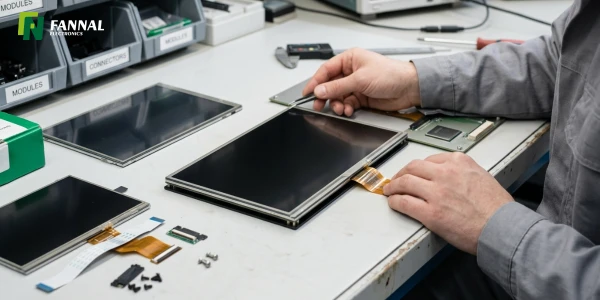

Integrating a touch display into an industrial device involves more than fitting an LCD module and a PCAP touchscreen into the same enclosure. Mechanical dimensions, viewing area alignment, mounting structures, FPC routing, insulation, and bonding requirements all affect whether the assembly fits correctly and operates as intended.
A mismatch between components may lead to a partially obscured display, assembly difficulties, cable damage, or touch performance issues. Some of these problems can be identified during the design review, before prototype assembly or production begins.
This guide covers seven important checks for integrating LCD modules and PCAP touchscreens into a complete product, from mechanical drawing review to final assembly validation.
1. Check the LCD and PCAP Mechanical Drawings
Before designing the enclosure or finalizing the assembly structure, review the mechanical drawings of the LCD module and PCAP touchscreen together. Matching their outside dimensions is only the first step. Their functional areas, thicknesses, mounting references, and connection structures must also fit the intended design.
Understand the Key Dimensions
LCD module drawing
Outside Dimension (OD): The overall physical dimensions of the LCD module. Check its length, width, thickness, and any protruding features that affect installation.
Active Area (AA): The area used to display image content. Review its position relative to the module outline and the intended viewing window.
Bezel Opening: The opening in the host enclosure or front bezel through which the display is viewed. This is generally a housing feature rather than an LCD module dimension.
Polarizer (POL) boundary: Where specified, identify the polarizer edges and any supplier-defined restrictions on contact or pressure, particularly for assemblies involving optical bonding.
PCAP touchscreen drawing
Cover Glass Outside Dimension (COVER OD): The outer dimensions of the cover glass, which affect how it fits into and aligns with the housing.
Cover Viewing Area (COVER VA): The designated viewing region of the cover glass. Check that it provides sufficient coverage for the intended display area.
Sensor Active Area (SENSOR AA): The active sensing region of the touch sensor. Its position and dimensions should support the intended touch interface.
Key Area, if specified: Some designs include dedicated touch regions for buttons or other controls. Confirm how these regions are defined on the supplier's drawing.
Terminology and dimension definitions may vary between suppliers, so always refer to the actual component drawings.
Check the Complete Mechanical Interface
Beyond the main dimensions, review the mounting holes, locating features, datum references, connector positions, FPC exit direction, and available installation space.
Compare the LCD active area, cover viewing area, touch sensor active area, and housing bezel opening to confirm that their positions are compatible. These regions do not necessarily have identical boundaries; their relationship depends on the product layout and touch design.
If the two-dimensional drawings do not clearly show how the components fit together, use the corresponding 3D models or request clarification from the supplier. Reviewing the LCD and PCAP as one assembly helps identify potential conflicts before enclosure tooling or prototype assembly.
2. Verify Viewing Area Alignment and Functional Coverage
Correct outside dimensions do not guarantee that the display will look right or that the touch interface will work as intended.
The LCD active area, cover glass viewing area, touch sensor active area, and housing opening serve different purposes. Their relative positions should be evaluated according to the intended user interface and mechanical design.
For example, if the bezel opening is too small or incorrectly positioned, it may obscure part of the displayed content. If the cover glass is shifted relative to the LCD, the visible image may appear unevenly positioned within the front panel.
Touch coverage requires a separate check. The sensor's active region must support the intended touch targets and interaction areas. A visually acceptable assembly may still have usability limitations if important controls are too close to the edge of the effective touch region.
During the design review, confirm:
The LCD active area is appropriately positioned behind the cover viewing area and housing opening.
The cover glass provides the intended visual coverage without unwanted obstruction.
The touch-active region supports the required buttons, icons, and interaction zones.
The alignment references are consistent across the LCD, PCAP, and enclosure drawings.
For designs with edge-mounted controls, custom-shaped cover glass, or narrow bezels, review the actual layout rather than relying on nominal outside dimensions alone.
3. Account for Mechanical Tolerances and Housing Design
Even when individual components meet their specifications, variations in component dimensions and assembly positioning can affect the final fit.
The LCD, PCAP cover glass, adhesive layers, mounting frame, and housing each contribute to the assembled structure. If their tolerances and reference points are not considered together, the final assembly may have insufficient clearance, inconsistent alignment, or unwanted mechanical stress.
Review Tolerance Stack-Up
A tolerance stack-up describes how dimensional variations across multiple components can affect the final assembly. For example, the relative position of the LCD active area and the housing opening depends on the dimensions and positioning tolerances of the relevant parts.
Check the dimensions that control:
Display-window alignment and edge clearance.
Cover glass positioning within the front panel.
Mounting-hole and locating-feature alignment.
Overall assembly thickness and available enclosure depth.
Clearance around connectors, cables, and internal components.
For critical dimensions, determine the allowable variation in the complete assembly rather than checking each component independently. The appropriate tolerance method depends on the design, manufacturing process, and required fit.
Avoid Unintended Mechanical Pressure
The housing should secure the display assembly without applying unintended loads to sensitive components.
Incorrect mounting heights, uneven support surfaces, excessive fastening force, or poorly controlled adhesive thickness may introduce localized pressure. Depending on the construction, this can contribute to LCD display artifacts, cover glass stress, bonding defects, or component damage.
Review the mounting method, support points, fastening sequence, and specified clearances. Where compression, adhesive bonding, or a gasket is used, follow the component supplier's mechanical requirements and validate the actual assembly.
4. Design the Bezel and Insulation Structure Correctly
The front bezel is not just a cosmetic frame. Its material, geometry, clearance, and relationship to the PCAP touchscreen can affect electrical isolation and touch-system integration.
Metal housings are common in industrial equipment, but a conductive bezel must be evaluated against the touchscreen's actual sensor and electrode layout. Depending on the design, insufficient clearance or inappropriate electrical coupling may contribute to unstable touch behavior.
Check Conductive Parts and Insulation
Review the positions of the metal bezel, conductive frame edges, exposed sensor routing, and other relevant conductive features. Confirm that required insulation and clearance are maintained throughout assembly.
Where insulating films, tapes, coatings, or other barriers are specified, verify their coverage, thickness, placement, and suitability for the intended operating environment. Do not assume that adding a generic insulating layer will solve every electrical or touch-related issue.
Protect Sensor Routing and Restricted Areas
Some PCAP designs include sensor traces, silver routing, or other conductive features near the edge of the touch panel. The cover glass, bezel, adhesive, and supporting structure must accommodate the actual layout.
Follow the supplier's drawing notes for restricted areas and required clearances. If the design uses a metal enclosure or has experienced touch instability, assess grounding and electrical coupling as part of the system-level review rather than treating the bezel as an isolated mechanical component.
5. Protect the FPC During Routing and Assembly
The flexible printed circuit (FPC) connects the display or touch module to the host electronics. Its routing should be considered early in the mechanical design, not left until the enclosure is nearly complete.
A module may fit within the available space while its FPC remains difficult to connect, bends too tightly, or becomes trapped during assembly.
Check the Cable Path and Bend Radius
Review the FPC exit direction, length, connector orientation, and available bending space. Confirm that the cable can reach the host PCB without being pinched, twisted, sharply bent, or forced against a housing edge.
The permitted bend radius depends on the FPC construction and whether the bend is static or dynamic. Follow the actual supplier specification rather than applying one universal bend-radius value to every cable.
Avoid Stress on the Connector and Cable
The FPC should not carry unintended mechanical loads from the housing or adjacent components. Excessive pulling, repeated bending, or pressure near the connector may damage the cable or connection.
During assembly planning, check the insertion path, connector access, cable retention, and any required support or strain relief. Ensure that the assembly sequence does not require the FPC to be forced into a position that conflicts with its specified routing limits.
Include ESD and Handling Precautions
Touch modules and their associated electronics should be handled according to the supplier's electrostatic discharge (ESD) precautions. Establish appropriate handling, storage, and assembly procedures, particularly when exposed contacts or sensitive electronic components are present.
Mechanical routing and ESD control address different risks, so both should be included in the integration plan.
6. Check the Additional Requirements for Optical Bonding
Optical bonding changes the interface between the display and cover glass. Instead of relying on an air gap, the design uses an optical bonding material to join the relevant surfaces.
This affects the assembly stack-up and introduces additional requirements that should be reviewed before the mechanical design is finalized.
Verify the Bonding Interface
Confirm the intended bonding area, cover glass dimensions, LCD viewing area, and relevant surface boundaries. Where the display supplier specifies restrictions around the polarizer or other sensitive regions, make sure the bonding design accommodates them.
The required interface depends on the LCD construction, cover glass design, bonding method, and supplier process. Do not assume that every display uses the same bonding boundary or that a single clearance rule applies to all assemblies.
Account for Stack-Up and Assembly Requirements
Bonding material and process requirements can affect the final assembly dimensions and positioning. Confirm the specified material thickness or bond-line requirements where applicable, as well as the alignment references and permitted contact areas.
Also review the mechanical support and enclosure design to avoid unintended pressure on the bonded assembly. Any structural changes that affect the bonding interface should be assessed with the supplier before production.
Optical bonding should therefore be treated as part of the display integration design, rather than as an independent finishing step added after the mechanical structure has been completed.
7. Validate the Complete Assembly Before Production
A successful drawing review reduces avoidable design conflicts, but it does not replace physical validation. The final assembly combines the LCD, PCAP touchscreen, housing, cables, host electronics, and power system, so the complete configuration must be evaluated.
Verify Mechanical Fit
Check the actual dimensions, mounting points, cover glass alignment, viewing-window clearance, cable routing, and connector accessibility. Confirm that the assembly can be installed using the intended production sequence without forcing components into position.
Test Display and Touch Operation
Verify that the display operates correctly in the final enclosure and that the touch interface responds as intended across the required interaction area.

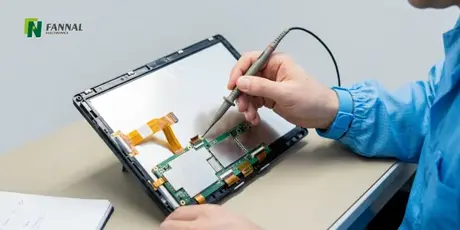

If touch instability appears after installation, investigate the complete system. Potential causes may include mechanical pressure, conductive structures near the sensor, grounding, power quality, controller configuration, or electromagnetic interference. Do not assume that every false touch or intermittent response is caused by the mechanical structure alone.
Validate the Intended Operating Conditions
For industrial equipment, consider the environmental and operating conditions relevant to the application. Depending on the product, validation may include temperature exposure, vibration, humidity, repeated operation, or other application-specific tests.
Define the acceptance criteria before testing and use the intended production configuration wherever possible. If the housing, cable routing, bonding method, or host electronics change, determine whether the modification affects the previous validation results.
What Information Should You Prepare for Touch Display Integration?
Providing complete design information early makes it easier to evaluate compatibility and identify potential issues before the prototype stage.
For an initial integration review, prepare the following where available:
LCD module drawing: Outside dimensions, active area, thickness, mounting features, and interface details.
PCAP touchscreen drawing: Cover glass dimensions, viewing area, sensor active area, FPC layout, and applicable design notes.
Host enclosure drawing or 3D model: Bezel opening, mounting structure, available depth, clearances, and locating references.
Electrical and interface requirements: Host connector, cable routing, grounding provisions, and relevant controller or system requirements.
Bonding requirements: Whether the design uses an air gap, adhesive assembly, or optical bonding, along with any supplier-defined interface constraints.
Application and operating conditions: Intended environment, mechanical constraints, touch requirements, and relevant validation criteria.
Not every project will have all these documents at the beginning. However, identifying missing information early helps establish what needs to be confirmed before the design is released.
Conclusion
Reliable touch display integration depends on how the LCD module, PCAP touchscreen, enclosure, electrical connections, and assembly process work together. Checking nominal dimensions is important, but it is only one part of the review.
By verifying functional-area alignment, accounting for tolerance stack-up, controlling mechanical pressure, protecting conductive structures and FPC connections, and validating the final assembly, engineering teams can identify many integration risks before production.
The earlier these interfaces are reviewed, the easier it is to resolve design conflicts while the mechanical structure and component configuration can still be adjusted.
