What is the brightness of the FN1010T079A?

The finished TPM has a surface luminance of 590 cd/m² typical and 470 cd/m² minimum. These values refer to the completed touch display rather than the TFT panel alone.

What touch structure does the FN1010T079A use?

The display uses a G+G capacitive touch structure with a glass cover and glass touch sensor. It supports 5-point finger touch.

Can the FN1010T079A operate in industrial temperature environments?

Yes. The specified operating temperature range is -20°C to +70°C, with a storage temperature range of -30°C to +80°C.

Is the FN1010T079A suitable for outdoor applications?

The 590 cd/m² typical TPM luminance can support some shaded or semi-outdoor applications. Direct sunlight performance should be evaluated based on ambient light, reflections, viewing angle, cover glass, and the complete enclosure design.

Can FANNAL customize this 10.1-inch touch display?

Yes. FANNAL can evaluate OEM requirements such as mechanical dimensions, cover glass design, touch configuration, interface requirements, bonding, and other integration requirements based on the project.

Home » Products » Touch Displays » 10.1 Inch 1280 × 800 Capacitive Touch Display

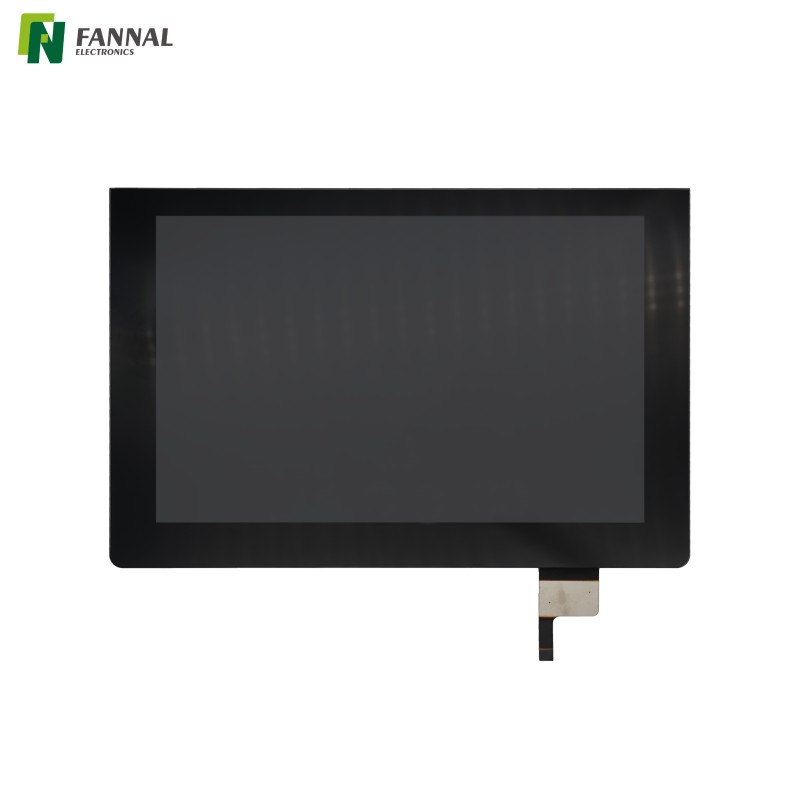

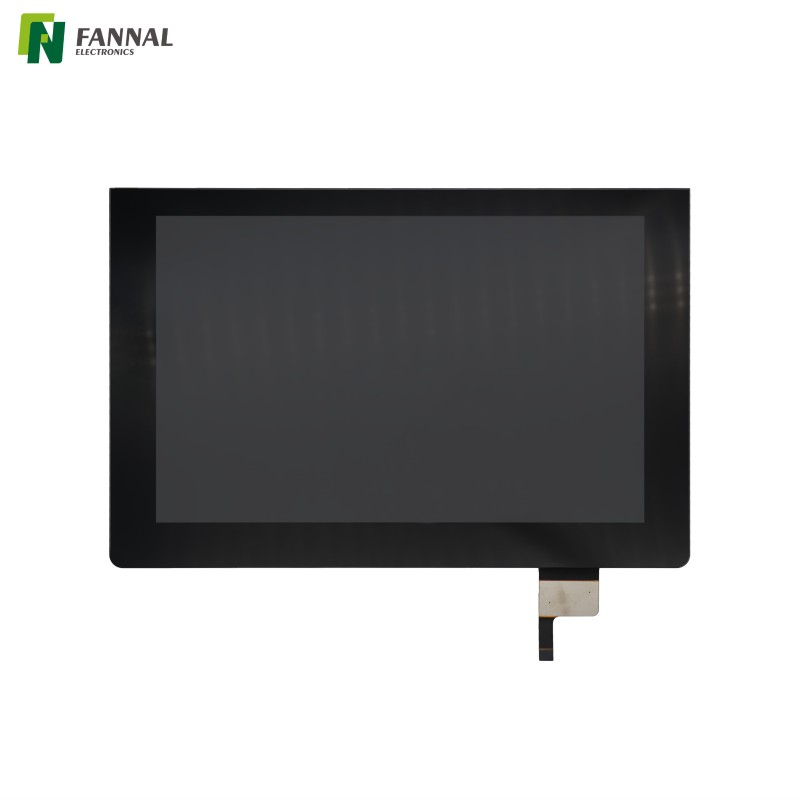

10.1 Inch 1280 × 800 Capacitive Touch Display

Name: 10.1 Inch 1280 × 800 Capacitive Touch Display
Brand: FANNAL
Rating: 5.0 (86 reviews)

FN1010T079A is a 10.1-inch G+G capacitive touch display with a 1280 × 800 TFT LCD and 5-point finger touch. The finished TPM provides 590 cd/m² typical surface luminance, with an LVDS display interface and I²C touch interface. Its -20°C to +70°C operating range makes it suitable for industrial HMI, embedded control equipment, and other applications requiring a larger touch interface with stable operation across varying temperatures.

Model:
FN1010T079A
Brand:
FANNAL
Size(inch):
10.1
Cover OD (mm):
257.96(H) x 168.6(V) x 9.29(T)
Display AA(mm):
216.96*135.6
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
217.96(H) x 136.6(V)
Structure:
G+G
Resolution:
1280x800
Direction:
FREE
Display Interface:
LVDS
TP Interface:
IIC
Brightness(cd/m²):
590

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The FN1010T079A is a 10.1-inch G+G capacitive touch display with a 1280 × 800 TFT LCD. The finished TPM provides 590 cd/m² typical surface luminance, 5-point finger touch, and LVDS and I²C interfaces for display and touch communication. With a -20°C to +70°C operating temperature range, it is intended for industrial HMI, embedded equipment, and control interfaces where a larger touch screen is required.

Features

10.1-Inch 1280 × 800 Display

The 1280 × 800 resolution provides more usable screen area than typical 7-inch panels while keeping the module size practical for equipment interfaces. It works well for graphical controls, monitoring screens, menus, and equipment status displays.

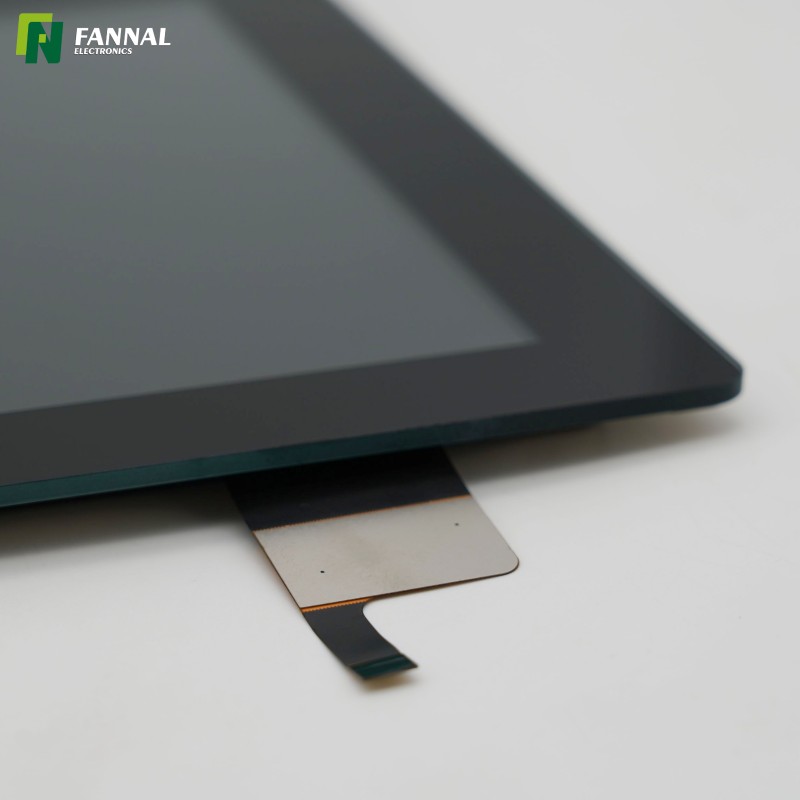

G+G Capacitive Touch Structure

The G+G construction uses a glass cover and glass touch sensor, giving the front surface a rigid feel for repeated finger operation. The module supports 5-point touch and is intended for applications where touch interaction is part of the equipment interface rather than an add-on accessory.

590 cd/m² Typical TPM Brightness

The specified 590 cd/m² typical brightness applies to the finished TPM, rather than the TFT panel alone. This provides reasonable readability for indoor industrial environments and installations with moderate ambient light.

For direct outdoor sunlight, the complete system should still be evaluated for reflections, viewing angle, enclosure design, and ambient lighting conditions.

Wide Operating Temperature Range

The display is specified to operate from -20°C to +70°C, allowing it to be considered for equipment installed in environments with significant temperature variation.

Separate Display and Touch Interfaces

The display uses LVDS, while the touch interface uses I²C. This gives system designers separate communication paths for the TFT and touch functions and can simplify integration with an existing embedded controller.

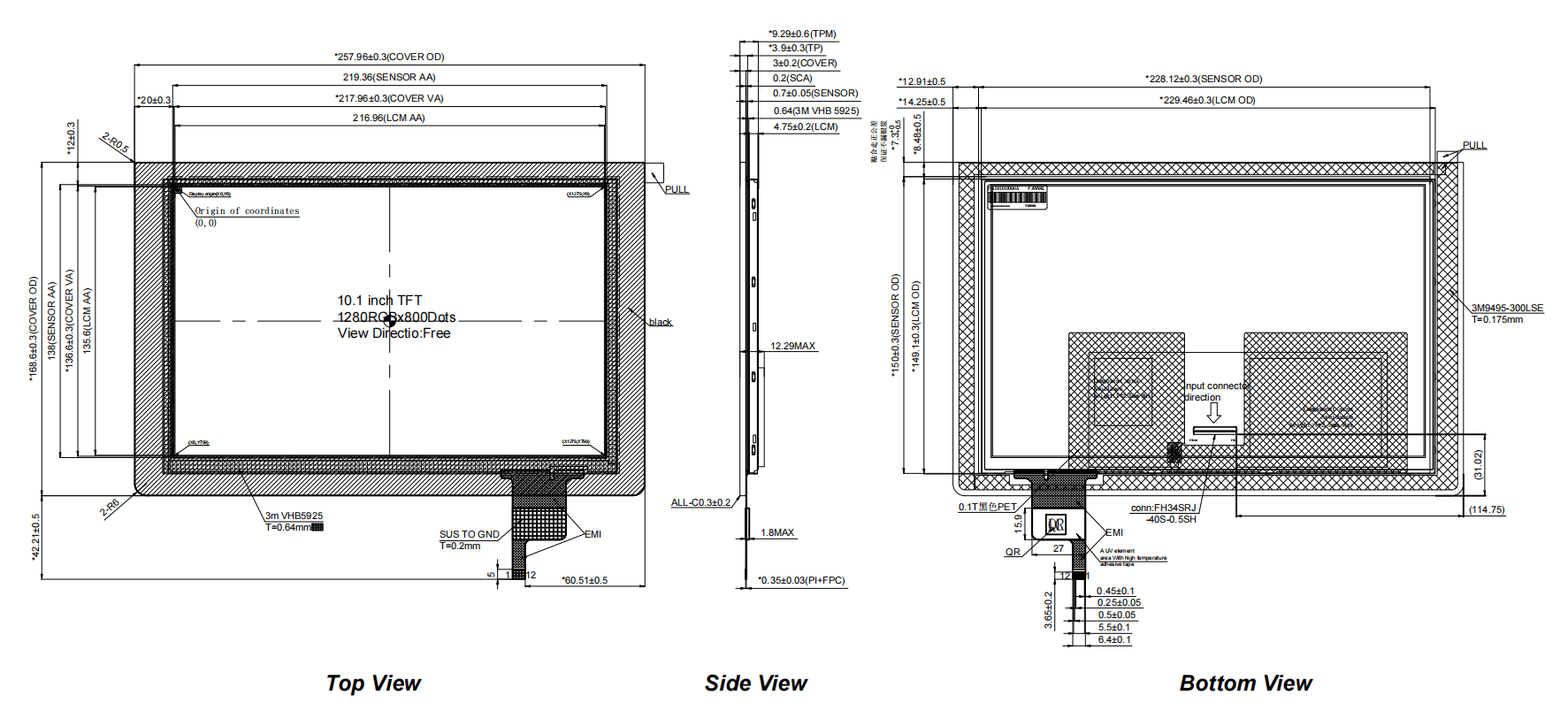

Drawing

Specifications

Item	Specification	Unit
Structure	G+G	—

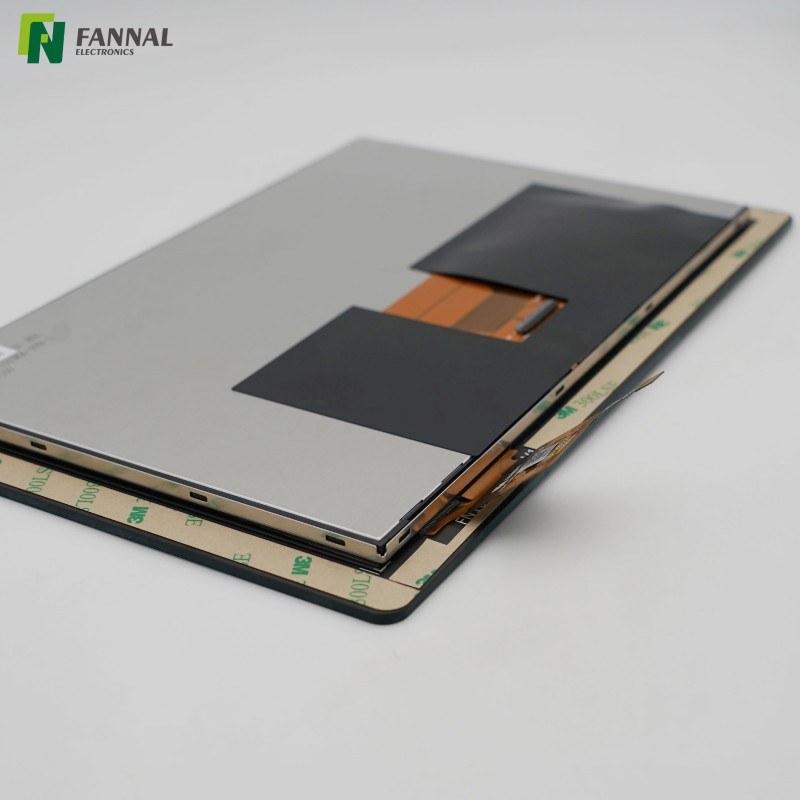

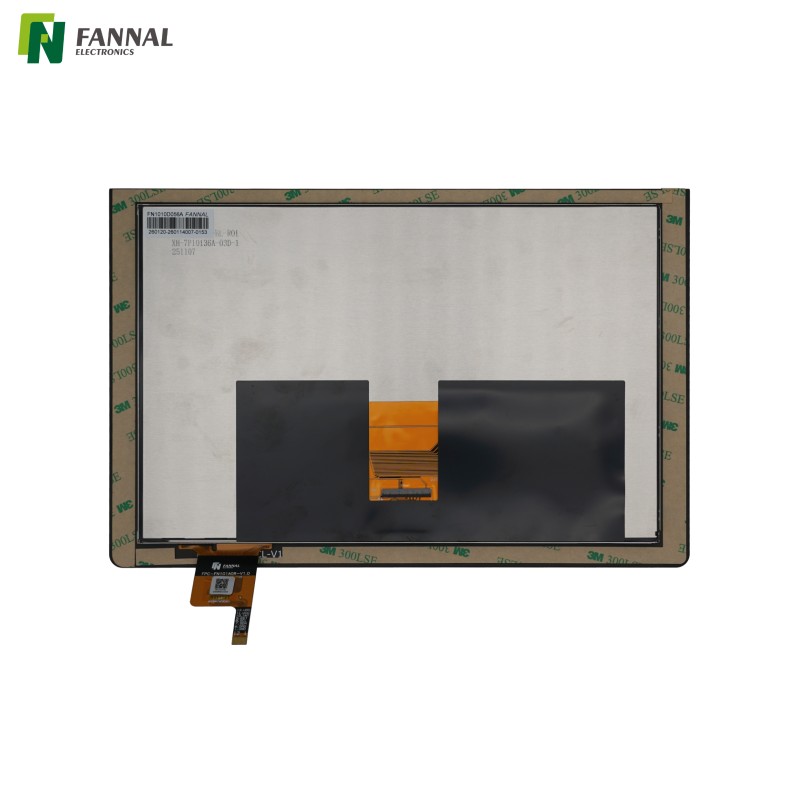

Bonding Type	Air Bonding	—
Bonding Material	Double-sided Tape	—
TPM Active Size	10.1 (Diagonal)	Inch
TPM Outline Size	257.96(H) x 168.6(V) x 9.29(T)	mm
View Area	217.96(H) x 136.6(V)	mm
Cover Lens Thickness	3.0	mm
Sensor Thickness	0.7	mm
Surface Hardness	≥ 6 H (750g)	—
Surface Treatment	/	—
Light Transmittance	85% Min.	—
Touch Driver IC	Infineon/Cypress Touch IC	—
Touch Points	5 (Desiccation)	—
Touch Mode	Finger	—
Touch Interface	IIC	—
IIC Address	0x24	—
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Humidity	10% ~ 90%	—
TPM Surface Luminance	470 (min.) / 590 (typ.)	Cd/m^2
TFT Interface	LVDS	—
TFT Resolution	1280 x 800	—
TFT Driver IC	Ilitek TFT Driver IC	—
Power Supply of TFT	3.3V	V
Power Supply of Touch	3.3V	V
Environmental Requirements	RoHS-2.0	—

Applications

Industrial HMI

Suitable for machine control panels, automation equipment, factory monitoring systems, and operator interfaces where a 10.1-inch touch screen provides enough space for controls and status information.

Embedded Control Equipment

The module can be integrated into industrial controllers, instrumentation, test equipment, and other devices that require a graphical touch interface.

Building and Energy Management

The 10.1-inch format can be used for control terminals, monitoring interfaces, and equipment panels where operators need to view multiple parameters and operate controls from the same screen.

Medical and Laboratory Equipment

It can be considered for diagnostic, laboratory, and medical equipment interfaces that require touch operation and a moderate operating temperature range. Application-specific validation is recommended for regulated equipment.

Commercial and Professional Equipment

The display can also be used in kiosks, professional terminals, and specialized control interfaces where a 10.1-inch touch display offers a better user interface than smaller embedded panels.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

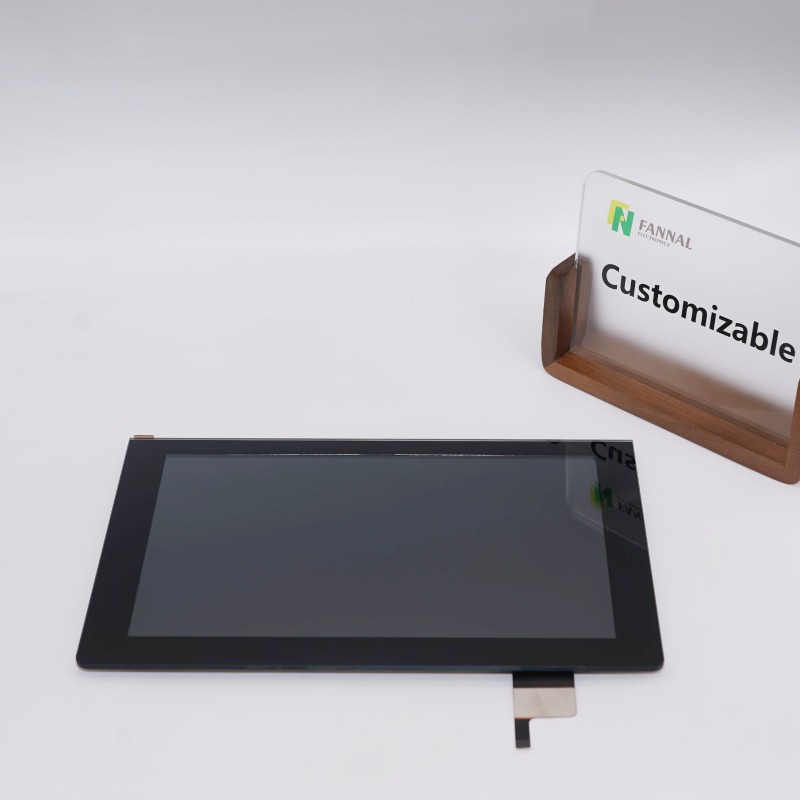

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Is the 590 cd/m² brightness measured on the finished touch display?

Yes. The 590 cd/m² typical value refers to the TPM surface luminance, so it represents the finished touch display rather than the brightness specification of the TFT LCD before touch integration.

Is this display suitable for outdoor applications?

It can be considered for shaded or semi-outdoor environments, but it should not be classified as a direct-sunlight display based on brightness alone. Outdoor readability depends on reflected light, installation angle, cover glass, enclosure design, and the actual ambient lighting conditions.

What does the G+G structure mean?

G+G means Glass + Glass: a glass cover lens is combined with a glass touch sensor. This provides a rigid touch surface and is commonly used for equipment interfaces that receive regular finger input.

How many simultaneous touch points does the FN1010T079A support?

The specified configuration supports 5-point finger touch.

What are the display and touch interfaces?

The TFT display uses an LVDS interface, while the capacitive touch panel communicates through I²C.

Can this 10.1-inch touch display be customized?

Yes. For OEM projects, the touch display can be evaluated against requirements such as cover glass dimensions, mechanical integration, touch behavior, interface configuration, and environmental conditions. Customization depends on the project specifications and required production volume.
