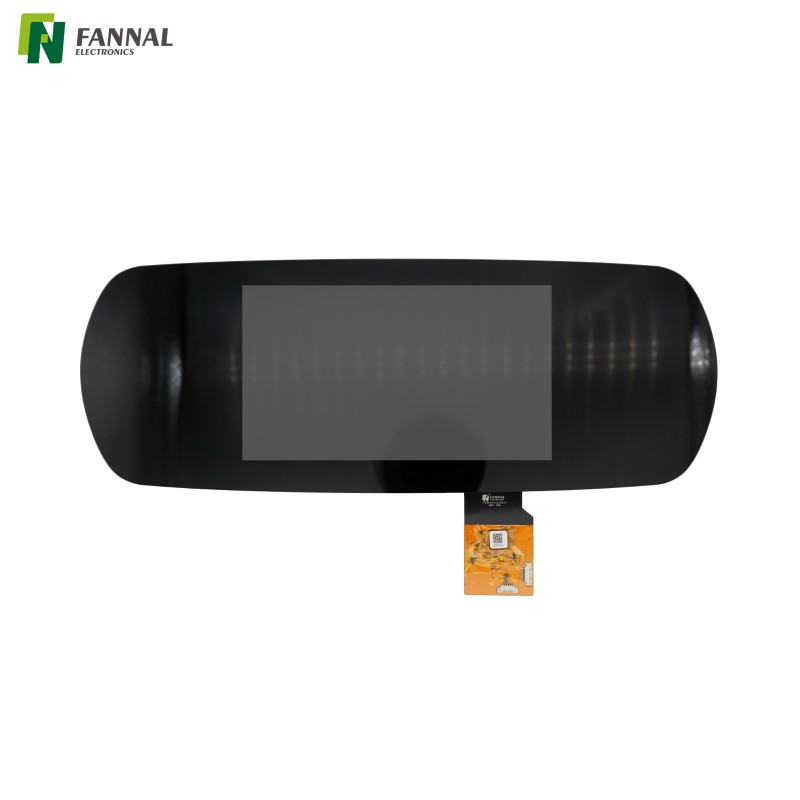

8 Inch Wide Aspect Touch Display with Rounded Corner Cover Glass

Name: 8 Inch Wide Aspect Touch Display with Rounded Corner Cover Glass
Brand: FANNAL
Rating: 5.0 (19 reviews)

8 Inch Wide Aspect PCAP Touch Display for Custom Equipment Designs

Model:
FN0800T020A
Brand:
FANNAL
Size(inch):
8
Cover OD (mm):
364.06(H)×133.91(V)×10.22(T)
Display AA(mm):
176.64*99.36
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
177.64(H)×100.36(V)
Structure:
G+G
Resolution:
800×480
Display Interface:
LVDS
TP Interface:
IIC + USB
Brightness(cd/m²):
400

Quantity:
Availability:





Inquiry Add to Basket

8 Inch Bar Type Touch Display

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

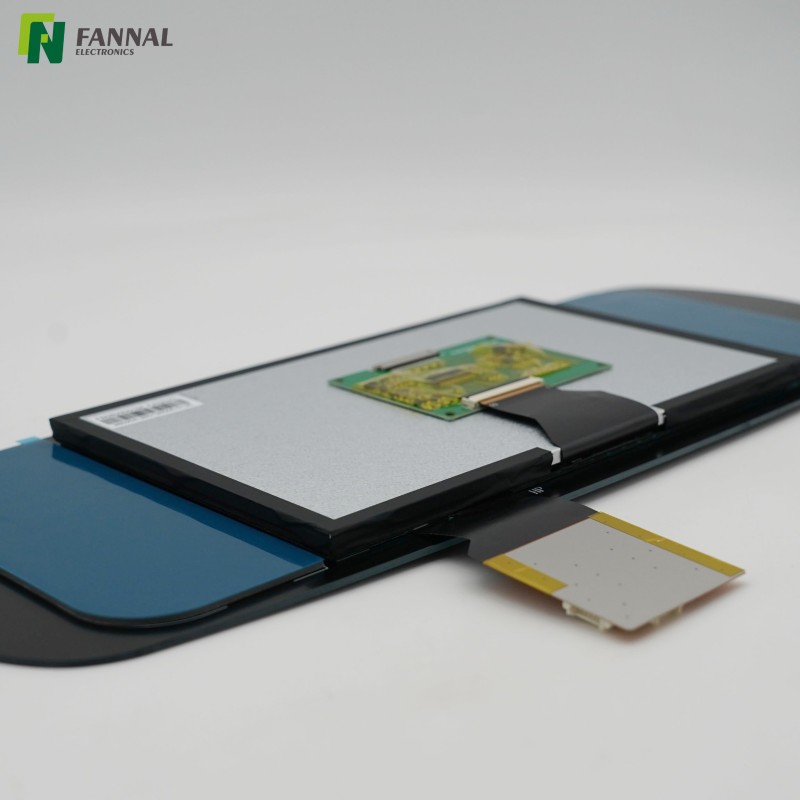

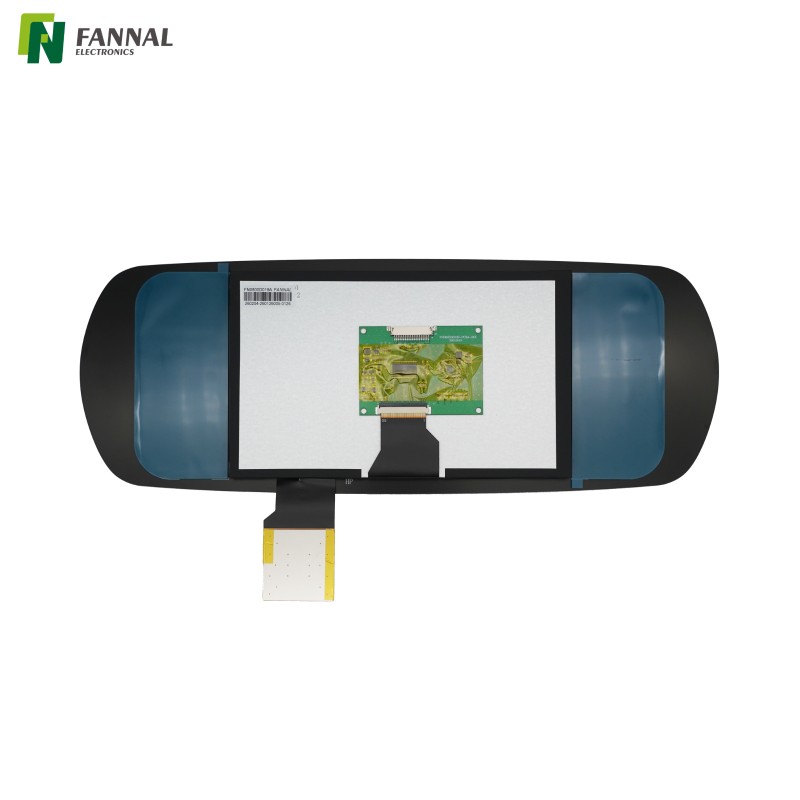

This 8-inch bar-type touch display combines an 800×480 TFT panel with a G+G projected capacitive touchscreen and a custom rounded-corner cover glass. Designed for equipment requiring a non-standard front-panel appearance, it is suitable for transportation systems, smart control panels, commercial equipment, and custom embedded devices.

Features

Custom Rounded Cover Glass Design

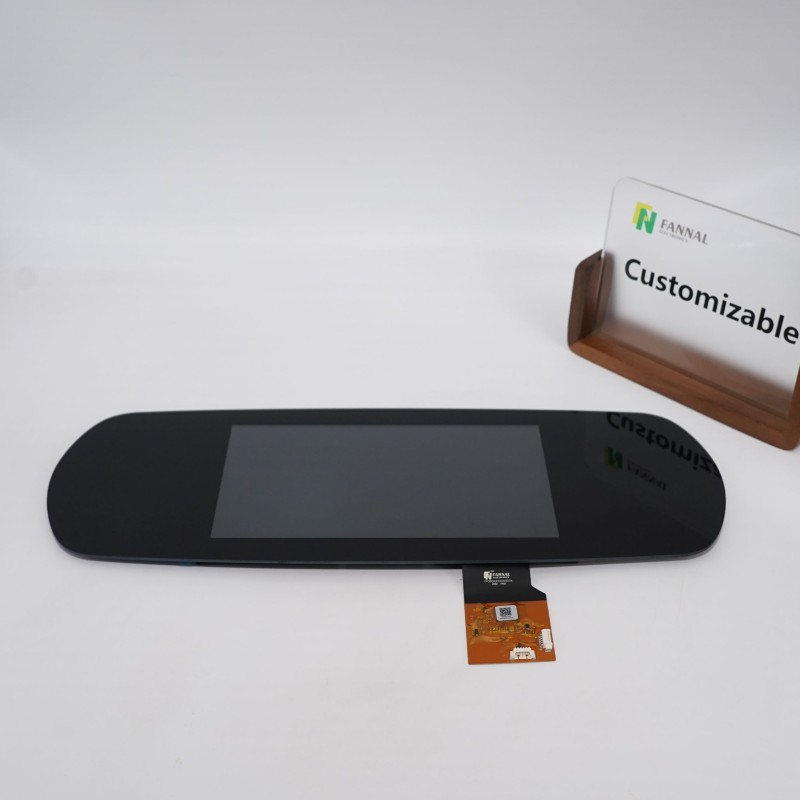

Unlike conventional rectangular touch displays, this module features large-radius corners on all four sides, creating a distinctive appearance that can better match modern equipment housings and industrial design requirements.

Bar Type Form Factor for Space-Constrained Designs

The elongated mechanical structure allows the display to fit equipment layouts where standard 4:3 or 16:9 displays may not be practical. This can simplify enclosure design while maintaining sufficient UI space.

G+G Projected Capacitive Touchscreen

The glass-glass touch structure provides improved rigidity and durability compared to film-based touch technologies. It is suitable for equipment requiring long service life and repeated user interaction.

Dual Touch Interface Support

Both IIC and USB touch interfaces are available, giving engineers greater flexibility when integrating the display into embedded systems, industrial controllers, or custom hardware platforms.

Wide Operating Temperature Range

Supporting operation from -20°C to +70°C, the module is suitable for industrial and transportation applications exposed to changing environmental conditions.

Chemically Strengthened Cover Glass

The 2.0 mm cover glass and ≥7H surface hardness help improve scratch resistance and front-panel durability in demanding operating environments.

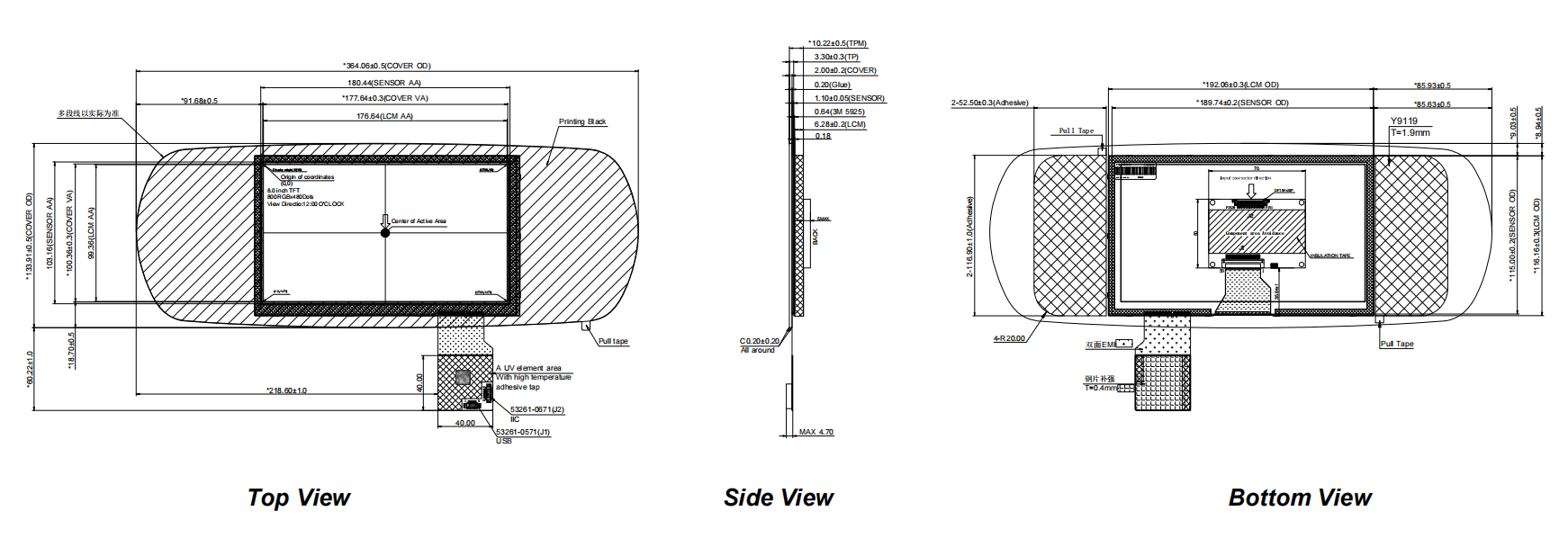

Drawing

Specifications

Item	Specification	Unit	Remark / Details
SIZE / TPM Active Size	8.0 (Diagonal)	Inch
TFT Resolution / Resolution Ratio	800×480	-
TPM Outline Size	364.06(H)×133.91(V)× 10.22(T)	mm
View Area	177.64(H)×100.36(V)	mm
Structure	G+G	-	Glass + Glass
Bonding Type	Air Bonding	-
Bonding Material	Double-sided Tape	-
Cover Lens Thickness	2.0	mm
Sensor Thickness	1.1	mm
Surface Hardness	≥7H (7H Min.)	-	750g load
Surface Treatment	/	-
Touch Transmittance / Light Transmittance	85% Min.	-
TPM Surface Luminance	400 (TYP), 320 (MIN)	Cd/m^2
TFT Interface	LVDS	-
TFT Driver IC	HX8264 + HX8664	-
Touch Driver IC / Touch Controller	ILI2511	-
Touch Points / No. of Touch	5	-	Desiccation
Touch Mode	Finger	-
Touch Interface	IIC + USB	-
IIC Address	-	-
Power Supply Of TFT	3.3	V
Power Supply Of Touch	3.3 / 5.0	V
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Humidity	10% ~ 90%	-
TFT Part Number	FN0800D018A	Pcs	Follow Spec
Environmental Requirements	RoHS-2.0	-

Applications

Transportation Information Systems

Suitable for vehicle information displays, onboard control interfaces, passenger information terminals, and transportation-related HMI systems.

Elevator and Building Control Panels

The elongated display format can fit elevator control systems, building automation interfaces, and access control equipment where conventional display sizes may not match the enclosure design.

Smart Home and Commercial Control Systems

Useful for room control panels, conference room schedulers, smart building interfaces, and integrated automation systems.

Custom Embedded Equipment

Applicable to OEM equipment requiring unique industrial design, custom front panels, or specialized mechanical integration.

Kiosk and Self-Service Equipment

Can be integrated into ticketing systems, information terminals, and commercial devices where a distinctive display appearance improves overall product design.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Why choose a bar-type display instead of a standard display?

Bar-type displays are often selected when equipment space is limited or when the front-panel design requires a non-standard aspect ratio. They can provide better mechanical integration without increasing overall device size.

What is the advantage of the rounded corner cover glass?

Large-radius corners can improve visual integration with modern product designs and reduce the appearance of a conventional rectangular display. In many projects, the cover glass shape is determined by enclosure requirements rather than display specifications.

Is this display intended for outdoor use?

The module supports industrial operating temperatures, but the air bonding structure may introduce reflections under direct sunlight. For outdoor installations, optical bonding may provide better visibility.

Why does the module support both USB and IIC touch interfaces?

Different embedded platforms use different communication architectures. Supporting both interfaces provides greater flexibility during system integration and reduces hardware redesign requirements.

Can the cover glass design be customized further?

Yes. Cover glass dimensions, corner radius, printing, thickness, surface treatments, and other mechanical features can typically be customized depending on project requirements.
