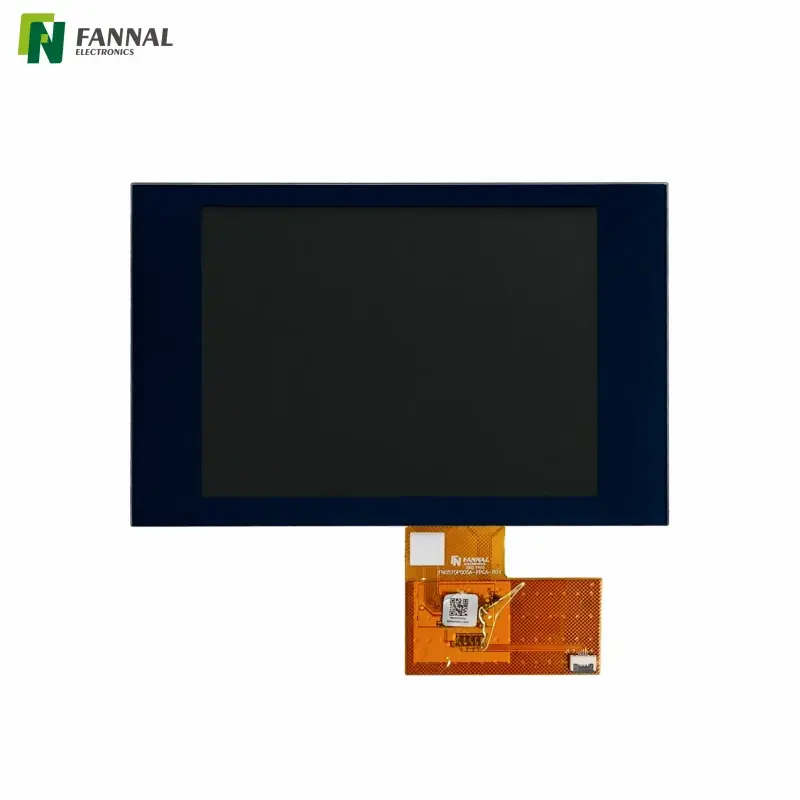

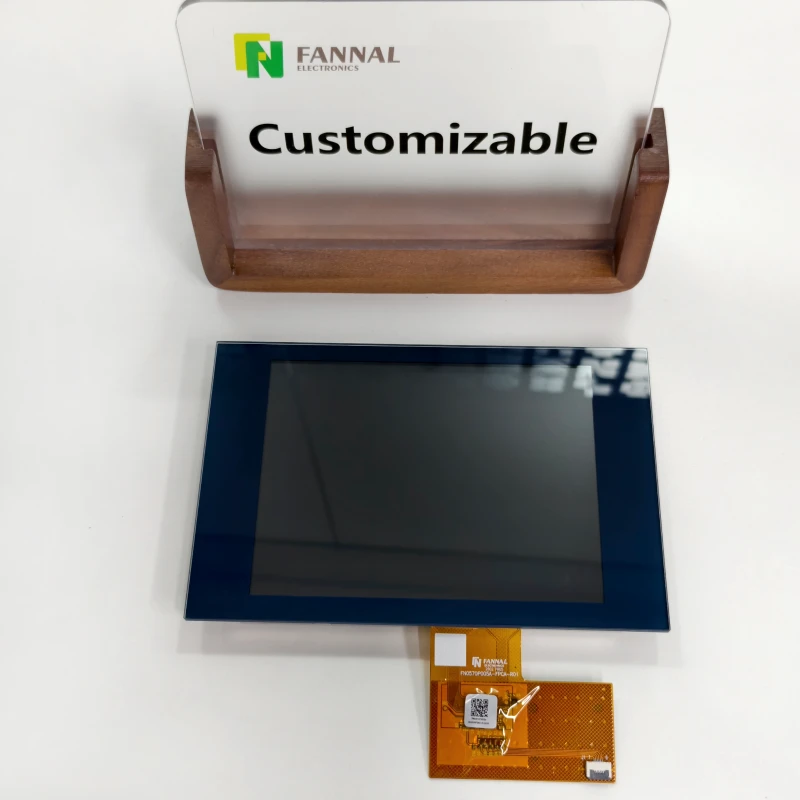

The FANNAL FN0570T005A is a 5.7-inch capacitive touch display designed for embedded equipment that requires a substantial glass front surface within a compact display assembly. Its 640×480 resolution provides a 4:3 display format suited to equipment interfaces with established layouts, control menus, and status information.

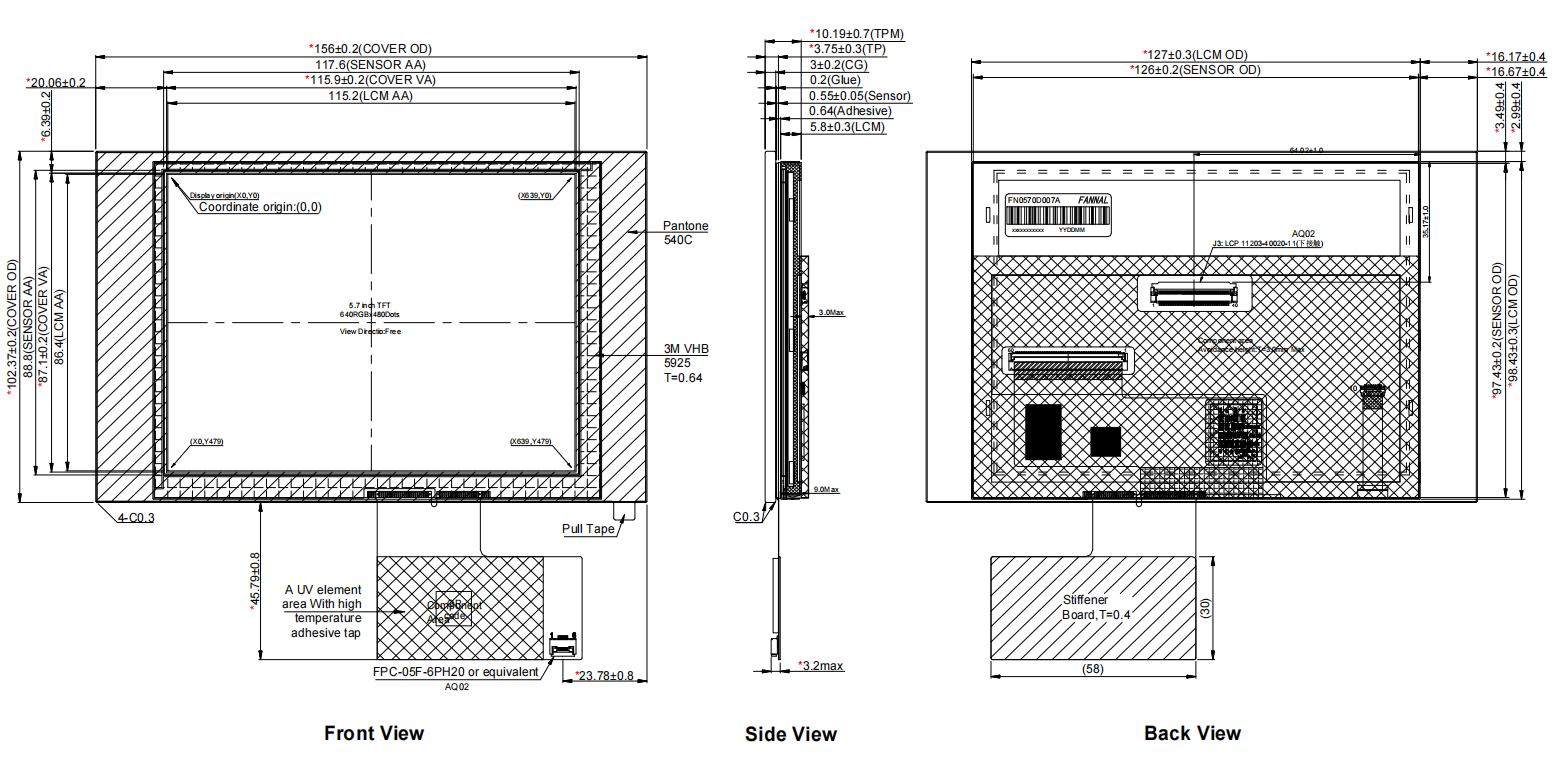

A key feature of this model is its 3.0 mm chemically strengthened cover glass, combined with a 0.55 mm touch sensor in a G+G (glass-to-glass) structure. The module uses air bonding with double-sided adhesive tape rather than OCA optical bonding, offering an alternative for projects with specific mechanical stack-up and assembly requirements.
With 680 cd/m² typical luminance, an RGB 18-bit display interface, and five-point capacitive touch through IIC, the FN0570T005A is intended for industrial and embedded HMI applications. Its specified operating temperature range is -20°C to +70°C, with a storage range of -30°C to +80°C.
Features
3.0 mm Chemically Strengthened Cover Glass
The 3.0 mm cover glass provides a substantial front-glass thickness for equipment designs with specific mechanical and interface requirements. The glass is chemically strengthened and has a specified surface hardness of at least 7H. Actual impact resistance depends on the complete assembly and requires separate validation.
5.7-Inch 640×480 Display
The 4:3 resolution format supports control interfaces, equipment menus, and status displays that use a traditional landscape-oriented screen layout.
G+G Capacitive Touch Structure
The glass-to-glass construction combines a 3.0 mm cover glass with a 0.55 mm touch sensor. This integrated structure provides a glass touch surface for embedded equipment interfaces.
Air Bonding with Double-Sided Adhesive Tape
The touch assembly uses double-sided adhesive tape for air bonding rather than OCA optical bonding. This provides an alternative bonding configuration when selecting the module for a particular mechanical design.
680 cd/m² Typical Luminance
The display delivers 680 cd/m² typical luminance, supporting interfaces used in environments with moderate ambient light. Actual readability depends on ambient illumination, reflections, viewing angle, and enclosure design.
Five-Point Capacitive Touch

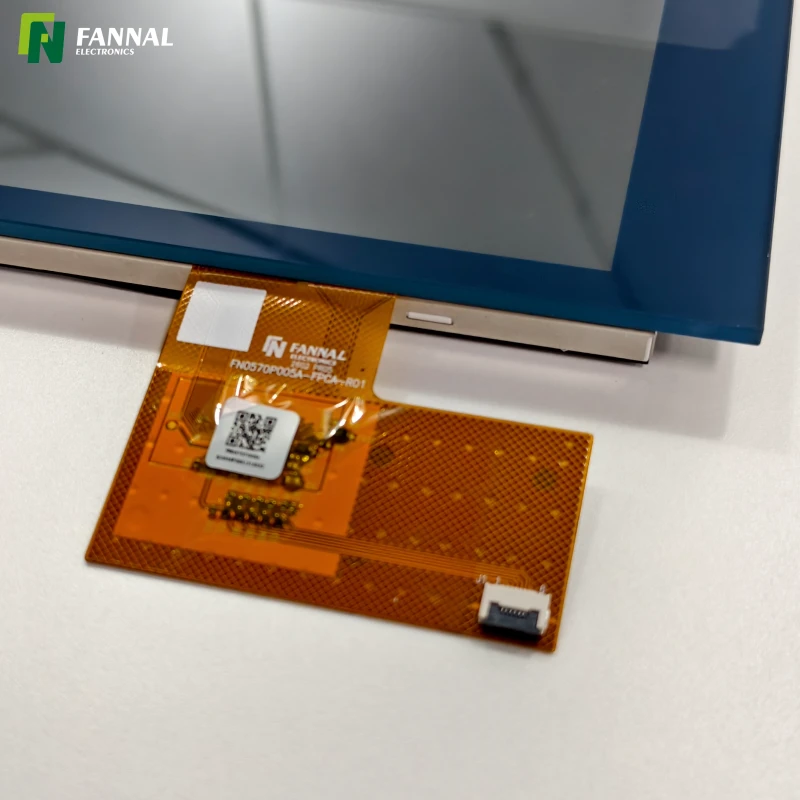

The module supports up to five simultaneous touch points through an IIC interface, using an Ilitek touch controller.
RGB 18-Bit Display Interface
The TFT uses an RGB 18-bit interface and a 3.3 V power supply. Host-board compatibility should be checked during system design.
Defined Optical Specifications
The module specifies minimum light transmittance of 85% and minimum luminance uniformity of 75%, providing reference values for optical evaluation and system integration.
Operating Temperature and Humidity
The specified operating temperature range is -20°C to +70°C, and the storage range is -30°C to +80°C. The stated humidity range is 10%–90%; confirm the applicable test conditions and whether condensation is permitted before using this value to qualify a specific environment.
Material Compliance
The module is specified to meet RoHS 2.0 and REACH requirements.
