Why Dose a TFT Display Showing a White Screen?

A white screen on a TFT display is a common issue during development and integration, especially in industrial TFT display projects. In many cases, the backlight turns on normally, but no image is shown. This often leads to the assumption that the panel is defective; however, most white screen issues are caused by signal, timing, or power configuration problems, not panel failure.

This article explains what a white screen on a TFT LCD really means and provides a practical troubleshooting guide for industrial applications.

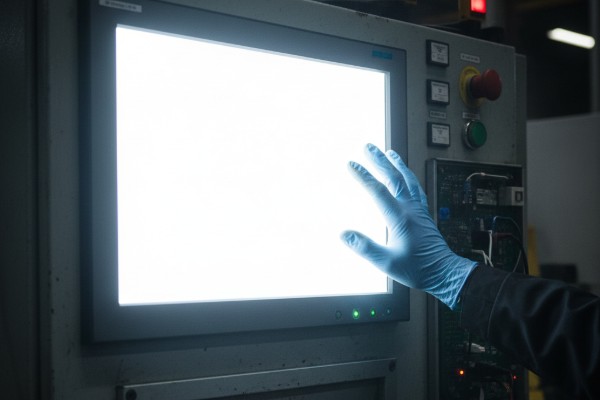

What Does a White Screen on a TFT Display Mean?

In a typical TFT LCD module, a white screen usually indicates that:

• The backlight is working

• The TFT panel is powered

• No valid image data is being displayed

In other words, the panel is “on” but not being properly driven. This is especially common in industrial TFT LCD modules, where power sequencing, timing parameters, and interface stability are more critical than in consumer electronics.

Most Common Causes of TFT LCD White Screen Issues

1. No Video Signal Input (Backlight On, No Image)

This is the most common cause of a white screen.

Typical reasons include:

• Signal cable not fully seated

• Incorrect pinout connection

• RGB / LVDS / MIPI signal mismatch

• FPC cable installed in the wrong direction

What to check:

• Verify the pin definition strictly matches the panel datasheet

• Check whether clock and data signals are present

• Test with a known-good cable or panel

2. Incorrect Timing or Initialization Parameters

Industrial TFT displays require an exact timing configuration.

Common mistakes:

• Wrong resolution setting (e.g., 800×480 vs. 1024×600)

• Incorrect pixel clock frequency

• HSYNC / VSYNC / DE polarity mismatch

• Missing or incorrect initialization commands

If the TFT controller or MCU does not initialize the panel correctly, the display may remain white even though the backlight is active.

3. Power Supply or Power Sequence Issues

Unlike consumer displays, industrial TFT LCD modules often require multiple voltage rails:

• VDD

• AVDD

• VGH / VGL

• VCOM

A white screen may occur if:

• The power-on sequence does not follow the datasheet

• VGH or VGL voltage is unstable

• DC-DC converters start too slowly or produce excessive ripple

This issue is more likely in wide-temperature or outdoor industrial environments.

4. RESET or Standby Pin Misconfiguration

If the RESET or STBY pin is not handled correctly:

• The panel may remain in an inactive state

• The screen appears white with backlight on

Ensure that:

• RESET is properly asserted and released

• The signal level matches the panel specification

• The MCU I/O state is stable before display initialization

5. Gamma or VCOM Setting Problems

In some cases, the screen is not completely blank but appears washed out or nearly white.

Possible causes:

• Gamma table not loaded

• Incorrect VCOM voltage

• Mismatch between TFT panel and driver IC configuration

This is more common in custom or long-life industrial TFT projects where panel revisions change over time.

6. Panel or Hardware Damage (Less Common)

While less frequent, hardware issues can still occur:

• ESD damage during assembly

• FPC cable stress or bending

• Internal gate or source driver failure

Before concluding the panel is defective, always rule out signal, timing, and power issues first.

Step-by-Step Troubleshooting Checklist (Industrial TFT)

1. Confirm backlight operation

2. Verify interface type (RGB, LVDS, MIPI)

3. Double-check signal pinout and cable direction

4. Ensure timing parameters match the panel datasheet exactly

5. Measure all required voltage rails

6. Validate power-on sequence

7. Test RESET and standby signals

8. Cross-test with a known-good TFT LCD module

Following this sequence can resolve most TFT white screen problems efficiently.

Why White Screen Issues Are Common in Industrial TFT Displays

Compared to consumer products, industrial TFT displays often involve:

• Longer cable lengths

• Higher brightness backlight systems

• Wider operating temperature ranges

• EMI-prone environments

• Custom firmware or hardware designs

These factors increase sensitivity to signal integrity and power stability, making proper design and verification essential.

When Is It Likely a Panel Failure?

It is more likely a panel defect if:

• The same issue occurs across multiple verified boards

• Signal, timing, and power have been confirmed correct

• Physical damage or ESD exposure is suspected

In such cases, panel-level analysis or replacement may be required.

Conclusion

A white screen on a TFT display does not automatically mean the display is defective. In industrial TFT LCD applications, most white screen issues are caused by incorrect signal connections, timing configuration, or power sequencing.

Understanding these root causes and following a structured troubleshooting process can significantly reduce debugging time and avoid unnecessary panel replacement.

If persistent issues remain, panel-level support or timing verification from an experienced industrial TFT display manufacturer may be necessary.

FAQ

Q1: How does an improper power-on sequence specifically trigger a white screen in industrial TFT modules?

A1: Industrial TFT LCDs require strict power sequencing. If the source/gate driver voltages (VGH/VGL) or logic voltage (VDD) do not stabilize before the timing controller (T-CON) or MCU sends initialization commands, the internal driver IC fails to latch the register states, locking the panel into a default fully-transparent (white) biased state.

Q2: Why can a mismatch in VCOM voltage cause a faded, nearly-white display instead of a solid white screen?

A2: VCOM is the reference voltage for the liquid crystal common electrode. If the VCOM voltage drifts or is incorrectly configured in the firmware, the storage capacitors cannot maintain the correct potential difference across the liquid crystal cells. This causes the crystals to untwist completely (in standard Normally White mode), resulting in a severely washed-out, high-brightness white image.

Q3: What hardware trade-offs prevent EMI-induced timing shifts from causing intermittent white screens in long-distance cabling?

A3: For long-distance cable runs (over 30cm) in harsh EMI environments, standard TTL/RGB interfaces are highly prone to clock jitter, leading to white screens. The trade-off requires switching to differential signaling like LVDS or MIPI, or adding hardware shielding and inline EMI filters, which increases component cost but guarantees signal integrity.

Q4: Can localized ESD damage during system integration cause a permanent white screen on a verified good panel?

A4: Yes. If proper electrostatic discharge (ESD) grounding is omitted during assembly, high-voltage spikes can punch through the sensitive source/gate driver ICs on the FPC or glass substrate. This physically destroys the internal shifting registers or data latches, preventing any video data processing and leaving the panel permanently stuck in white screen mode.

Q5: How do industrial display manufacturers help resolve persistent white screen bugs during custom firmware migration?

A5: When migrating to custom controllers, standard datasheets may lack application-specific timing margins. Industrial manufacturers like Fannal provide layout-level timing verification, optimized initialization scripts (HEX codes) for specific MCU/Linux platforms, and hardware debugging support to ensure stable power-up sequencing under extreme temperature boundaries.
