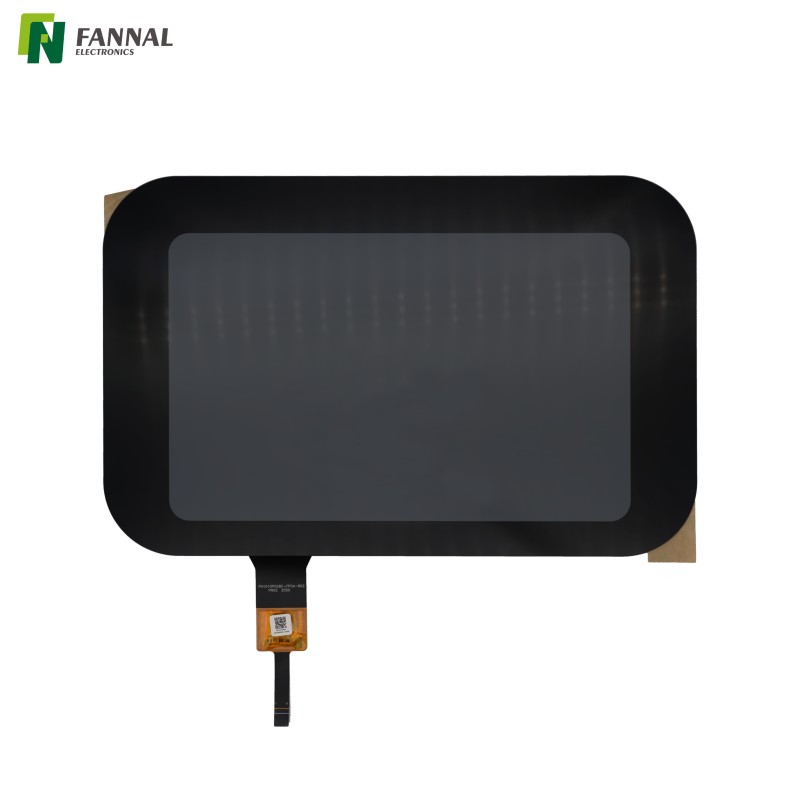

10.1 Inch Industrial Touch Display

Name: 10.1 Inch Industrial Touch Display
Brand: FANNAL
Rating: 5.0 (42 reviews)

10.1 inch industrial touch display featuring 1280 × 800 resolution, G+G capacitive touch, 5-point input and -20°C to +70°C operation for industrial HMI, control panels and embedded equipment.

Model:
FN1010T080A
Brand:
FANNAL
Size(inch):
10.1
Cover OD (mm):
278.89(L) × 179.41(W) × 5.64(T)
Display AA(mm):
216.96*135.6
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
217.56(L) × 136.2(W)
Structure:
G+G
Resolution:
1280 × 800
Display Interface:
LVDS
TP Interface:
IIC
Brightness(cd/m²):
340

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The FN1010T080A is a 10.1-inch industrial touch display combining a 1280 × 800 TFT LCD with a G+G projected capacitive touch panel. It supports 5-point finger touch, LVDS display input, and I²C touch communication. With an operating temperature range of -20°C to +70°C, the module is designed for industrial HMI, control panels, and embedded equipment where a larger touch interface is required.

Features

10.1-Inch 1280 × 800 Display

The 1280 × 800 resolution provides enough working area for graphical HMI screens, equipment status information, control buttons, and monitoring interfaces without moving to a larger panel size.

The display uses an ADS panel with an RGB stripe pixel arrangement and a typical luminance of 340 cd/m².

G+G Projected Capacitive Touch

The touch panel uses a G+G structure, with a glass cover and glass sensor. It supports 5-point finger touch and provides a rigid front surface suitable for repeated operation on equipment interfaces.

The cover glass has a minimum surface hardness of 7H.

Industrial Temperature Range

The specified operating temperature is -20°C to +70°C, making the module suitable for equipment exposed to temperature changes during normal operation.

Storage temperature is specified at -30°C to +80°C.

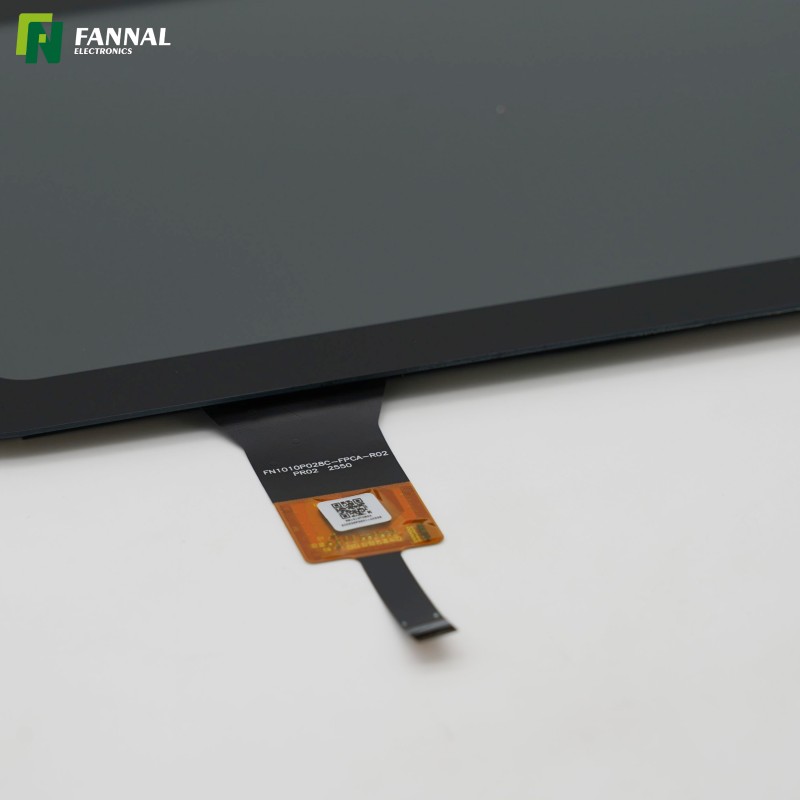

LVDS and I²C Interfaces

The TFT uses an LVDS 8-bit interface, while the touch panel communicates through I²C. Keeping the display and touch interfaces separate provides a straightforward architecture for integration with an embedded system.

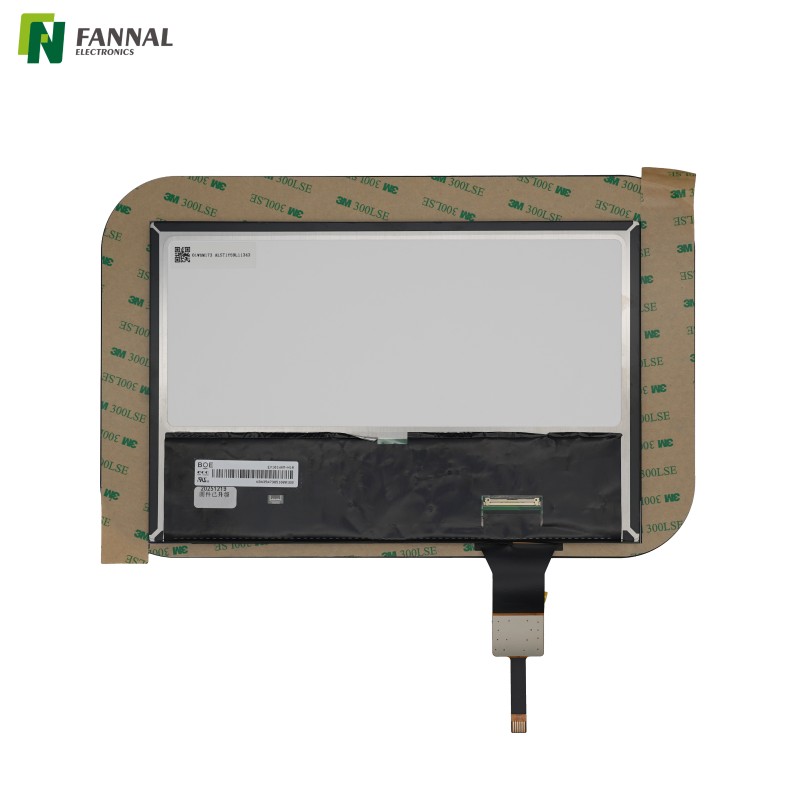

Air-Bonded Construction

The touch panel and TFT are assembled using air bonding with double-sided tape. This is a practical configuration for industrial equipment when the project requires a conventional touch-display structure and serviceability is a consideration.

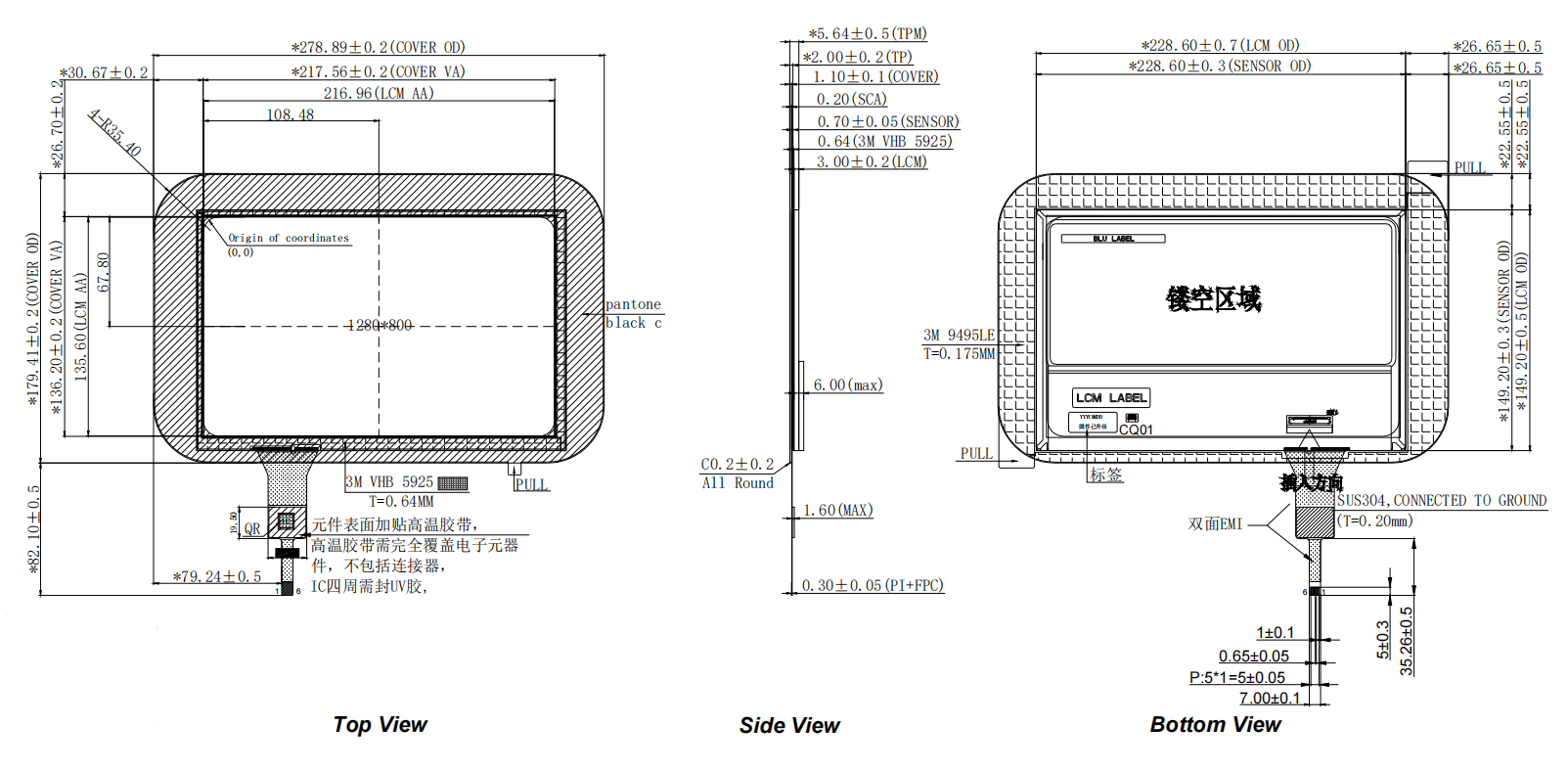

Drawing

Specifications

Item	Specification	Unit / Remarks
Screen Size	10.1 Inch	Inch
Resolution	1280×800	-
Display Mode	ADS	-
Pixel Arrangement	Pixels RGB stripe arrangement	-
Luminance	340 Typ. 290 Min.	cd/m^2
Module Dimension	278.89(L)×179.41(W)×5.64(T)	mm
LCD Active Area	216.96(L)×135.6(W)	mm
TP Viewing Area	217.56(L)×136.2(W)	mm
TP Cover Lens	278.89(L)×179.41(W)×1.1(T)	mm
Structure	G+G	-
Sensor Thickness	0.7	mm
Surface Hardness	7H Min.	-
Weight	390	g
LCD Interface	LVDS 8bit	-
Touch Panel Type	Projective Capacitive Touch Panel	-
Touch Interface	IIC	-
Number of Touch Points	5	Points
TFT Driver IC	TBD (Brand: TBD)	-
Touch Controller IC	Goodix	Brand Name
Power Supply Of TFT	3.3	V
Power Supply Of Touch	3.3	V
Bonding Type	Air Bonding	-
Bonding Material	Double-sided Tape	-
Light Transmittance	85% Min.	-
Operating Temperature	-20 ~ +70	°C
Storage Temperature	-30 ~ +80	°C
Environmental Requirements	RoHS-2.0	-

Applications

Industrial HMI

The 10.1-inch format is suitable for machine interfaces, automation equipment, production-line controls, and operator terminals where users need to view information and operate controls on the same screen.

Control Panels

The display can be integrated into electrical control cabinets, building automation panels, energy management equipment, and other systems requiring a graphical touch interface.

Industrial Monitoring Equipment

The 1280 × 800 resolution provides sufficient space for displaying equipment status, measurement data, charts, and control elements in monitoring systems.

Embedded Equipment

The module can be integrated into custom industrial equipment, instrumentation, test systems, and professional devices where the display and touch panel need to be incorporated into a larger enclosure.

Commercial and Professional Terminals

It can also be considered for indoor kiosks, information terminals, access-control equipment, and other professional devices where a 10.1-inch touch interface is appropriate.
