2.1 Inch Round TFT LCD 480×480 Display | RGB & SPI

2.1 Inch Round TFT LCD 480×480 Display | RGB & SPI

2.1 Inch Round TFT LCD Display | 480×480 | RGB & SPI Interface | High Brightness

Model:
FN0210D003A
Size(inch):
2.1
Cover OD (mm):
56.18*59.71*2.2
Operation Temp(℃):
-20-70
Storage Temp(℃):
-30-80
Contrast Ratio:
1000:1
Resolution:
480×480
Display Interface:
RGB/SPI
Brightness(cd/m²):
800

Quantity:
Availability:





Inquiry Add to Basket

Round TFT LCD

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

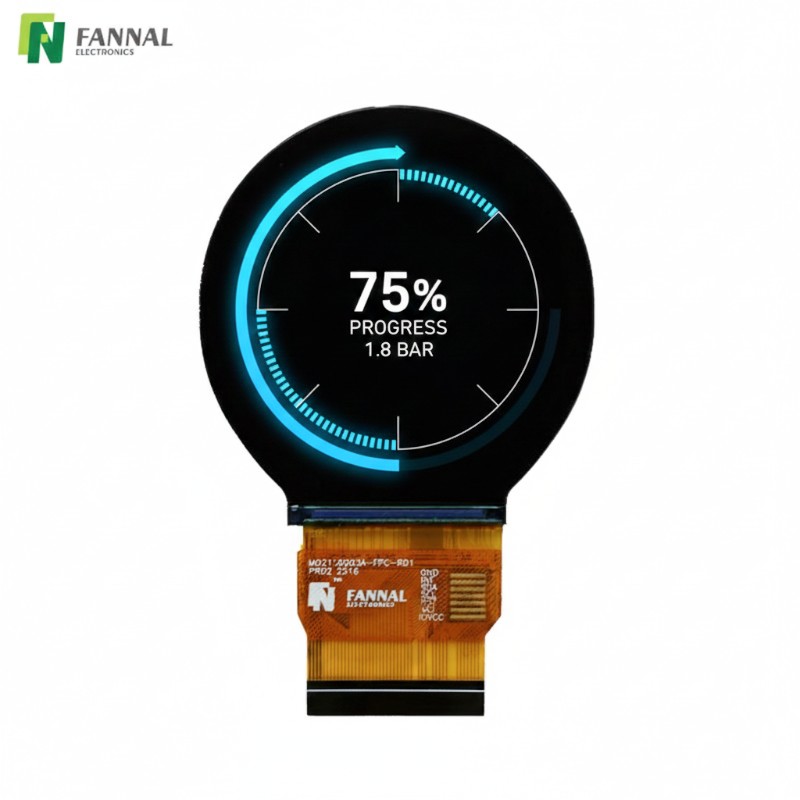

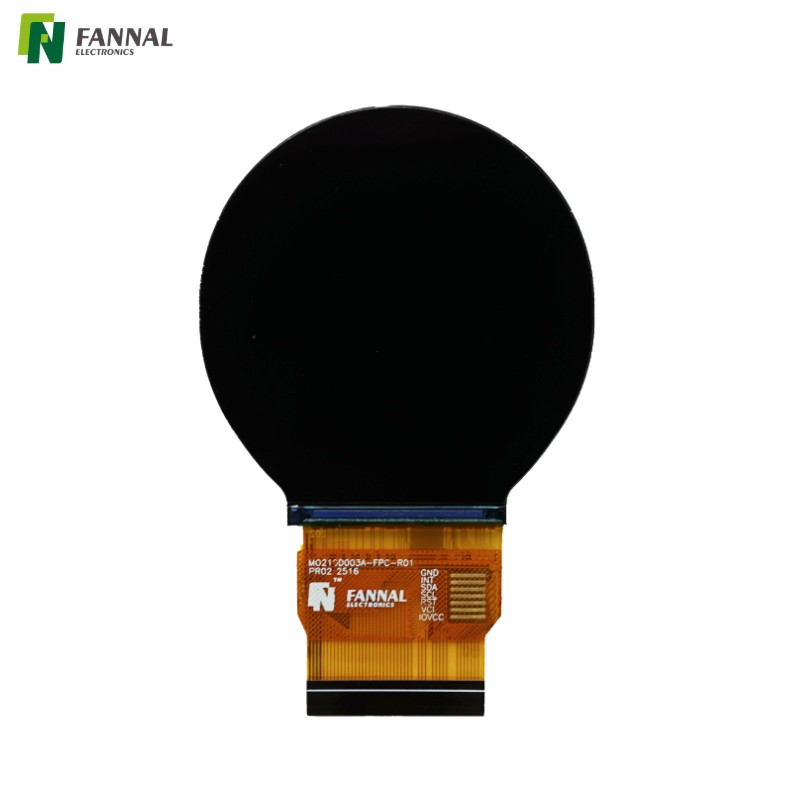

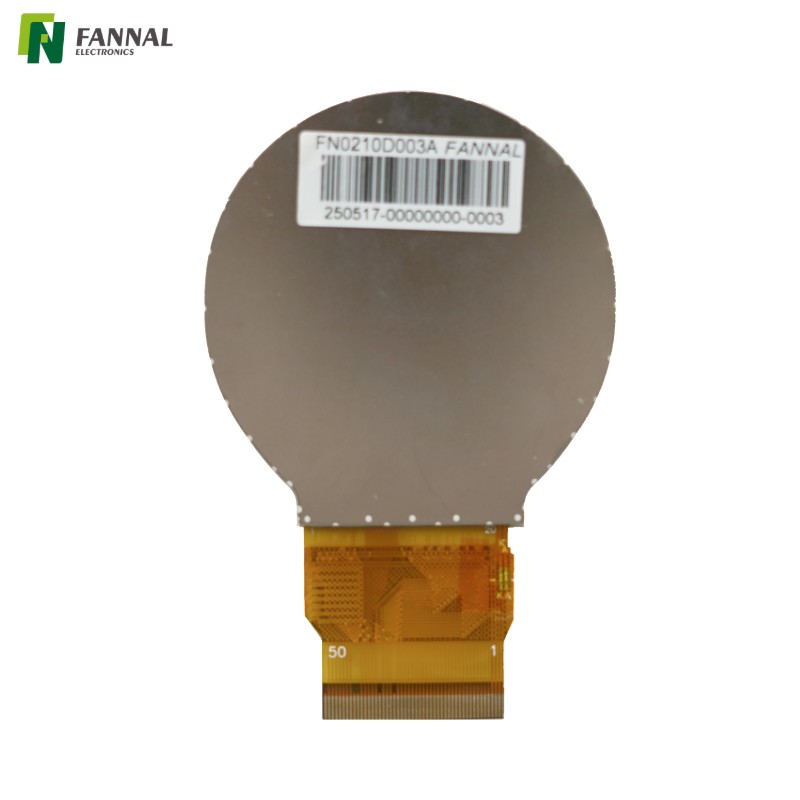

This 2.1-inch round TFT LCD is designed for compact devices requiring a circular display form factor and stable visual performance.
With a balanced combination of clarity, brightness, and interface flexibility, it is suitable for industrial controls, smart instrumentation, and embedded UI applications where space and aesthetics both matter.

Key Features

Circular Display Design
Ideal for rotary interfaces, dial-style UIs, and modern industrial product designs.
Dual Interface Support
RGB and SPI interfaces enable flexible system integration across different MCU and SoC platforms.
High Visibility Performance
Optimized luminance and contrast ensure clear readability under indoor and semi-outdoor lighting conditions.
Stable Operation in Harsh Environments
Engineered for reliable performance across a wide operating temperature range.
Compact and Integration-Friendly
Small form factor supports space-constrained designs and streamlined mechanical layouts.

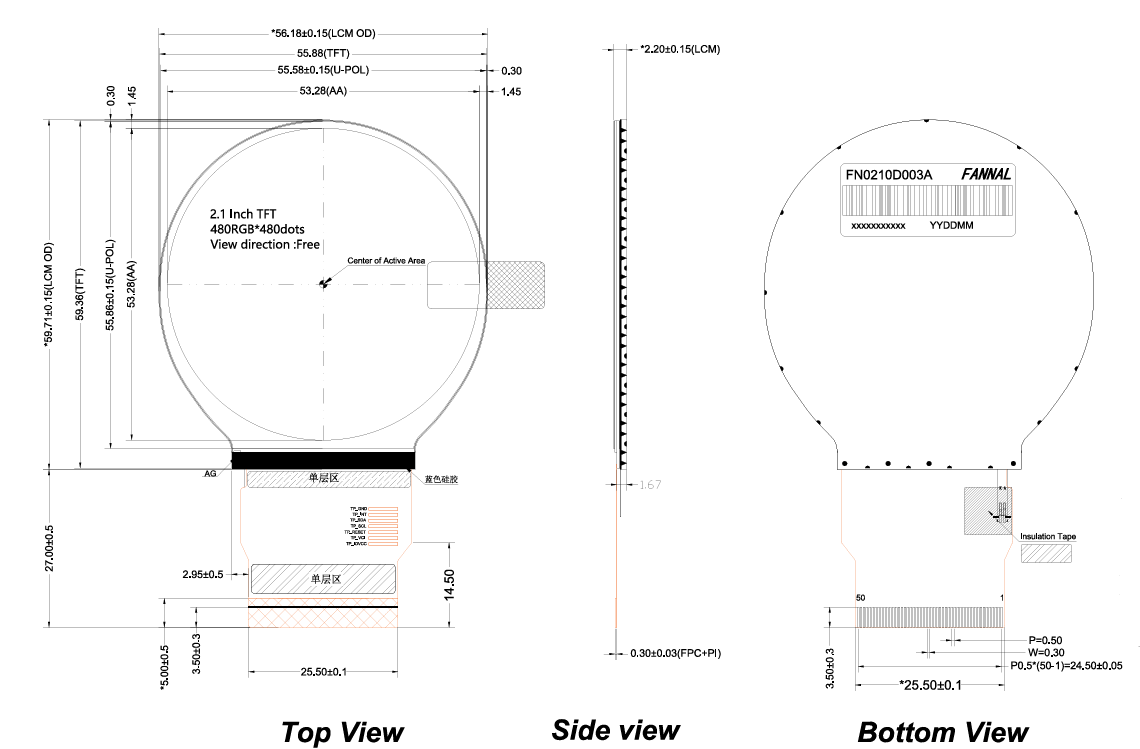

Drawing

Specifications

Item	Specifications
Size	2.1 Inch
Interface	RGB&SPI
Resolution Ratio	480x480
Power Supply	2.8V
LCD Type	Transmissive
Connection Mode	FPC Plug-In
Display Mode	Normally Black
Driver IC	ST7701S
Display Direction	Free
Operation Temperature	-20~+70
Contrast Ratio	1000:1
Storage Temperature	-30~+80
Luminance (AQ01)	800 Typ. 650 Min.
Environmental Requirements	RoHS-2.0
Uniformity	80% Min.
Unmarked Tolerance	±0.2mm

Applications

1. Smart Control Knobs & Dial Interfaces
Suitable for rotary controllers, smart knobs, and circular HMI designs where information is displayed around a central axis. The round format naturally matches dial-style UI layouts.

2. Industrial Instrumentation Displays
Well-suited for measurement instruments, sensors, and monitoring devices that require compact size, clear readability, and stable operation across temperature variations.

3. Medical & Laboratory Equipment (Non-Critical UI)
Used in auxiliary displays for medical or lab equipment, such as status indication, parameter visualization, or mode selection panels.

4. Smart Home & Building Control Panels
Ideal for thermostats, access control units, and smart switches where modern aesthetics and high brightness improve user interaction.

5. Embedded Devices & Custom UI Modules
A practical choice for embedded systems requiring a circular display with flexible interface options and reliable long-term supply.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Q1. What type of systems is this 2.1-inch round TFT suitable for?

This display is designed for embedded systems, industrial controllers, smart instruments, and compact devices that benefit from a circular UI layout.

Q2. Does the round TFT support both MCU and SoC platforms?

Yes. With RGB and SPI interface options, it can be integrated with a wide range of MCUs and SoCs depending on system architecture and performance requirements.

Q3. Is this display suitable for outdoor or semi-outdoor use?

The high luminance and contrast make it suitable for semi-outdoor environments, such as control panels exposed to ambient light, though direct sunlight conditions should be evaluated at system level.

Q4. Can this display be customized for OEM projects?

Customization options such as interface configuration, brightness tuning, and mechanical adaptation are typically available for OEM and ODM projects.

Q5. Is this round TFT intended for consumer-grade products?

This model is primarily designed for industrial, embedded, and professional applications rather than short-lifecycle consumer electronics.
