When selecting cover glass for a touch display, one question frequently arises:
Should you choose chemically strengthened glass or tempered glass?
Although both processes improve the strength of glass, they are designed for different applications. In industrial, medical, and automotive projects, the choice affects not only durability but also optical bonding performance, design flexibility, manufacturing feasibility, and overall product reliability.
A common misconception is that the strongest glass is always the best option. In reality, cover glass selection depends on several factors, including glass thickness, operating environment, mechanical requirements, and product design constraints.
Based on our experience supporting touch display projects across multiple industries, understanding the differences between these two strengthening methods early in the design phase can help avoid unnecessary redesigns and manufacturing challenges later.

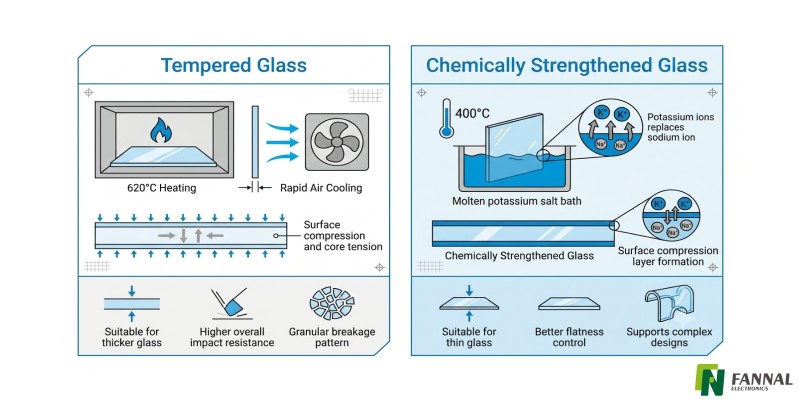

Tempered glass, also known as thermally tempered glass, is produced by heating glass to approximately 620°C and then rapidly cooling the surfaces using high-pressure air.
During cooling, the outer surfaces solidify faster than the interior. This creates compressive stress on the surface and tensile stress within the core, improving the glass's resistance to impact and thermal shock.
Because the strengthening effect extends throughout the glass thickness, tempered glass is commonly used in applications requiring robust mechanical performance.
Good overall impact resistance, especially in thicker glass structures
Improved resistance to thermal shock compared with untreated glass
Breaks into relatively small granular fragments, reducing the risk of sharp edges
Mature manufacturing process with relatively stable production costs
Thin glass is more susceptible to warpage during tempering
Further cutting, drilling, or machining after tempering is not possible
Complex geometries and intricate cutouts may increase manufacturing difficulty
Maintaining flatness becomes more challenging as glass thickness decreases
Because of these characteristics, tempered glass is often used in thicker cover glass applications where impact resistance is a primary concern.
Chemically strengthened glass improves strength through an ion exchange process rather than thermal treatment.
The glass is immersed in a molten potassium salt bath at approximately 400°C. During this process, smaller sodium ions near the glass surface are replaced by larger potassium ions.
The larger potassium ions create a compressive stress layer at the surface, improving resistance to crack initiation and propagation.
Since the process occurs at lower temperatures, the dimensional stability of the glass is better preserved compared with thermal tempering.
Excellent suitability for thin cover glass designs
Better control of flatness and reduced risk of warpage
Greater flexibility for complex shapes and precision cutouts
Well suited for optical bonding applications
Supports lightweight and slim product designs
Higher processing costs compared with conventional tempering
Strengthening is concentrated near the surface rather than distributed throughout the entire thickness
All machining operations should be completed before strengthening
Post-strengthening modifications can compromise performance
Because of these advantages, chemically strengthened glass has become widely used in automotive displays, medical devices, industrial HMIs, and other thin touch display applications.
Feature | Chemically Strengthened Glass | Tempered Glass |
|---|---|---|
Strengthening Method | Ion exchange process | Thermal tempering |
Typical Processing Temperature | Approximately 400°C | Approximately 620°C |
Recommended Thickness | 0.5–3 mm | Generally ≥ 3 mm |
Thin Glass Capability | Excellent | Limited |
Flatness Control | Better | More challenging |
Optical Bonding Compatibility | Excellent | Depends on flatness requirements |
Complex Shapes and Cutouts | More flexible | Limited after tempering |
Post-Strengthening Machining | Not recommended | Not possible |
Impact Resistance | Good | Better in thicker constructions |
Breakage Pattern | Larger fragments | Small granular fragments |
Typical Applications | Automotive, medical, industrial HMIs | Outdoor kiosks, heavy-duty equipment |
Relative Cost | Higher | Lower |
Glass thickness is often the first factor influencing strengthening method selection.
For cover glass below 3 mm, chemically strengthened glass is generally preferred because it offers better flatness control and supports thin product designs. This is particularly important as modern touch displays continue moving toward lighter and slimmer constructions.
For thicker glass structures, tempered glass often provides advantages in overall impact performance.
However, thickness alone should not determine the final decision. It should be evaluated alongside other design requirements.
Optical bonding has become increasingly common in industrial and automotive displays because it improves contrast, reduces internal reflections, and enhances sunlight readability.
However, bonding quality depends heavily on the flatness of the cover glass.
Excessive warpage can lead to uneven adhesive thickness, reduced assembly yield, and inconsistent optical performance.
In projects involving thin cover glass and optical bonding, chemically strengthened glass often offers advantages because lower processing temperatures minimize distortion.
This factor is frequently overlooked during the initial design stage.
The operating environment is one of the most important factors in cover glass selection, especially when impact resistance is a key requirement.
In industrial standards, impact performance is often evaluated using the IK rating system (IEC 62262), which defines the level of mechanical shock resistance a product can withstand.
For example, medical devices used in controlled indoor environments typically operate under low mechanical stress conditions and may only require basic protection against accidental contact. In contrast, outdoor kiosks, public terminals, or industrial HMIs installed in production environments are more likely to be exposed to higher impact energy, intentional force, or accidental collisions.
In such cases, thicker tempered glass is often selected because it provides stronger overall structural resistance and more robust behavior under high-energy impacts.
However, targeting a higher IK rating is not always beneficial for every application. Increasing impact resistance typically requires thicker glass or more rigid structural design, which can lead to:
Increased product weight
Reduced optical and touch performance flexibility
Higher material and processing costs
Design constraints in slim or bezel-less structures
From a system design perspective, the goal is not to maximize IK rating by default, but to define a realistic target based on the actual use environment.
In many touch display projects, selecting a cover glass that matches the required IK level—rather than exceeding it unnecessarily—results in a more balanced combination of durability, manufacturability, and cost efficiency.
Modern touch displays increasingly feature:
Narrow bezels
Irregular shapes
Precision cutouts
Integrated logos or decorative elements
Customized industrial designs
As complexity increases, manufacturing flexibility becomes more important.
Chemically strengthened glass generally offers advantages in these scenarios because intricate machining operations can be completed before strengthening without introducing the distortion associated with thermal processing.
For projects requiring significant customization, this flexibility can simplify manufacturing and improve yield.
Cover glass performance is not determined solely by the strengthening process.
The overall mechanical design also plays a critical role.
Factors such as mounting methods, edge support, gasket materials, enclosure rigidity, and load distribution can all influence durability.
In practice, some failures attributed to glass selection are actually caused by inadequate mechanical support or improper installation methods.
Evaluating cover glass independently from the overall system design can lead to misleading conclusions.
Tempered glass generally offers lower processing costs due to its mature manufacturing process.
Chemically strengthened glass typically requires longer processing times and tighter process controls, resulting in higher costs.
However, material cost should not be evaluated in isolation.
For example, improved flatness may increase optical bonding yields, while greater design flexibility may simplify assembly processes.
The lowest-cost component does not always result in the lowest overall system cost.
The following guidelines provide a practical starting point when selecting cover glass for touch display applications.
Application Requirement | Recommended Option |
Cover glass thickness ≤ 3 mm | Chemically strengthened glass |
Thin and lightweight product design | Chemically strengthened glass |
Optical bonding with strict flatness requirements | Chemically strengthened glass |
Complex cutouts or custom shapes | Chemically strengthened glass |
Automotive displays | Chemically strengthened glass |
Medical device touch interfaces | Chemically strengthened glass |
Cover glass thickness ≥ 3 mm | Tempered glass |
High-impact industrial environments | Tempered glass |
Outdoor kiosks and public terminals | Tempered glass |
Applications prioritizing granular breakage behavior | Tempered glass |
These recommendations should be treated as general guidelines rather than fixed rules.
Final selection should always be based on the actual application environment and product requirements.
Based on our experience in industrial, medical, and automotive touch display projects, we generally recommend chemically strengthened glass for applications involving thin cover glass, optical bonding, or complex industrial designs.
Many modern touch displays fall into this category because they prioritize slim profiles, high optical quality, and design flexibility.
Tempered glass is often recommended when thicker glass constructions and higher overall impact resistance are required. Outdoor equipment, self-service terminals, and heavy-duty industrial systems are common examples.
Rather than starting with the question, "Which glass is stronger?" we encourage customers to consider:
What thickness is required?
Will optical bonding be used?
What environmental conditions will the product experience?
Are complex cutouts necessary?
What level of impact resistance is actually required?
Answering these questions usually leads to a clearer and more practical selection decision.
Chemically strengthened glass and tempered glass each serve important roles in touch display design.
Chemically strengthened glass is often the preferred choice for thin cover glass applications requiring excellent flatness, optical bonding compatibility, and design flexibility.
Tempered glass remains a reliable solution for thicker structures operating in environments where impact resistance is a primary concern.
The best choice depends not on which strengthening process produces the strongest glass, but on which solution aligns most closely with the application's technical requirements.
By considering thickness, mechanical demands, optical requirements, and manufacturing constraints together, product teams can select cover glass that supports both performance and long-term reliability.
Not necessarily. Chemical strengthening creates a high compressive stress layer on the glass surface, improving resistance to crack initiation. However, drop performance also depends on glass thickness, mounting design, edge protection, and overall product structure.
Yes. Anti-glare (AG), anti-reflective (AR), and anti-fingerprint (AF) treatments can generally be applied to both chemically strengthened and tempered glass. The process sequence should be evaluated during product development to maintain optical and mechanical performance.
Not always. Increasing glass thickness may improve impact resistance but can also increase weight, reduce touch sensitivity, and affect optical bonding performance. The optimal thickness should be determined based on application requirements rather than durability alone.
Glass flatness and dimensional stability influence bonding quality. Chemically strengthened glass often offers better control of thin-glass warpage, making it advantageous in applications requiring high optical performance and precise bonding alignment.
Yes. The mechanical structure surrounding the display significantly affects glass reliability. Edge support, gasket materials, mounting methods, and housing stiffness can all influence the final durability of the touch display system.
