Cover glass protects a touchscreen from impact, scratches, chemicals, and everyday wear. In industrial equipment, it may also need to be thicker than the glass used in consumer devices.
But increasing the cover glass thickness can introduce another design challenge: the touch sensor has to detect a user's input through a greater physical distance.
This does not mean that thick cover glass automatically produces poor touch performance. Whether a touchscreen remains responsive depends on how the glass works with the touch sensor, controller IC, and overall module design.
The key is to understand what changes when the cover glass becomes thicker.
A projected capacitive (PCAP) touchscreen detects changes in the electrical field around its sensing electrodes when a finger approaches the surface.
A simplified structure is:
Finger → Cover Glass → Touch Sensor → Touch Controller

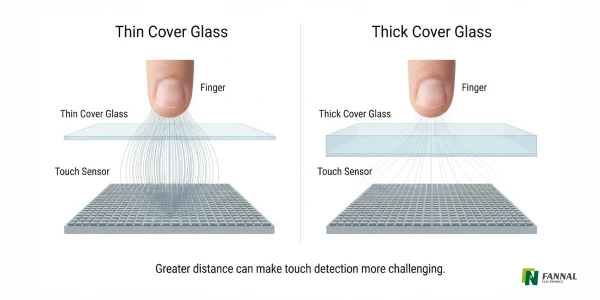

The cover glass separates the user's finger from the sensing electrodes. Increasing its thickness increases this separation, which can reduce the strength of the electrical change available to the sensor.
In practical terms, the touch system has a smaller signal margin to work with.
However, this relationship is not a simple thickness-to-sensitivity formula. The sensor structure, electrode design, controller, and surrounding electrical environment all influence how much usable signal reaches the detection system.
This is why specifying only:
“3 mm cover glass”
does not tell you whether a touchscreen will perform well.
The touch controller needs to distinguish an intentional touch from the normal electrical state of the sensor.
When the user's finger interacts with the sensor through a thicker dielectric layer, the resulting change can become more difficult to detect reliably.
The challenge becomes greater when the application also introduces other demanding conditions, such as:
Glove operation
Water or condensation
Electrical noise
Large touch areas
Unusual installation environments
This is where the design of the touch sensor becomes important.
The sensor is not simply a passive layer underneath the glass. Its electrode pattern and electrical characteristics determine how effectively a finger interaction is converted into a measurable signal.
Therefore, a cover glass specification should be considered together with the touch sensor rather than evaluated independently.
The Touch IC, or touch controller, processes the electrical signals detected by the sensor and determines whether they represent valid touch events.
For a touchscreen using thicker cover glass, the controller may need to work with a lower or more challenging signal level. Its ability to detect small changes, reject noise, establish a stable baseline, and process multiple touch points therefore becomes important.
Depending on the application, relevant controller capabilities may include:
Signal detection and processing
Noise rejection
Baseline tracking
Multi-touch detection
Sensitivity configuration
Glove-touch support
Environmental compensation
But the Touch IC cannot be selected independently of the sensor.
A controller receives the signal produced by the sensor; it cannot recover information that the sensor design cannot provide reliably in the first place.
For this reason, sensor and controller selection should be considered together with the required cover glass thickness.
Consider two touch displays that both use 3 mm cover glass.
One may provide reliable touch operation, while another may show reduced sensitivity or inconsistent detection.
The difference can come from the touch sensor, controller, firmware configuration, electrical design, or the physical relationship between the different layers.
This is why a cover glass specification by itself is not a sufficient way to evaluate a touch display.
A more useful design view is:
Design Element | Why It Matters |
|---|---|
Cover glass | Determines the physical distance above the sensor |
Touch sensor | Determines how the finger interaction is converted into an electrical signal |
Touch IC | Detects and processes the sensor signal |
Firmware | Controls detection behavior and system tuning |
Touch stack | Defines the relationship between the different layers |
The same principle applies when comparing touch modules from different suppliers. Two products with similar glass thicknesses can have different touch performance because their underlying touch architectures differ.
Industrial applications often have legitimate reasons to use thicker cover glass.
A display installed on industrial equipment may need greater resistance to impact, abrasion, repeated cleaning, or harsh operating conditions. Reducing the glass thickness simply to make touch detection easier may therefore create a different problem.
The engineering task is to balance these requirements.
For example:
Mechanical requirement
→ Select the required cover glass structure
Touch requirement
→ Define sensitivity, accuracy, glove use, and other input conditions
Touch system
→ Match the sensor and Touch IC to those requirements
This approach is more useful than starting with an arbitrary rule such as “the glass should not exceed X mm.”
The practical question is whether the complete touch system can provide the required performance through the selected glass.
The application ultimately determines the required cover glass thickness, but the touch system has to work under the conditions in which the finished product will actually be used. This is where the rest of the touch stack and the operating environment become important.
A touch display is not simply a glass panel placed above a sensor. The layers between the user and the LCD form a complete optical and electrical stack.
A simplified structure may be:
Cover Glass → Air Gap / Optical Adhesive → Touch Sensor → LCD
Changing the spacing or bonding method changes the physical relationship between the cover glass and sensor.
For example, an air-bonded module contains an air layer between components, while an optically bonded module uses an adhesive layer to eliminate that gap.
Optical bonding is primarily used to improve optical performance and mechanical integration, but it can also change the conditions under which the touch sensor operates. Therefore, the bonding method should be considered during touch-system development rather than added as an independent solution after the sensor has already been selected.
Glove operation introduces a different challenge from bare-finger touch.
The material between the user's finger and the sensor can reduce or alter the electrical signal detected by the touch system. The effect varies considerably between glove types.
A thin fabric glove, an industrial work glove, and a thick protective glove should not be treated as the same input condition.
For an industrial touchscreen, the specification should therefore be more specific:
Which gloves need to work, under what conditions?
If glove operation is a requirement, the selected sensor and Touch IC should be evaluated using representative gloves and the actual cover glass thickness.
This is particularly important when the display also needs to operate outdoors or in environments where the user's hands may be wet.
Yes. Water can change the electrical conditions around a projected capacitive sensor.
Rain, droplets, condensation, and a wet finger may produce unwanted signals or make it more difficult to distinguish a deliberate touch from environmental interference.
The result can include:
False touches
Unstable touch detection
Missed touches
Reduced touch accuracy
This is why an outdoor or industrial touchscreen should not be evaluated only with a dry finger in a controlled environment.
If the intended application involves water, the final combination of cover glass, sensor, controller, and surface condition should be tested under representative conditions.
Electrical noise is another factor that can reduce touch reliability.
Industrial equipment may contain motors, inverters, power converters, charging circuits, and other electronics that generate electrical interference. The LCD and its driving electronics can also contribute to the surrounding noise environment.
The touch controller needs to distinguish the relatively small touch signal from this background.
For that reason, a touchscreen that performs well as a standalone module may require additional evaluation after it is installed inside the final equipment.
Grounding, shielding, PCB layout, display noise, and controller configuration can all become relevant during system integration.
There is no universal maximum thickness that applies to every capacitive touchscreen.
The practical limit depends on the combination of:
Cover glass thickness
Touch sensor design
Touch IC
Touch stack-up
Required sensitivity
Glove requirements
Water exposure
Electrical environment
For example, a 3 mm cover glass may be suitable for one application but require a different touch configuration for another.
Therefore, a fixed statement such as “3 mm is the maximum” is not a reliable engineering rule.
The more useful question is:
Can the selected touch system maintain the required performance through the specified glass under the actual operating conditions?
The selection process should start with the application rather than with a predetermined glass thickness.
Determine why the application needs a particular glass thickness.
Consider:
Impact resistance
Abrasion
Cleaning requirements
Environmental exposure
Equipment structure
Specify how the display will actually be operated.
For example:
Bare finger
Specific glove types
Wet finger
Outdoor use
Multi-touch operation
Select the sensor and Touch IC according to the required glass thickness and touch conditions.
Determine whether the module will use air bonding or optical bonding and evaluate the complete layer structure.
The final test should use the actual cover glass, touch module, controller configuration, enclosure, and representative operating conditions.
This last step matters because touch performance can change after the display is integrated into the finished equipment.
For a standard indoor touchscreen, basic finger-touch testing may be sufficient for initial evaluation.
For an industrial application, testing may need to be expanded.
Condition | What to Check |
|---|---|
Bare finger | Sensitivity and accuracy |
Representative gloves | Detection and responsiveness |
Wet finger | Stability and missed touches |
Water droplets | False or unintended touches |
Final enclosure | Mechanical and electrical integration |
Operating equipment | Noise and real-world stability |
The exact test conditions should reflect the application.
A marine control display, for example, should not be validated in exactly the same way as an indoor industrial HMI.
No. Increasing glass thickness can make touch detection more challenging because it changes the distance between the finger and sensing electrodes. However, the final result depends on the touch sensor, Touch IC, stack-up, and application conditions.
Yes. 3 mm cover glass can be used in capacitive touch applications, but suitability depends on the complete touch system and required operating conditions. There is no universal maximum thickness for all PCAP touchscreens.
A suitable Touch IC can improve the system's ability to detect and process challenging touch signals, but it cannot compensate for an unsuitable sensor or poorly matched touch stack by itself.
Optical bonding changes the physical structure between the cover glass and display layers and may affect the touch system. However, it should not be treated as a guaranteed sensitivity improvement. Its effect depends on the specific touch sensor, controller, and stack-up.
Neither should be evaluated in isolation. Glass thickness affects the sensing conditions, while the Touch IC processes the signal provided by the sensor. Reliable performance depends on how these components are designed and matched as a system.
Cover glass thickness is an important consideration in industrial touchscreen design, but it is only one part of the final touch solution.
A thicker cover may be necessary for mechanical or environmental requirements. The challenge is to design the touch system around that requirement rather than treating glass thickness as an isolated specification.
The most reliable approach is to evaluate the cover glass, touch sensor, Touch IC, stack-up, and actual operating conditions together.
For custom industrial touch displays, this system-level approach makes it possible to balance mechanical protection with the touch performance required by the final application.
