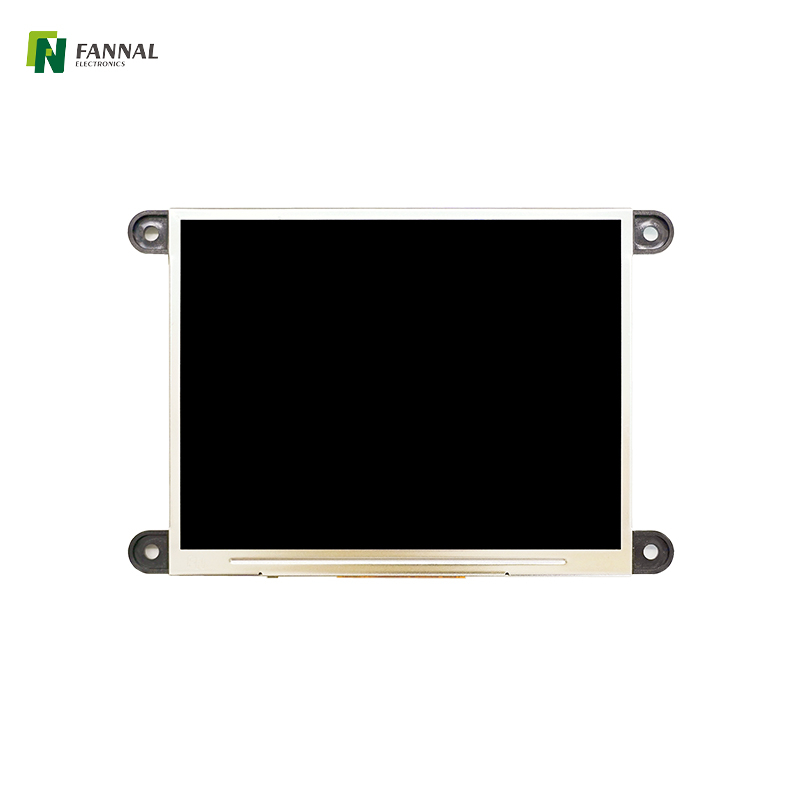

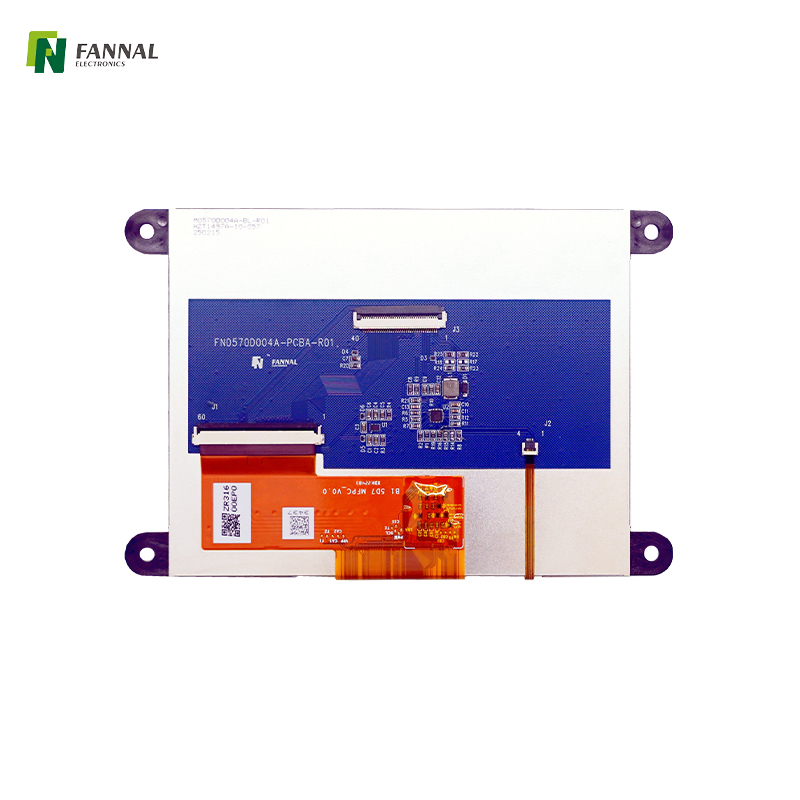

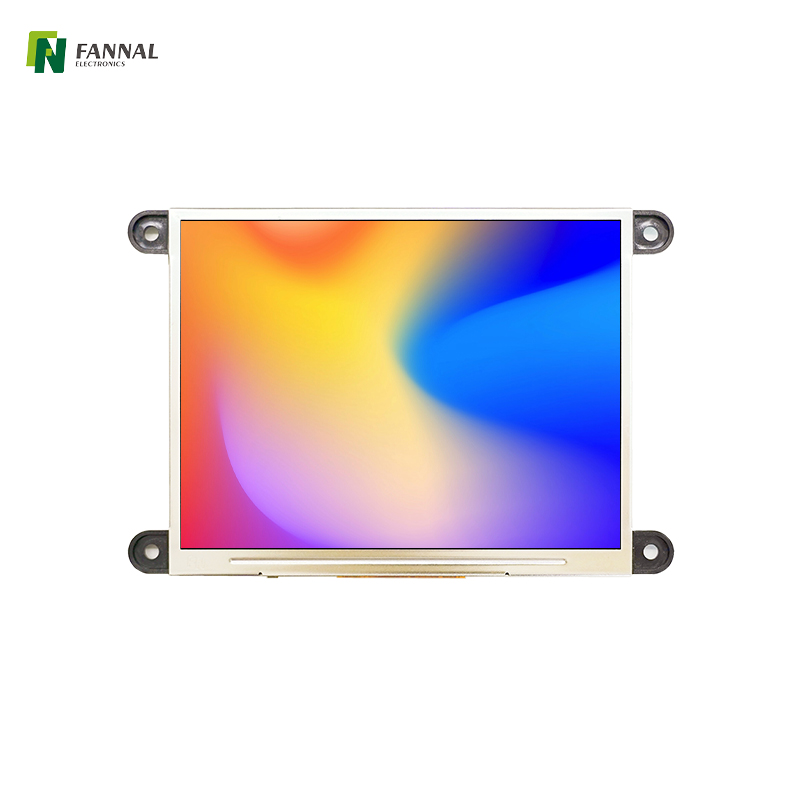

5.7" TFT LCD Screen, 640x480 Resolution, IPS Display with Wide Viewing Angle

Model:
FN0570D004A
Size(inch):
5.7
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
640x480
Direction:
ALL
Interface:
RGB
Brightness(cd/m²):
450
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket Download

5.7 inch TFT display 5.7 inch LCD display industrial 5.7 inch TFT display

Drawing & Specifications

Product Application

Customization

Case Study

FAQ

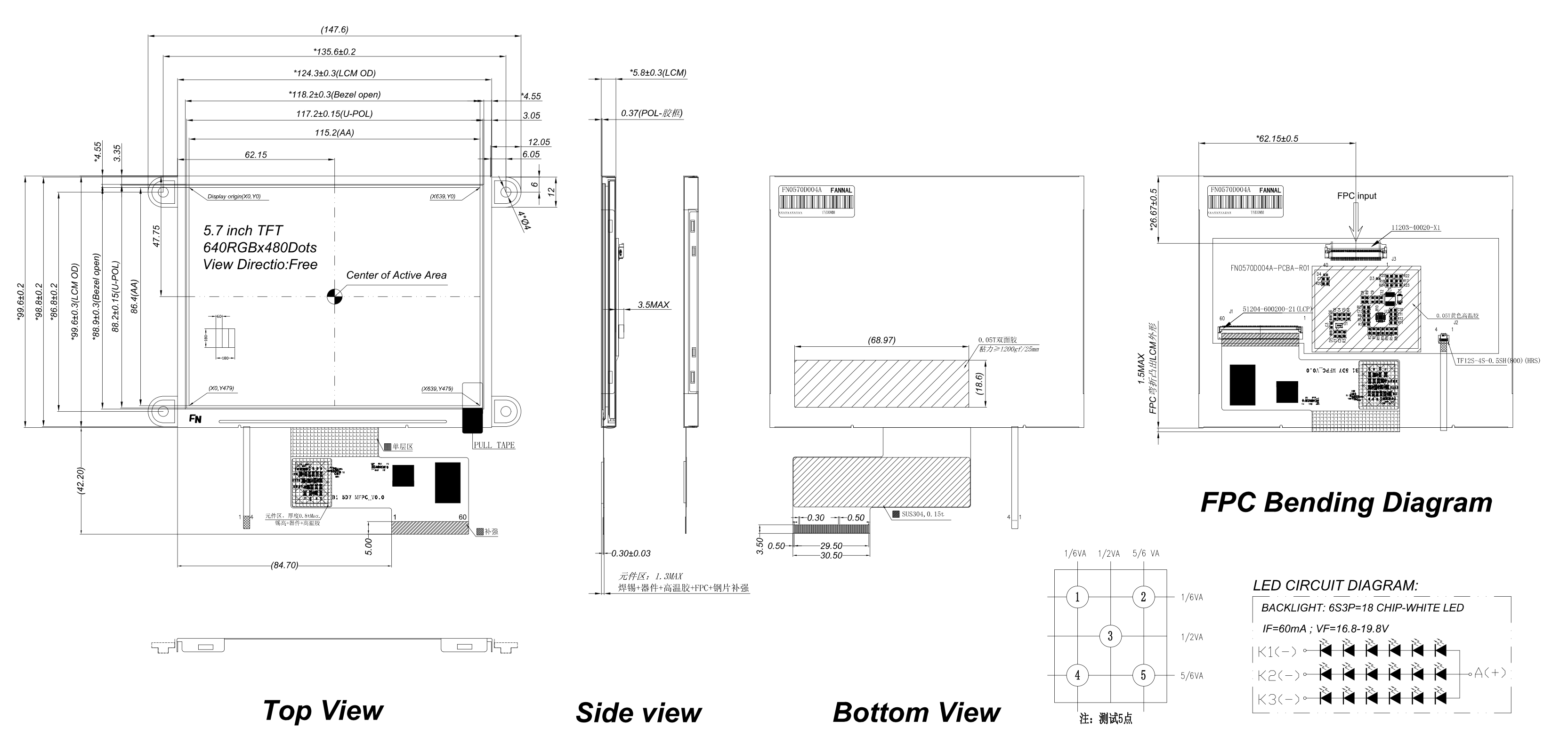

Drawing

FN0570D004Aspc

Specifications

General Specifications：

LCD size(inch):	5.7 (Diagonal)
Resolution:	640(H)×480(V)
Pixel Pitch:	0.18x0.18(V)
Active Area(mm):	115.2(H)×86.4(V)
Module Size(mm):	147.6(W)×100(H)×5.8(D)
Display Mode(mm):	Normally Black
Interface:	RGB
Pixel arrangement:	RGB-Vertical Stripe
View Direction:	ALL
Luminance(cd/m2):	450(Typ.)
Operating Temperature(°C):	-20~+70
Storage Temperature(°C):	-30~+80

Interface:

Pin No.	Symbol	I/O	Description
1	SHLR	I	Left/Right selection.
2	UPDN	I	Up/Down selection.
3-4	GND	P	Ground.
5-6	VDD	P	Supply analog voltage.
7	BL_ED	I	LED enable signal.
8	PWM	I	PWM dimming control signal of LED convert er.
9	DE	I	Data enable signal input.
10	VSYNC	I	Vertical synchronizing signal input.
11	HSYNC	I	Horizontal synchronizing signal input.
12	DCLK	I	Pixel clock input signal.
13	GND	P	Ground.
14-21	R0-R7	I	Red data input.
22-29	G0-G7	I	Green data input.
30-37	B0-B7	I	Blue data input.
38	RESET	I	Reset signal input.
39	GND	P	Ground.
40	VCC	P	Supply analog voltage.

Electrical Characteristics:

Parameter

Symbol

Min.

Typ.

Max.

Unit

Power Supply Voltage

VDD

2.5

-

6.0

V

IOVCC

2.5

-

3.3

V

Power Supply current

IDD

-

47

-

mA

Input logic high voltage

VIH

0.7IOVCC

-

IOVCC

V

Input logic low voltage

VIL

0

-

0.3IOVCC

V

Applications

Industrial Control Panels

Compact HMIs for factory machinery, PLC interfaces, and monitoring systems.
IPS wide viewing angles ensure visibility from different operator positions.

Embedded Instrumentation

Medical instruments, lab analyzers, and diagnostic devices that require clear, accurate displays.
RGB interface allows flexible integration into custom embedded boards.

Portable and Handheld Devices

Handheld testers, analyzers, and measurement instruments.
Brightness (450 nits) ensures readability in indoor or lightly lit outdoor environments.

Transportation and Vehicle Displays

In-vehicle controllers, dashboards, or infotainment panels for industrial vehicles, forklifts, or agricultural machines.
Operating temperature range (-20°C ~ +70°C) supports rugged environments.

Small Outdoor or Kiosk Displays

Compact terminals, vending machines, or informational panels where mid-level brightness and wide viewing angles are required.

Industrial Panels

Medical Equipment

Fitness Equipment

Engineering Plant

Motorbike

Vending Machine

Home Application

Customization

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

Custom Touchscreen

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

Case Study

Overview
A medical device manufacturer needed a compact, reliable display for their next-generation laboratory analyzers. The goal was to provide operators with clear, accurate readings while maintaining durability and visibility under various lighting conditions.

Challenges

Compact size: The analyzer had limited panel space, requiring a display that fit within tight dimensions without sacrificing readability.
Readability: Operators needed consistent clarity for numerical results, graphs, and status indicators, regardless of viewing angle.
Industrial reliability: The display had to withstand frequent use in labs with variable temperatures and possible exposure to cleaning agents or incidental moisture.
Interface flexibility: Integration with the analyzer’s embedded controller required a compatible and stable interface.

Solution
The 5.7" 640×480 IPS TFT LCD was selected for its combination of features:

IPS wide viewing angle: Ensured visibility from multiple operator positions, reducing errors caused by off-axis viewing.
Moderate brightness (450 nits): Clear readability under standard lab lighting without excessive power consumption.
RGB interface: Simplified integration into the embedded control system.
Industrial temperature range (-20°C to +70°C): Supported consistent performance across daily lab operations.

Results

Improved operator efficiency: Clear numeric displays and graphical UI reduced reading errors and improved workflow.
Reliable performance: No brightness or color shift observed after months of continuous use.
Flexible integration: The compact module allowed the analyzer design to remain small and ergonomic.

FAQ

1. How does the IPS panel benefit multi-operator environments?

Answer: IPS technology provides consistent color and brightness across wide viewing angles, ensuring multiple users can read the display simultaneously without distortion or color shift.

2. Is this display suitable for continuous operation in lab instruments?

Answer: Yes. Designed for industrial-grade reliability, it maintains stable performance and readability under extended operational hours.

3. Can the display integrate with custom UI elements like icons, graphs, or status indicators?

Answer: Yes. Its resolution and interface support detailed graphics, making it ideal for control menus, numerical readouts, and graphical UI in embedded systems.

4. How does it handle cleaning or incidental exposure to lab environments?

Answer: The display can be combined with protective overlays or touch panels to resist minor spills and cleaning procedures typical in laboratory settings.

5. Is firmware or interface flexibility supported for embedded integration?

Answer: Yes. The RGB interface allows integration with various microcontrollers and embedded systems, supporting flexible firmware configurations and custom UI layouts.
