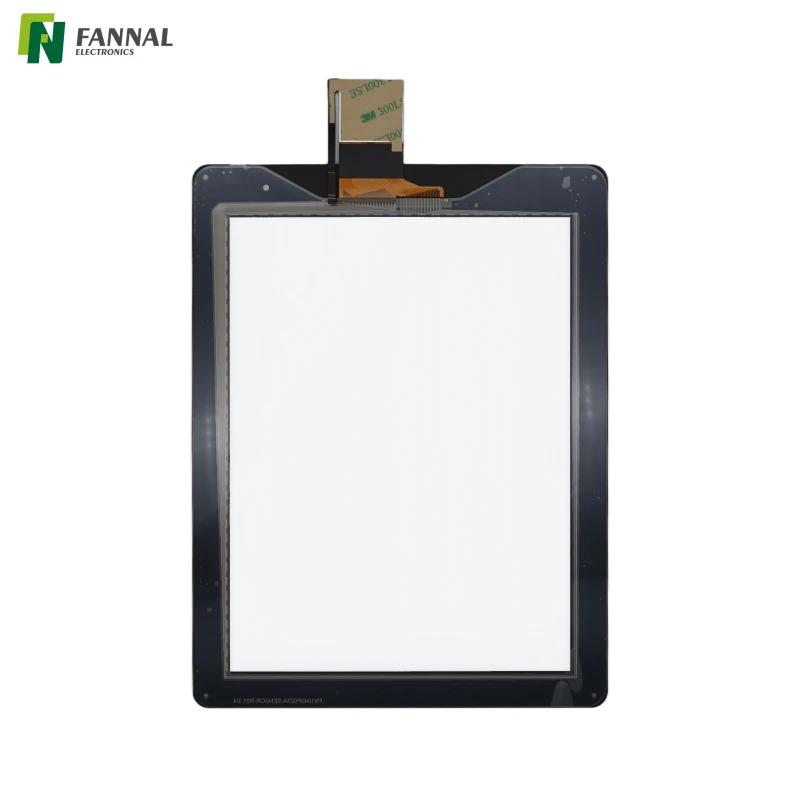

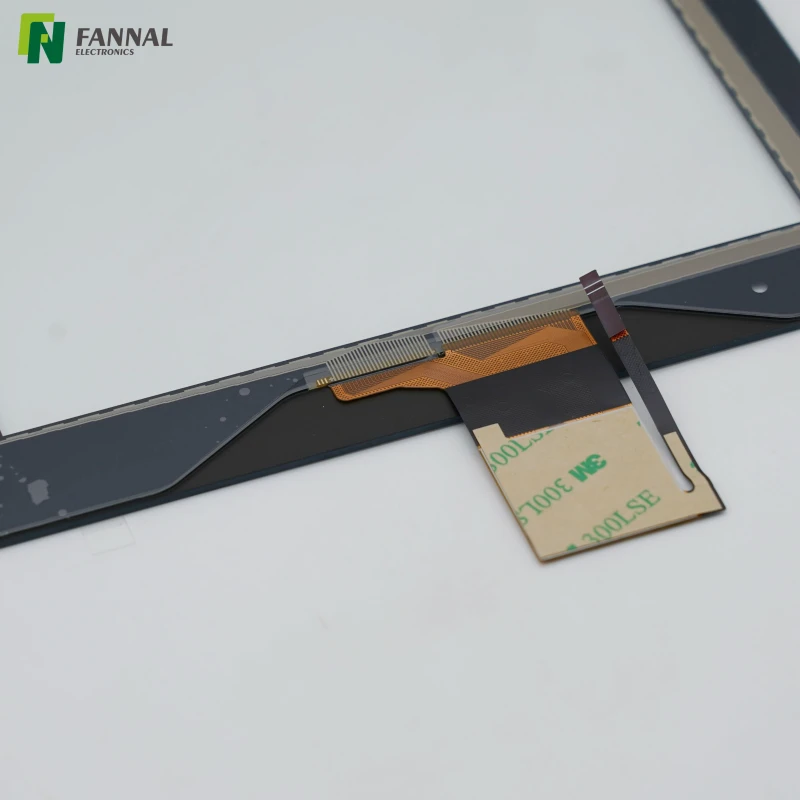

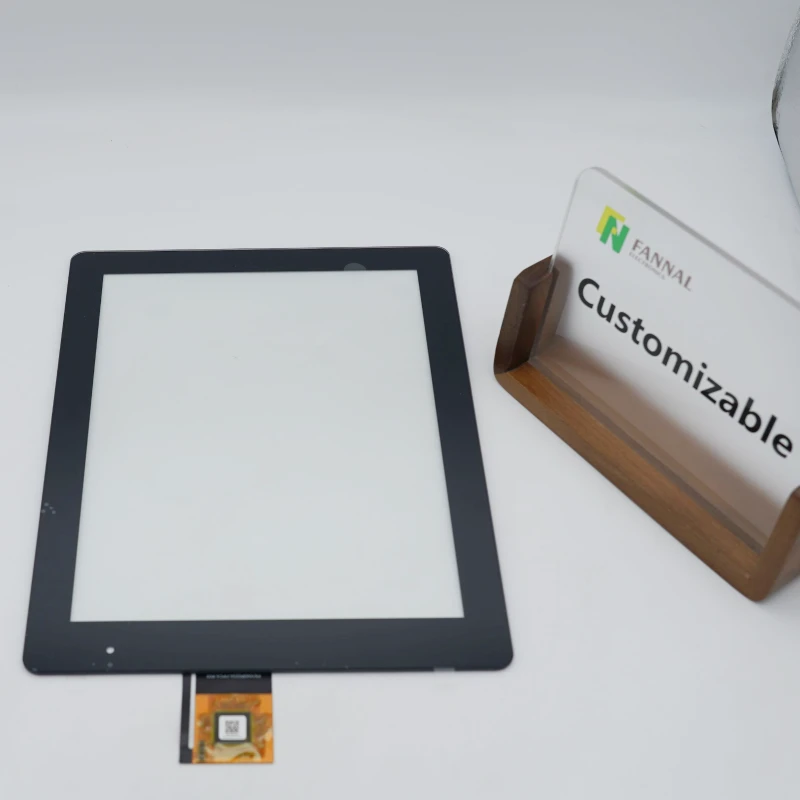

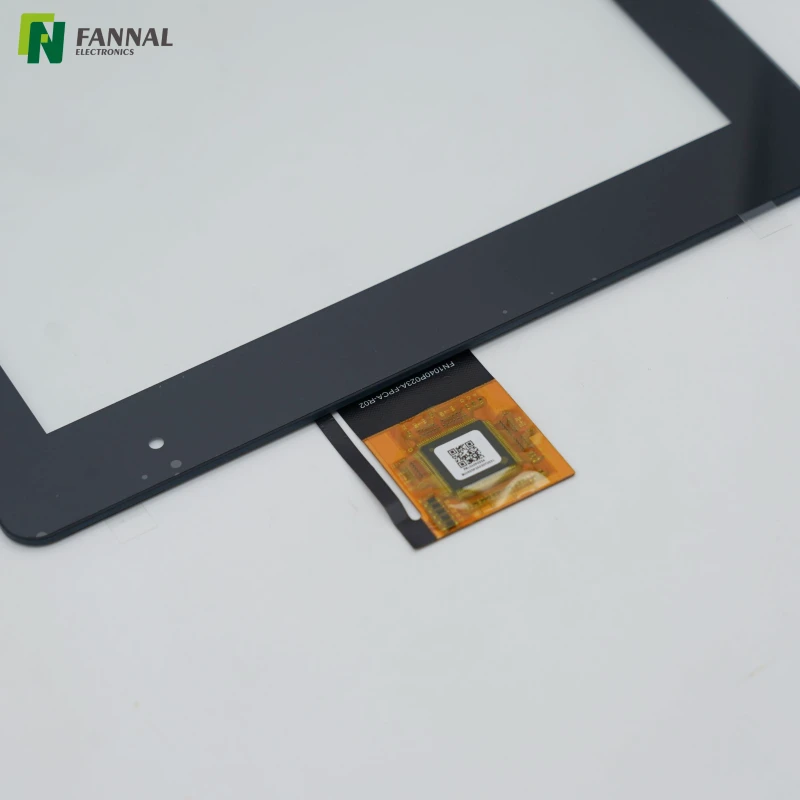

10.4 Inch Multi-Touch G+G Capacitive Touch Panel

Name: 10.4 Inch Multi-Touch G+G Capacitive Touch Panel
Brand: FANNAL
Rating: 5.0 (98 reviews)

10.4 Inch Industrial Multi-Touch Panel | G+G Capacitive | 10-Point PCAP

Model:
FN1040P023A
Brand:
FANNAL
Size(inch):
10.4
Cover OD (mm):
194.80(H) x 254.70(V) x 2.55(D)
Operation Temp(℃):
-30~70
Storage Temp(℃):
-40~80
TP VA (mm):
159.40(H) x 212.40(V)
Structure:
G+G
TP Interface:
IIC

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The 10.4-inch G+G capacitive touch panel is a standalone projected capacitive touch solution for equipment that needs a larger multi-touch interface without using an integrated touch display module.

Its G+G construction combines a glass cover with an ITO glass sensor, providing a solid front surface for repeated finger operation. The panel supports up to 10 simultaneous touch points and uses an I²C interface, making it suitable for systems where the touch function is designed separately from the display.

The panel is specified for -30°C to +70°C operation and -40°C to +80°C storage. Chemically strengthened soda-lime glass is used for the cover, while the panel provides 85% minimum transmittance. These characteristics make it a practical option for control equipment, terminals, and other embedded systems where the touch panel may need to accommodate both multi-touch interaction and a relatively broad temperature range.

Features

G+G Construction for Equipment Interfaces

The G+G structure uses a glass cover and glass sensor rather than a film-based sensor structure. With a 1.8 mm chemically strengthened cover, it provides a firm touch surface for equipment that is operated directly by hand.

Multi-Touch Rather Than Single-Point Input

The panel supports up to 10 touch points, allowing interfaces to use gestures such as pinch, zoom, and two-finger navigation where the host software supports them. For simpler interfaces, the additional touch capacity can also be left unused.

Designed for a Wide Temperature Range

The specified operating range is -30°C to +70°C, with storage from -40°C to +80°C. This gives system designers more latitude when the equipment may be installed in environments with significant temperature variation.

High ESD Ratings

The touch panel is specified for ±15 kV air discharge and ±8 kV contact discharge. ESD performance is particularly relevant when the front surface is directly accessible to operators. Actual system-level ESD performance will still depend on grounding, enclosure design, and the final integration.

85% Minimum Transmittance

With 85% minimum touch transmittance, the panel is suitable for integration over a separate display without unnecessarily restricting the amount of light reaching the user.

Flexible Standalone Integration

Because this is a touch panel rather than a complete touch display, the touch layer can be considered separately from the LCD selection. This can be useful when an existing display, custom LCD, or independently designed display assembly needs a capacitive touch interface.

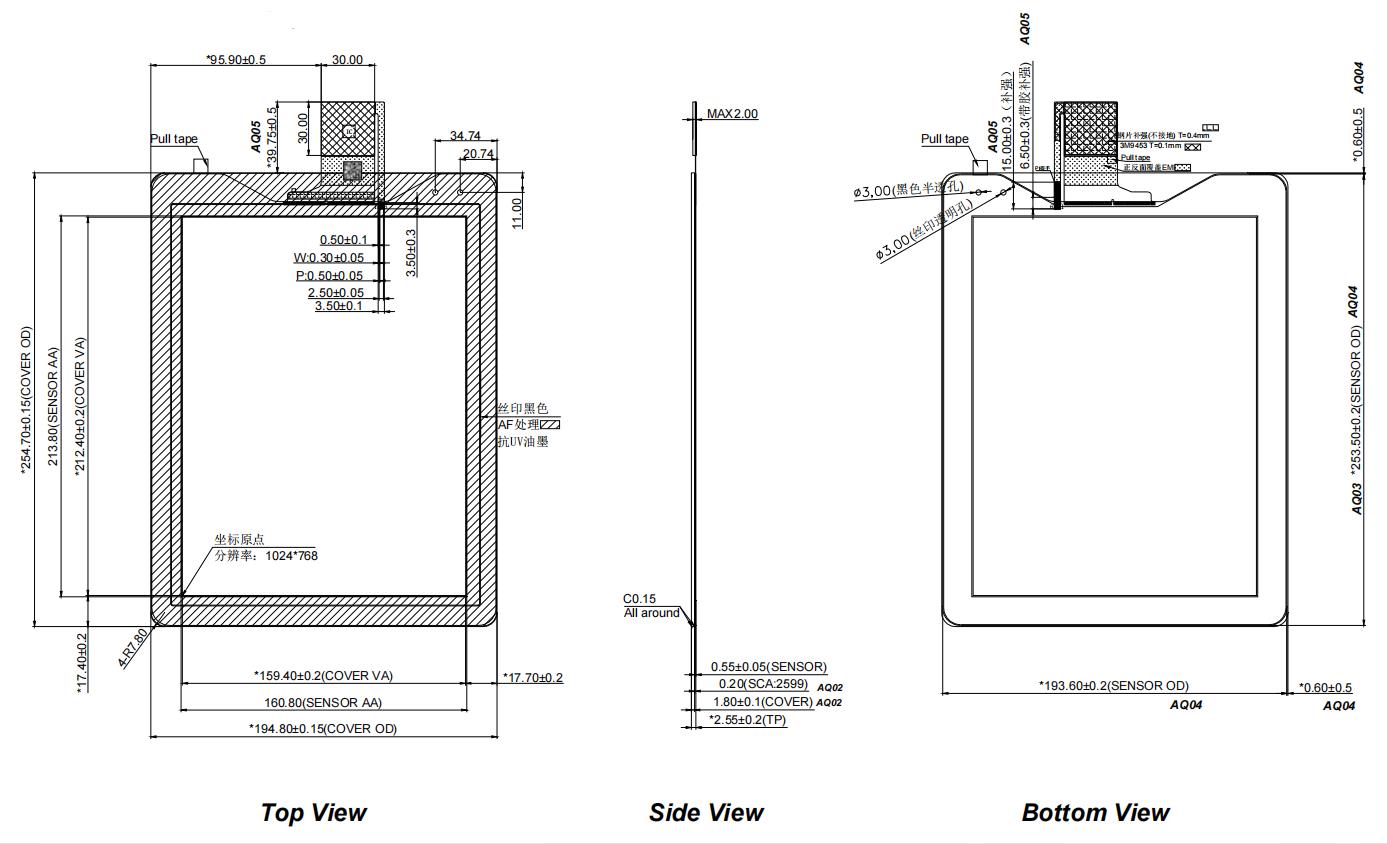

Drawing

Specifications

Item	Specification	Unit
Panel Size	10.4 (Diagonal)	inch
Product Structure / Structure	G+G
Active Area / View Area Size	159.40(H) x 212.40(V)	mm
Outline Dimension	194.80(H) x 254.70(V) x 2.55(D)	mm
Touch Transmittance / Transmittance	85% Min.
Surface Hardness	6H Min.
Touch Controller / Driver IC	Microchip
No. Of Touch / Supported Touch Points	10
Touch Interface / Interface	IIC
Driving Voltage	3.3	V
Operating Temperature	-30~+70	°C
Storage Temperature	-40~+80	°C
Strengthening Method	Chemically Strengthen
Cover Material	Sodalime Glass
Cover Thickness	1.8mm AQ02
Sensor Material	Ito Glass
Sensor Thickness	0.55mm
Environmental Requirements / RoHS Compliance	RoHS-2.0 (OK)
ESD (Air)	± 15	KV
ESD (Contact)	± 8	KV

Applications

Industrial Control Equipment

Suitable for operator interfaces where users need to select parameters, navigate menus, or interact with multiple controls on a larger touch surface.

Automation and Machine Interfaces

The 10.4-inch format gives designers enough area for graphical controls while multi-touch capability leaves room for more modern interface designs.

Self-Service and Information Terminals

The larger touch area can accommodate navigation, selection, and on-screen controls without requiring physical buttons across the front panel.

Test and Measurement Equipment

Useful for instruments where operators need to interact with graphs, measurement parameters, menus, or other information-dense interfaces.

Embedded Equipment

As a standalone PCAP panel, it can be integrated with a separately selected LCD and system electronics when the display and touch requirements need to be specified independently.

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Can this touch panel be used with a custom LCD?

Yes. Since this is a standalone touch panel, it can be considered separately from the LCD. Mechanical alignment, active area, viewing area, cover dimensions, and the touch controller/interface should be checked against the target display before integration.

Does 10-point touch mean the application must use all 10 points?

No. The panel supports up to 10 simultaneous touch points, but the actual number used depends on the host system and application software. A product can use simple single-finger controls while retaining the option for multi-touch interaction.

Is the panel suitable for equipment exposed to electrostatic discharge?

The specified ESD ratings are ±15 kV air and ±8 kV contact. However, these are touch-panel specifications rather than a guarantee of the complete equipment's IEC ESD performance. Grounding, bezel construction, shielding, and system-level protection should be considered during integration.

What should be checked when matching this panel with an LCD?

The important points are not only the diagonal size. The active/view area, outline dimensions, cover shape, mounting arrangement, and optical alignment all need to match the LCD and front enclosure. The I²C touch interface and 3.3 V supply should also be compatible with the host electronics.

Is the -30°C to +70°C range the same for storage?

No. The specified operating range is -30°C to +70°C, while the storage range is -40°C to +80°C. The two limits should be treated separately when evaluating the equipment's environmental requirements.
