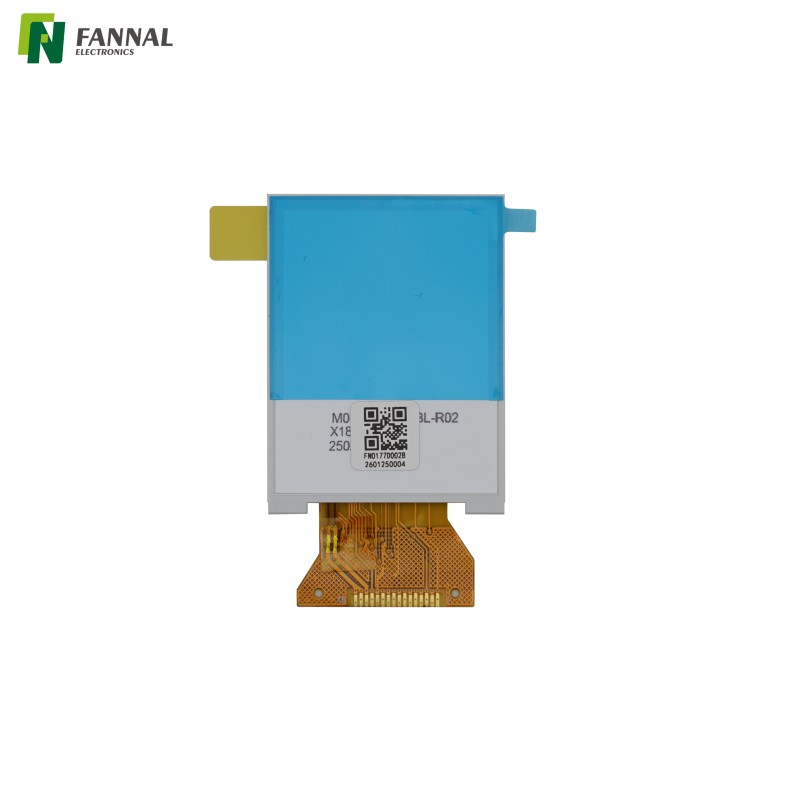

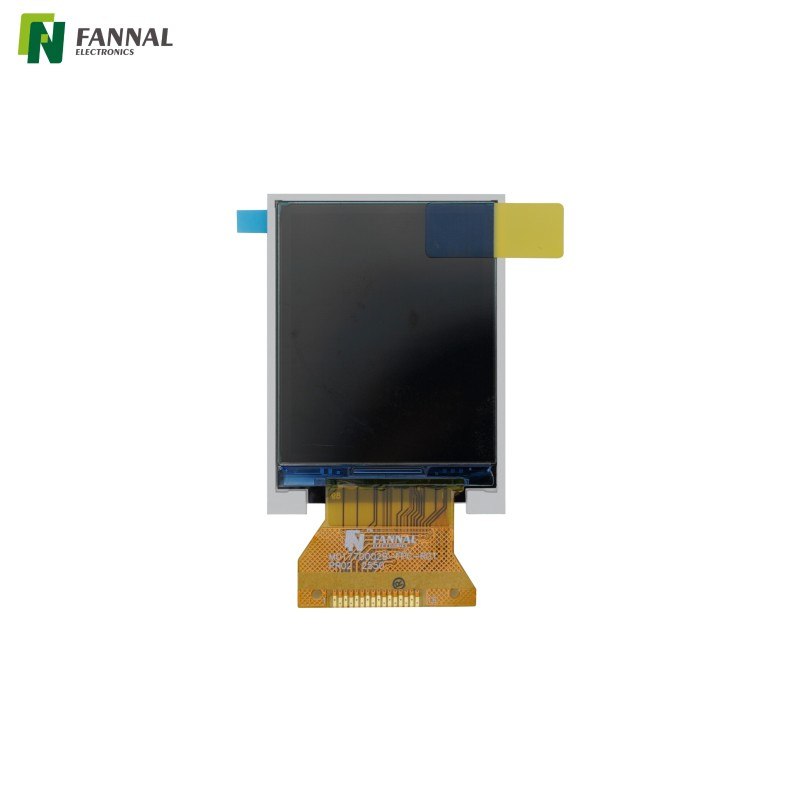

1.77 Inch SPI TFT LCD Display Module with Wide Viewing Direction

Name: 1.77 Inch SPI TFT LCD Display Module with Wide Viewing Direction
Brand: FANNAL
Rating: 5.0 (1 reviews)

1.77 Inch SPI TFT Display Module for MCU and Embedded Systems

Model:
FN0177D002B
Brand:
FANNAL
Size(inch):
1.77
Display AA(mm):
28.03 (H) × 35.04 (V)
Operation Temp(℃):
-20 ~ 65
Storage Temp(℃):
-30~80
Contrast Ratio:
1500:1
Resolution:
128×160
Direction:
ALL
Display Interface:
SPI
Brightness(cd/m²):
350

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

This 1.77-inch TFT LCD module combines a compact footprint with a Normally Black display mode, SPI interface, and wide viewing direction. Small displays are often chosen due to space constraints rather than display size, making interface type, power consumption, and readability equally important during integration.

Features

Compact Size for Space-Constrained Designs

With a module size of 34.7 × 46.7 × 2.5 mm, the display can fit into products where front-panel space is limited. In smaller devices, mechanical layout often becomes a larger constraint than display resolution.

Normally Black Display Mode for Improved Contrast Performance

The panel uses a Normally Black structure with a 1500:1 typical contrast ratio. Compared with many standard small TFT displays, higher contrast can help improve perceived image quality and readability under typical indoor conditions.

SPI Interface for Simplified Hardware Connections

The display uses an SPI interface, which is commonly selected for compact display modules where pin count and routing complexity need to be controlled. Interface selection still depends on processor capability and system requirements.

Wide Viewing Direction

The display supports ALL viewing directions, allowing content to remain visible from different installation angles. This can be useful when display orientation varies between products or operating positions.

Low Power Consumption

Typical power consumption is approximately 0.03 W, which can help reduce system power requirements in products operating from battery power or power-sensitive platforms.

Power consumption at the system level will still depend on backlight settings and operating conditions.

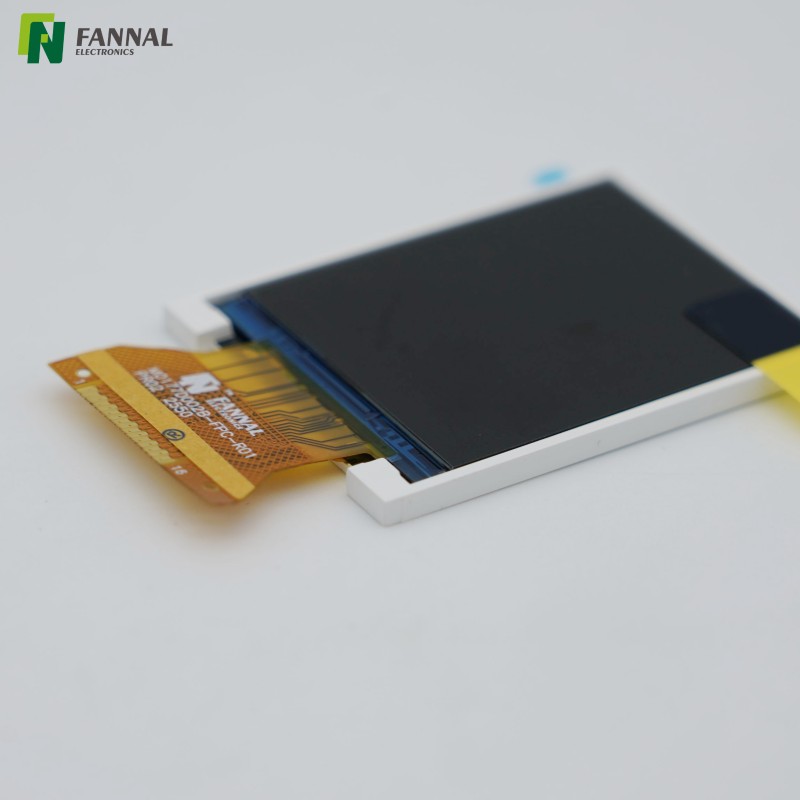

FPC Plug-In Connection

The module uses an FPC plug-in connection structure for integration into compact assemblies and embedded products.

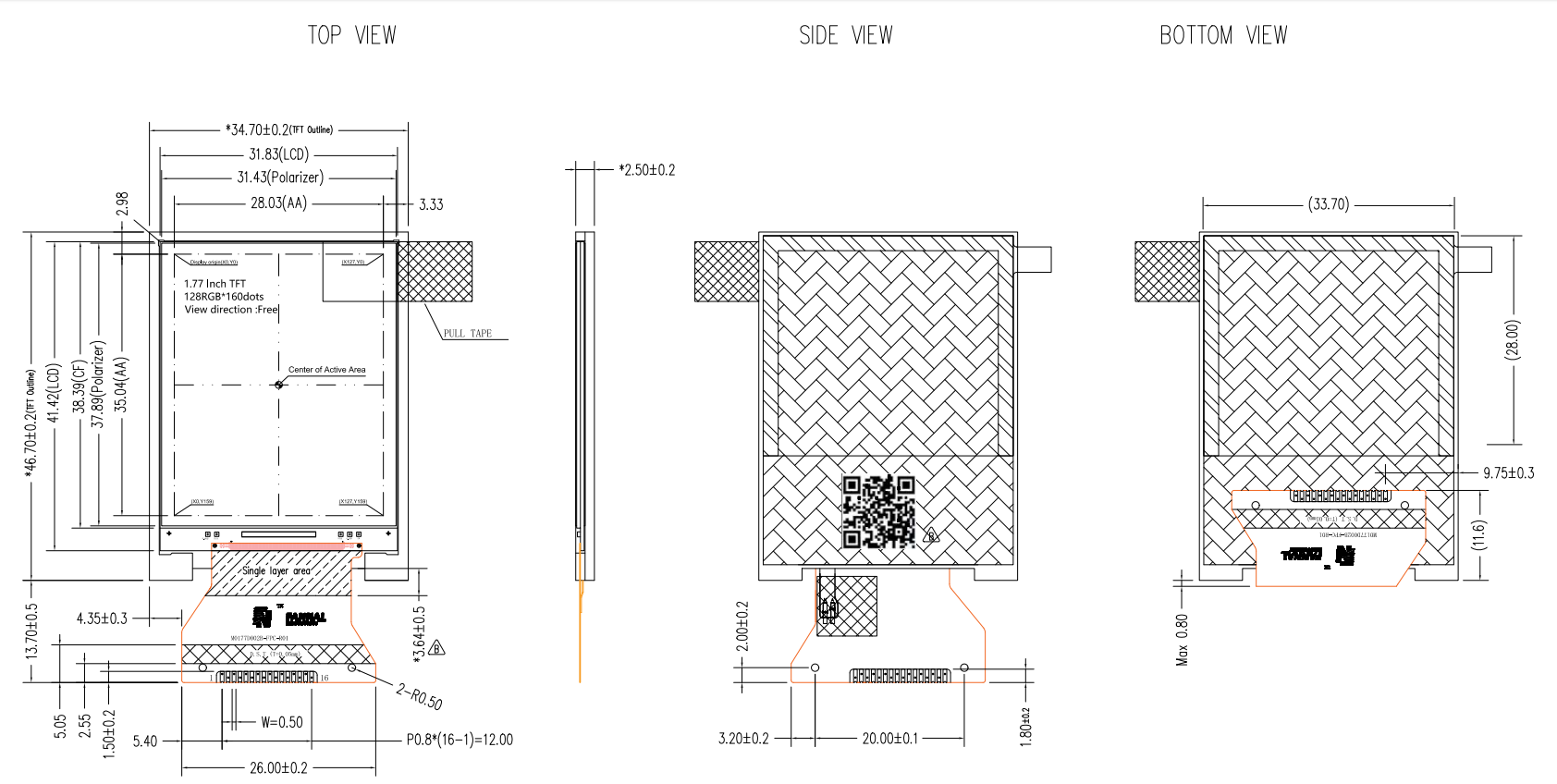

Drawing

Specifications

Parameter	Specification	Unit
LCD Size	1.77 (Diagonal)	inch
Resolution Ratio	128 (H) × 160 (V)	pixels
Pixel Pitch	0.219 (H) × 0.219 (V)	mm
Active Area	28.03 (H) × 35.04 (V)	mm
Module Size	34.7 (W) × 46.7 (H) × 2.5 (D)	mm
LCD Type	Transmissive	-
Display Mode	Normally Black	-
Display / View Direction	Free / ALL	-
Contrast Ratio	1500:1	-
Luminance	350 (Typ.), 300 (Min.)	cd/m²
Uniformity	80%	-
Pixel Arrangement	RGB-Vertical Stripe	-
Interface	SPI	-
Power Supply	2.8	V
Power Consumption	0.03 (Typ.)	W
Connection	FPC Plug-in	-
Driver IC	ST7735P3	-
Weight	6.0 (Typ.)	g
Operation Temperature	-20 ~ +65	°C
Storage Temperature	-30 ~ +80	°C
Environmental Requirements	RoHS-2.0	-
Unmarked Tolerance	±0.2	mm
