2.0" Industrial TFT LCD Display | 240×320 | MCU Interface

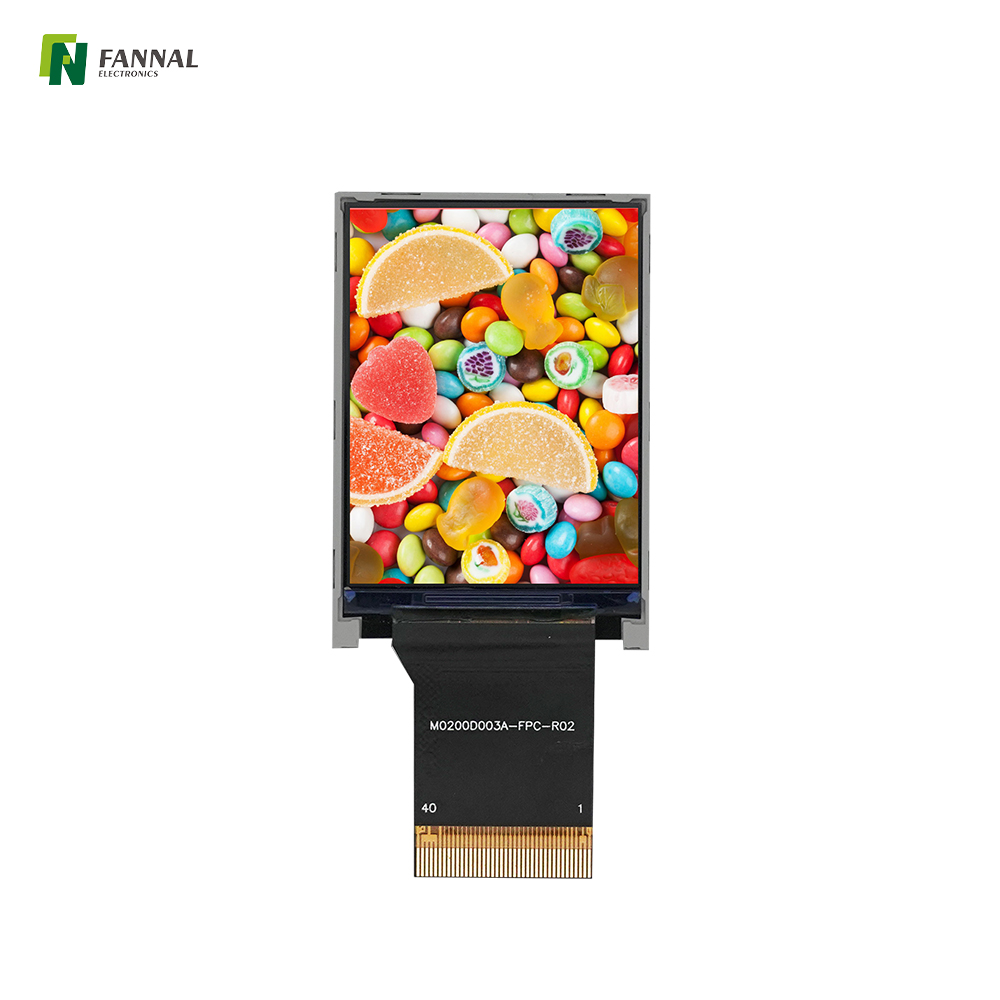

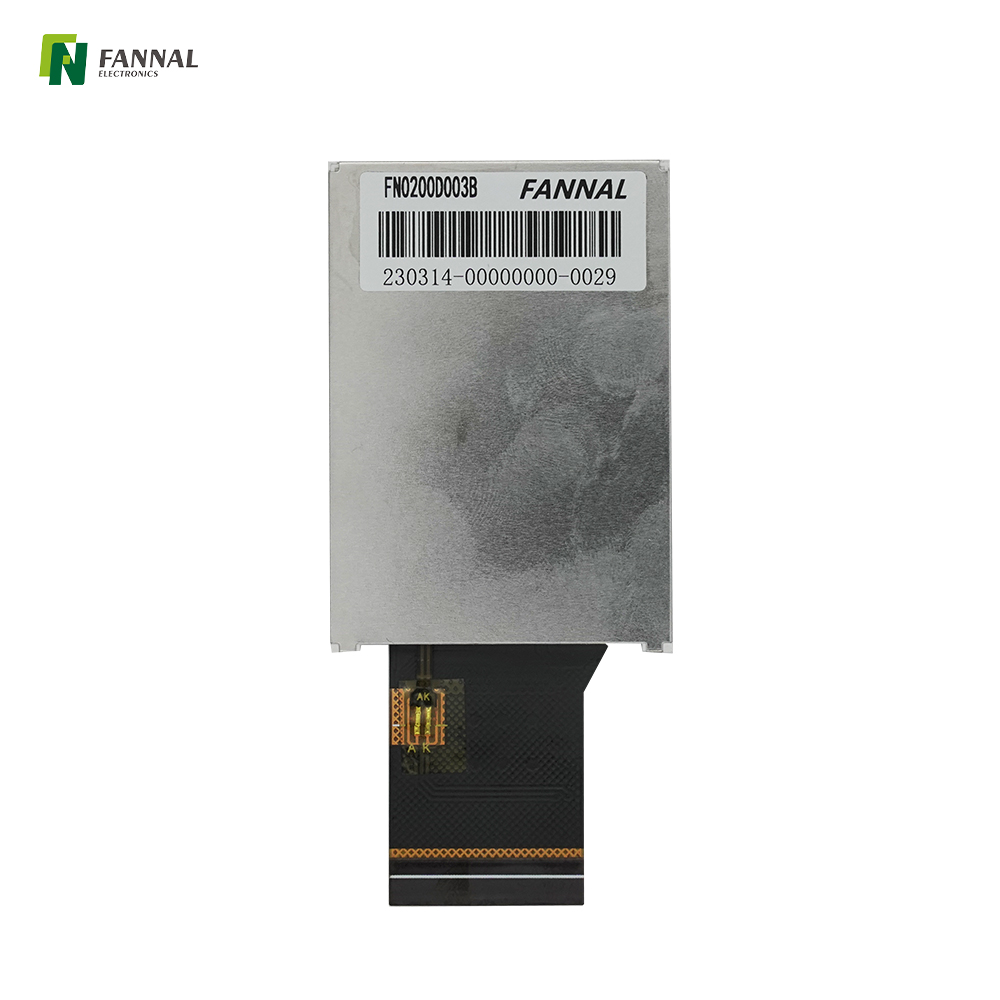

2 inch Industrial TFT IPS LCD Display

Model:
FN0200D003B
Size(inch):
2
Cover OD (mm):
36.05x51.8x2.45
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
240×320
Direction:
85/85/85/85
Display Interface:
MCU
Brightness(cd/m²):
500
Touch Screen:
Customizable

Quantity:
Availability:





Inquiry Add to Basket

Industrial TFT TFT LCD 2 inch Industrial TFT

Product Description

Drawing

Specifications

Applications

Customizations

The 2.0-inch industrial TFT LCD display features a 240×320 resolution and a 40-PIN MCU interface, designed for compact embedded and industrial systems. With a stable display structure and reliable electrical performance, this module is suitable for applications where space efficiency and integration simplicity are key requirements.

Its small form factor and standard MCU interface allow easy integration into a wide range of industrial controllers, instruments, and custom embedded devices.

Key Features

240×320 Resolution
Provides clear and legible display output for compact user interfaces and embedded system graphics.
40-PIN MCU Interface
Supports direct connection to commonly used microcontrollers, enabling straightforward system integration.
Industrial-Grade TFT Structure
Designed for stable operation in industrial and embedded environments.
Compact 2.0-Inch Form Factor
Ideal for space-constrained devices requiring a small display footprint.
Wide Viewing Performance
Ensures consistent visibility from different viewing angles during operation.
Reliable Electrical Characteristics
Suitable for long-term use in embedded and industrial applications.

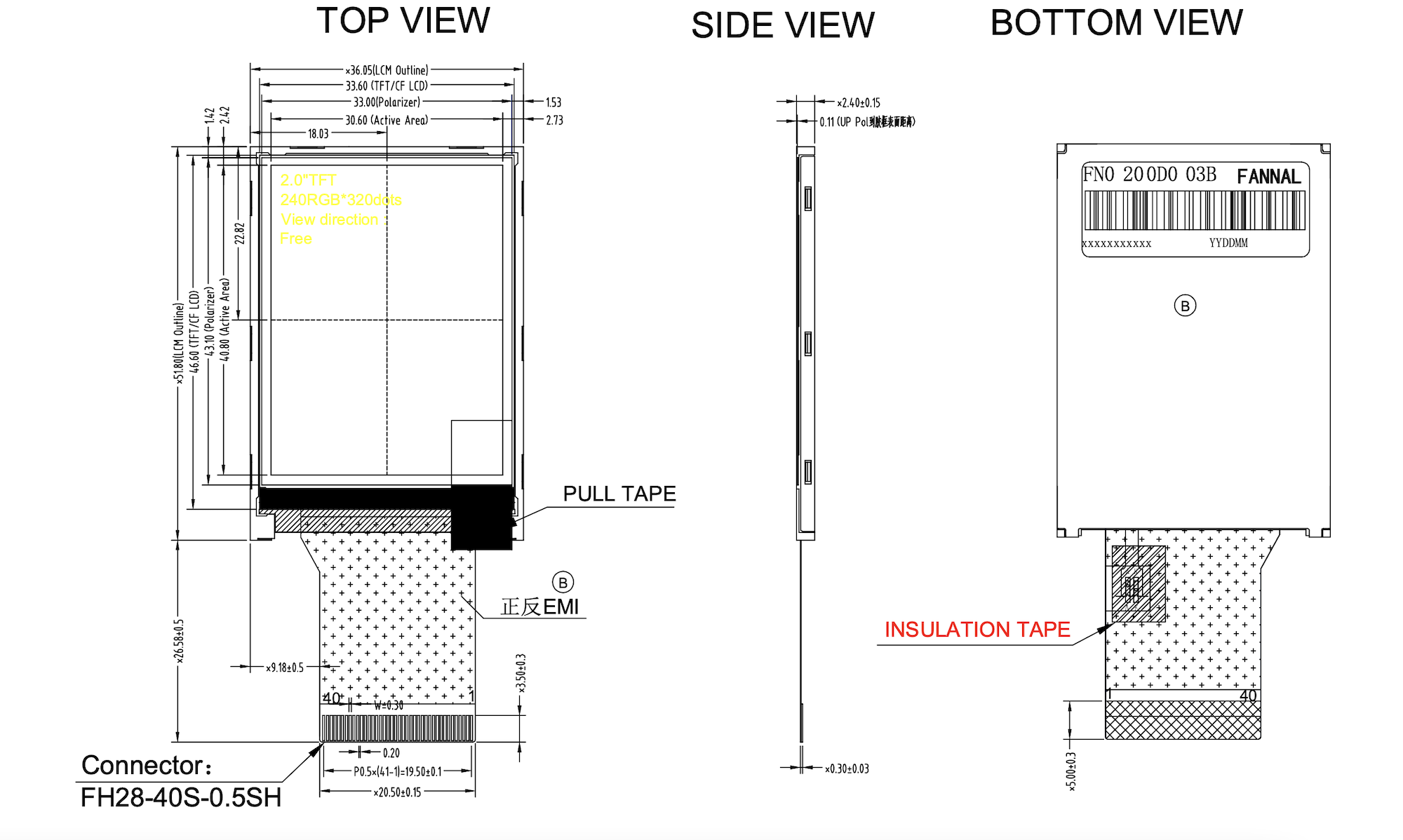

Drawing

Specifications

Item	Description	Unit
LCD Screen Size	2	inch
Active Area	30.6 x 40.8	mm
Resolution	240 x 320	px
Viewing Angle	85 / 85 / 85 / 85	°
Luminance	500	cd/m²
Interface	MCU	-
TP Module	FN0200D003B	-
Outline Dimension	36.05 x 51.8 x 2.45	mm
Operating Temperature (OP)	-20 ~ 70	°C
Storage Temperature (ST)	-30 ~ 80	°C

Typical Applications

Embedded Control Units

Used in compact control boards and system controllers where a small display is required for basic status information and user interaction.

Industrial Instruments & Meters

Suitable for measurement devices, testing instruments, and monitoring equipment displaying numeric data and simple graphics.

Handheld Embedded Devices

Ideal for portable devices requiring a compact TFT display with low system complexity and MCU-based control.

Automation & Equipment Interfaces

Applied in industrial equipment interfaces for parameter display, system settings, and operational feedback.

Custom Embedded Platforms

Designed for custom-built embedded systems requiring a small, reliable TFT LCD module with a standard MCU interface.

Suitable for customized embedded systems that require an integrated touch display with a clean mechanical design.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Q1: What type of interface does this display use?

This display uses a 40-PIN MCU interface, allowing direct connection to commonly used microcontrollers for embedded system designs.

Q2: Is this display suitable for outdoor use?

This module is designed primarily for indoor and controlled lighting environments. Outdoor usability depends on enclosure design and ambient light conditions.

Q3: Does this display support touch functionality?

This model is a display-only TFT LCD module. Touch functionality can be added through an external touch panel if required.

Q4: What type of applications is this display designed for?

It is designed for compact embedded and industrial applications, such as controllers, instruments, and handheld devices requiring a small display footprint.

Q5: Can this display be customized?

Yes. Parameters such as brightness tuning, interface configuration, and mechanical integration can be adjusted based on project requirements.

Q6: Is this display suitable for long-term industrial use?

Yes. The module is designed with stable electrical characteristics suitable for long-term operation in embedded and industrial systems.
