What are the benefits of an R1500 curve on a 43-inch industrial monitor?

The R1500 curvature aligns with the human eye's natural field of view, providing a uniform viewing distance across the entire 43-inch surface. This reduces eye strain and increases immersion for control room operators.

Is the 43-inch curved touch monitor plug-and-play for Linux and Windows?

Yes. The capacitive touch system uses a USB interface and is HID-compliant, meaning it is natively supported by Windows 7/10/11, Android 4.4+, and Linux kernels 4.4+ without additional drivers.

Does the monitor support 4K resolution across all input ports?

The monitor features 3x HDMI and 1x DisplayPort (DP) inputs, designed to support its native 3840x2160 UHD resolution, providing high-definition clarity for multiple simultaneous signal sources.

Can this monitor be used for 24/7 mission-critical applications?

Absolutely. Built with industrial-grade components and a wide-range AC power input, the FN43CVM is engineered for long-term stability and continuous operation in professional command centers.

How does the IPS panel improve the curved viewing experience?

The IPS panel ensures 178-degree wide viewing angles with zero color distortion, which is critical for a curved display to ensure that the image quality remains consistent from the center to the R1500 edges.

Home » Products » Touch Monitors » 43 Inch Linux Win Operating System Industrial monitor Industrial Capacitive monitor

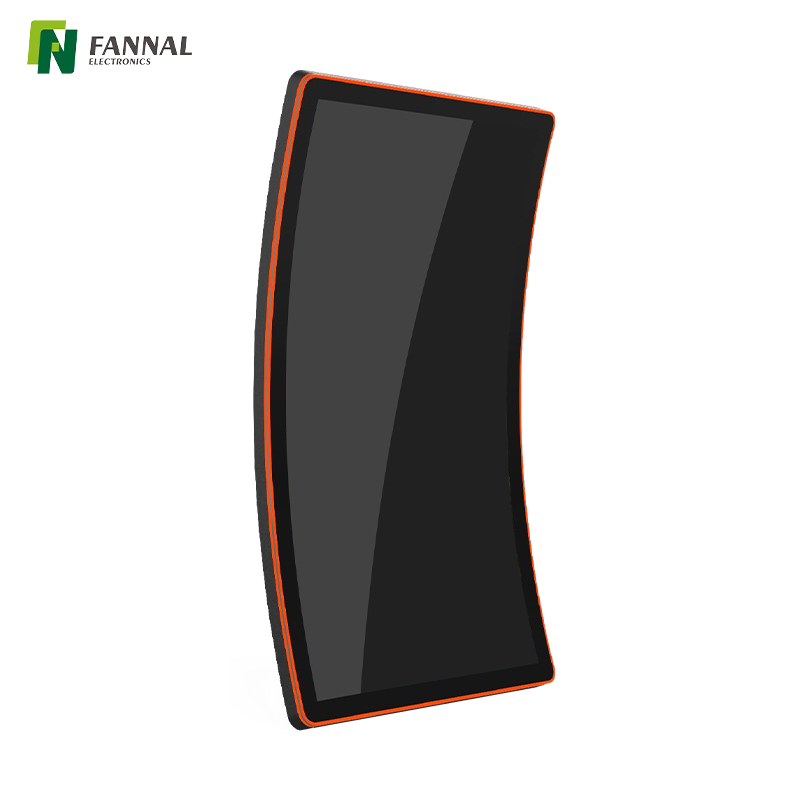

43-inch Curved Monitor (C-shaped with Lighting)

43 Inch Linux Win Operating System Industrial monitor Industrial Capacitive monitor

Name: 43 Inch Linux Win Operating System Industrial monitor Industrial Capacitive monitor
Brand: FANNAL
Rating: 5.0 (25 reviews)

43 Inch Capacitive monitor

Model:
FN43CVM
Brand:
FANNAL
Size(inch):
43
Display AA(mm):
530*920.18
Operation Temp(℃):
0~50
Storage Temp(℃):
-20~60
Contrast Ratio:
1100：1
Monitor Size:
1018.84*610.0*72.0
Style:
Black (White optional)
Resolution:
3840*2160
Direction:
89/89/89/89 (CR≥10)
TP Interface:
USB
Brightness(cd/m²):
400

Quantity:
Availability:





Inquiry Add to Basket

Curved Monitor industrial monitor big touch screen display touch display manufacturer tft display manufacturers touch screen manufacturers

Product Features

Drawing & Specifications

Add Ons

Product Application

FAQ

Key Features

Immersive R1500 Curvature
The R1500 curved design follows the natural peripheral vision of the human eye, reducing focal distortion at the screen edges and creating a deeply immersive viewing experience for complex data monitoring.
4K UHD Visual Precision
With a 3840×2160 resolution on a high-performance IPS panel, this monitor delivers ultra-sharp imagery and consistent color accuracy across a wide viewing angle, essential for mission-critical surveillance.
Industrial-Grade Touch Responsiveness
Equipped with a USB-interfaced capacitive touch system, the monitor supports 10-point multi-touch, providing a smooth and intuitive interface for large-scale interactive kiosks and professional control software.
Seamless Cross-Platform Integration
Engineered to be plug-and-play across major industrial ecosystems, including Windows 7+, Android 4.4+, and Linux 4.4+, ensuring effortless deployment into existing IT infrastructures.
Versatile Professional I/O Hub
Featuring a comprehensive port array (HDMI ×3, DP ×1, USB-A/B), this monitor acts as a powerful workstation hub, supporting multiple high-definition inputs and peripheral connectivity simultaneously.

Drawing

屏幕截图 2024-10-16 172623

Specifications

Size(inch):	43
Module:	FN43CVM
TFT LCD
Resolution:	3840×2160
Brightness（cd/m²）:	400
Physical shape:	Curved Screen, R1500
Panel type:	IPS
Touch panel
Touch type:	capacitive touch
TP Interface:	USB
Number of Touch:	10
Tractor parameter
Product size(mm):	1018.84×610×72
Power input:	AC 100-240V~50/60Hz 2A
Support system:	Windows7; Android 4.4; Linux 4.4
I/O joggle:	HDMI 3、DP 1、USB -A1、USB-B1

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

Custom Touchscreen

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

Typical Applications

Advanced Command & Control Centers: The curved 4K display allows operators to monitor vast amounts of data and video feeds with reduced eye strain and improved focus.
High-End Gaming & Casino Terminals: The R1500 curve and 4K resolution provide the premium sensory experience required for modern gaming and interactive entertainment systems.
Medical Imaging Suites: Large-scale 4K visualization enables detailed analysis of high-resolution diagnostic imagery in specialized clinical settings.
Smart Retail & Flagship Kiosks: Creates a high-impact, interactive focal point for luxury retail environments and immersive digital signage.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

FAQ

Q1: Why is the R1500 curvature preferred for large-scale industrial monitors?

Answer: Ergonomic Focus. On a flat 43-inch screen, the distance from your eyes to the center is different from the distance to the corners. The R1500 curve equalizes this distance, maintaining a uniform focal point that significantly reduces ocular fatigue during long monitoring shifts.

Q2: Does the capacitive touch interface require specialized drivers for Linux systems?

Answer: Kernel Compatibility. Our 43-inch monitor uses a standard HID-compliant USB touch controller. It is designed to be natively recognized by Linux kernels 4.4 and above, as well as Windows and Android, eliminating the need for manual driver installation in most environments.

Q3: How does the IPS panel technology benefit a curved display format?

Answer: Color Integrity. Curved screens can sometimes suffer from color shifting at the edges. By utilizing IPS (In-Plane Switching) technology, we ensure that colors remain vivid and accurate from a full 178° viewing angle, preventing the "washed-out" look common in lesser panel types.

Q4: Can the monitor handle 24/7 operation in a professional environment?

Answer: Industrial Thermal Design. The FN43CVM is housed in a rugged chassis with an internal power architecture (AC 100-240V) designed for continuous operation. The industrial-grade components are selected for their longevity and stability in "always-on" control room scenarios.

Q5: Is the monitor compatible with standard VESA or custom mounting for consoles?

Answer: Flexible Integration. While the monitor features a robust physical build (1018.84mm width), it is designed with standard mounting points to fit industrial console desks, gaming cabinets, or wall-mount brackets, ensuring a secure fit in any professional layout.
