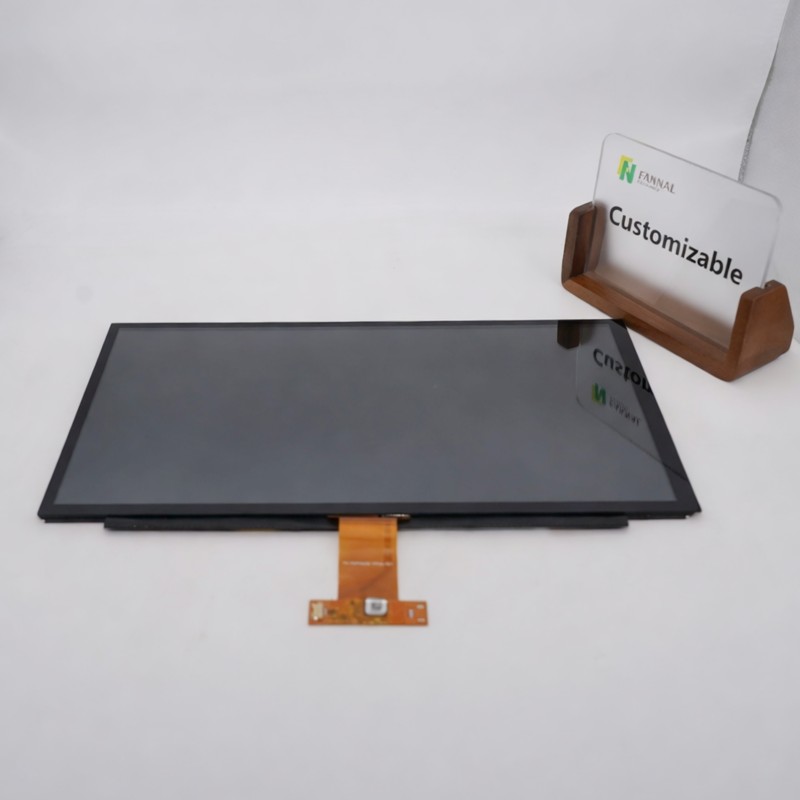

15.6 Inch FHD Capacitive Touch Display with eDP Interface

Name: 15.6 Inch FHD Capacitive Touch Display with eDP Interface
Brand: FANNAL
Rating: 5.0 (20 reviews)

15.6-inch industrial touch display with FHD 1920×1080 resolution, eDP interface, USB touch, G+G construction, and 10-point capacitive touch.

Model:
FN1560T010A
Brand:
FANNAL
Size(inch):
15.6
Sensor OD:
359.5 (H) x 206.5 (V) x 6.5 (T)
Operation Temp(℃):
0~50
Storage Temp(℃):
-20~60
TP VA (mm):
342.16 (H) x 191.52 (V)
Structure:
G+G
Resolution:
1920*1080
Display Interface:
eDP
TP Interface:
USB
Brightness(cd/m²):
210

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

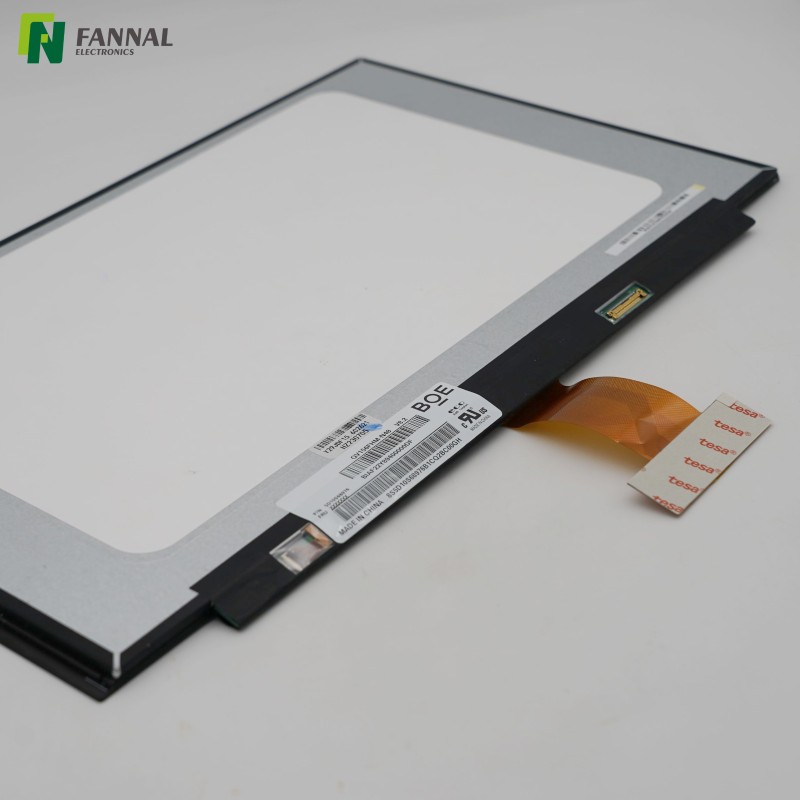

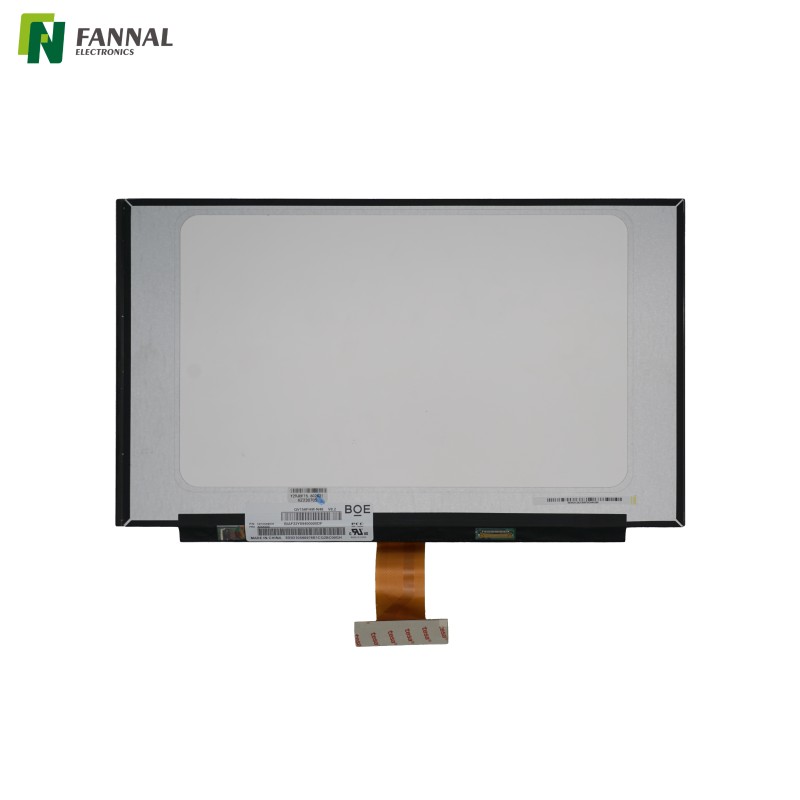

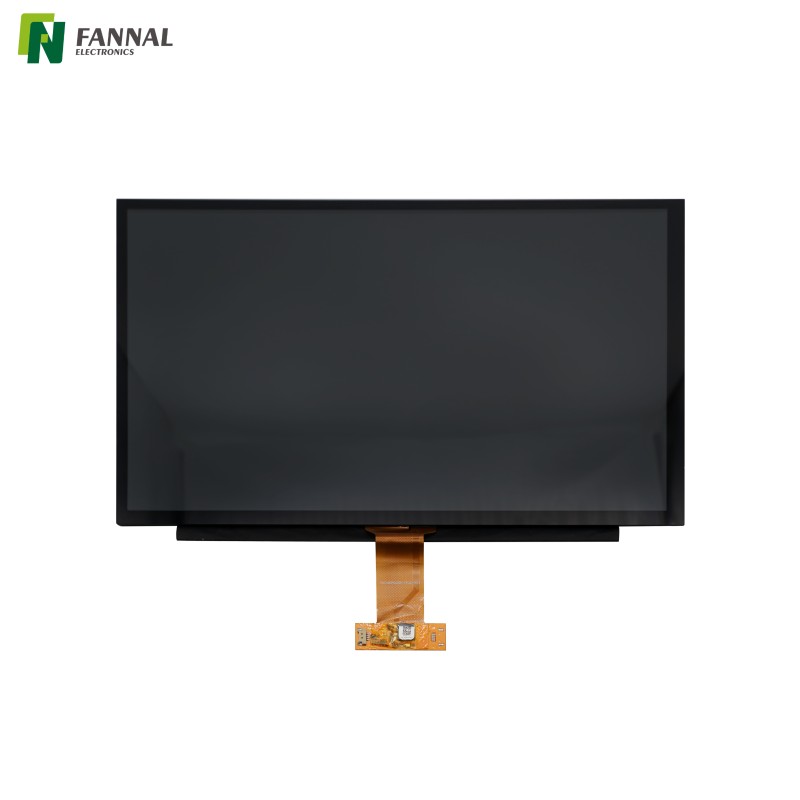

The 15.6-inch FHD capacitive touch display combines a 1920 × 1080 TFT display with a G+G capacitive touch panel in an air-bonded module. It supports 10-point finger touch, with eDP for the display signal and USB for touch communication. The 6.5 mm overall module thickness makes it suitable for embedded equipment, HMI systems, control terminals, and other applications requiring a full-size touch interface.

Features

15.6-inch FHD Display – 1920 × 1080 resolution provides a detailed 16:9 display area for interface-rich applications.
G+G Capacitive Touch – A 1.1 mm chemically strengthened cover lens and 0.70 mm ITO glass provide a durable touch structure with ≥6H surface hardness.
10-Point Multi-Touch – Supports finger-based multi-touch interaction for modern HMI and control interfaces.

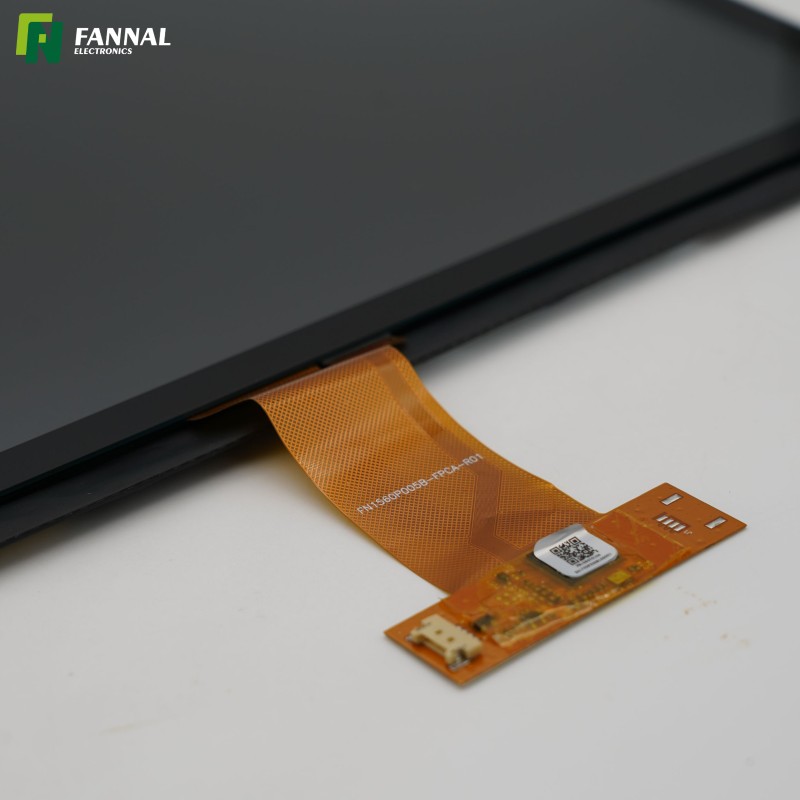

Separate eDP and USB Interfaces – eDP handles the display signal while USB provides the touch interface, simplifying integration with compatible host systems.
Air-Bonded Structure – Provides a practical balance between module cost, optical performance, and ease of integration compared with more complex bonding configurations.
Compact 6.5 mm Module Thickness – The relatively slim TPM structure helps when installation space is limited inside an enclosure.

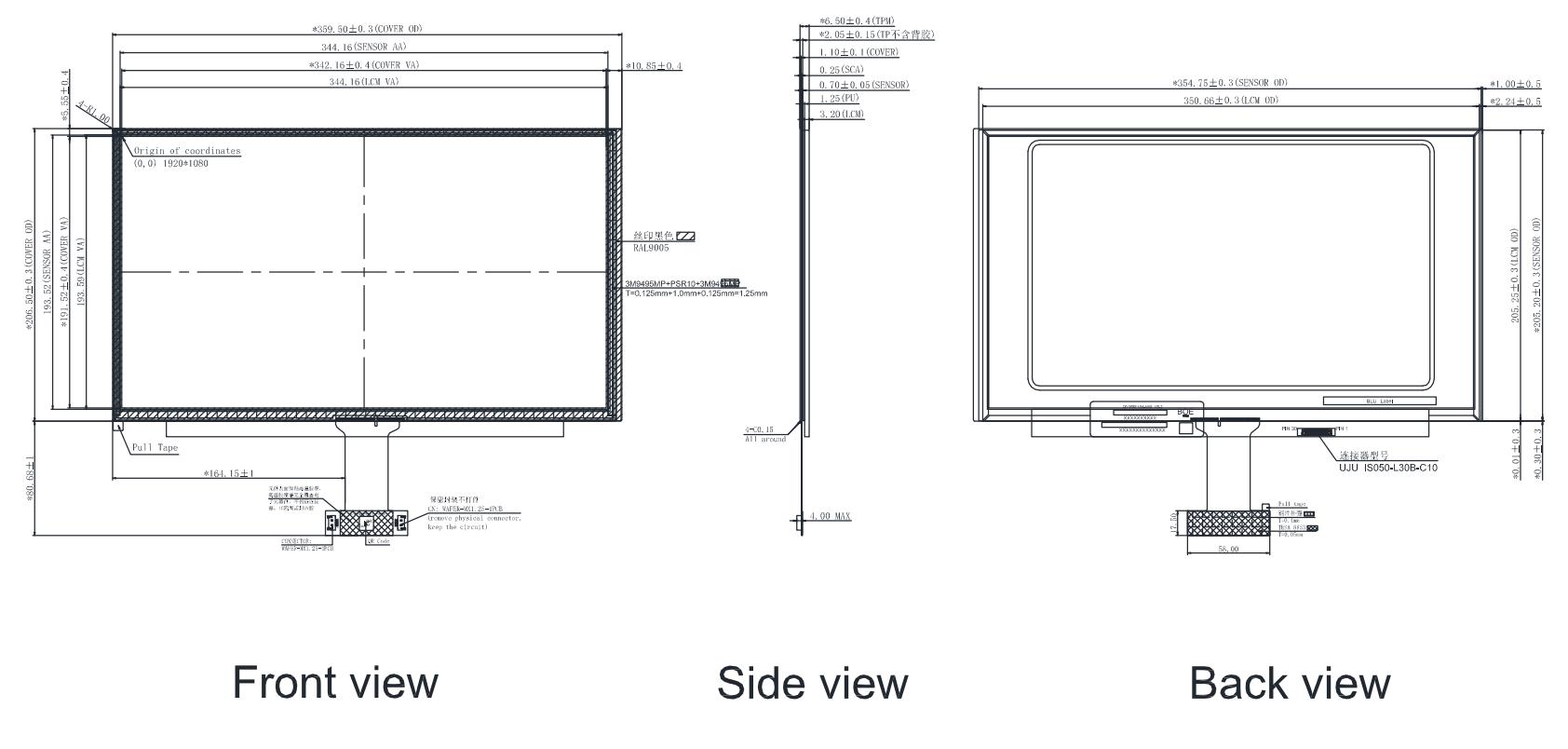

Drawing of FN1560T010A

Specifications

Item	Specification	Unit
Structure	G+G	-
Bonding Type	Air Bonding	-
Touch IC / Driver IC	Ilitek	-
No. of Touch / Touch Points	10 (Desiccation)	-
Cover Lens Thickness	1.1mm (Chemically strengthened)	mm
ITO Glass Thickness	0.70mm	mm
Surface Hardness	≥ 6H	-
Light Transmittance / Touch Transmittance	85% Min	-
Operating Temperature	0 ~ +50	°C
Storage Temperature	-20 ~ +60	°C
TPM Active Size	15.6 (Diagonal)	Inch
TPM Outline Size	359.5 (H) x 206.5 (V) x 6.5 (T)	mm
View Area	342.16 (H) x 191.52 (V)	mm
Touch Mode	Finger	-
Touch Interface	USB	-
TFT Part Number	QV156FHM-N48	-
TPM Surface Luminance	210 (Typ)	cd/cm2
TFT Interface	EDP	-
TFT Resolution	1920*1080	-

Applications

Industrial and commercial HMI systems
Equipment control panels
Automation and monitoring terminals
Self-service and information terminals
Embedded control equipment
Laboratory and test equipment
Machinery user interfaces

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

Customizations

To meet diverse integration needs, we offer extensive customisation for you, including:

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

Is this 15.6-inch touch display suitable for outdoor use?
It is not specifically designed as a sunlight-readable display. With a typical TPM luminance of 210 cd/m², it is better suited to indoor or controlled-light environments. For direct-sunlight applications, you would typically consider a higher-brightness display and additional optical treatment.

What are the eDP and USB interfaces used for?
The eDP interface carries the 1920 × 1080 display signal from the host system, while USB is used for touch communication. The host device must support both interfaces or provide the appropriate conversion and controller hardware.

What should be checked when integrating this module into equipment?
In addition to the 359.5 × 206.5 × 6.5 mm TPM outline, the enclosure should account for the active/viewing area, mounting structure, cable routing, interface connectors, and available clearance around the module. Mechanical drawings should be confirmed before final enclosure design.

Is the 0°C to +50°C operating range suitable for industrial equipment?
It can be suitable for equipment operating within a controlled temperature range, but it should not be treated as a wide-temperature display. If the equipment may be exposed to temperatures below 0°C or above 50°C, a different display specification should be selected.
