TFT Display vs OLED: What’s the Difference?

When selecting a display for a new product, one comparison appears repeatedly:

TFT LCD vs OLED — which technology is better?

The answer depends entirely on the application.

OLED is widely recognized for its perfect blacks, high contrast, and ultra-thin design, making it popular in smartphones and premium consumer electronics. TFT LCD, on the other hand, continues to dominate industrial, medical, automotive, and outdoor equipment because of its brightness, reliability, long service life, and mature supply chain.

Rather than asking which technology is "better," a more useful question is:

Which display technology is better suited to your project requirements?

This guide explains how TFT LCD and OLED work, compares their strengths and limitations, and helps engineers choose the most appropriate solution for real-world applications.

What Is a TFT LCD?

A TFT LCD (Thin-Film Transistor Liquid Crystal Display) is an active-matrix LCD technology in which each pixel is controlled by its own thin-film transistor.

Unlike self-emissive displays, a TFT LCD does not generate light on its own. Instead, an LED backlight provides illumination, while liquid crystal molecules regulate how much light passes through each pixel to create images.

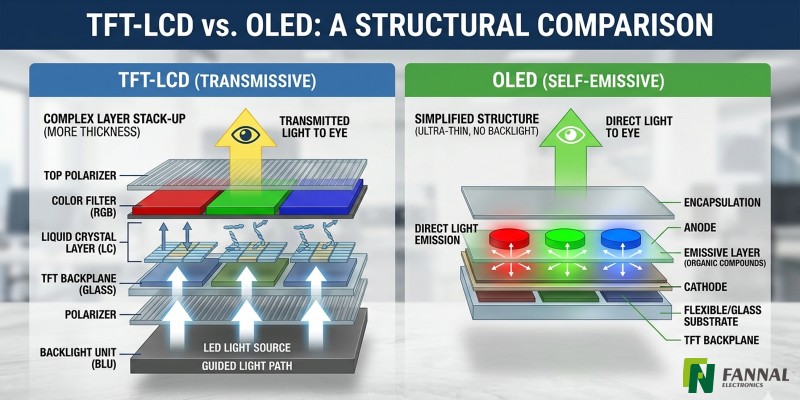

A typical TFT LCD module consists of several layers:

• LED backlight

• Light guide and optical films

• TFT array

• Liquid crystal layer

• Color filters

• Polarizers

Because every pixel has an independent transistor, TFT LCDs support:

• High resolutions

• Fast refresh rates

• Stable image quality

• Accurate color reproduction

Today, almost every modern color LCD—including IPS, VA, and TN panels—is based on TFT active-matrix technology.

What Is an OLED Display?

OLED (Organic Light-Emitting Diode) is a self-emissive display technology.

Instead of using a backlight, each pixel produces its own light when an electrical current passes through organic semiconductor materials.

Since pixels can be completely turned off, OLED displays achieve:

• True black levels

• Extremely high contrast

• Excellent color saturation

• Ultra-thin display structures

A simplified OLED structure includes:

• Organic emissive layer

• Anode and cathode electrodes

• Thin-film encapsulation

• TFT driving circuit

Because there is no backlight, OLED modules can also be flexible or even foldable, enabling designs that are difficult to achieve with conventional LCD technology.

However, the use of organic materials also introduces challenges related to lifetime, burn-in, and high-temperature operation.

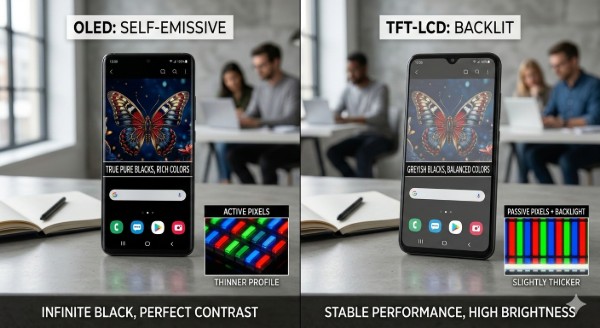

TFT LCD vs OLED: How Do They Work?

Although both technologies display full-color images, they produce those images in fundamentally different ways.

The difference in image generation explains many of the characteristics associated with each technology.

Because OLED pixels can be individually switched off, they produce true black and extremely high contrast. TFT LCDs rely on a shared backlight, so a small amount of light leakage is unavoidable, making black areas appear dark gray rather than perfectly black.

Conversely, the LED backlight used in TFT LCDs can be engineered to deliver very high brightness levels, making them well suited for outdoor and sunlight-readable applications where OLED may struggle to maintain visibility.

Understanding this architectural difference is the key to understanding why TFT LCD and OLED perform differently in terms of brightness, contrast, power consumption, lifetime, and reliability.

TFT LCD vs OLED: Feature Comparison

The following table summarizes the major differences between the two technologies.

No single technology outperforms the other in every category.

OLED excels in visual performance and industrial design flexibility, while TFT LCD offers advantages in brightness, durability, lifecycle, and overall cost of ownership. The right choice depends on which characteristics are most important for the intended application.

Brightness and Outdoor Visibility

Brightness is one of the biggest differences between TFT LCD and OLED, especially for industrial and outdoor equipment.

Because TFT LCDs use a dedicated LED backlight, manufacturers can increase brightness by selecting higher-output LEDs and optimizing the optical design. Industrial TFT displays commonly reach 1000 to 1500 nits, while sunlight-readable models can exceed 2000 nits.

OLED displays, however, generate light directly from organic materials. While they can achieve very high peak brightness in small image areas, sustaining high brightness across the entire screen generates significant heat and accelerates material degradation. To protect the panel, OLED displays often reduce brightness automatically during prolonged operation.

For applications exposed to direct sunlight, TFT LCD generally provides better long-term readability and more stable brightness.

Typical examples include:

• Industrial HMIs

• Outdoor kiosks

• Agricultural equipment

• Marine displays

• Construction machinery

• Automotive displays operating under strong sunlight

For indoor products where ambient light is well controlled, OLED's lower sustained brightness is usually less of a concern.

Contrast and Image Quality

When image quality is the highest priority, OLED has a clear advantage.

Since every OLED pixel emits its own light, individual pixels can be completely switched off. This produces true black levels and effectively infinite contrast, making dark scenes appear more detailed and visually striking.

TFT LCD panels rely on a shared backlight. Even with high-quality IPS panels or advanced local dimming technologies, a small amount of light leakage is unavoidable, so black areas typically appear dark gray rather than perfectly black.

Other image quality characteristics include:

For entertainment devices, premium consumer electronics, and applications where visual impact is the primary goal, OLED generally delivers the better viewing experience.

For industrial equipment, however, factors such as readability, reliability, and consistency often outweigh absolute contrast performance.

Power Consumption

Power consumption is frequently misunderstood when comparing TFT LCD and OLED.

A TFT LCD continuously powers its LED backlight regardless of the displayed image. As a result, power consumption remains relatively stable whether the screen displays a dark interface or a bright white background.

OLED behaves differently.

Each pixel consumes power individually, meaning overall power usage depends heavily on the displayed content.

For example:

• Dark user interfaces consume relatively little power.

• Bright webpages, maps, or white backgrounds consume significantly more power because more pixels are actively emitting light.

This means OLED is not always more energy-efficient than TFT LCD.

In many industrial applications, operator interfaces contain large white backgrounds, diagrams, forms, and status information that remain visible for long periods. Under these conditions, OLED may consume as much—or even more—power than an equivalent TFT LCD.

Power efficiency should therefore be evaluated based on the actual user interface rather than the display technology alone.

Lifespan and Long-Term Reliability

For long-lifecycle products, service life is often more important than image quality.

The practical lifespan of a TFT LCD is primarily determined by its LED backlight rather than the liquid crystal layer itself. Modern industrial TFT displays commonly provide 50,000 to 100,000 hours of operation before brightness decreases to the specified maintenance level.

OLED displays face a different challenge.

The organic light-emitting materials gradually degrade over time, causing brightness reduction, color shift, and, under prolonged static operation, permanent burn-in.

This difference becomes particularly important for products displaying static interfaces, such as:

• Factory control systems

• Medical monitors

• Instrument clusters

• Self-service terminals

• Industrial control panels

For equipment expected to operate continuously over many years, TFT LCD generally offers a more predictable service life and lower maintenance costs.

Which Display Is Better for Different Applications?

Rather than asking which technology is universally better, it is more useful to determine which one best matches the application.

In industrial applications, reliability, maintainability, and lifecycle support often have a greater impact than peak visual performance.

TFT LCD vs OLED: Which Should You Choose?

Both technologies are mature and capable of delivering excellent display performance, but they are optimized for different priorities.

Choose TFT LCD if your project requires:

• High brightness for outdoor visibility

• Long operational lifetime

• Continuous 24/7 operation

• Stable performance in industrial environments

• Lower overall system cost

• Minimal risk of burn-in

Choose OLED if your priority is:

• True black levels

• Maximum contrast

• Ultra-thin product design

• Flexible or curved displays

• Premium visual experience for dynamic content

The best display technology is not the one with the most advanced specifications, but the one that aligns with your product's operating environment, lifecycle requirements, and budget.

For many industrial, medical, automotive, and outdoor applications, TFT LCD continues to provide the best balance of performance, reliability, and total cost of ownership. OLED, meanwhile, remains the preferred choice for premium consumer devices where image quality and industrial design take precedence.

FAQ

Is TFT LCD better than OLED?

Neither technology is universally better. TFT LCD offers higher brightness, longer service life, and lower cost, while OLED provides superior contrast, true black levels, and thinner designs. The best choice depends on the application.

Why is TFT LCD usually brighter than OLED?

TFT LCDs use dedicated LED backlights that can be engineered for very high brightness levels, often exceeding 1000 or even 2000 nits. OLED panels are limited by heat generation and the long-term durability of organic materials during sustained high-brightness operation.

Can OLED replace TFT LCD in industrial equipment?

It depends on the application. OLED is suitable for products that prioritize image quality and compact design, but TFT LCD remains the preferred solution for most industrial equipment because of its higher reliability, wider operating temperature range, and lower risk of burn-in.

Does TFT LCD suffer from burn-in?

No. TFT LCD panels do not experience permanent burn-in because they do not use self-emissive organic materials. Under prolonged static display conditions, temporary image retention may occur, but it is generally recoverable and differs fundamentally from OLED burn-in.

Which display lasts longer, TFT LCD or OLED?

For most industrial applications, TFT LCD has a longer practical service life. Its lifespan is mainly determined by the LED backlight, while OLED panels gradually age as their organic light-emitting materials degrade over time.
