TFT Display vs IPS LCD: Key Differences for IPC

When people search for “TFT display vs IPS” or “TFT IPS LCD”, the comparison itself already reflects a common misunderstanding.

IPS is not a competing technology to TFT.

IPS is a type of TFT LCD panel.

Understanding this distinction is not semantic — it directly affects how you evaluate display performance in industrial systems.

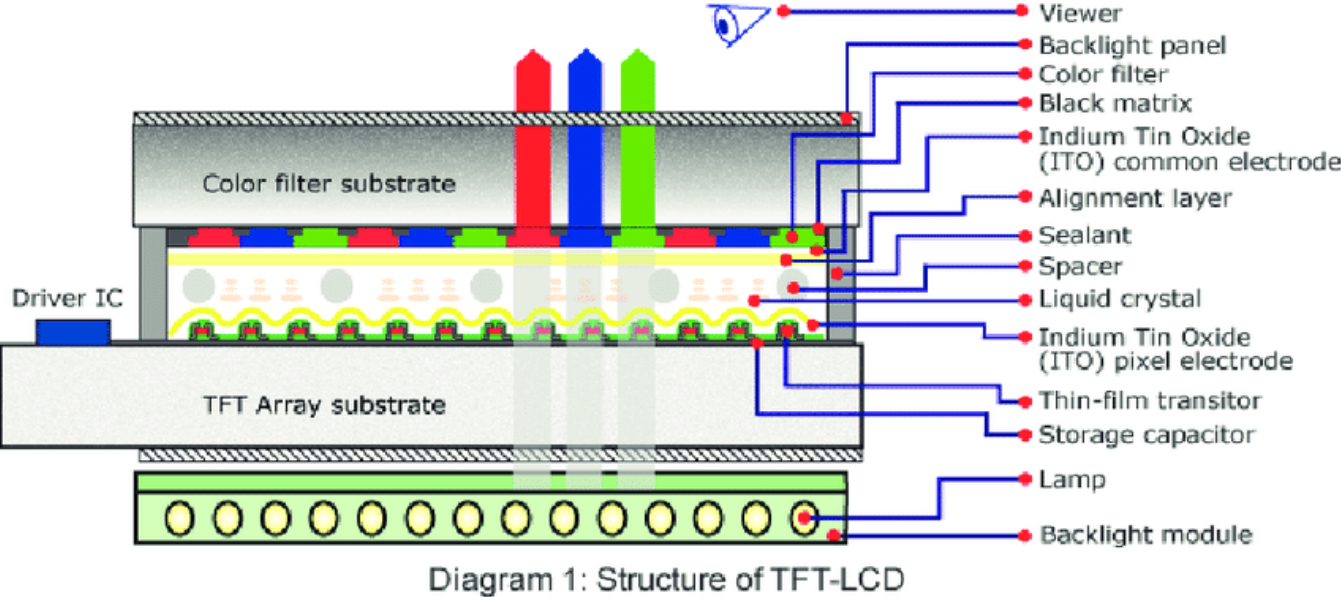

TFT LCD: The Active-Matrix Foundation

TFT stands for Thin-Film Transistor.
It refers to the active-matrix addressing method used in modern LCD panels.

Each pixel is controlled by its own transistor. That transistor regulates voltage applied to liquid crystal cells, controlling light transmission from the backlight system.

In practical terms, TFT technology enables:

• Faster pixel switching

• Higher resolution

• Stable image rendering

• Scalable panel sizes

Nearly all modern industrial LCD modules — whether TN, IPS, or VA — are based on TFT active-matrix architecture.

So the real comparison is not “TFT vs IPS.”
It is typically TN-type TFT vs IPS-type TFT.

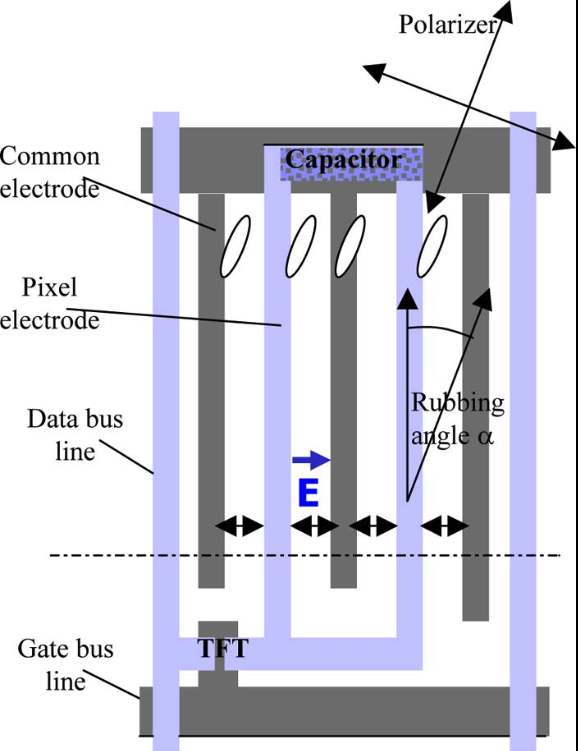

IPS LCD: A Specific Liquid Crystal Alignment Mode

IPS stands for In-Plane Switching.

The difference lies in how liquid crystal molecules rotate when voltage is applied.

In TN (Twisted Nematic) panels, crystals tilt vertically.
In IPS panels, crystals rotate parallel to the substrate plane.

That change in molecular alignment directly affects:

• Viewing angle

• Color shift behavior

• Contrast stability

• Gamma consistency across angles

This is why IPS TFT displays are often described as offering “wide viewing angles,” typically up to 178° in both horizontal and vertical directions.

But that is only part of the engineering story.

Where the Real Differences Show Up

Below is a practical engineering-level comparison:

However, these differences are contextual — not absolute.

For example:

• Some modern IPS panels have optimized response times comparable to TN.

• Optical bonding can significantly reduce perceived contrast loss.

• High-brightness backlight design can affect thermal behavior more than panel type itself.

This is why panel mode alone does not determine industrial suitability.

Industrial Use Case Perspective

In consumer electronics, IPS is often positioned as “better.”
In industrial environments, the question is different:

What viewing condition does the system require?

TN-Type TFT Is Often Suitable When:

• The device has a fixed viewing angle (operator panel)

• Cost efficiency is critical

• Response speed matters more than color accuracy

• Operating temperature range is prioritized over color fidelity

Typical examples:

• Embedded control terminals

• Entry-level HMI panels

• Industrial controllers inside enclosures

IPS TFT Becomes Critical When:

• Multiple operators view the screen from different angles

• Accurate color representation is required

• The UI contains fine graphical elements

• Outdoor readability and optical bonding are involved

• The system integrates capacitive multi-touch

Typical examples:

• Medical diagnostic equipment

• Self-service terminals

• Outdoor industrial interfaces

• Advanced HMI systems

In these environments, color shift or contrast inversion at angle can directly affect usability.

A Deeper Technical Consideration: Optical Stack & System Design

Panel mode is only one layer in the display stack.

Industrial display performance also depends on:

• Backlight luminance design (cd/m²)

• Optical bonding quality

• Polarizer efficiency

• Surface treatment (AG/AR coatings)

• Driver IC configuration

• Interface (RGB, LVDS, MIPI, eDP)

For example:

An IPS panel without optical bonding may still suffer readability loss under sunlight.
A TN panel with optimized bonding and high brightness can outperform IPS in outdoor glare conditions.

This is why evaluating “TFT vs IPS” without system context is incomplete.

Power and Thermal Considerations

IPS panels typically consume slightly more power due to:

• Transistor driving characteristics

• Light leakage compensation

• Higher backlight requirements for consistent luminance

In sealed industrial enclosures, this may influence:

• Thermal management design

• LED lifetime

• Driver board layout

For low-power embedded systems, TN-type TFT may still be the preferred engineering decision.

Color Accuracy and Calibration

IPS panels are widely chosen in applications requiring:

• Better color depth perception

• Reduced gamma shift

• Stable grayscale performance

However, industrial HMI applications do not always require true color calibration accuracy.

In many factory systems, functional clarity outweighs color reproduction precision.

Common Search Questions Addressed

When users search:

• “Is IPS better than TFT?”

• “Which is better, IPS or TFT LCD?”

• “What is the difference between TFT and IPS?”

The technically correct answer is:

IPS is a subset of TFT technology.
The better choice depends on viewing angle requirements, system design, and environmental conditions.

Not on marketing terminology.

Strategic Selection Framework

Instead of asking which technology is better, engineers should evaluate:

1. Viewing direction variability

2. Ambient lighting conditions

3. Thermal constraints

4. Power budget

5. UI design complexity

6. Cost targets

Only after these are defined does panel mode selection become meaningful.

Why This Distinction Matters for Industrial Buyers

Many procurement decisions are made based on specification sheets that list:

• “IPS Panel”

• “TFT LCD”

• “Wide Viewing Angle”

Without understanding the structural relationship between these terms.

This can lead to:

• Over-specification

• Unnecessary cost increase

• Thermal design challenges

• Mismatch between panel and use case

Clarity in terminology improves system-level optimization.

Final Perspective

The comparison of TFT vs IPS is not a rivalry between technologies.

It is a matter of liquid crystal behavior within an active-matrix LCD architecture.

For industrial systems, the real question is not:

Which panel looks better?

It is:

Which display architecture aligns with the mechanical, optical, and electrical constraints of the application?

When evaluated at system level — not marketing level — the choice becomes much clearer.
