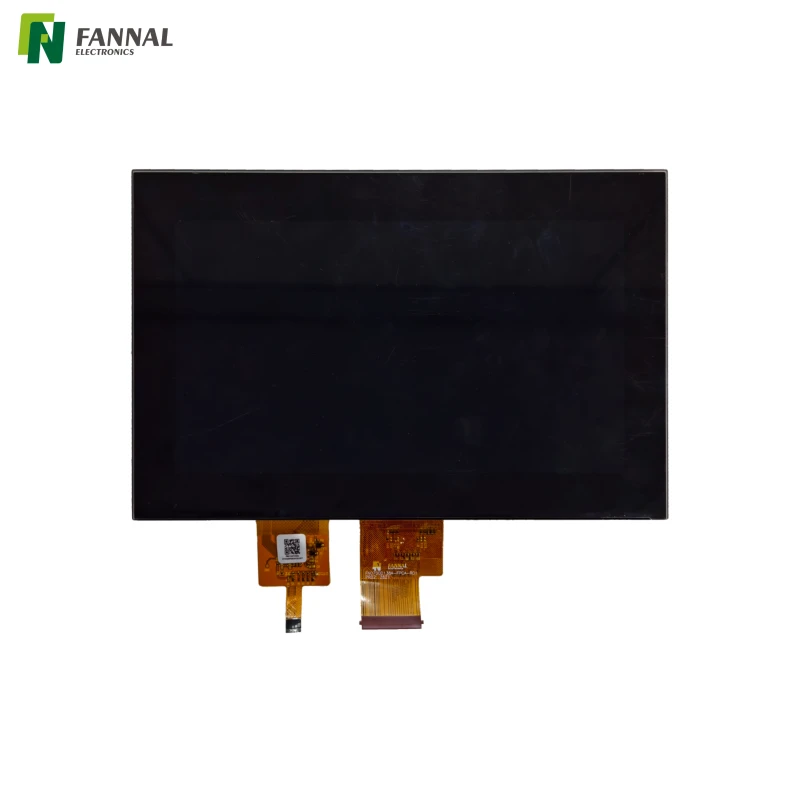

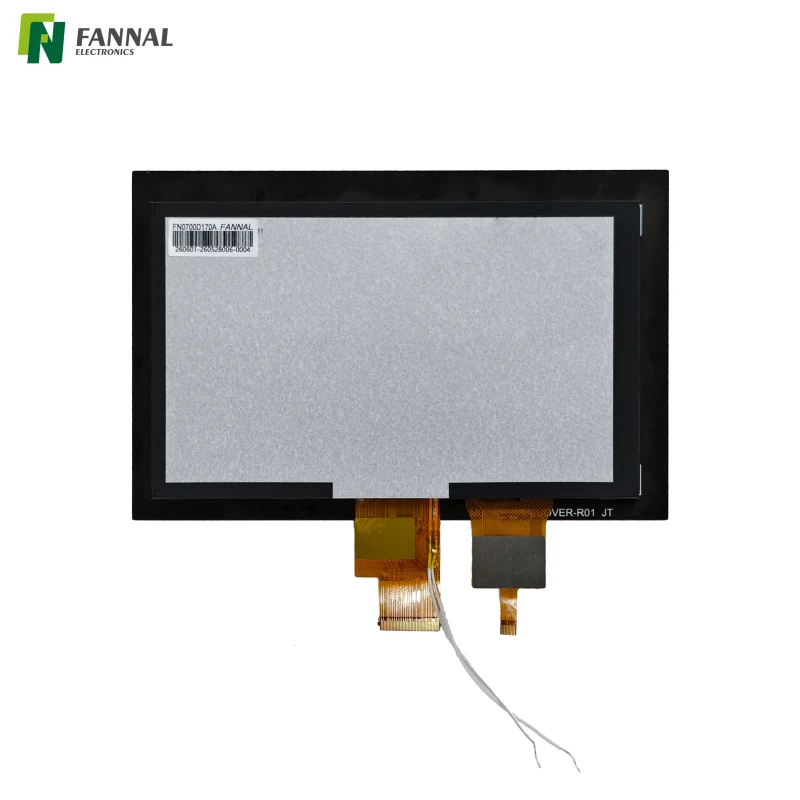

7 Inch Touch Display | 3mm Glass, OCA Bonding

Name: 7 Inch Touch Display | 3mm Glass, OCA Bonding
Brand: FANNAL
Rating: 5.0 (5 reviews)

7-inch 1024×600 capacitive touch display with 880 nits typical brightness, 3.0 mm physically strengthened cover glass, OCA optical bonding, and -30°C to +80°C operation.

Model:
FN0700T255A
Brand:
FANNAL
Size(inch):
7
Cover OD (mm):
182.64*118.7*9.44
Display AA(mm):
154.21*85.92
Operation Temp(℃):
-30~80
Storage Temp(℃):
-30-80
TP VA (mm):
154.91*86.62
Structure:
G+G
Resolution:
1024*600
Display Interface:
LVDS
TP Interface:
IIC
Brightness(cd/m²):
880

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

The FANNAL FN0700T255A is a 7-inch capacitive touch display designed for embedded equipment requiring a high-brightness interface and a substantial glass front. Its 1024×600 resolution, 880 cd/m² typical luminance, and LVDS display interface support integration into industrial control systems and professional equipment.

The module combines a 3.0 mm physically strengthened cover glass with a G+G touch structure and OCA optical bonding. Supporting five-point capacitive touch through IIC and operation from -30°C to +80°C, it is suited to projects that require a bonded touch display with defined mechanical and environmental specifications.

Features

880 cd/m² Typical Brightness: Provides elevated luminance for industrial interfaces operating under bright indoor lighting and other demanding viewing conditions.
3.0 mm Physically Strengthened Cover Glass: Features a substantial glass front with a specified surface hardness of at least 7H.
OCA Optical Bonding: Bonds the touch assembly to the display using optically clear adhesive, reducing the air gap and helping minimize internal reflections.
7-Inch 1024×600 Display: Offers a practical screen format for graphical control interfaces, equipment menus, and status information.
G+G Capacitive Touch: Combines a glass cover with a 0.55 mm touch sensor for an integrated glass-front interface.
Five-Point Touch with IIC: Uses an Ilitek touch controller and supports up to five simultaneous touch points.
LVDS Display Interface: Uses an LVDS display connection and a 3.3 V TFT power supply; host-system compatibility should be verified during integration.
Wide Temperature Operation: Specified for operation from -30°C to +80°C and storage from -30°C to +80°C.
Defined Optical Specifications: Minimum light transmittance of 88% and minimum luminance uniformity of 75%.
Material Compliance: Meets the stated RoHS 2.0 and REACH requirements.

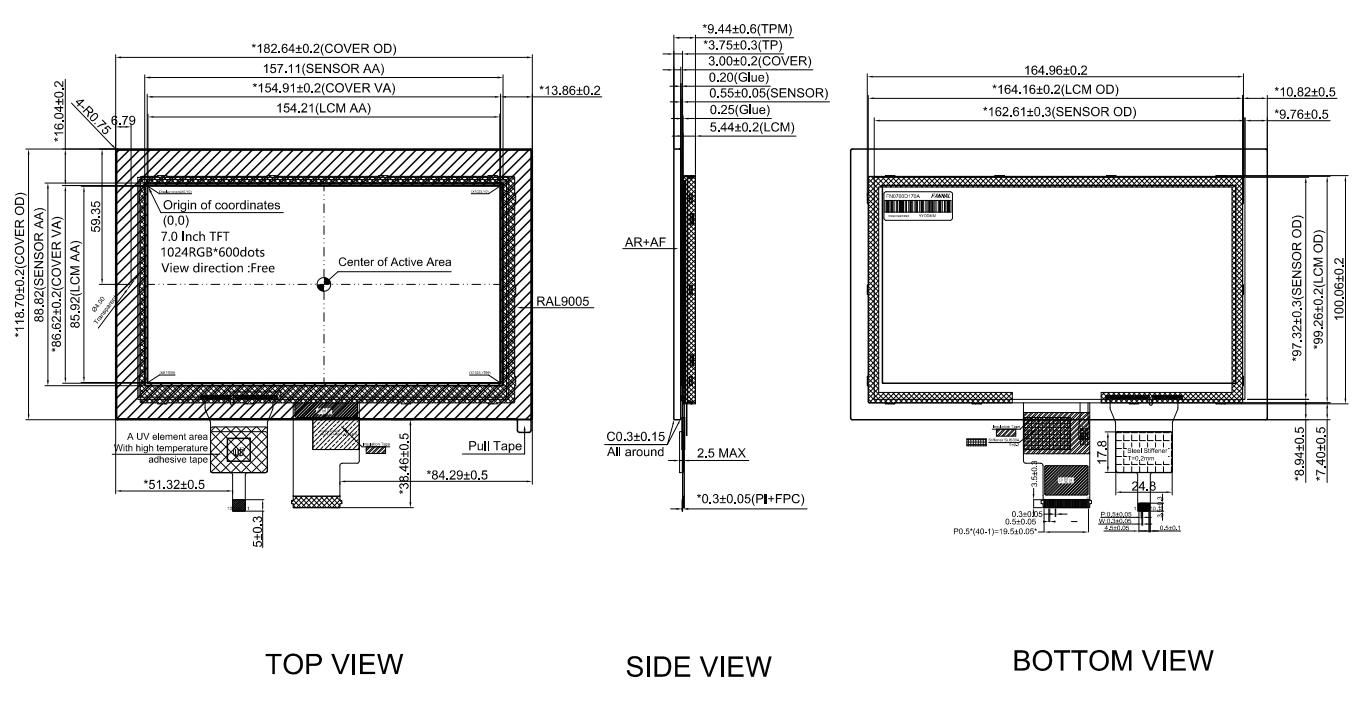

Drawing

Specifications

PARAMETER	DESCRIPTION
SIZE	7.0 INCH
RESOLUTION RATIO	1024*600
TPM LUMINANCE	880 Typ. 770 Min
TFT INTERFACE	LVDS
TFT DRIVER BRAND	Himax
TFT POWER SUPPLY	3.3V
SURFACE HARDNESS	7H Min
LIGHT TRANSMITTANCE	88% Min
UNIFORMITY	75% Min
STRCTURE	G+G
COVER THICKNESS	3.0
SENSOR THICKNESS	0.55
TOUCH INTERFACE	IIC
TOUCH CONTROLLER BRAND	ILI Technology (Ilitek)
TOUCH POWER SUPPLY	3.3V
NO. OF TOUCH	5
CHANNELS OF SENSOR	TX13*RX23
UNMARKED TOLERANCE	±0.2/±1°
BONDING TYPE	OPTICAL BONDING
BONDING MATERIAL	OCA
COVER ENHANCEMENT METHOD	PHYSICAL STRENGTHENING
ENVIRONMENTAL REQUIREMENTS	RoHS-2.0, REACH
OPERATION TEMPERATURE	-30~+80 ℃
STORAGE TEMPERATURE	-30~+80 ℃

Applications

Industrial Control Panels: For operator interfaces displaying machine settings, operating parameters, and equipment status.
Industrial Automation Equipment: For embedded HMIs that require LVDS connectivity, capacitive touch, and a wide operating temperature range.
Test and Measurement Instruments: For graphical instrument interfaces used to display readings, configuration menus, and diagnostic information.
Power and Electrical Equipment: For monitoring and control interfaces installed in equipment exposed to varying ambient temperatures.
Outdoor-Installed Equipment: For systems requiring a bonded touch display and extended temperature operation, subject to enclosure and sunlight-readability validation.
Customized Embedded HMI Projects: For applications requiring a 3.0 mm cover glass, OCA optical bonding, and defined mechanical integration specifications.
