4.3 Inch 800×480 Touch Display | Optical Bonding, LVDS

Name: 4.3 Inch 800×480 Touch Display | Optical Bonding, LVDS
Brand: FANNAL
Rating: 5.0 (45 reviews)

4.3-inch 800×480 capacitive touch display with OCA optical bonding, 720 cd/m² typical luminance, LVDS display, IIC touch interface, and -20°C to +70°C operation.

Model:
FN0430T072A
Brand:
FANNAL
Size(inch):
4.3
Cover OD (mm):
112.5*79.38*4.43
Display AA(mm):
95.04*53.86
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
TP VA (mm):
95.74*54.56
Structure:
G+G
Resolution:
800*480
Display Interface:
LVDS
TP Interface:
IIC
Brightness(cd/m²):
720

Quantity:
Availability:





Inquiry Add to Basket

Product Description

Drawing & Specifications

Applications

Customizations

FAQ

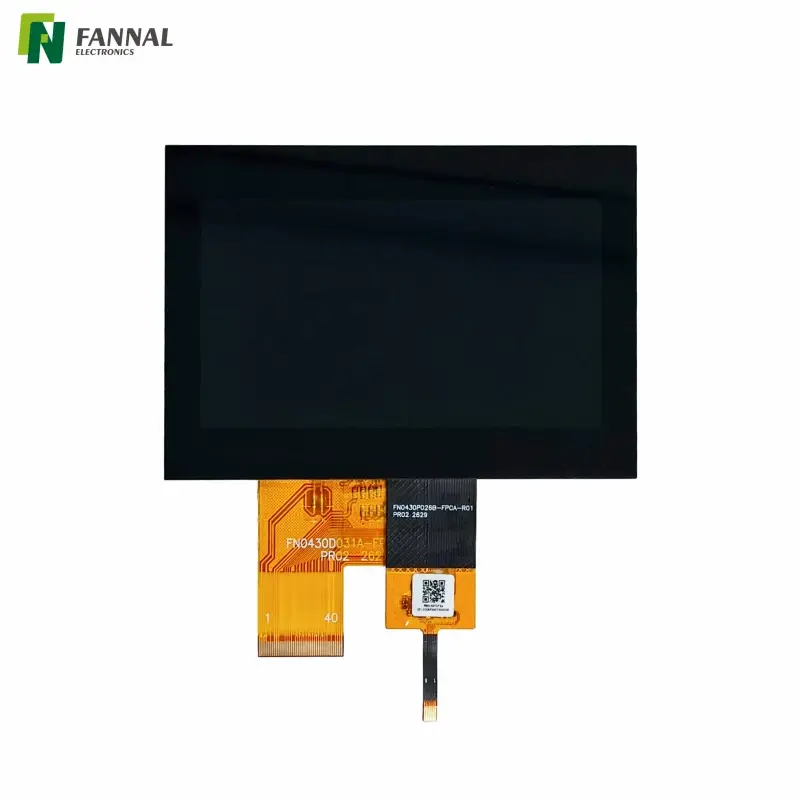

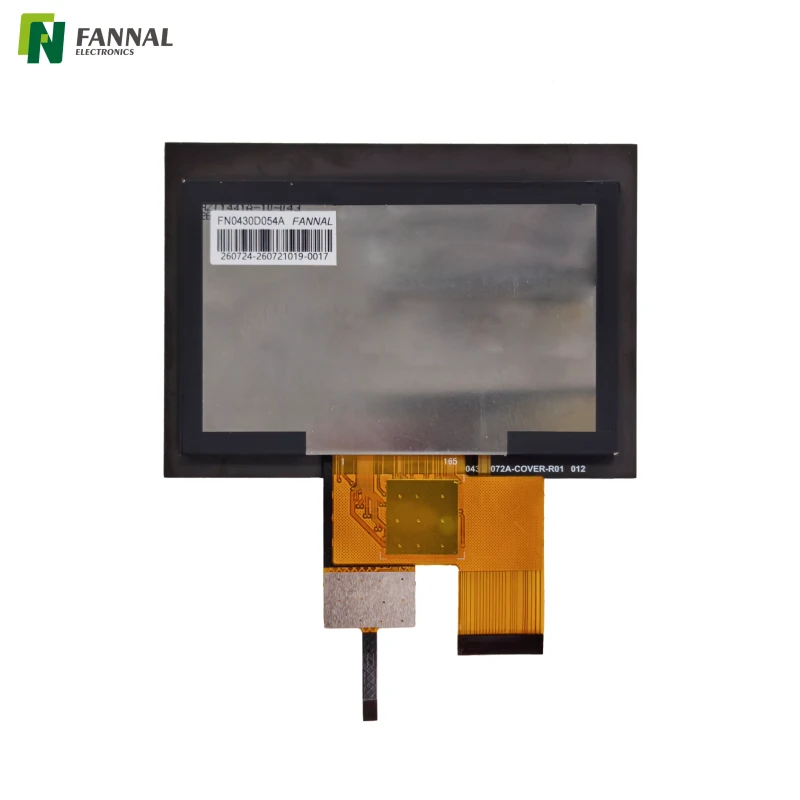

This 4.3-inch 800×480 optical bonded touch display combines a high-resolution TFT panel with a G+G capacitive touch structure and OCA optical bonding. With 720 cd/m² typical luminance, LVDS display interface, IIC touch interface, and 5-point touch support, it is designed for compact embedded equipment, industrial controls, vehicle electronics, and other applications requiring an integrated display and touch interface.

The cover glass is chemically strengthened with a minimum surface hardness of 7H, while the display supports an operating temperature range of -20°C to +70°C. The optical bonding structure helps reduce the air gap between the display and touch assembly for improved optical integration.

Features

4.3-Inch 800×480 Display: Provides a compact display format with sufficient resolution for graphical user interfaces and equipment control screens.
720 cd/m² Typical Luminance: Higher brightness for improved visibility in bright indoor and controlled-light environments.
G+G Capacitive Touch: Glass-on-glass construction with a 0.7 mm cover glass and 0.55 mm sensor.
5-Point Multi-Touch: Supports up to five simultaneous touch points for interactive control interfaces.
OCA Optical Bonding: Optically bonds the display and touch assembly to reduce the air gap and improve optical integration.
LVDS Display Interface: Uses an LVDS interface with a 3.3 V TFT power supply for host-system integration.
IIC Touch Interface: Goodix touch controller with IIC communication and 3.3 V touch power supply.
7H Surface Hardness: Chemically strengthened cover glass provides a minimum surface hardness of 7H.
85% Light Transmittance: Helps maintain display brightness and touch-screen visibility.
Wide Operating Temperature: Supports operation from -20°C to +70°C, with storage from -30°C to +80°C.
Industrial Compliance: Meets RoHS 2.0 and REACH requirements.

Drawing

Specifications

PARAMETER	DESCRIPTION
SIZE	4.3 INCH
RESOLUTION RATIO	800*480
TPM LUMINANCE	720 Typ. 550 Min
TFT INTERFACE	LVDS
TFT POWER SUPPLY	3.3V
SURFACE HARDNESS	7H Min
LIGHT TRANSMITTANCE	85% Min
UNIFORMITY	80% Min
STRCTURE	G+G
COVER THICKNESS	0.7
SENSOR THICKNESS	0.55
TOUCH INTERFACE	IIC
TOUCH CONTROLLER BRAND	Goodix
TOUCH POWER SUPPLY	3.3V
NO. OF TOUCH	5
CHANNELS OF SENSOR	TX18*RX10
UNMARKED TOLERANCE	±0.3/±1°
BONDING TYPE	OPTICAL BONDING
BONDING MATERIAL	OCA
COVER ENHANCEMENT METHOD	CHEMICAL STRENGTHENING
ENVIRONMENTAL REQUIREMENTS	RoHS-2.0, REACH
OPERATION TEMPERATURE	-20 ~ +70 ℃
STORAGE TEMPERATURE	-30 ~ +80 ℃

Applications

Industrial HMI: Compact touch interfaces for machinery, control equipment, and automation systems.
Embedded Equipment: Integrated display and touch control for electronic devices and equipment panels.
Vehicle Electronics: Touch interfaces for vehicle control panels, dashboards, and mobility equipment.
Instrumentation: Interactive displays for measurement, monitoring, and control equipment.
Outdoor-Adjacent Equipment: Suitable for equipment exposed to bright ambient light when 720 cd/m² luminance is appropriate for the installation.
Kiosk & Self-Service Equipment: Compact touch interfaces for information terminals and self-service control panels.

Automotive Display

Kiosk touch screen

Railway display

E-bike display

Outdoor display

Industrial display

Medical touch screen

Gym-screen

Engineering Plant

Motorcycle display

Vending Machine Display

Embedded display

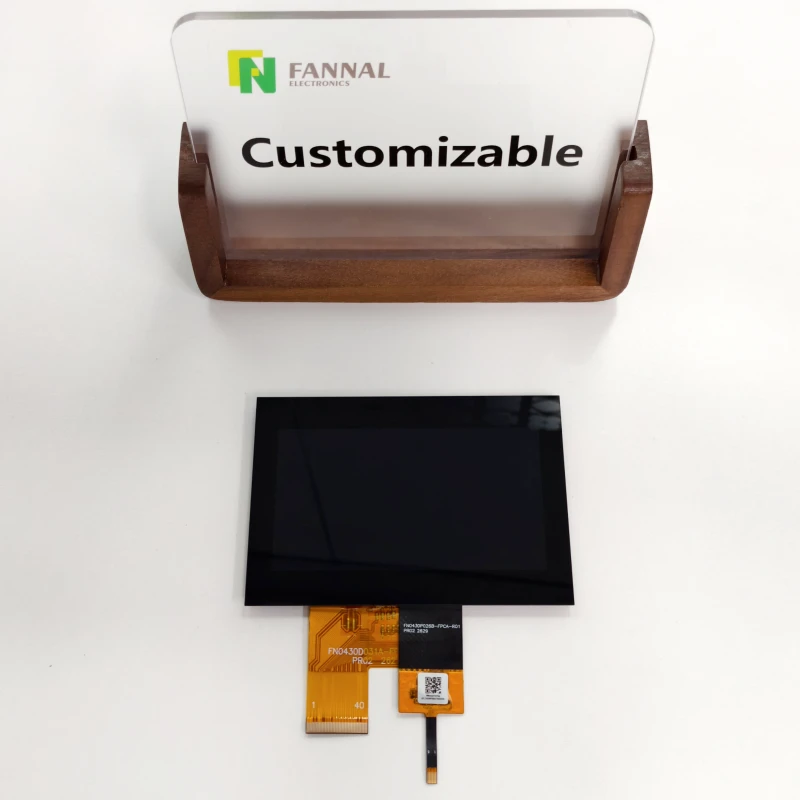

Customizations

● Custom Display Options

LCD Panel

• Size range: 1.77" to 15.6"
• Trusted panel partners: BOE, INNOLUX, JDI, Hannstar, CTC, TCL, and TIANMA.
• Panel types: IPS / TN / LTPS
• Operation Temperature: Industrial (-20 ~ 70°C), Automotive (-30 ~ 85°C)

Interface Design

• Tailored shape, length, and PIN definitions for full compatibility.
• EMI shielding and circuit optimisation.
• Supports multiple conversions: SPI, MCU, RGB, MIPI, LVDS, EDP

Back Light

• Module material options: metal/plastic/metal–plastic integration
• High brightness up to 30,000 cd/m², ideal for outdoor or industrial use.
• Long lifetime up to 50,000 hours.

Driver Board

• Options: RGB / VGA / HDMI / LVDS / DVI / Type-C
• Fully compatible with custom TFT and LCD modules.

• Optimised design for stable image transmission and performance.

● Custom Touchscreen Options

Touch Sensor

• Available Sizes: Up to 65"

• Structure Options: G+G, G+F+F, designed for industrial and automotive applications

• Touch Functions: Supports multi-touch, waterproof, glove touch, passive pen, gesture & palm rejection

• Operating Temperature:

Industrial Grade: –20°C ~ +70°C

Automotive Grade: –30°C ~ +85°

Touch Controller (IC)

• Touch tuning and firmware optimization provided by FANNAL (in-house FW design)
• Trusted IC partners: EETI, ILITEK, GOODiX, FocalTech, Cypress, Microchip(FANNAL's Design Partner)
• High Reliability: Excellent anti-interference and long-term stability
• EMC Design: Full electromagnetic compatibility engineering to meet EMI/RFI and industrial standards

Cover Lens

• Material Options:

Glass: 0.55mm–10.0mm
PMMA: 0.5mm–3.0mm
PC: 0.1mm–1.0mm
• Custom Design: CNC, Hot bending, 3D & 2.5D cover glass, ceramic printing, and PMMA integration
• Surface Treatments:
3A: AG / AR / AF
Anti-Microbial / Anti-Explosion

● Custom Optical Bonding Service

Optical Bonding	Size Range	Notes
OCA	Up to 15.6”	Two fully automated production lines for high-volume manufacturing
LOCA / OCR	Up to 32”	Excellent for high contrast and durability
Silicone	Up to 32”	Ideal for rugged, large-size industrial applications

FAQ

1. What interfaces are used for the display and touch functions?
The TFT display uses an LVDS interface, while the capacitive touch panel uses an IIC interface. Both the TFT and touch system use a 3.3 V power supply.

2. Does this 4.3-inch touch display support multi-touch?
Yes. The capacitive touch panel supports up to 5 simultaneous touch points and is designed for finger operation.

3. What is the benefit of OCA optical bonding in this touch display?
OCA optical bonding reduces the air gap between the display and touch assembly, helping reduce internal reflections and improve optical integration. It also creates a more integrated display structure for applications with specific optical and mechanical requirements.

4. Is 720 cd/m² sufficient for outdoor applications?
The 720 cd/m² typical luminance provides improved visibility in bright ambient-light conditions, but it should not automatically be considered sunlight-readable for direct outdoor sunlight. Actual suitability depends on sunlight exposure, viewing conditions, enclosure design, and the optical requirements of the application.

5. Can this display operate in low-temperature environments?
Yes. The specified operating temperature range is -20°C to +70°C, with a storage temperature range of -30°C to +80°C.

6. Can FANNAL customize this 4.3-inch touch display?
Yes. FANNAL can evaluate customization of display size, cover glass, touch configuration, optical bonding, brightness, interfaces, and other mechanical or electrical parameters according to the application requirements.
