7.0-inch Industrial AMOLED Display

7-inch AMOLED Display

Model:
FN0700E127A
Operation Temp(℃):
-30~+85℃
Storage Temp(℃):
-40~+85℃
Resolution:
1080×1920
Direction:
ALL
Interface:
MIPI
Brightness(cd/m²):
600
Touch Screen:
Can be chosen

Quantity:
Availability:





Inquiry Add to Basket

Product Features

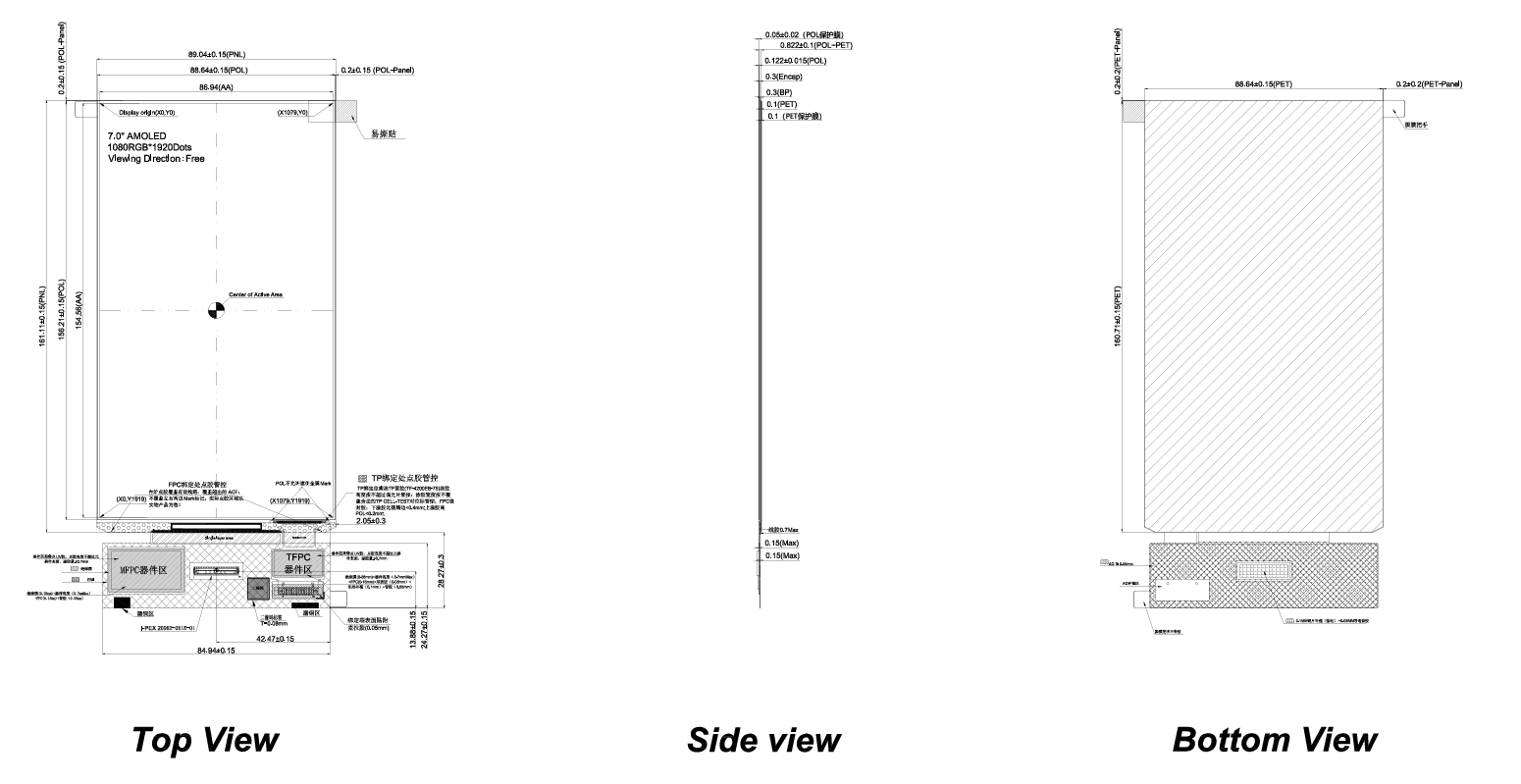

Product Drawing

Specification

Product Application

7.0-inch AMOLED display, 1080×1920, MIPI, 600cd/m²

This AMOLED display, featuring a 7.0-inch screen with a resolution of 1080×1920, offers a high brightness of 600cd/m² and utilizes the MIPI interface. Its elongated form factor and advanced technology make it suitable for various applications, including wearable devices, portable gaming consoles, medical instruments, and automotive displays.

Automotive Systems: Suitable for use in automotive dashboards or infotainment systems, the display’s clarity and rich color reproduction ensure a user-friendly interface for navigation, multimedia, and vehicle information.
Portable Electronics: Ideal for portable devices such as handheld gaming consoles or e-readers, this display’s high resolution and energy efficiency offer long-lasting performance while maintaining vibrant image quality.
Smart Home Devices: The display can be integrated into smart home control panels, offering a clear and intuitive interface for managing home automation systems, from lighting to security.

This 7.0-inch AMOLED display is a powerful solution for applications demanding high-definition visuals and responsive touch capability, providing an optimal balance of performance, energy efficiency, and visual quality for modern devices.

屏幕截图 2024-10-24 110031

General Specifications：

LCD size(inch):	7.0 (Diagonal)
Resolution:	1080(H)×1920(V)
Pixel Pitch:	80.5(H)x80.5(V)
Active Area(mm):	86.94(H)×154.56(V)
Module Size(mm):	89.04×161.11×0.822
Display type:	AMOLED
Interface:	MIPI
View Direction:	ALL
Power Supply:	3.3
Luminance(cd/m2):	600(Typ.)

Interface:

Pin No.	Symbol	I/O	Description
1	NTP_PWR	P	OTP Panel.
2	VCI	P	Supply analog voltage.
3	AVDD_EN	I	AVDD enable signal.
4	SWIRE	O	Swire protocol setting pin of Power IC.
5	TE	O	Synchronous signal output from panel to avoid tearing effect.
6	RESET	I	Reset signal input.
7	GND	P	Ground.
8	D2N	I	MIPI DSI Negative differential data signal.
9	D2P	I	MIPI DSI Positive differential data signal.
10	GND	P	Ground.
11	GND	P	Ground.
12	D1N	I	MIPI DSI Negative differential data signal.
13	D1P	I	MIPI DSI Positive differential data signal.
14	GND	P	Ground.
15	GND	P	Ground.
16	CLKN	I	MIPI DSI Negative differential data signal.
17	CLKP	I	MIPI DSI Positive differential data signal.
18	GND	P	Ground.
19	GND	P	Ground.
20	D0N	I	MIPI DSI Negative differential data signal.
21	D0P	I	MIPI DSI Positive differential data signal.
22	GND	P	Ground.
23	GND	P	Ground.
24	D3N	I	MIPI DSI Negative differential data signal.
25	D3P	I	MIPI DSI Positive differential data signal.
26	GND	P	Ground.
27	GND	P	Ground.
28	VDDI	P	Power supply for display driver IC interface and logic system.
29	VDDI	P	Power supply for display driver IC interface and logic system.
30	GND	P	GROUND.
31	GND	P	GROUND.
38-41	ELVDD	P	Power supply for panel.
42	AVDD	P	Signal analog voltage.
43	AVDD	P	Signal analog voltage.
44	GND	P	GROUND.
45	GND	P	GROUND.
46	TP_AVDD	P	Power supply.
47	TP_SCL	I/O	I2C clock signal.
48	TP_INT	O	Interrupt signal, asserted to request Host start a new transcation
49	TP_SDA	I/O	I2C data signal.
50	TP_1.8V	P	Power supply.
51	TP_RST	I	External reset signal.

Application

AMOLED displays are widely used in various applications due to their vibrant colors, high contrast ratios, and low power consumption. Here are some key applications:
