Views: 5 Author: Site Editor Publish Time: 2026-04-30 Origin: Site
Liquid crystal display (LCD) modules form the visible foundation of commercial technology environments worldwide, from digital menu boards in restaurants and point-of-sale terminals in retail stores to interactive wayfinding kiosks in airports, patient monitoring displays in hospitals, and information displays in corporate lobbies. The LCD module—the combination of TFT display panel, backlight, driver electronics, and interconnect assembly—provides a complete, ready-to-integrate display solution that accelerates product development by 6 to 12 months compared to designing display subsystems from scratch and reduces supply chain complexity for commercial equipment manufacturers.
Commercial display applications impose demanding requirements that distinguish them from consumer electronics: extended operational hours running 16 to 24 hours daily, harsh environmental exposure including dust, humidity, and temperature extremes, reliability under continuous use where downtime carries direct revenue costs, and compatibility with commercial equipment integration standards.Fannal industrial display products address these demanding requirements with panels engineered for 16 to 24 hour daily operation, extended temperature ranges, and the reliability standards required by mission-critical commercial deployments where display failure can disrupt business operations, affect customer experience, or compromise safety.
An LCD module is a complete display subassembly consisting of the LCD panel (typically a TFT active matrix display), an illumination backlight using LED technology, display driver electronics including timing controllers and gamma correction circuits, a connecting interface (LVDS, eDP, MIPI DSI, or RGB), and a mechanical frame that facilitates integration into end products. The module-level integration packages discrete components into a tested, characterized unit with defined optical, electrical, and mechanical specifications.
LCD modules range from tiny displays under 2 inches for portable devices to massive modules exceeding 100 inches diagonal for commercial video walls and digital signage applications. The common thread across all LCD module categories is the integration of multiple subsystems into a self-contained, characterizable display unit. Fannal commercial LCD module offerings encompass a broad range of diagonal sizes from 3.5 inches to 55 inches, resolutions from QVGA to 4K UHD, and interface options designed to address the diverse requirements of commercial display applications.

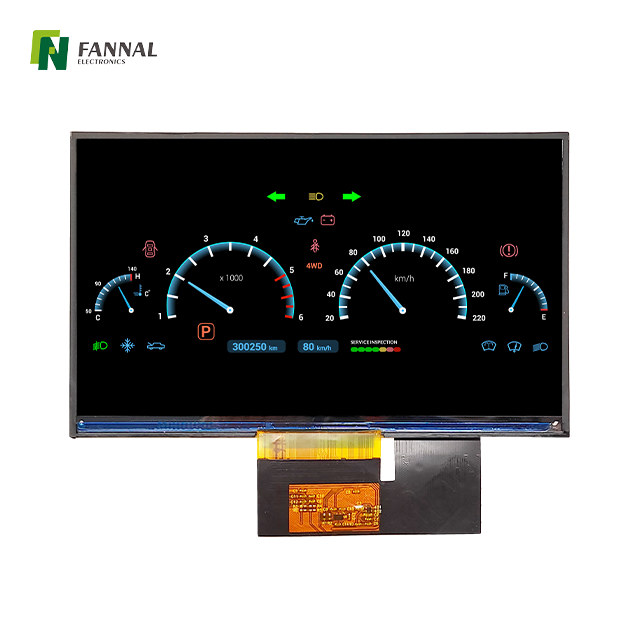

Open frame LCD modules consist of the display panel and backlight assembly without an outer bezel or enclosure, enabling equipment manufacturers to integrate the display into custom housings that match their product design language and mechanical constraints. Open frame modules provide maximum design flexibility for applications where the display must fit within existing product form factors.
These modules are common in industrial equipment (PLCs, HMI panels, CNC machines), medical devices (patient monitors, diagnostic equipment, surgical displays), gaming machines (arcade cabinets, slot machines, lottery terminals), and automotive infotainment systems where the display is a component within a larger product rather than a standalone device.
Bezeled LCD modules incorporate a complete frame or bezel around the display panel, providing structural protection, simplified mounting, and a finished aesthetic appropriate for consumer-facing applications. Complete-in-one LCD monitors for commercial applications use bezeled modules as the display core with added electronics, power supplies, and enclosures.
Commercial monitors and digital signage displays typically use bezeled modules in thin, lightweight housings designed for wall mounting, kiosk integration, or desktop placement. The bezel provides mounting points, cable management channels, and often integrated speakers or control electronics.
High-brightness LCD modules produce luminance levels of 1000 to 2500 nits, significantly exceeding standard indoor displays rated at 200 to 500 nits. These modules incorporate powerful LED backlights with efficient thermal management through aluminum heat sinks and sometimes active cooling fans, anti-glare and anti-reflective optical coatings that reduce surface reflections in bright ambient lighting, and wide-temperature-rated components that enable reliable operation from −30°C to +85°C.
These displays serve outdoor digital signage, drive-through menu boards, self-service kiosks, and public information displays that must remain readable in direct sunlight.Fannal high-brightness LCD module options address these demanding applications with proven reliability in outdoor deployment environments.
Touch-integrated LCD modules combine a TFT display with a projected capacitive (PCAP), surface capacitive, or resistive touch sensor bonded to the display surface using optically clear adhesive. Touch integration eliminates the air gap between touch sensor and display that causes reduced contrast and optical artifacts, improving both optical clarity and mechanical robustness compared to add-on touch overlays.
Commercial applications increasingly demand touch capability for self-service kiosks, point-of-sale terminals, interactive wayfinding systems, and collaborative workspaces. Touch-integrated modules simplify the integration process by pre-aligning and bonding the touch sensor and display under controlled factory conditions, eliminating the alignment challenges and optical quality issues that plague add-on touch solutions.
LCD modules provide complete display functionality in an integrated package that requires only power supply connection and video signal input to operate. This modularity accelerates product development timelines by eliminating the display subsystem design phase, reduces engineering investment in display integration expertise, and enables product teams to focus engineering resources on core product differentiators rather than display-related challenges.
Commercial LCD modules support standardized video interfaces including HDMI, DisplayPort, VGA, LVDS, and MIPI DSI, ensuring compatibility with common video controllers and single-board computers widely used in commercial equipment. This compatibility simplifies display selection and reduces the risk of interface incompatibility during product development.
Commercial LCD modules are engineered for extended operational lifetimes at continuous or near-continuous duty cycles that would quickly degrade consumer-grade displays designed for 8 to 12 hours of daily use. Component selection prioritizes longevity over cost minimization, with higher-quality liquid crystal materials, robust backlight LEDs with generous thermal margins rated for extended operation at elevated temperatures, and extended-temperature-rated electronics that maintain performance across demanding deployment environments.
Many LCD module suppliers including Fannal offer extensive customization capabilities that adapt standard modules to specific application requirements.Fannal custom LCD module capabilities include modified optical specifications (brightness, contrast, color temperature), specialized interface configurations, custom cover glass design, conformal coating for moisture resistance, optical bonding, and integration of touch sensors. This customization flexibility enables product-specific display solutions rather than forcing applications to accept one-size-fits-all commodity panels.
Commercial displays must perform in ambient lighting conditions ranging from dim interior lighting to direct outdoor sunlight exceeding 100,000 lux. Optical design considerations include brightness levels sufficient to overcome ambient light reflections, contrast ratios that maintain image definition in high ambient illumination, and viewing angle stability for displays viewed from multiple positions.
High-brightness commercial modules use optical enhancement films including brightness enhancement films (BEF) and dual brightness enhancement films (DBEF) that recycle light and direct it toward the viewer, high-transmittance liquid crystal materials that minimize light absorption, and efficient LED backlight designs to maximize luminance while managing power consumption and thermal load.
Commercial displays operating 16 to 24 hours daily generate sustained thermal loads that challenge component reliability. LED degradation rate approximately doubles for every 10°C increase in junction temperature, making thermal management critical for maintaining brightness over the display's operational lifetime.
Thermal management design uses aluminum chassis components as effective heat sinks, strategic ventilation paths, and intelligent backlight dimming that reduces power consumption and heat generation when high brightness is not needed.Fannal commercial LCD modules incorporate thermal management designs validated through extended temperature operation testing.
Commercial electronic equipment must meet electromagnetic compatibility regulations including FCC Part 15 in the United States, CISPR 32 internationally, and product-specific EMC standards for medical, industrial, and automotive applications. EMI-hardened LCD modules incorporate filtering components on power and signal connections, shielded flex cable assemblies with ground planes that contain electromagnetic radiation, and controlled impedance interface circuits that minimize conducted emissions.
Modern LCD modules use differential signaling interfaces including LVDS and eDP that provide superior signal integrity compared to single-ended parallel interfaces. These interfaces support higher resolution and longer cable distances without electromagnetic radiation concerns, simplifying cable routing in commercial equipment enclosures.
Retail environments deploy LCD displays for digital signage, electronic shelf labels, interactive product selectors, and point-of-sale terminals. Retail applications prioritize aesthetic integration with store environments, high image quality for brand presentation, and reliability that minimizes service interruptions during business hours. Fannal LCD module solutions serve the retail market with displays designed for 16 to 24 hour daily operation and comprehensive customization for brand-aligned aesthetics.
Menu boards, order confirmation displays, and self-ordering kiosks in food service environments require displays that withstand grease, humidity, and frequent cleaning with harsh chemicals. Fannal high-brightness LCD module options with optically bonded cover glass, wide operating temperature ranges, and chemically resistant coatings address these demanding applications.
Airport, train station, and transit wayfinding kiosks deploy large-format LCD displays in continuous-operation environments. FANNAL large-format LCD module options provide the reliability, extended temperature range, and network integration capabilities required by transportation applications.
Medical displays for patient monitoring, diagnostic imaging, and clinical information systems have demanding optical and reliability requirements.Fannal medical LCD module solutions meet IEC 60601-1 electrical safety standards and DICOM GSDF calibration requirements.
Specification | Commercial Grade LCD | Consumer Grade LCD | Industrial Grade LCD | Industry Average |
|---|---|---|---|---|
Daily Operation Hours | 16–24 hours | 8–12 hours | 24 hours | 12–18 hours |
Operating Temperature | −20°C to +70°C | −10°C to +60°C | −30°C to +80°C | −15°C to +70°C |
Backlight Half-Life | 50,000–80,000 hrs | 30,000–50,000 hrs | 60,000–100,000 hrs | 40,000–70,000 hrs |
Brightness (typical) | 500–1500 nits | 250–500 nits | 300–2000 nits | 350–1000 nits |
Optical Bonding Available | Yes | Rare | Yes | Yes |
Anti-Glare Coating | Optional | Rare | Optional | Optional |
Touch Integration Options | Full range | Limited | Full range | Moderate |
Warranty Period | 2–3 years | 1 year | 2–5 years | 1–2 years |
Burn-in Resistance | High | Moderate | High | Moderate |
The expansion of outdoor digital signage, drive-through applications, and semi-outdoor installations is driving demand for displays with progressively higher brightness ratings. Displays rated at 2000 to 3000 nits are becoming standard for demanding outdoor applications.
Video wall applications in control rooms, corporate lobbies, and retail environments demand displays with minimal bezels below 1mm.Fannal LCD module options support ultra-narrow bezel video wall configurations.
Fannal projected capacitive touch technology delivers the responsive, multi-touch experience consumers expect while meeting the durability requirements of commercial deployments with millions of touch cycles.
Evaluate the installation environment carefully before selecting display specifications. Indoor commercial applications have relaxed requirements compared to outdoor deployments.
Confirm that the LCD module interface matches the video controller or single-board computer.Fannal LCD modules support a wide range of standard interfaces.
Fannal provides extensive customization including modified optical specifications, custom mechanical dimensions, and integrated touch solutions.
Fannal provides long-term supply commitments for commercial products with multi-year lifecycles.
An LCD panel is the raw display glass. An LCD module incorporates the panel plus backlight, driver electronics, and interface connectors.
Select commercial-grade when operating more than 8-12 hours daily, in challenging environments, or requiring extended warranty coverage.
50,000 to 80,000 hours of backlight operation at 16 hours daily translates to 8 to 14 years of service life.
Most failures occur in the backlight or electronics. Module-level replacement is typically more practical than component repair.
Outdoor displays in direct sunlight typically require 1500 to 2500 nits for reliable readability.
Optical bonding eliminates air-gap reflections, improving contrast ratio by 10% to 50% and strengthening the display assembly.
Commercial LCD modules provide the visual communication layer for an enormous range of business operations.Fannal commercial LCD module capabilities address the demanding requirements of extended-hour operation, environmental robustness, and supply reliability that commercial applications require. Understanding the technical specifications, quality differentiators, and customization options available enables informed display selection decisions.
