Smart Touch TFT Display Tech |10.1 Inch Touch TFT LCD Screen Display Module 1280x800

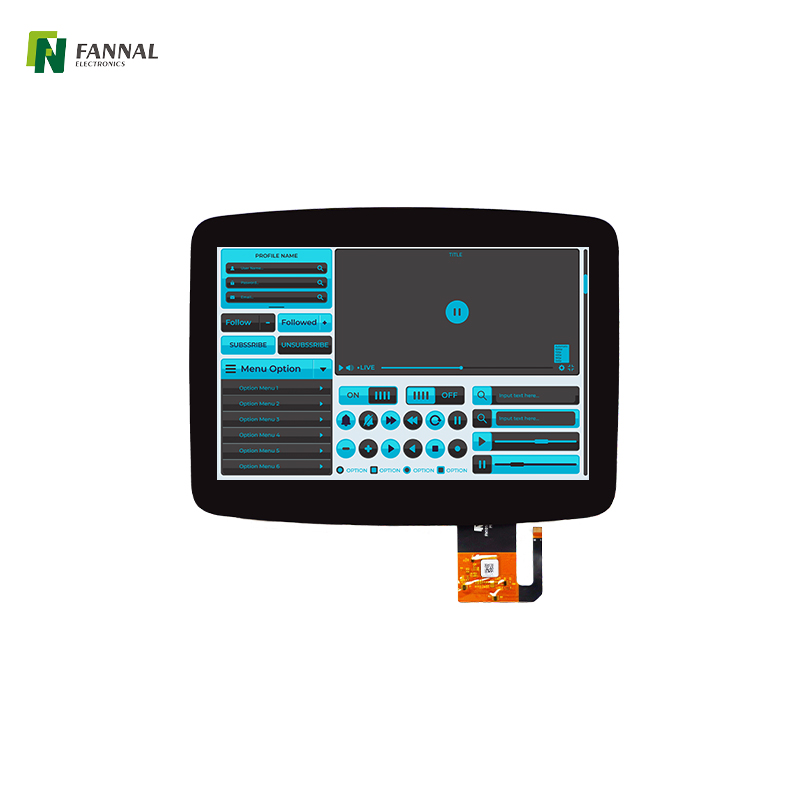

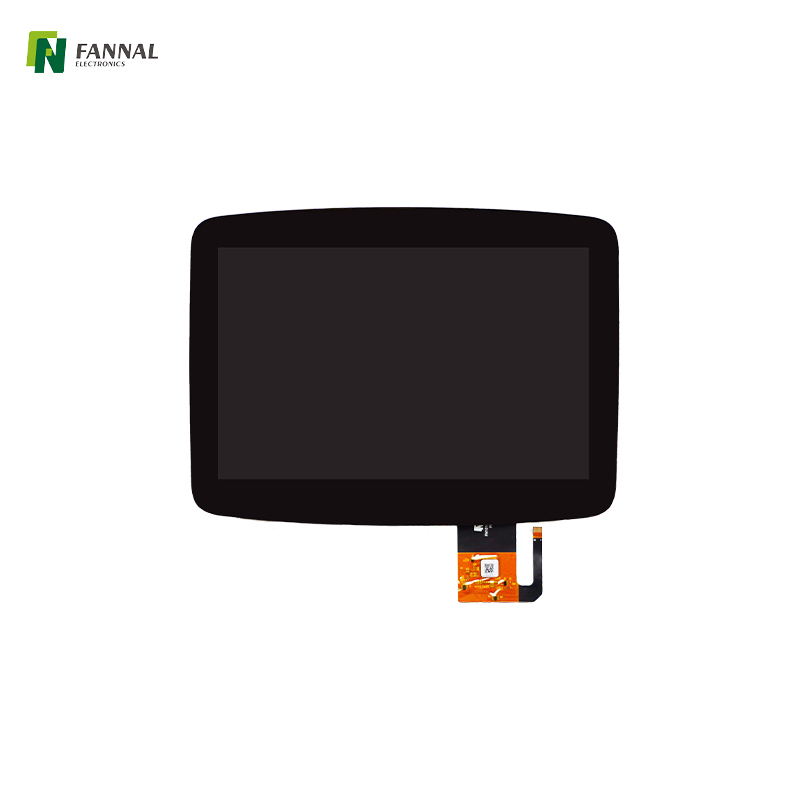

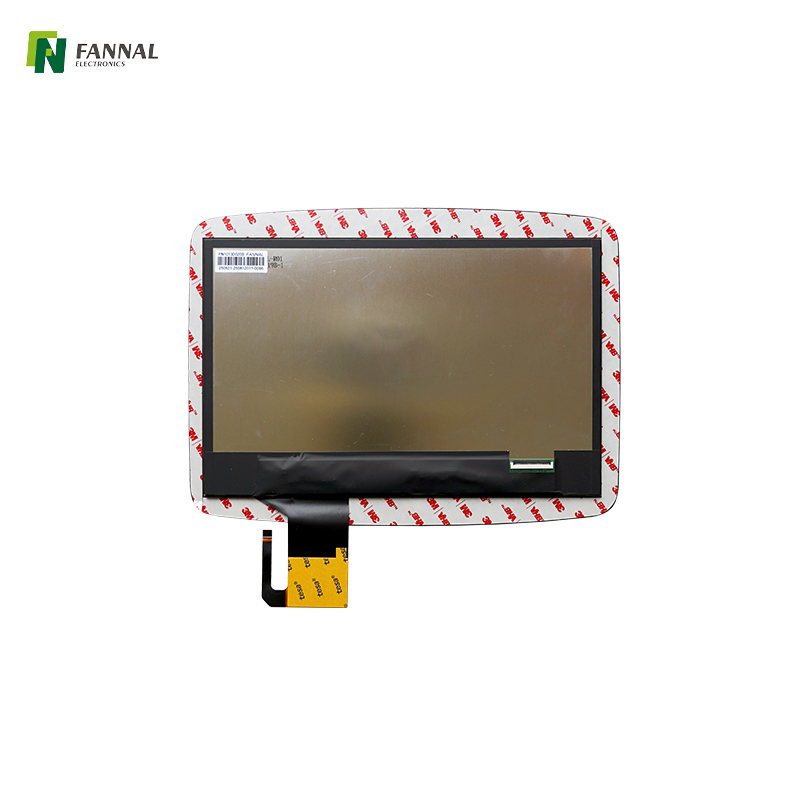

10.1 inch 1280x800 touch TFT LCD display module

Model:
FN10100026D
Size(inch):
10.1
Cover OD (mm):
251.21x185.55x1.1
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
1280x800
Display Interface:
LVDS
Brightness(cd/m²):
400

Quantity:
Availability:





Inquiry Add to Basket

10.1 inch touch display Smart Touch TFT Display 10.1 Inch Touch TFT LCD Screen Display

Product Features

Product Drawing

Specification

Product Application

Add Ons

Product Features

Elevate your projects with our cutting-edge 10.1-inch touch display, designed to deliver exceptional performance and versatility. Whether you're developing industrial controls, medical devices, or smart home solutions, this display is the ultimate choice for seamless integration and high-end visuals.

Why Choose This Display?

Crystal-Clear Visuals: Boasting a 1280x800 resolution, every detail pops with stunning clarity and vivid colors.
Optimal Brightness: With a luminance of 400cd/m², enjoy superior visibility even in brightly lit environments.
Responsive Touch Experience: Featuring 10-point multi-touch with IIC + USB interface, unlock precise, fluid control at your fingertips.
Reliable and Durable: Built with optical bonding technology, ensuring enhanced durability, reduced glare, and improved viewing angles.
Seamless Integration: Equipped with an LVDS interface, making it easy to integrate into your systems.

Applications:

Perfect for a wide range of industries, including:

Industrial Automation: Monitor and control systems with precision.
Medical Equipment: Deliver accurate and responsive user interfaces.
Smart Homes: Bring sophisticated touchscreens to life.
Portable Devices: Ideal for tablets, kiosks, and more.

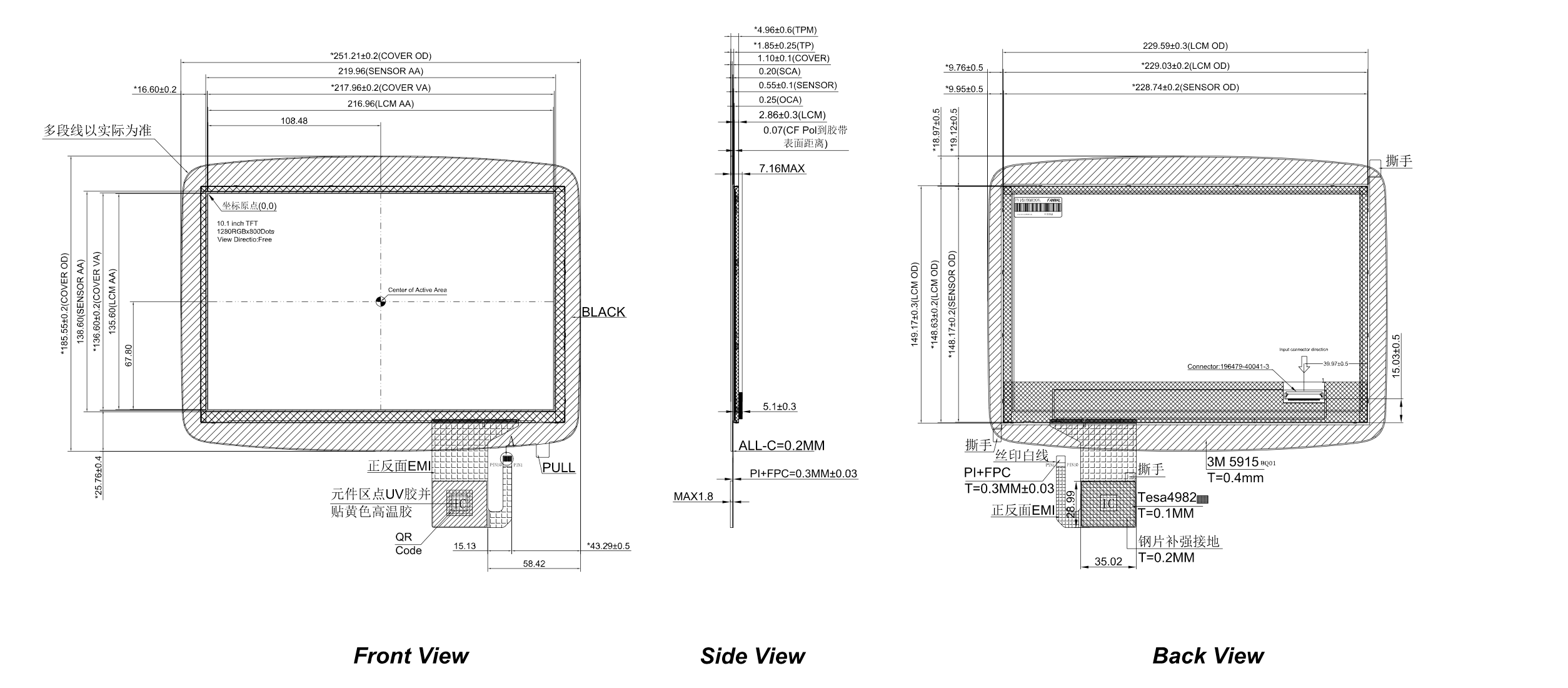

Product Drawing

FN1010T026D

Specifications

Size(inch):	10.1
Module:	FN10100026D

TFT LCD
Resolution:	1280x800
Brightness（cd/m²）:	400
Display interface:	LVDS
Panel type:	IPS

Touch panel
Touch type:	Capacitive touch
TP VA (mm):	216.96x135.6
Cover OD (mm):	251.21x185.55x1.1
TP Interface:	IIC+USB
Diver IC:	ILITEK

Application

This versatile 10.1″ touch display module is ideal for a variety of fields requiring interactive visuals and robust performance:

Industrial Automation & HMI — Touch panels for machinery control and monitoring systems.
Medical Devices — Display interfaces for diagnostic equipment and healthcare terminals.
Smart Home & IoT Interfaces — Interactive screens for smart appliances and control hubs.
Portable & Embedded Devices — Ideal for custom embedded systems, controllers, backup screens, and portable HMI devices.
Kiosks & POS Systems — Touch-enabled displays for transactional and informational kiosks.

Industrial Panels

Medical Equipment

Fitness Equipment

Engineering Plant

Motorbike

Vending Machine

Home Application

Customization

COVER LENS:

Shape: cut in special shape, Printing: Silk printing/Ceramic printing, Material: PMMA/Glass, Thickness: 0.55mm~10.0mm, Surface treatment: AG, AR, AF, AB.

Sensor:

Sensor made by FANNAL,Narrow bezel design,Thickness selectable.

FPC:

Required shape available, Touch IC selectable, Interface selectable.

Bonding:

Air bonding/optical bonding, low reflection, All one black effect.

TFT Display:

In house manufacture/sunlight-readable display/wide temperature display, IPS TFT display, Automotive grade display.

Add-on:

backlight board, AD board, wire sets.

FAQ

Q1: Is the touch controller plug-and-play on standard systems?

A: The capacitive touch uses IIC + USB interfaces. USB touch generally works plug-and-play on Windows/Linux/Android devices that support USB HID touch. For embedded systems without USB host, a touch controller board/bridge may be needed.

Q2: Can this module directly replace a standard HDMI touch monitor?

A: No — the module itself outputs LVDS, not HDMI. To use HDMI video output, you need an LVDS controller board with HDMI input. This is typical for most bare TFT modules.

Q3: What environmental conditions can this display withstand?

A: The module is rated for operation from -20°C to +70°C and storage to -30°C to +80°C, making it suitable for many indoor industrial or embedded environments. For outdoor or extreme conditions, ask about enhanced options.

Q4: Can I customize the cover glass or touch specifications?

A: Yes — this product supports customization such as cover glass shapes, thickness, printing/coating, and touch controller selections. Contact the engineering team with your design requirements.
