AMOLED banding refers to visible vertical or horizontal stripes that appear most clearly in low-gray backgrounds or uniform dark scenes. It is a luminance non-uniformity phenomenon, typically observed between 1%–20% grayscale levels.
Unlike generic “display defects,” banding in AMOLED panels originates from the fundamental way OLED pixels are driven electrically. Understanding it requires looking at the current-driving architecture, TFT backplane behavior, and aging compensation algorithms.

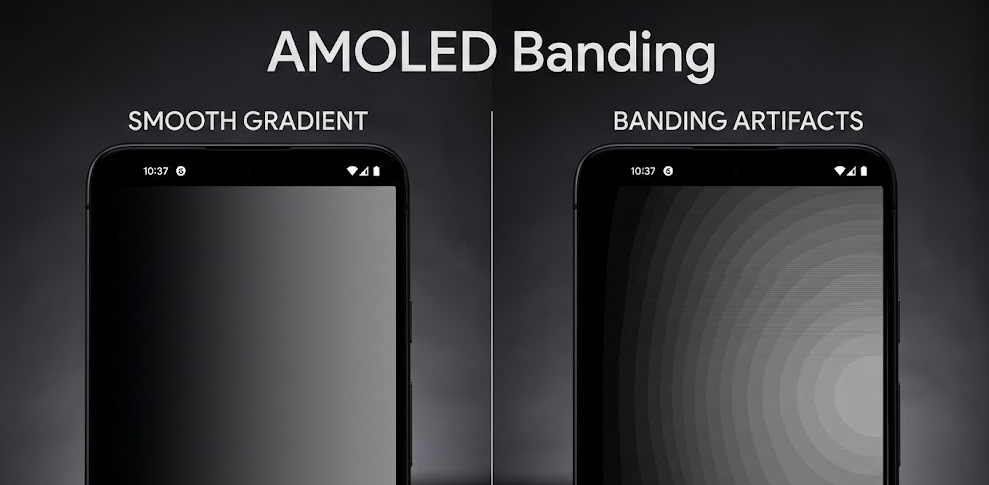

Banding is a type of spatial luminance variation where adjacent pixel columns or rows emit slightly different brightness levels under identical digital input values.
It is most visible:
At low brightness (near black)
On uniform gray backgrounds
In slow gradient transitions
After panel aging
It is often confused with Mura, but they are not identical:
Mura → general non-uniformity (blotches, clouding)
Banding → structured line-based variation (usually column-aligned)
Banding is typically systematic rather than random.
AMOLED pixels are current-driven devices.
Each subpixel’s luminance is determined by:
OLED Luminance ∝ Driving CurrentSmall variations in:
TFT threshold voltage (Vth)
Carrier mobility
Channel length
Storage capacitor accuracy
lead to current deviations between neighboring pixels.
At high brightness, differences are masked.
At low current (low gray), variation becomes perceptible.
This is why banding is more visible in dark scenes.
Most AMOLED panels use LTPS or LTPO TFT backplanes.
Variability in:
Laser annealing
Oxide layer thickness
Threshold voltage drift
Leakage current
creates column-wise or row-wise luminance inconsistencies.
Because AMOLED lacks a diffusion backlight layer (unlike LCD), there is no optical averaging mechanism to hide these differences.
At low grayscale levels:
DAC resolution limits
Quantization steps
Dithering strategies
have significant visual impact.
A 1 LSB deviation at 5% gray is far more noticeable than at 80% gray.
Improper gamma calibration amplifies visible banding.
OLED materials degrade over time.
Factors include:
Blue subpixel aging rate
Differential usage patterns
Static UI regions
As organic layers age unevenly, luminance compensation algorithms may struggle to fully correct spatial variation.
This aging-induced non-uniformity often appears as banding in older panels.
IPS LCD is voltage-driven, not current-driven at pixel emission level.
Key structural difference:
OLED → self-emissive pixel
IPS → transmissive pixel with shared backlight
The backlight provides:
Optical diffusion
Light mixing
Spatial homogenization
This acts as a natural uniformity stabilizer.
While IPS can show backlight bleeding or clouding, structured low-gray banding is less common due to optical smoothing.
Manufacturers apply several mitigation techniques:
Modern AMOLED panels use 6T1C or more advanced compensation pixel structures to offset TFT threshold variation.
Per-panel uniformity correction tables are applied during manufacturing.
Periodic recalibration cycles (especially in TVs and high-end panels) adjust current drive values.
Low-gray dithering reduces visible stepping but may introduce subtle flicker if poorly tuned.
LTPO backplanes reduce power and improve stability, but uniformity consistency still depends heavily on process control.
Banding becomes critical in:
Professional color grading monitors
Dark-themed industrial HMIs
In purely dynamic consumer applications, it is often less noticeable.
In industrial applications with persistent dark UI backgrounds, uniformity stability becomes more important than absolute contrast ratio.
Not necessarily.
A small degree of banding is inherent to current-driven emissive displays. It becomes a defect only when:
It exceeds manufacturer's tolerance
It interferes with application usability
It fails uniformity specification tests
Uniformity is usually quantified by:
Luminance deviation percentage
Column-to-column variation
Delta E mapping at low gray
AMOLED banding is not simply a cosmetic issue—it is rooted in the physics of current-driven emissive pixels and TFT variability.
While advanced compensation techniques significantly reduce its visibility, it cannot be entirely eliminated. For applications demanding extreme grayscale uniformity and long-term stability, engineers must weigh:
Visual contrast advantages of AMOLED
Uniformity robustness and aging stability of LCD technologies
The correct choice depends not on marketing claims, but on application-level luminance tolerance requirements.
