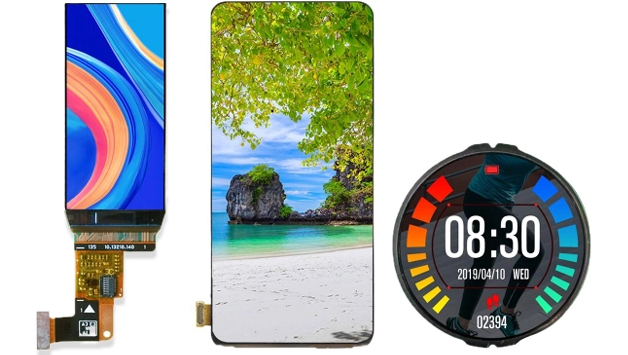

What Is Amoled Display？

In modern electronic systems, the display is a critical component that defines both user interaction and system performance. From smartphones and smart TVs to wearables and automotive dashboards, display technology directly impacts visual clarity, responsiveness, and energy efficiency. Among the available options, AMOLED (Active-Matrix Organic Light-Emitting Diode) displays have become a prominent choice due to their self-emissive pixel structure and active-matrix control. This article explores the operational principles of AMOLED technology, its technical advantages, engineering considerations, and the implications for current and future device designs.

What is AMOLED?

AMOLED stands for Active Matrix Organic Light Emitting Diode. To fully understand what this means, let’s break it down:

• Organic Light Emitting Diode (OLED): This refers to the use of organic compounds that emit light when an electric current passes through them. Unlike traditional LCDs (Liquid Crystal Displays), OLEDs are self-emissive, meaning each pixel generates its own light. This eliminates the need for a separate backlight.

• Active Matrix (AM): This is the method used to control the pixels. In AMOLED, thin-film transistors (TFTs) and capacitors are arranged in a grid to control the current flowing to each pixel individually. This “active” control allows for faster response times and higher efficiency compared to passive matrix OLEDs.

In simpler terms, an AMOLED display is a screen where each pixel is its own light source, and an advanced matrix system controls those pixels with precision.

AMOLED vs. LCD: A Comparison

For many consumers, the question isn’t just “What is AMOLED Display?” but also “How does it compare to LCD?”

The table shows why many premium devices now favor AMOLED displays over LCDs.

How Does an AMOLED Display Work?

At its core, an AMOLED display has multiple layers:

• Substrate Layer: Provides structural support.

• Thin-Film Transistor (TFT) Layer: Controls the flow of electricity to each pixel.

• Organic Emissive Layer: Made of organic compounds that emit red, green, or blue light when energized.

• Cathode and Anode Layers: Supply electrical current to the emissive layer.

When voltage is applied, the organic molecules in the emissive layer release photons, creating light. By combining red, green, and blue subpixels, AMOLED can generate millions of colors. Because each pixel operates independently, the display can achieve high contrast ratios and deep blacks.

Why Industry is Shifting to AMOLED: A Strategic Perspective?

While AMOLED is a standard in consumer electronics, its transition into industrial, medical, and automotive sectors is driven by specific engineering advantages that traditional LCDs cannot match.

1. Superior Clarity in Critical Environments (Zero Light Leakage)

Unlike backlit LCDs, AMOLED integrates self-emissive organic diodes. Since each pixel can be turned off completely, it achieves true blacks and infinite contrast. This is essential for:

• Medical Imaging: High-precision diagnosis where subtle grayscale differences matter.

• Dark-Room Controls: Eliminating background "glow" in low-light command centers or cockpits.

2. Extreme Thermal Resilience & Response Speed

One of the most critical industrial advantages is low-temperature performance.

• The Liquid Crystal Challenge: Traditional LCDs suffer from increased viscosity at low temperatures, causing "ghosting" or slow response.

• The AMOLED Solution: AMOLED materials do not "freeze." They maintain instantaneous pixel-level switching and fast refresh rates even at -30°C, making them ideal for outdoor military gear and northern-climate automotive dashboards.

3. Mechanical Flexibility and Ultra-Thin Profiles

By eliminating the backlight unit (BLU), AMOLED modules are significantly thinner and lighter.

• Sleek Design: Allows for more compact medical handhelds or wearable industrial terminals.

• Space Optimization: Engineers can reallocate the saved internal space for larger batteries, improved thermal management, or additional sensors.

4. Intelligent Power Management (UI-Driven)

AMOLED power consumption is content-dependent.

• Dark-Mode Efficiency: For industrial HMIs using dark-themed UIs, AMOLED consumes far less energy than an LCD with a constant backlight.

• Integrated Touch: Utilizing On-cell technology, AMOLED combines the touch sensor directly into the stack-up, further reducing thickness and improving touch responsiveness for mission-critical interactions.

5. Professional Engineering Considerations

To ensure industrial-grade reliability, Fannal focuses on advanced driver IC selection and pixel compensation algorithms. These technologies mitigate traditional AMOLED concerns such as material aging (burn-in) and thermal behavior, ensuring a long, stable service life in 24/7 industrial environments.

What is the Limitations of AMOLED Displays

Despite their many benefits, AMOLED displays are not without drawbacks:

• Burn-in Issues: Prolonged static images can cause certain pixels to degrade faster, leaving a “ghost” image on the screen. Advances in pixel-shifting technology and software optimization have reduced this issue, but it remains a consideration.

• Cost of Production: AMOLED displays are more complex and expensive to manufacture compared to LCDs, which can lead to higher device prices.

• Color Accuracy (Oversaturation): While some users love the vividness, others find AMOLED colors oversaturated compared to real-world tones. Manufacturers often provide settings to adjust color calibration.

• Lifespan of Organic Materials: Organic compounds can degrade over time, particularly the blue pixels, which affects overall display longevity. Continuous R&D is addressing this issue with improved materials and manufacturing techniques.

Applications of AMOLED Displays

The versatility of AMOLED has driven adoption across multiple industries:

• Smartphones and Tablets: The majority of flagship devices now feature AMOLED screens for their superior quality and slim profiles.

• Wearables: Smartwatches and fitness bands rely on AMOLED for energy-efficient, always-on displays.

• Televisions: High-end smart TVs use AMOLED (often branded as OLED TVs) for cinematic experiences with deep blacks and vibrant colors.

• Laptops and Monitors: Increasingly, manufacturers are offering AMOLED screens for professionals needing high color accuracy.

• Automotive Displays: Modern vehicles are integrating AMOLED panels into dashboards and infotainment systems.

Conclusion

So, what is an AMOLED display? At its core, it is a cutting-edge screen technology where each pixel emits its own light, controlled precisely by an active matrix system. This gives AMOLED displays advantages such as vibrant colors, deep blacks, slim form factors, energy efficiency, and innovative flexibility. While there are challenges like burn-in and production cost, continuous advancements are rapidly overcoming these hurdles.

As the technology evolves, AMOLED displays are likely to dominate more segments of consumer electronics, offering users a richer, more immersive visual experience.

If you are interested in learning more about AMOLED display technology, its applications, or sourcing high-quality display solutions, we recommend visiting www.fannaldisplay.com. Their expertise in display innovation makes them a valuable resource for businesses and individuals looking to stay ahead in the display industry.

FAQ

Q1: Why does AMOLED drastically outperform IPS LCD in sub-zero industrial or automotive environments?

A: Unlike traditional LCDs where liquid crystal molecules become highly viscous and cause severe image ghosting at low temperatures, self-emissive AMOLED materials maintain instantaneous microsecond-level pixel switching even at -30°C.

Q2: How does the absence of a Backlight Unit (BLU) give AMOLED an engineering advantage in compact medical handhelds?

A: Eliminating the backlight unit fundamentally reduces the display module's physical thickness and weight, allowing hardware engineers to reallocate critical internal enclosure space for enhanced thermal management or larger batteries.

Q3: What is the underlying electrochemical cause of color shift and differential aging in older AMOLED panels?

A: Organic luminous compounds degrade independently over cumulative power cycles; specifically, blue subpixels possess a shorter chemical material lifespan and decay faster than red or green subpixels, shifting the overall white balance over time.

Q4: Can standard AMOLED displays be integrated directly into 24/7 static industrial HMIs without risking permanent burn-in?

A: No; for constant-on applications, engineers must utilize specialized driver ICs featuring active pixel-shifting compensation algorithms alongside dark-themed UIs to actively balance pixel current draw and prolong stable service life.
