Although IPS and OLED have become mainstream in consumer electronics, Twisted Nematic (TN) displays remain one of the most widely used LCD technologies in industrial equipment. Their fast response time, simple driving structure, low manufacturing cost, and mature supply chain make TN panels a practical choice for control systems, instrumentation, embedded HMIs, and other applications where viewing angle is not the primary design constraint.
A Twisted Nematic (TN) display is an LCD technology that controls light transmission by twisting liquid crystal molecules under an electric field. While it offers narrower viewing angles and lower color performance than IPS or OLED, TN remains a reliable solution for cost-sensitive and performance-oriented industrial systems.
In this guide, we explain how TN displays work, compare them with other LCD technologies, discuss their engineering advantages and limitations, and explore when TN remains the best display choice for industrial applications.
How does a TN display work?
A TN display works by twisting liquid crystal molecules by 90° in the absence of voltage, allowing polarized light to pass through; when voltage is applied, the molecules align vertically and block light. This creates the visible contrast between bright and dark states.
Core optical structure (module-level view)
A standard TN LCD stack includes:
Top polarizer
Glass substrate with ITO electrodes
Alignment layer
Twisted nematic liquid crystal layer (~90° twist)
Bottom substrate
Bottom polarizer (perpendicular to top)
Operating principle (engineering breakdown)
Voltage OFF (normally white mode):
LC molecules maintain a 90° helical twist
Polarized light rotates with the LC structure
Light passes through the second polarizer → pixel appears bright
Voltage ON:
Electric field forces LC molecules into vertical alignment
No polarization rotation occurs
Light is blocked by the second polarizer → pixel appears dark
Engineering Insight: The electro-optical response depends heavily on:
Cell gap uniformity
Alignment layer quality
Drive voltage curve (V-T curve)
Why are TN displays still widely used in industrial applications?
TN displays remain widely used because they offer the best combination of low cost, fast response time, and simple driving architecture. They are particularly suitable where performance trade-offs are acceptable in exchange for robustness and cost efficiency.
Key advantages
Low cost structure
Fewer process steps vs IPS/VA
Mature supply chain, high yield
Fast response time
Typically 1–5 ms (TFT TN)
Suitable for dynamic data display and motion content
Engineering Insight: TN is often the preferred choice when optical performance is not the primary constraint, but reliability, cost, and response speed are.
What are the limitations of TN displays?
TN displays have limited viewing angles and weaker color performance due to the vertical alignment behavior under voltage. These limitations become critical in applications requiring multi-angle visibility or accurate color reproduction.
Key disadvantages
Narrow viewing angle
Typical: 45°–60° (with gray inversion issues)
Requires strict installation orientation
Lower contrast ratio
Compared to VA or OLED
Black levels are weaker
Color shift and inversion
Especially in vertical viewing directions
Critical risk in HMI readability
Limited optical uniformity
More sensitive to process variation
Engineering risk: In control systems, poor viewing angle can lead to misreading critical data, especially when operators are not directly facing the display.
Why Do Industrial Engineers Still Choose TN Displays?
Despite their optical limitations, TN displays continue to play an important role in industrial electronics because engineering decisions are rarely based on image quality alone. Factors such as manufacturing cost, supply chain stability, operating temperature, power consumption, and long-term availability often have a greater influence on display selection.
Compared with IPS and OLED technologies, TN panels offer a mature manufacturing process with high production yields and predictable performance. They are also easier to qualify for long product life cycles, making them attractive for industrial equipment that may remain in service for ten years or longer.
In many embedded systems, operators view the display from a fixed position. Under these conditions, the limited viewing angle of TN technology has little practical impact, while its lower cost and fast response provide clear advantages.
Rather than being an outdated technology, TN has become a specialized engineering choice for applications where cost efficiency, reliability, and deterministic performance outweigh premium visual quality.
Engineering Trade-offs Between TN, IPS, VA, and OLED
Instead of asking which display technology is "better," engineers should evaluate which technology best matches the application's technical requirements.
Requirement
Recommended Technology
Lowest manufacturing cost
TN
Fastest response time
TN
Wide viewing angle
IPS
High contrast
VA
Best color accuracy
IPS / OLED
Outdoor battery-powered devices
TN / Transflective LCD
Premium user interface
OLED
Industrial HMI
IPS or TN depending on viewing direction
Selection should be based on system-level priorities rather than individual specifications. For example, replacing a TN panel with an IPS display may improve viewing angle but also increase power consumption, cost, and thermal load. Likewise, OLED provides excellent image quality but introduces considerations such as lifetime, burn-in, and higher material costs.
When should you choose a TN display for your project?
You should choose a TN display when cost, response speed, and environmental robustness are more important than viewing angle and color accuracy.
Typical use cases
Industrial control panels
Handheld measurement devices
Outdoor equipment (with transflective design)
POS terminals
Entry-level HMI systems
Engineering decision checklist
Choose TN if:
✔ Viewing direction is fixed
✔ Budget is highly constrained
✔ Fast response is required
✔ Operating temperature is extreme
✔ No strict color accuracy requirement
Avoid TN if:
✖ Multi-user viewing is required
✖ UI readability is critical from all angles
✖ High-end interface or branding matters
Can TN Display Performance Be Improved?
Although the fundamental optical characteristics of TN technology cannot be changed, several engineering techniques can significantly improve its performance in industrial applications.
Common optimization methods include:

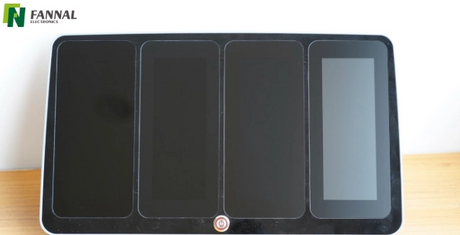

Optical bonding to reduce internal reflections and improve sunlight readability
Anti-glare and anti-reflection surface treatments
High-brightness LED backlights for outdoor operation
Compensation films to improve viewing angle consistency
These improvements do not transform a TN panel into an IPS display, but they can substantially enhance usability while preserving TN's cost and response-time advantages.
How is TN integrated into touch display modules (TPM)?
In modern systems, TN panels are often integrated into Touch Panel Modules (TPM) using optical bonding and customized interfaces.
System-level insight: TN + optical bonding + high-brightness backlight can significantly close the performance gap with IPS in outdoor readability, at a lower cost.
Common Design Challenges in TN Touch Display Modules
When integrating TN LCDs into complete touch display modules, engineers must consider more than the LCD panel itself.
Electromagnetic interference (EMI) between the LCD and touch controller
Thermal management for high-brightness backlights
Mechanical stress introduced by optical bonding
Grounding strategies for stable touch performance
Addressing these challenges at the system level allows TN-based touch display modules to deliver reliable performance even in demanding industrial environments.
What is the future of TN display technology?
TN technology will continue to exist in cost-driven and industrial applications, despite being replaced by IPS and OLED in high-end markets. Its strength lies in maturity, stability, and cost efficiency, not visual performance.
One reason is the maturity of the TN manufacturing ecosystem. Compared with newer display technologies, TN panels benefit from well-established production processes, stable material supply, and predictable manufacturing yields. These advantages help reduce production costs while supporting long product life cycles that are common in industrial equipment.
Another important factor is application requirements. Many industrial systems, measurement instruments, and embedded HMIs are designed for a single operator viewing the display from a fixed position. In these scenarios, the wider viewing angles offered by IPS often provide little practical value, making TN a more economical engineering choice.
Future improvements are also expected to come from system integration rather than changes to the TN liquid crystal mode itself. Technologies such as optical bonding, higher-efficiency backlights, improved compensation films, and advanced touch controller algorithms continue to enhance the usability of TN-based display modules in demanding environments.
Rather than competing directly with IPS or OLED in premium consumer products, TN is likely to remain an important display technology wherever predictable performance, environmental reliability, and cost-performance optimization are the primary design objectives.
FAQ
Q1. Why do TN displays sometimes appear inverted when viewed from certain angles?
TN liquid crystal molecules rotate asymmetrically when viewed off-axis, causing changes in light transmission that can produce gray inversion or color shifting. The effect is most noticeable in vertical viewing directions and should be considered when designing operator interfaces where the viewing position cannot be controlled.
Q2. Can optical bonding improve the image quality of a TN display?
Yes, but within limits. Optical bonding reduces internal reflections, improves contrast in bright environments, and minimizes optical parallax by eliminating the air gap between the cover glass and the LCD. However, it does not change the intrinsic viewing angle or color characteristics of TN technology.
Q3. Is a TN display suitable for outdoor equipment?
It depends on the application. A standard TN panel may have limited visibility in direct sunlight, but combining high-brightness backlighting, optical bonding, and anti-reflective surface treatments can significantly improve outdoor readability. For battery-powered devices, transflective TN displays are also a practical option.
Q4. Why do some industrial products continue using TN displays instead of IPS?
For many industrial systems, displays are viewed from a fixed position, making the wider viewing angles of IPS less critical. TN panels generally offer lower manufacturing costs, mature supply chains, stable long-term availability, and fast response times, making them a practical choice for cost-sensitive or long-life industrial equipment.
Q5. Does choosing a TN display reduce the overall system cost?
Not necessarily. While TN panels are typically less expensive than IPS or OLED, the total system cost also depends on factors such as touch integration, optical bonding, backlight requirements, housing design, and environmental protection. Display selection should therefore be evaluated as part of the complete system architecture rather than based on panel price alone.
Q6. How can engineers determine whether TN is the right display technology?
The decision should begin with the application's technical requirements rather than the display technology itself. If the system prioritizes fixed viewing angles, fast response, low power consumption, and cost efficiency, TN is often an appropriate solution. If wide viewing angles, accurate color reproduction, or premium visual quality are essential, IPS or OLED may be more suitable.
