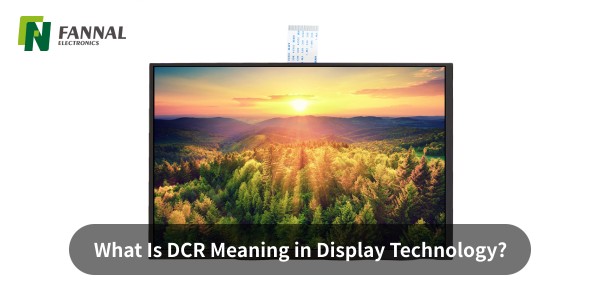

What Is DCR Meaning in Displays?

When evaluating a monitor or TFT display, you may see a specification such as DCR, often followed by a very large contrast number such as 100,000:1 or 1,000,000:1.

DCR stands for Dynamic Contrast Ratio. Unlike a display's static or native contrast ratio, DCR is not simply a fixed characteristic of the LCD panel. It describes a dynamic control function that changes display luminance according to the content being displayed.

This distinction matters because a very high DCR specification does not necessarily mean that the panel has exceptionally high native contrast.

For industrial displays, the difference is particularly important. A display used for an HMI, medical device, inspection system, or outdoor equipment may benefit more from stable luminance, sufficient brightness, native contrast, and consistent image performance than from a large advertised DCR value.

What Does DCR Mean on a Monitor?

DCR means Dynamic Contrast Ratio.

In simple terms, DCR dynamically changes the display's luminance according to the image content in an attempt to make dark areas appear darker and bright areas appear brighter.

A simplified example might look like this:

• Dark image: backlight output is reduced

• Bright image: backlight output is increased

• Changing image: luminance is adjusted according to the display's control algorithm

This can produce a much larger contrast figure than the panel's native static contrast ratio.

For example, a display specification might list:

These numbers should not be interpreted as two measurements of the same physical panel characteristic.

The 1000:1 figure describes the panel's contrast under a defined static measurement condition. The 1,000,000:1 DCR figure may involve changes in backlight output or other display controls between dark and bright image conditions.

Therefore, DCR is better understood as a dynamic display function rather than a direct measurement of native LCD contrast.

DCR vs Static Contrast Ratio: What Is the Difference?

The most important distinction is whether the display system changes its operating conditions during the measurement.

Static Contrast Ratio

Static contrast ratio measures the relationship between the brightest white and darkest black that a display can produce under defined conditions without dynamically changing the backlight between the two states.

It is more closely related to the actual optical performance of the panel.

For an LCD display, native contrast is influenced by factors such as:

• LCD panel technology

• Liquid crystal structure

• Polarizers

• Optical stack

• Backlight characteristics

• Panel design

A higher native contrast ratio can produce visibly deeper blacks and a greater difference between dark and bright image areas.

Dynamic Contrast Ratio

DCR introduces an additional control layer.

The display system can change luminance or other image parameters according to the content before or during the measurement.

This allows the displayed black level to become much darker in a dark scene, for example, because the backlight can be reduced.

The resulting contrast number can therefore become dramatically larger than the panel's native contrast ratio.

This is why 1000:1 static contrast and 1,000,000:1 DCR should never be treated as equivalent specifications.

How Does DCR Work in a Display System?

The exact implementation varies between manufacturers and display architectures, but the basic concept is straightforward.

The display system monitors information about the image and determines whether the current scene is relatively dark or bright.

A simplified control process can be represented as:

Image data → Brightness analysis → Control decision → Backlight or image adjustment → Display output

For example, when a display is showing a predominantly dark image, the system may reduce backlight output.

When a bright image appears, it may increase the backlight output again.

Some implementations may also modify image processing parameters such as gamma or tone response.

The important point is that DCR changes the operating behavior of the display system. It does not physically change the LCD panel's native ability to block or transmit light.

Why Can DCR Produce Such a Large Contrast Number?

Consider a simplified example.

Suppose an LCD panel has a native contrast ratio of:

1000:1

If the backlight remains at the same output while white and black images are displayed, the measured contrast is determined largely by the panel's optical characteristics.

With dynamic control, however, the system can substantially reduce the backlight when displaying a dark image.

The measured black-state luminance can therefore become much lower than it would be with the normal backlight level.

This can produce a much larger calculated contrast ratio.

The large DCR number is therefore partly a result of changing the display operating condition, rather than a dramatic improvement in the LCD cell itself.

DCR Is Not the Same as Local Dimming

DCR and local dimming are related concepts, but they should not be treated as identical.

A conventional DCR implementation may adjust the luminance of the entire backlight according to the overall image.

Local dimming divides the backlight into multiple independently controlled zones and adjusts different areas separately.

This distinction matters because local dimming can provide more precise control over bright and dark regions within the same image.

A simplified comparison is:

Not every display advertised with DCR uses local dimming.

Likewise, not every form of dynamic image optimization should be described as DCR.

The exact implementation should be confirmed from the display manufacturer's documentation.

What Does DCR Actually Change?

DCR primarily changes perceived contrast under changing image conditions.

It does not automatically improve every other display characteristic.

DCR does not inherently improve:

• Native LCD contrast

• Pixel resolution

• Viewing angle

• Color gamut

• Pixel response time

• Optical bonding

• Panel lifetime

This distinction is important when comparing industrial displays.

A display with a modest DCR specification but strong native contrast, high brightness, wide viewing angle, and good optical design may provide a better real-world image than a display advertising an extremely high DCR number.

For engineering evaluation, DCR should therefore be treated as one display function, rather than a universal measure of display quality.

Why DCR Can Matter Differently in Industrial Displays

DCR can be useful when image content changes significantly and the visual benefit of dynamic luminance adjustment outweighs the side effects.

However, many industrial displays operate under very different conditions from consumer monitors.

An industrial HMI may continuously display:

• Status indicators

• Numeric measurements

• Graphs

• Control buttons

• Warning information

• Fixed navigation elements

The overall screen brightness may therefore remain relatively stable for long periods.

In these situations, aggressively changing the backlight may provide little practical benefit.

Instead, unexpected luminance changes can become more noticeable to the operator.

This is why industrial display evaluation should focus first on the characteristics that remain important regardless of whether DCR is enabled.

Native contrast, brightness, viewing angle, optical performance, and luminance stability generally provide more useful engineering information than the maximum DCR number alone.

When Can DCR Become a Problem?

Dynamic contrast can improve perceived image contrast, but changing luminance is not always desirable.

For an industrial display, the question is not simply whether DCR can make the image look more dynamic. The more important question is whether the luminance changes are compatible with the way the equipment is operated.

Brightness Pumping

One common issue is brightness pumping.

If the image repeatedly changes between dark and bright content, the display may continuously adjust its backlight output.

For example:

Dark screen → backlight decreases → bright screen → backlight increases → dark screen → backlight decreases

If the adjustment is noticeable, the operator may perceive the display as constantly changing brightness.

This may be acceptable for entertainment content, but it can be distracting in an industrial HMI where the user needs a stable visual reference.

Delayed Luminance Changes

DCR does not necessarily respond instantaneously to every frame.

The display controller may analyze the image over a period of time before changing the backlight level. As a result, the luminance response can sometimes lag behind rapid changes in displayed content.

The actual response depends on the implementation, so it should be evaluated on the specific display rather than assumed from the DCR specification.

Camera and Machine Vision Systems

DCR can also require additional consideration when a display is viewed by a camera.

A camera does not perceive brightness in exactly the same way as the human eye. If the display changes its luminance while the camera is capturing an image, the recorded brightness can vary between frames.

This can affect applications involving:

• Machine vision

• Optical inspection

• Camera-based measurement

• Remote monitoring

• Image recognition

In these applications, stable luminance may be more valuable than maximum dynamic contrast.

HMI and Control Interfaces

Industrial HMI interfaces often contain fixed visual elements.

For example, a machine interface might continuously display:

• Process values

• Alarm indicators

• Status icons

• Control buttons

• Graphs

• Navigation elements

If the overall screen content changes only slightly, aggressive DCR may provide little visual benefit while introducing unnecessary luminance variation.

For operator-facing equipment, a stable and predictable display can therefore be preferable.

Should Industrial TFT Displays Use DCR?

There is no universal answer.

DCR can be useful when the display content changes significantly and dynamic luminance adjustment improves perceived image quality.

However, it should be evaluated according to the actual application rather than enabled simply because the specification lists a large DCR value.

Applications Where DCR May Be Useful

DCR can be reasonable for applications such as:

• Multimedia terminals

• Digital signage

• Smart home interfaces

• Entertainment systems

• Non-critical interactive displays

These applications may benefit from stronger visual contrast between different scenes.

Applications Where DCR Requires More Care

More caution may be appropriate for:

• Industrial HMI panels

• Control systems requiring stable luminance

• Medical equipment

• Machine vision systems

• Inspection equipment

• Camera-based systems

• Instrumentation displays

This does not mean DCR is unsuitable for these applications. It means that the behavior of the DCR function should be evaluated rather than judged by its maximum contrast specification.

For some projects, an adjustable DCR function or a brightness-lock mode may provide a better balance.

What Specifications Matter More Than DCR?

For B2B display selection, DCR should generally be considered after the fundamental display requirements have been established.

The following specifications are often more useful when evaluating an industrial TFT or monitor.

The priority will vary by application.

For an outdoor terminal, brightness and optical performance may be critical.

For an embedded controller, interface and mechanical compatibility may matter more.

For a medical device, luminance stability, image quality, reliability, and application-specific requirements may take priority.

The key point is that DCR should not be used as a shortcut for evaluating overall display quality.

How Should OEM Buyers Evaluate a DCR Claim?

If DCR is an important requirement for a project, ask the display supplier how the value was obtained.

A DCR number without test conditions provides limited information.

Useful questions include:

Is the specification static or dynamic?

Ask for the panel's native/static contrast ratio separately from its DCR value.

These should be listed as separate specifications.

How was the DCR measured?

Ask about the measurement conditions and whether the display changes its backlight or image processing during the test.

Different implementations can produce very different published values.

Does the display use global or local backlight control?

If the backlight is controlled globally, the entire screen may change luminance.

If local dimming is used, different areas of the backlight can be controlled independently.

The visual behavior can therefore be very different.

Can DCR be disabled?

For industrial equipment, this can be a useful option.

If the display supports a fixed-brightness mode, OEMs can choose between dynamic and stable luminance depending on the application.

How quickly does luminance change?

Response behavior matters when the displayed content changes frequently.

If DCR is being considered for an HMI, camera system, or inspection application, test the actual display rather than relying only on a specification sheet.

Is there visible flicker or brightness variation?

Low-brightness operation and backlight control can interact with the display's PWM or other dimming mechanisms.

If visual stability is important, evaluate the complete system under the intended brightness and content conditions.

DCR in an OEM Display Design

For customized display projects, DCR should be treated as part of the overall display configuration rather than an isolated specification.

Depending on the application, an OEM display may need to balance:

• Static contrast

• Brightness

• Backlight control

• PWM frequency

• Refresh rate

• Image processing

• Touch performance

• Optical bonding

• Ambient-light conditions

• Camera exposure

• Power consumption

For example, a display used in an industrial control cabinet may benefit from a fixed and stable backlight.

A smart terminal with frequently changing multimedia content may benefit more from dynamic luminance control.

This is why the same DCR implementation can be useful in one product and undesirable in another.

For customized TFT display projects, the important question is not:

“How high is the DCR?”

It is:

“How does the display behave under the actual operating conditions of the product?”

Practical Checklist for Evaluating DCR

Before selecting a display based on its DCR specification, verify:

This provides a much more meaningful evaluation than comparing DCR numbers alone.

Conclusion

DCR, or Dynamic Contrast Ratio, is a dynamic display function rather than a direct measurement of native LCD contrast.

It can improve perceived contrast by adjusting display luminance according to image content, but a high DCR specification does not automatically indicate a better panel.

For industrial displays, static contrast ratio, brightness, viewing angle, optical performance, operating temperature, backlight lifetime, and overall system stability are usually more important starting points.

DCR can still be useful when its behavior matches the application. The right approach is to evaluate how the function actually operates, whether it can be controlled, and whether its luminance changes are acceptable for the finished product.

For OEM and industrial display projects, real operating behavior matters more than the largest contrast number on the specification sheet.

Frequently Asked Questions

What does DCR mean on a monitor?

DCR stands for Dynamic Contrast Ratio. It is a display function that dynamically adjusts luminance, typically through backlight control and sometimes other image-processing methods, according to the displayed content. It is different from the monitor's native or static contrast ratio.

What is the difference between DCR and static contrast ratio?

Static contrast ratio describes the native contrast performance of a display under defined measurement conditions. DCR involves dynamic changes in display output, such as backlight adjustment, to increase the perceived or measured contrast between different image conditions. The two values should not be compared directly.

Is a higher DCR always better?

No. A higher DCR number does not necessarily mean better real-world image quality. Native contrast, brightness, viewing angle, optical performance, color characteristics, and luminance stability can be more important, particularly in industrial applications.

Does DCR matter for industrial displays?

It can, but it is usually not a primary selection criterion. Industrial applications often prioritize stable luminance, brightness, native contrast, reliability, and environmental performance. DCR should be evaluated according to the specific application rather than its advertised maximum value.

Can DCR cause brightness changes on an HMI?

Yes. If the DCR system changes the backlight according to the displayed content, transitions between dark and bright screens can produce visible luminance changes. Whether this is noticeable or problematic depends on the DCR algorithm, response behavior, and application.

Should I compare monitors based on DCR specifications?

Generally, no. Start by comparing native/static contrast ratio, brightness, viewing angle, operating temperature, optical performance, backlight lifetime, and other application-specific specifications. If DCR is important to the project, ask the supplier for its implementation and test conditions rather than comparing the headline number alone.
