Many buyers still ask: “I just need a palm-sized display—how much does it cost?”
From an engineering and sourcing perspective, this question is incomplete. The price of display screens is not determined by size alone, but by a combination of technical specifications and production conditions.
As a touch display manufacturer, we typically cannot provide a meaningful quote until four core parameters are defined:
display size + display resolution
display Operation Temp
display brightness
Order volume (MOQ / annual demand)
Only when these variables are clear does the touch display price become predictable and comparable.
The short answer: display size is only a physical dimension, while resolution defines pixel density, driving panel cost and process complexity.
In real-world projects, two displays with identical physical dimensions can have drastically different costs due to display resolution.

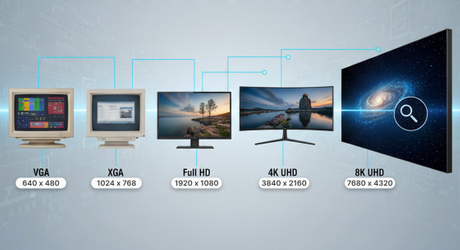

Take a 10.1-inch panel as an example:
Resolution | Pixel Density | Cost Impact | Typical Use Case |
|---|---|---|---|
800×1280 | Low–mid | Low | Basic HMI, control panels |
1280×800 | Mid | Medium | Industrial UI, medical devices |
1920×1200 | High | High | High-end HMI, imaging systems |
2K / 4K | Ultra-high | Very high | Precision visualization |
Higher display resolution → more complex TFT array and driver IC requirements
Increased yield risk during production
Higher backplane and bonding precision requirements
From the display module assembly perspective, resolution affects not just the panel cost, but also the compatibility of interfaces (RGB, LVDS, MIPI), which further impacts system cost.
Conclusion: Asking “How much is a 10-inch display?” without resolution is not actionable for quoting.

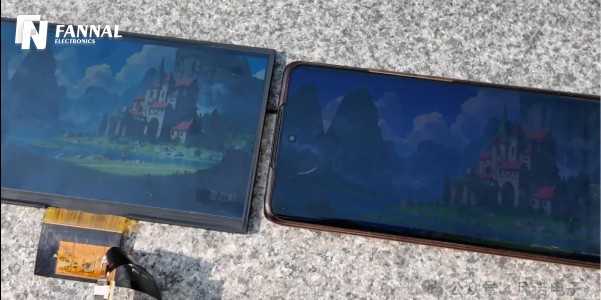

The short answer: wider temperature ranges require higher-grade materials and stricter validation, directly increasing cost.
The required display Operation Temp determines whether the display is consumer-grade, industrial-grade, or automotive-grade.
Grade | Temperature Range | Cost Level | Key Requirement |
|---|---|---|---|
Consumer | 0°C ~ 50°C | Low | Indoor stability |
Industrial | -20°C ~ 70°C | Medium | Outdoor/harsh environments |
Automotive | -30°C ~ 85°C (or wider) | High | Extreme reliability |
From our production experience:
Low-temperature operation requires liquid crystal optimization to prevent slow response or ghosting
High-temperature environments demand enhanced backlight and polarizer stability
Wide-range designs often require stricter aging tests and material screening
Trade-off: Expanding display Operation Temp increases reliability—but also significantly increases touch display price.
The short answer: higher brightness requires more advanced backlight systems and thermal management, which increases BOM and design complexity.
Display brightness is one of the most underestimated cost drivers, especially in outdoor or high-ambient-light applications.
Brightness (nits) | Application | Cost Impact |
|---|---|---|
~300 nits | Indoor consumer devices | Low |
500–800 nits | Semi-outdoor industrial | Medium |
1000+ nits | Outdoor equipment, medical | High |
1500+ nits | Direct sunlight readable | Very high |
Higher brightness → stronger LED backlight → higher power consumption
Requires better heat dissipation design
Often combined with optical bonding to improve sunlight readability
From a system integration perspective, increasing display brightness may also require redesigning the power supply and enclosure thermal structure.
Insight: Brightness is not just a display parameter—it impacts the entire system architecture.
The short answer: volume directly reduces unit cost by amortizing tooling, materials, and production overhead.
In the display industry, order quantity is a decisive factor for final touch display price.
Key cost components include:
TFT LCD panel procurement
Driver IC and interface components
Tooling (FPC, housing, customization)
Assembly and testing
Quantity | Cost Behavior |
|---|---|
1–10 pcs | Prototype/Sample pricing (very high) |
100–1,000 pcs | Small batch (moderate) |
10,000+ pcs | Mass production (optimized) |
From a manufacturing standpoint:
Material sourcing improves with scale
Yield optimization reduces waste
Automation becomes viable
Recommendation: Always provide estimated annual demand, not just initial order quantity, to get realistic pricing.
The short answer: you need to define four key parameters before any reliable quotation is possible.
Parameter | Why It Matters |
|---|---|
display size + display resolution | Defines panel type and base cost |
display Operation Temp | Determines material grade and reliability level |
display brightness | Impacts backlight design and system power |
Quantity (MOQ / annual volume) | Drives cost optimization |
Without these, any quoted the price of display screens is likely to be misleading or non-actionable.
As a touch display manufacturer, pricing is not just about components—it’s about aligning the display design with real application conditions.
Over-specification leads to unnecessary cost.
Under-specification leads to field failure.
The key is not to ask “What’s the price?”
But rather: “What configuration matches my application with optimal cost-performance?”
As a touch display manufacturer with extensive experience in industrial and custom projects, FANNAL support customers in defining the right specifications—from panel selection to optical bonding and system integration.
If you're evaluating a display for your project, sharing your key requirements (size, resolution, operating temperature, brightness, and estimated volume) will allow us to recommend a suitable solution and provide a more accurate cost range.
