Flexible Display Guide: Technology, Integration & Use Cases

What is a flexible display and when should it be used?

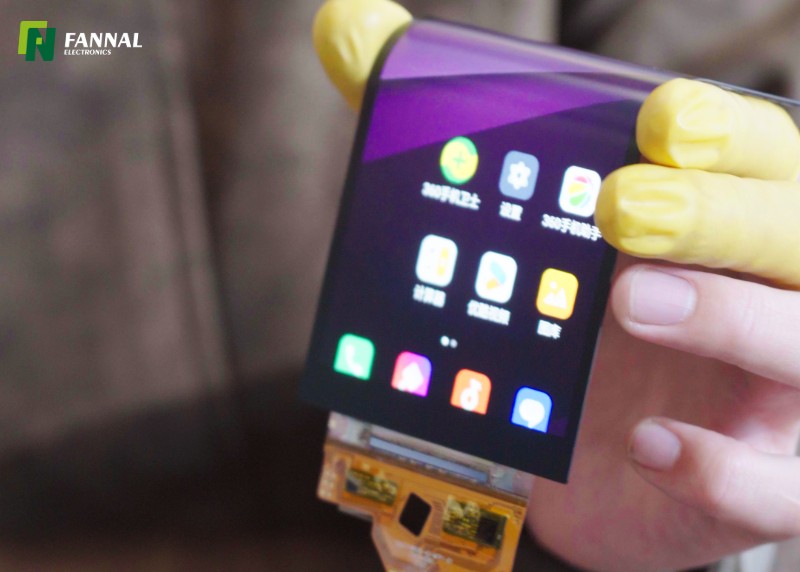

A flexible display is a panel built on bendable substrates such as polyimide, allowing curvature, folding, or dynamic bending.
In engineering terms, it should only be used when mechanical design constraints or product differentiation clearly require flexibility.

From a manufacturer’s perspective, flexible displays are not a default upgrade—they introduce trade-offs in reliability, cost, and integration complexity.

Typical use cases:

• Curved or non-flat industrial designs

• Space-constrained devices

• Lightweight or wearable systems

Not recommended for:

• Standard industrial HMI systems

• Long lifecycle applications (5–10 years)

• High shock or vibration environments

Engineering insight:
If the product does not require bending, rigid TFT or LCD solutions remain more stable and cost-efficient.

What are the main types of flexible display technologies?

Flexible displays are primarily based on OLED technology, with emerging alternatives such as flexible LCD and MicroLED.
In practical projects, flexible OLED dominates due to its maturity and supply chain availability.

Technology Comparison (Engineering Perspective)

Key Engineering Considerations

• Flexible OLED

  • Ultra-thin and highly flexible

  • Sensitive to moisture and oxygen

  • Risk of burn-in and degradation

• Flexible LCD

  • Typically semi-flexible (bendable, not foldable)

  • More stable for industrial use

  • Better temperature and lifetime performance

• MicroLED

  • Not yet viable for most custom industrial projects

  • Limited availability and extremely high cost

Conclusion:

• Consumer devices → Flexible OLED

• Industrial systems → Flexible LCD or rigid displays

How does flexible display affect touch integration and optical bonding?

Flexible displays significantly increase the complexity of touch integration and optical bonding.
Standard glass-based processes cannot be directly applied without modification.

Touch Integration Challenges

• Traditional glass-based sensors (G+G, GFF) are not suitable for high bending

• Recommended approaches:

  • On-cell or in-cell touch (common in OLED)

  • Film-based capacitive touch sensors

• Sensitivity degradation may occur in curved areas

• Controller tuning is required to maintain accuracy

Optical Bonding Considerations

Engineering recommendations:

• Consider partial bonding instead of full lamination

• Use low-stress OCA materials

• Validate under thermal cycling conditions (-20°C to 70°C or wider if required)

What are the key reliability risks of flexible displays?

Flexible displays are more sensitive to environmental and mechanical stress than rigid displays.
The primary risks include moisture ingress, mechanical fatigue, and material degradation.

Critical Risk Factors

1. Moisture and Oxygen Sensitivity
OLED-based flexible displays require advanced encapsulation (TFE).
Any damage to the barrier layer can lead to rapid failure.

2. Mechanical Fatigue
Repeated bending cycles are limited.
Industrial use cases may exceed the designed lifecycle.

3. Temperature Stability

• High temperatures accelerate degradation

• Low temperatures can reduce flexibility and increase brittleness

4. Surface Protection Limitations

• Lack of rigid cover glass reduces impact resistance

• Additional cover lens increases system complexity

Engineering conclusion:
Flexible displays are not ideal for:

• Long lifecycle industrial systems

• Wide temperature environments

• Outdoor high-brightness applications

How to design a system around a flexible display module?

Flexible display integration requires a system-level design approach, not just panel replacement.
Mechanical, electrical, and thermal aspects must be optimized together.

System-Level Design Guidelines

1. Mechanical Design

• Define minimum bending radius (R value)

• Avoid stress concentration near FPC and connector areas

• Use cushioning materials such as foam or elastomers

2. EMI and Signal Integrity

• Flexible circuits are more susceptible to interference

• Recommended actions:

  • Add shielding layers

  • Optimize routing length and layout

3. Thermal Management

• OLED performance is temperature-sensitive

• Avoid localized hotspots

4. High Brightness Requirements

• Flexible OLED has limited brightness compared to LCD

• For >1000 nits applications, LCD solutions should be evaluated

5. Touch and Display Integration

• Prefer on-cell or in-cell integration

• Avoid thick cover glass with air gaps

Flexible display vs rigid display: which is the better choice?

In most industrial applications, rigid displays remain the more reliable and cost-effective solution.
Flexible displays should only be selected when they provide a clear structural or functional advantage.

Decision Guide

Key insight:
Flexible displays often introduce complexity without delivering proportional value unless flexibility is essential.

FAQ

Can flexible displays be used in outdoor industrial environments?

They are generally not recommended due to limited brightness and environmental sensitivity.

What is the typical lifespan of a flexible OLED display?

It is usually shorter than LCD, especially under high brightness and elevated temperature conditions.

Can flexible displays support optical bonding?

Yes, but it requires low-modulus materials and careful stress management.

Are flexible displays more expensive than rigid displays?

Yes, both panel cost and integration costs are significantly higher.

What is the minimum bending radius of a flexible display?

It typically ranges from R3 to R10 mm, depending on the design and structure.
