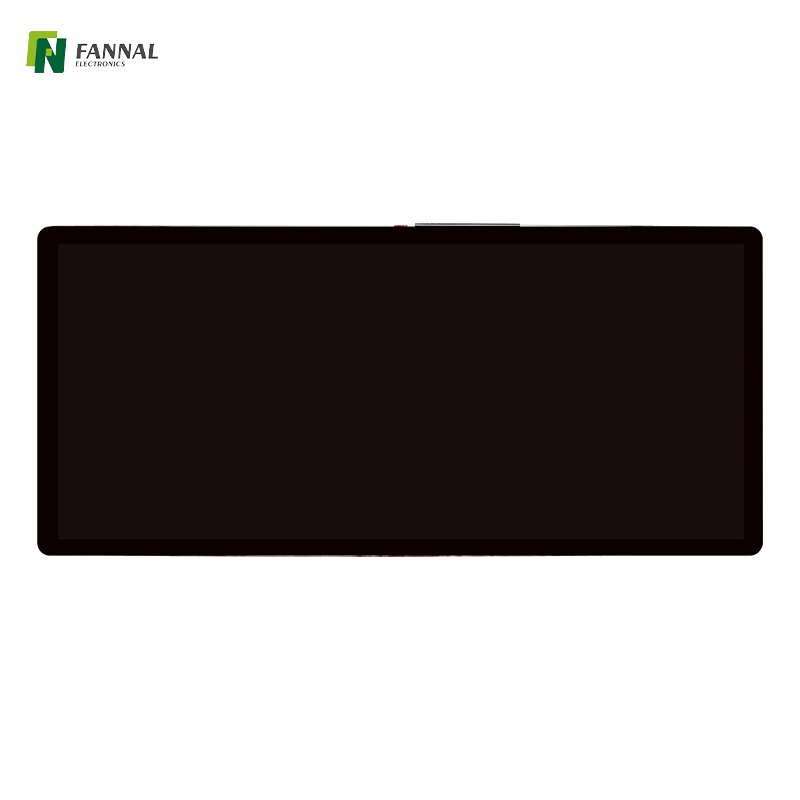

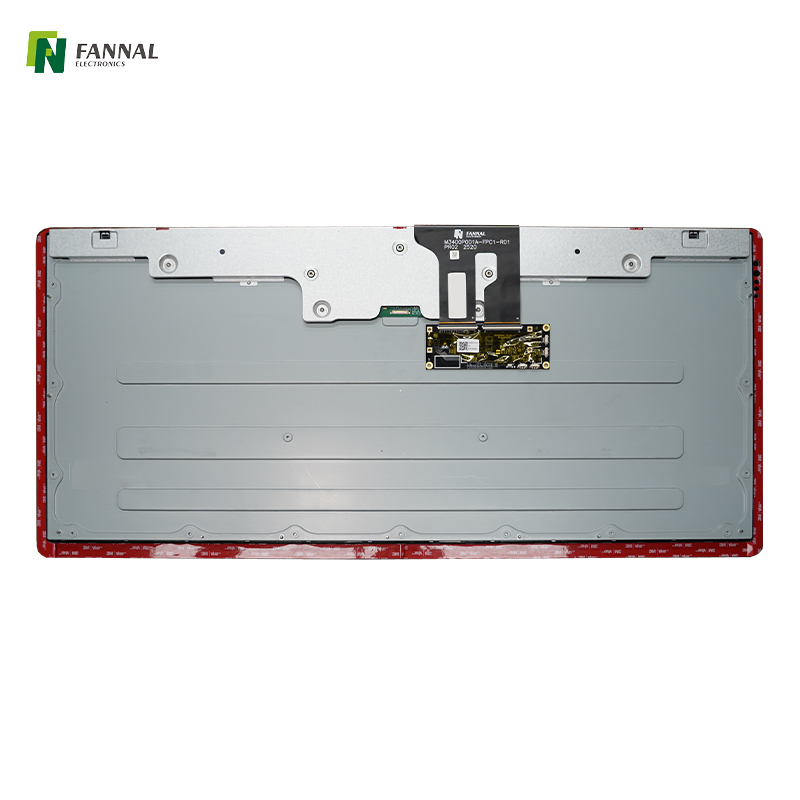

34 inch capacitive touch display module 3440x1440 resolution with 10 touch points

34 inch capacitive touch display module 3440x1440 resolution with 10 touch points

Model:
FN3400M001A
Cover OD (mm):
853x388x3
Operation Temp(℃):
0~50
Storage Temp(℃):
-20~60
Display Interface:
eDP
Resolution:
3440x1440
Brightness(cd/m²):
240

Quantity:
Availability:





Inquiry Add to Basket

34 inch capacitive touch display 10 touch points capacitive touch display module TFT display

Product Features

Product Drawing

Specification

Add Ons

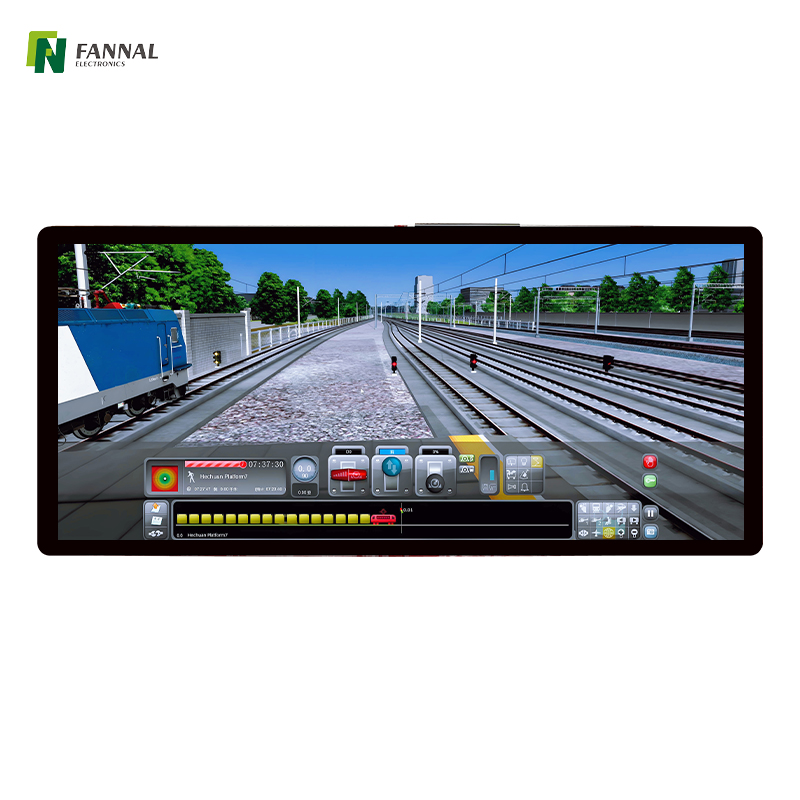

Product Application

The 34-inch capacitive touch display module is a versatile solution for a variety of applications, combining high-resolution visuals with advanced touch technology to enhance user interaction and engagement across different environments.

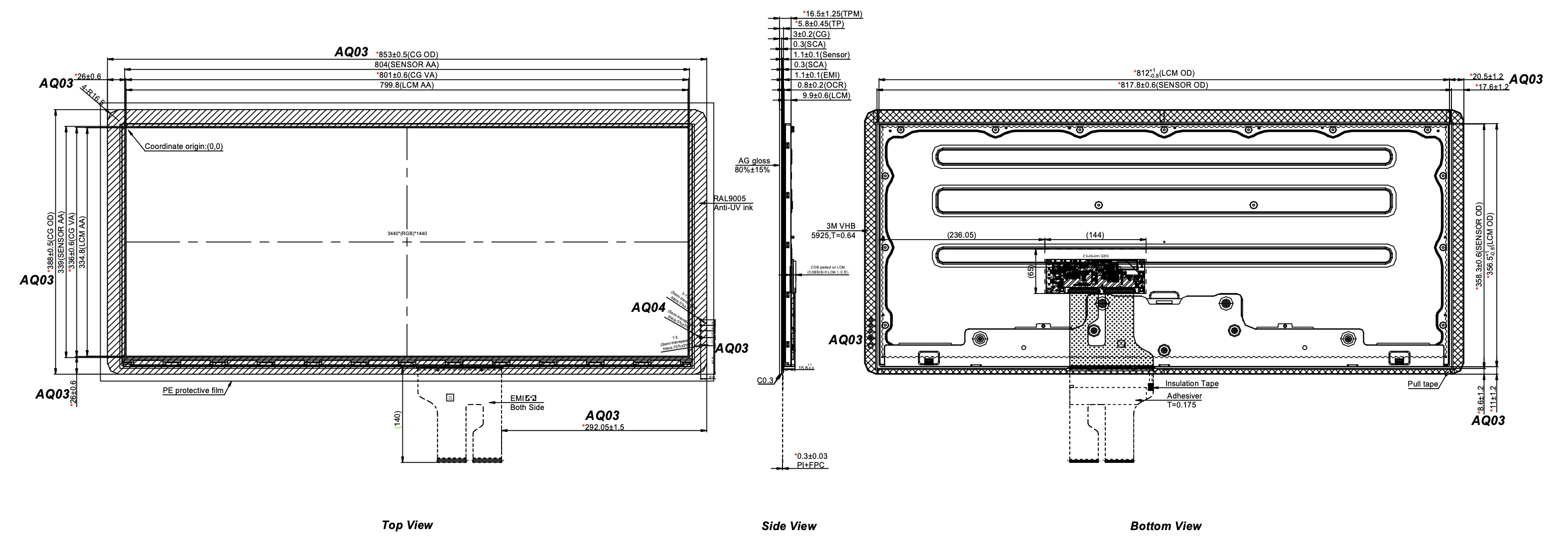

FN3400M001A drawing

General Specifications：

Size(inch):	13.3
Module:	FN133TPM

TFT LCD
Resolution:	3440x1440
Brightness（cd/m²）:	240
Display interface:	eDP
Panel type:	IPS

Touch panel
Touch type:	Capacitive touch
TP VA (mm):	801(H)x336(V)
TPM Outline Size(mm):	853(H)x388(V)x16.5(T)
TP Interface:	USB
Diver IC:	Microchip

Customization

COVER LENS:

Shape: cut in special shape, Printing: Silk printing/Ceramic printing, Material: PMMA/Glass, Thickness: 0.55mm~10.0mm, Surface treatment: AG, AR, AF, AB.

Sensor:

Sensor made by FANNAL,Narrow bezel design,Thickness selectable.

FPC:

Required shape available, Touch IC selectable, Interface selectable.

Bonding:

Air bonding/optical bonding, low reflection, All one black effect.

TFT Display:

In house manufacture/sunlight readable display/wide temperature display, IPS TFT display, Automotive grade display.

Add-on:

backlight board, AD board, wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
