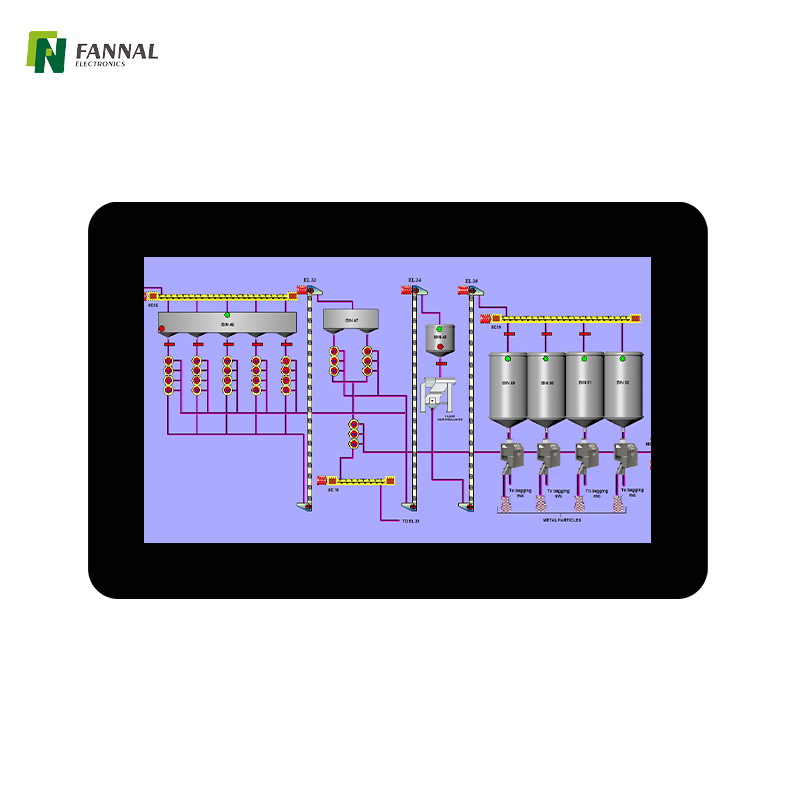

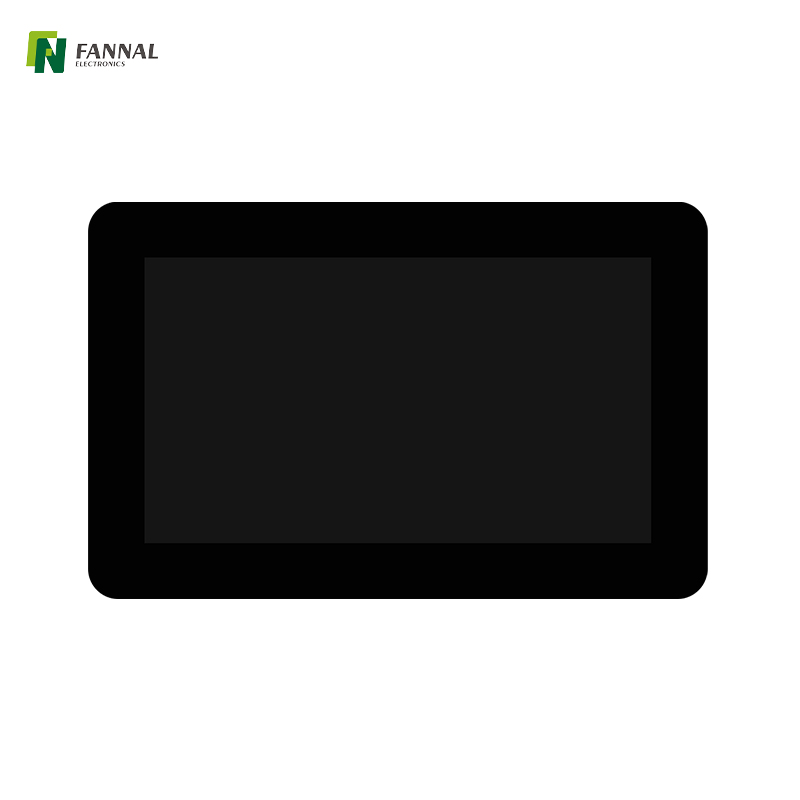

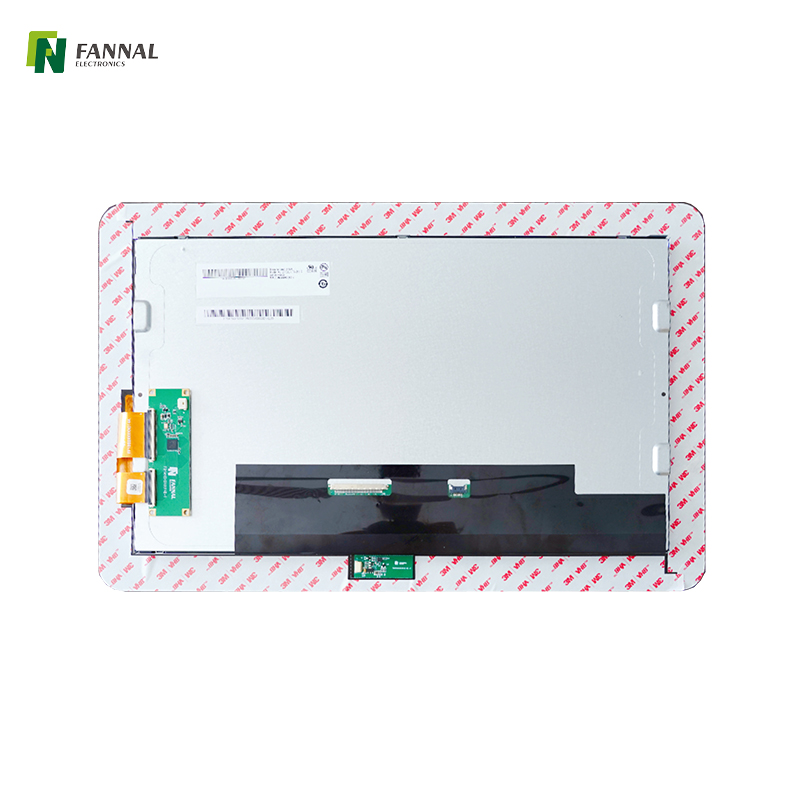

15.6 inch capacitive touch display module designed to meet demanding environments.

Model:
FN156TPM005A
Size(inch):
15.6
Cover OD (mm):
420x269x2.9
Operation Temp(℃):
-20~70
Storage Temp(℃):
-30~80
Resolution:
1366x768
Display Interface:
LVDS
TP Interface:
USB
Brightness(cd/m²):
340

Quantity:
Availability:





Inquiry Add to Basket

big touch screen display 15.6 inch display 15.6 inch touchscreen custom touch screen touch screen manufacturers in china 15.6 inch lcd 15.6 inch industrial display industrial touch display Industrial TFT Displays buy display screen

Product Features

Product Drawing

Specification

Add Ons

Product Application

The 15.6-inch capacitive touch display solution designed for industrial applications, featuring cutting-edge technology and robust specifications to meet demanding environments.

Applications

This touch display is specifically crafted for industrial applications, including:

Manufacturing control panels
Heavy machinery interfaces
Outdoor kiosks
Data collection devices in rugged environments

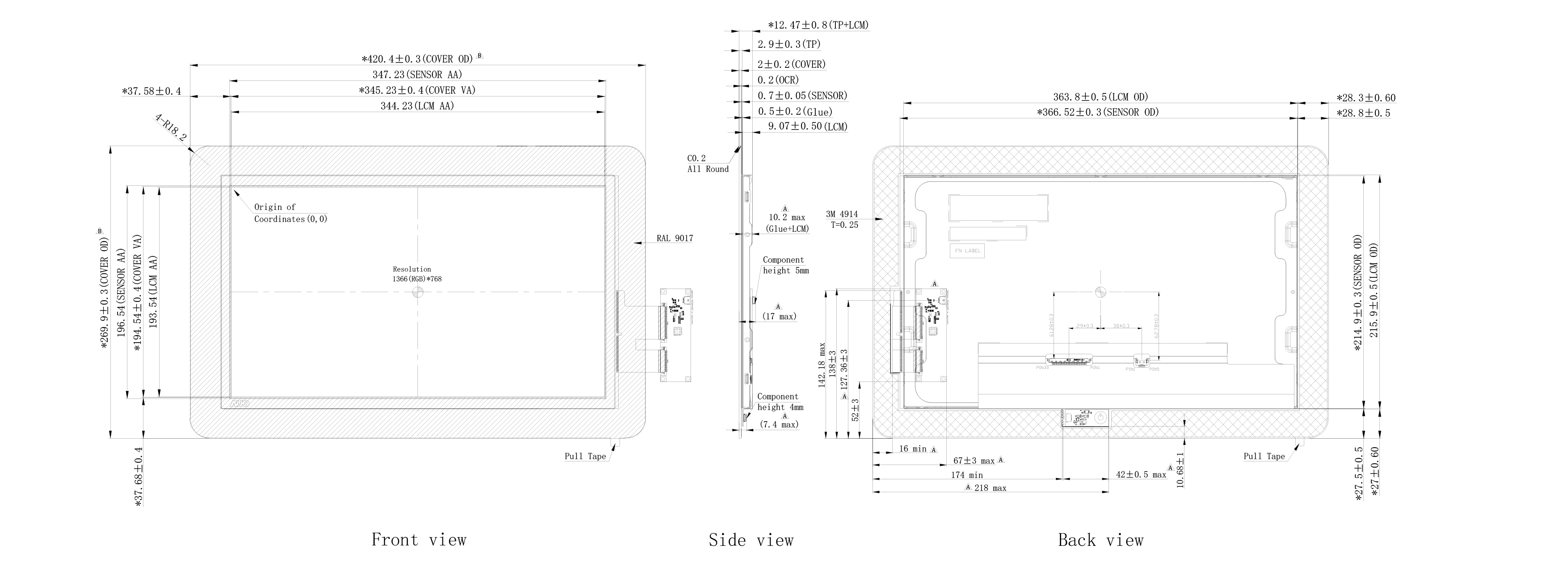

FN156BGRGRL014AQ03-Model

General Specifications：

Size(inch):	15.6
Module:	FN156TPM005A

TFT LCD
Resolution:	1366x768
Brightness（cd/m²）:	340
Display interface:	LVDS
Panel type:	IPS

Touch panel
Touch type:	Capacitive touch
TP VA (mm):	345x194
TPM Outline Size(mm):	420x269.9x12.47
TP Interface:	USB
Diver IC:	Microchip

Customization

COVER LENS:

Shape: cut in special shape, Printing: Silk printing/Ceramic printing, Material: PMMA/Glass, Thickness: 0.55mm~10.0mm, Surface treatment: AG, AR, AF, AB.

Sensor:

Sensor made by FANNAL,Narrow bezel design,Thickness selectable.

FPC:

Required shape available, Touch IC selectable, Interface selectable.

Bonding:

Air bonding/optical bonding, low reflection, All one black effect.

TFT Display:

In house manufacture/sunlight readable display/wide temperature display, IPS TFT display, Automotive grade display.

Add-on:

backlight board, AD board, wire sets.

Application

With the demand for custom projects going up every day, the bar type TFT market is growing correspondingly. And our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.
